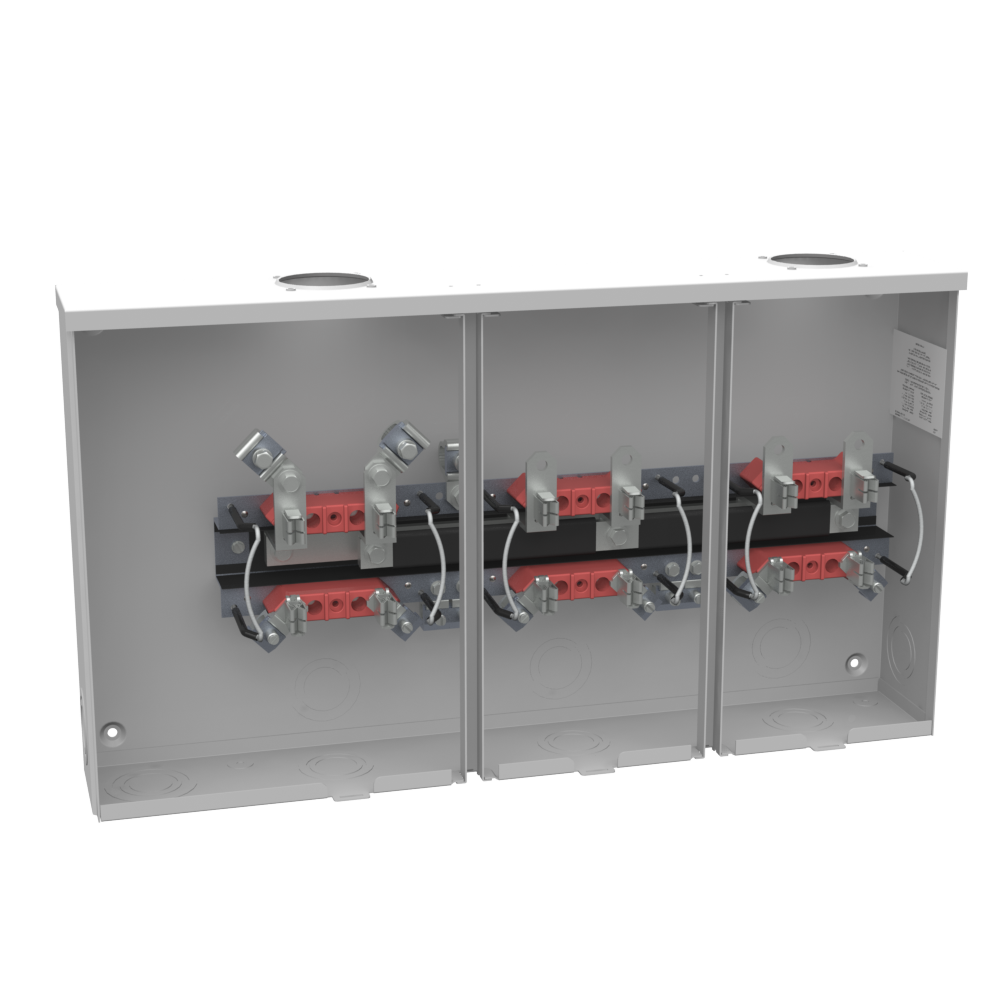

Milbank U8213-RL Ringless Meter Socket 100A 4 Terminal 3 Position

Product Description

The Milbank U8213-RL is a ringless meter socket designed for service equipment applications. This model is rated for one hundred continuous amperes and supports overhead or underground cable entry. The durable construction features a G90 galvanized steel enclosure with a powder coat finish, ensuring long-lasting reliability.

• Four terminal design for easy connections
• UL listed and approved for maximum safety
• Suitable for both overhead and underground installations

Product Highlights

The product is designed for use in various meter socket applications, providing reliable performance in residential or commercial settings.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank

Technical Specifications

• Voltage Rating: 300 VAC
• Amperage Rating: 100 Continuous Ampere
• Frequency Rating: 60 Hz
• Phase: 1
• Mounting: Surface Mount
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Cable Entry: Overhead or Underground
• Terminal: Lay in
• Hub Opening: Small Hub Opening
• Number of Meter Positions: 3 Positions
• Jaw Quantity: 4 Terminal
• Cutout Size: No Main Breaker
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 - 2/0 AWG
• Bypass Type: No Bypass
• Number of Cutouts: 0
