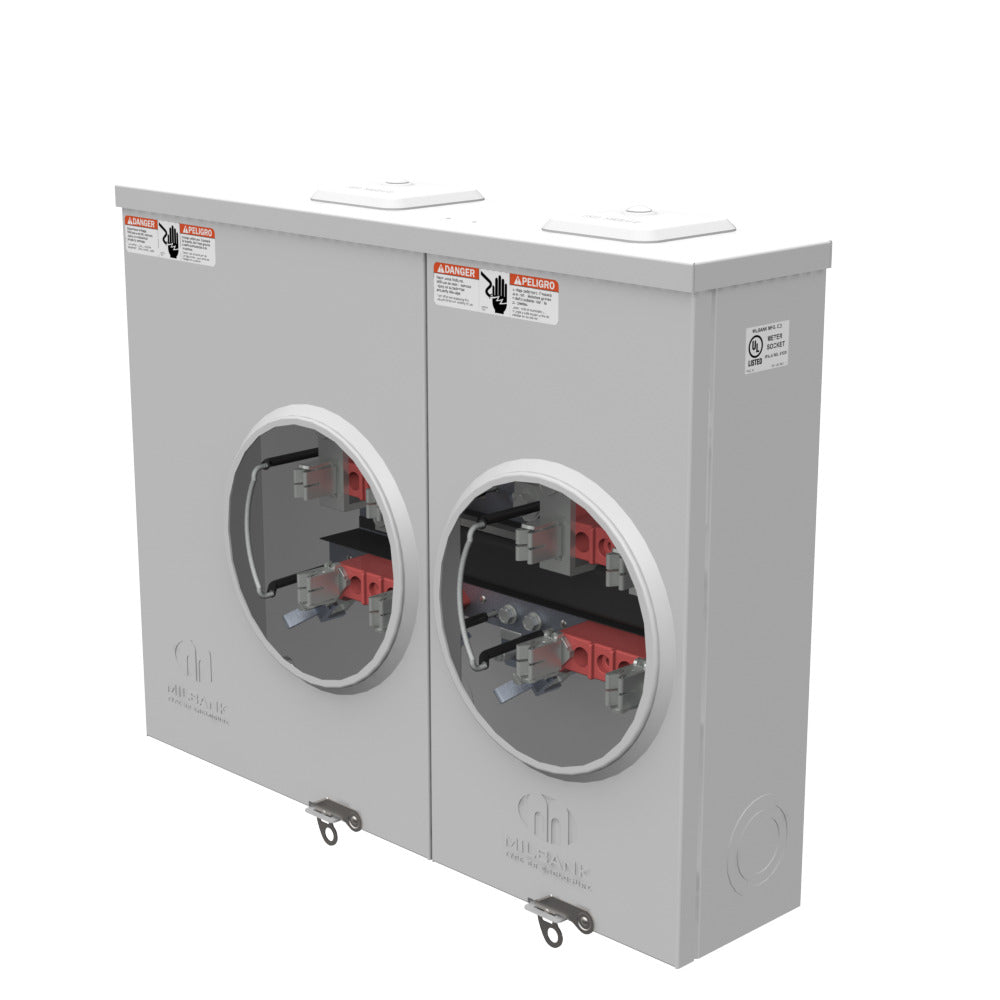

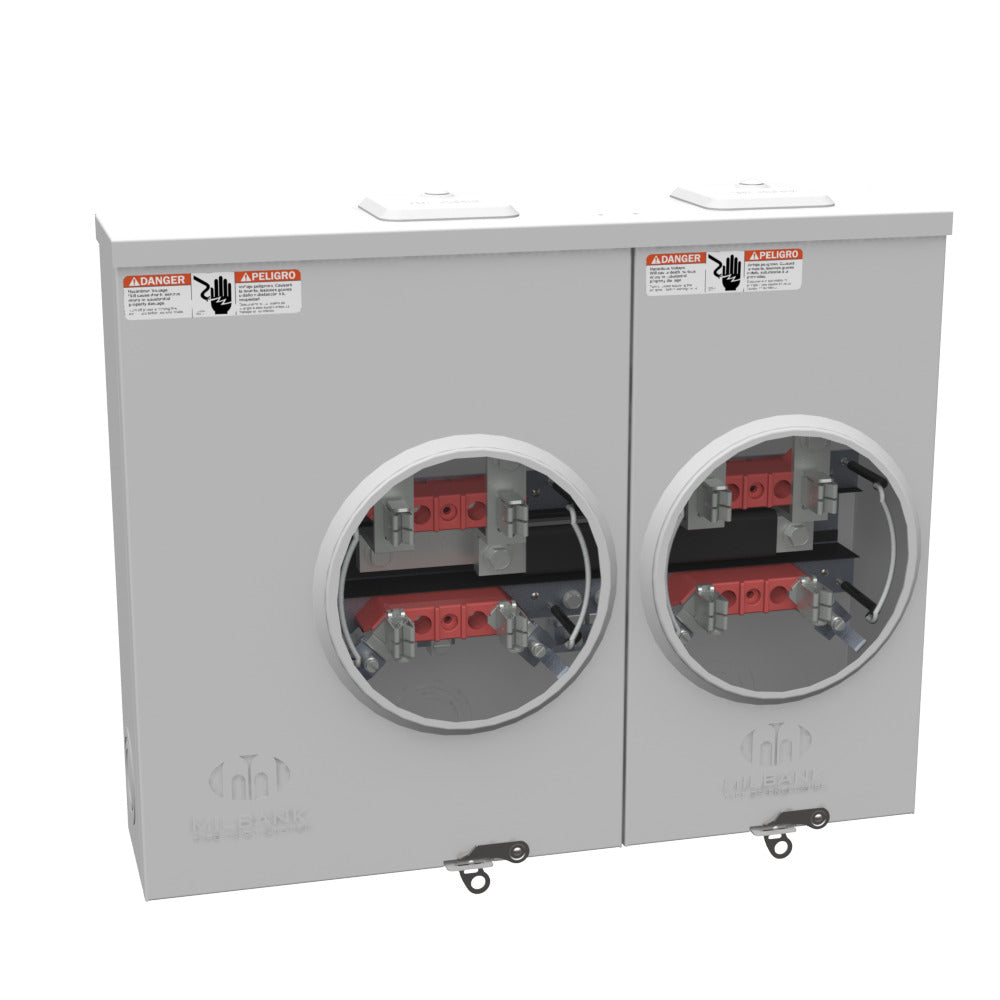

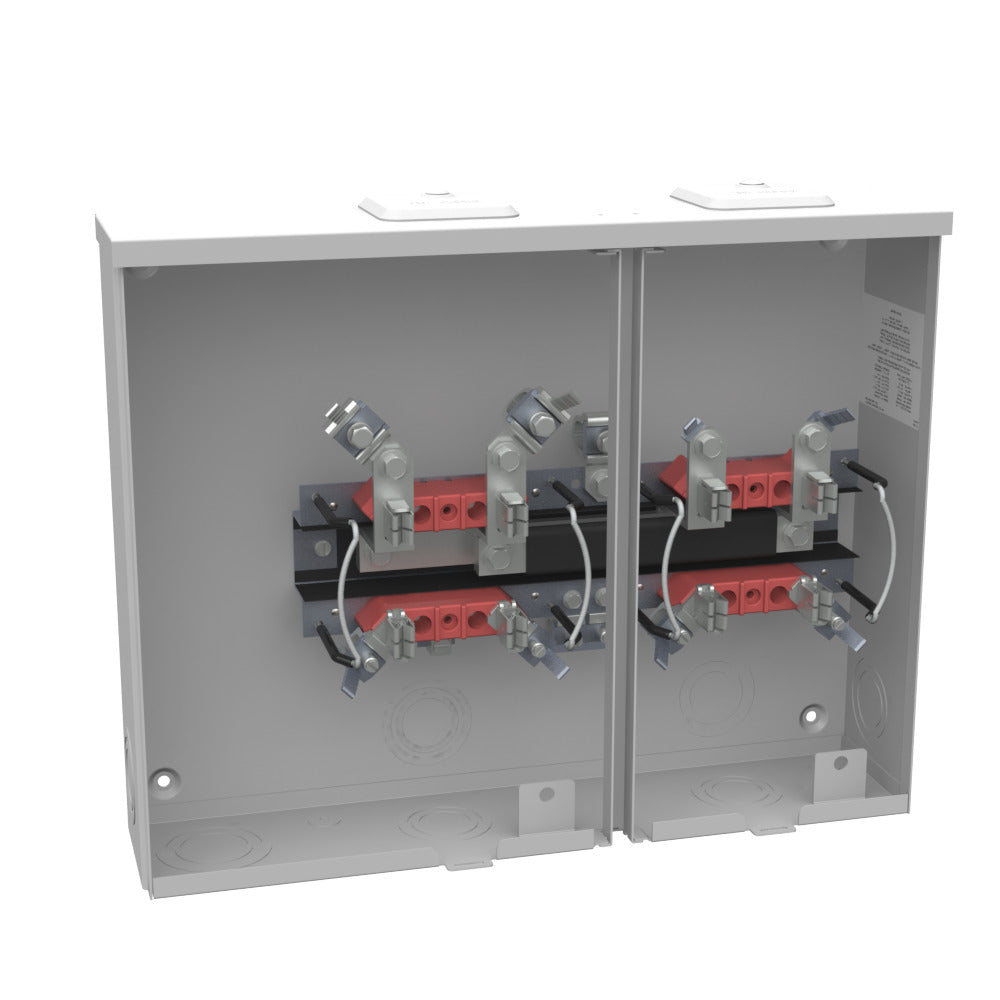

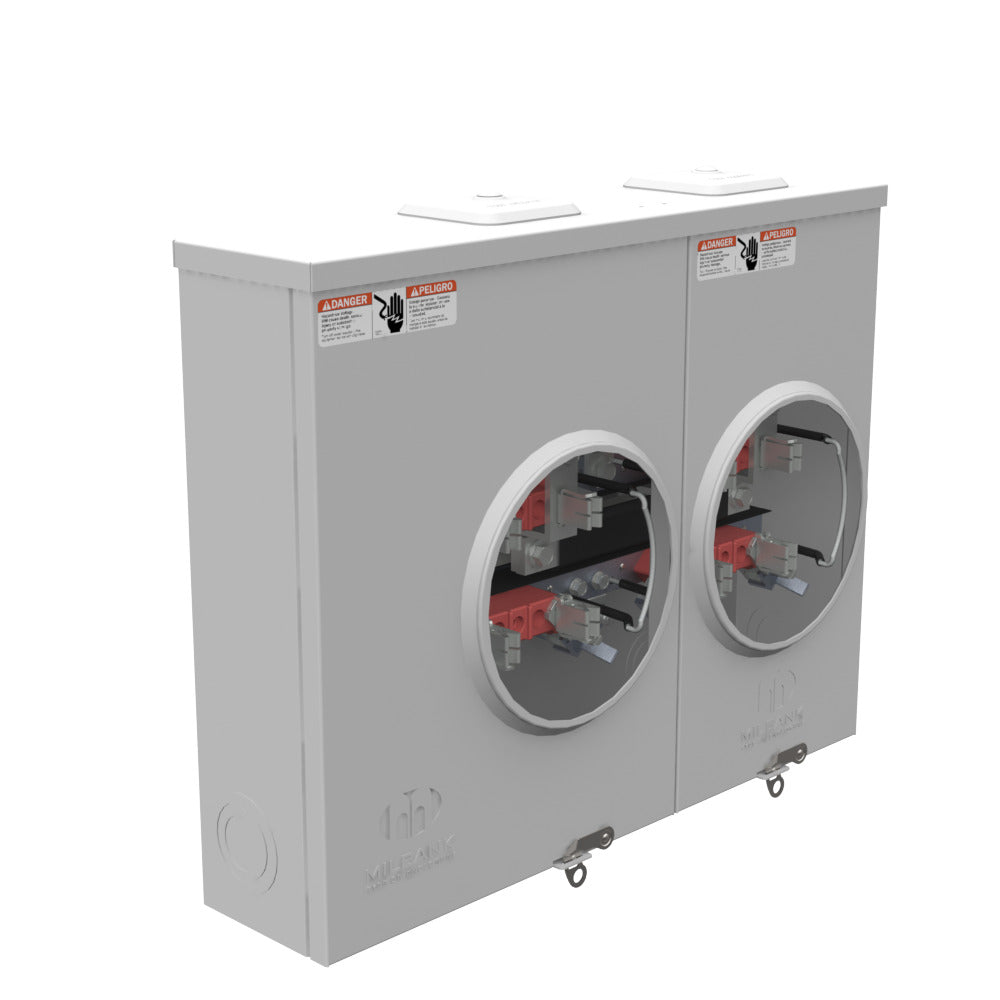

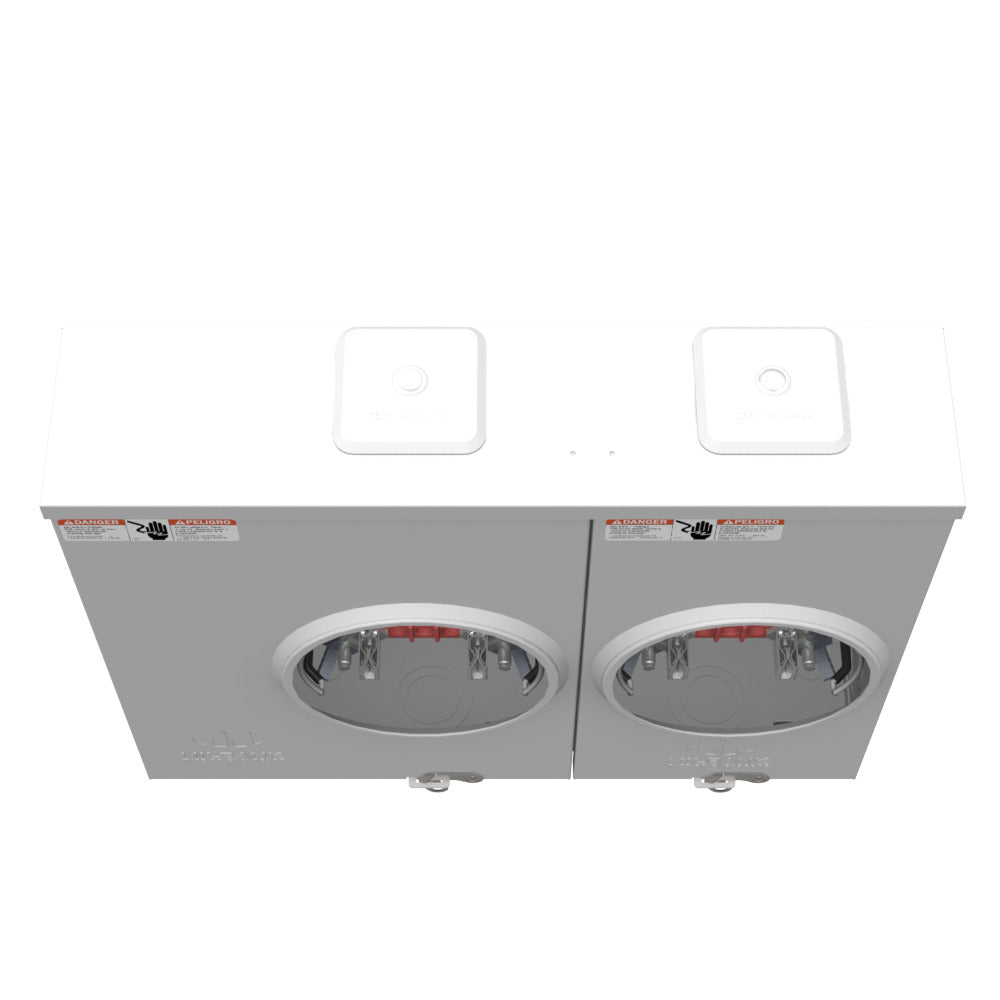

Milbank U8212-XL-KK-BLG 4 Term, Ringless, Small Closing Plate, Horn Bypass, 2 Position, 7-8 inch Barrel Lock Ground with Bracket Provision

Product Description

The Milbank U8212-XL-KK-BLG is a four-terminal ringless meter socket designed for efficient power distribution. This product features a small closing plate and a horn bypass for easy access to metering terminals. It has a two-position setup with a seven-eighths inch barrel lock ground, complete with a bracket provision for secure installation.

• Four terminal configuration for enhanced connectivity
• Compatible with overhead or underground cable entry
• Constructed from G90 galvanized steel for durability

Product Highlights

This meter socket is suitable for a variety of applications, delivering reliable performance in power distribution systems.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U8212-XL-KK-BLG
• Amperage Rating: 100 Amps
• Voltage Rating: 300 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel with Powder Coat Finish
• Size: Four point five inches length x twenty point three one three inches width x sixteen inches height
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Phase: 1
• Standard: UL Listed; Type 3R
• Item Type: Ringless Meter Socket
