Milbank U8173-XL-KK-BLG 5 TERM RNGLS SML CLS PLT HRN BYPS 200 AMP

Product Description

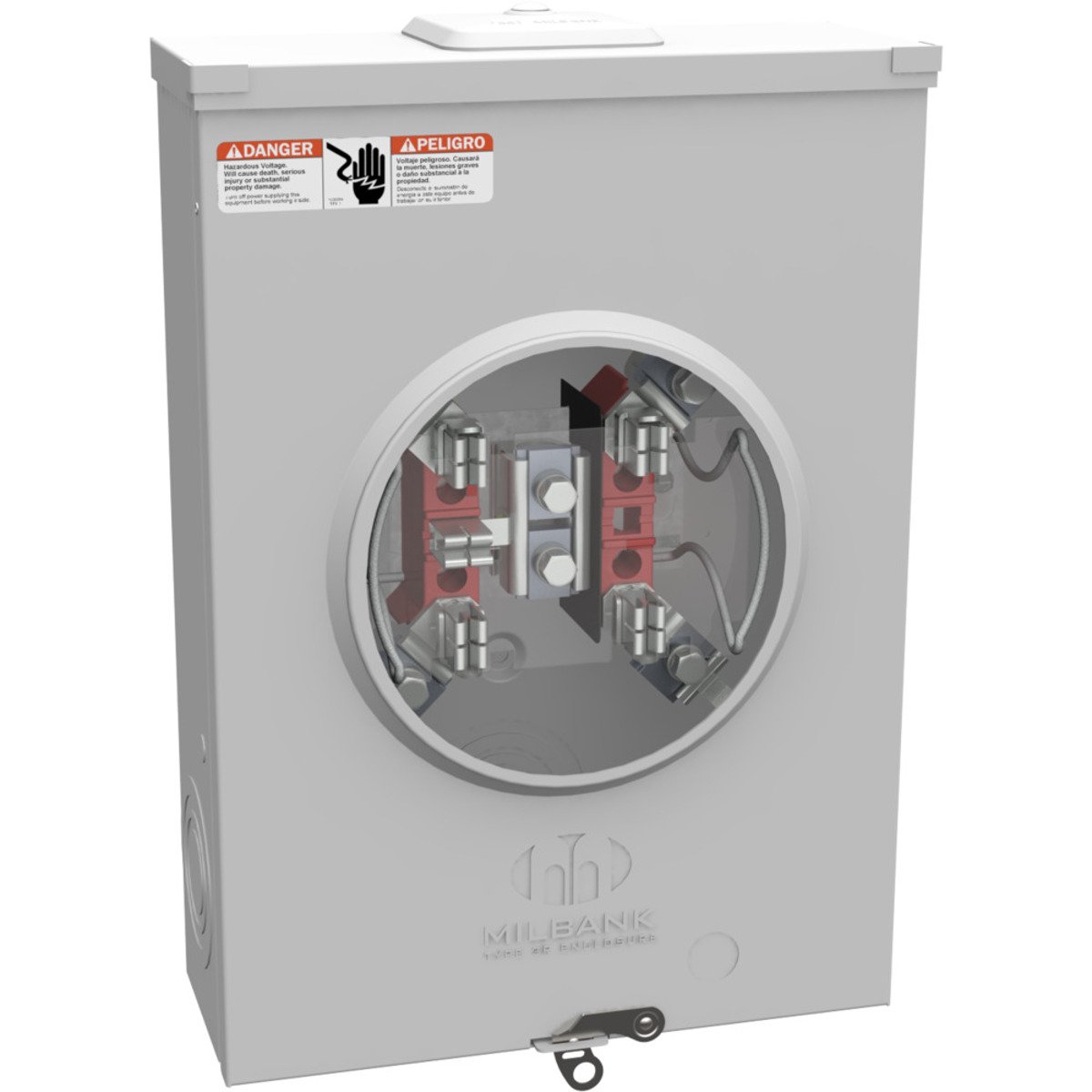

The Milbank U8173-XL-KK-BLG is a 200 amp ringless meter socket designed for overhead or underground service. This model features a surface-mounted design and is constructed from G90 galvanized steel with a powder-coated finish for durability. It includes five terminal jaws and supports both line and load side connections.

• Rated for 200 amps and 600 volts AC
• Surface mountable with barrel lock and guard provision
• Accommodates wire sizes from six AWG to 350 KCMIL

Product Highlights

The Milbank U8173-XL-KK-BLG is ideal for electrical distribution applications, providing secure and efficient connections for electric meters. Its robust construction ensures longevity and reliability in various environmental conditions.

Product Information

Standard Information

• Catalog Number: U8173-XL-KK-BLG
• Brand: Milbank

Technical Specifications

• Amperage Rating: 200
• Voltage Rating: 600 Volts AC
• Frequency Rating: 60 Hertz
• Application: Meter Socket
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Dimensions: 4.125L x 11W x 15.5H inches
• Number of Jaws: 5 Terminal
• Phase: 1
• Mounting: Surface Mount
