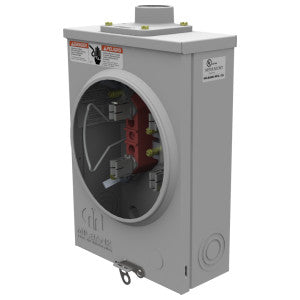

Milbank U7487-YL-TG-KK-BLG Meter Socket Ringless 125A 600V 1-Phase 4-Jaw OH/UG 1-1/4 in Hub Triplex Ground Horn Bypass Surface-Mount NEMA 3R

Product Description

The Milbank U7487-YL-TG-KK-BLG is a ringless meter socket designed for 125 amperes and rated at 600 volts AC. This product features a surface-mounted G90 galvanized steel enclosure for durability. The socket is equipped with a barrel lock and provision for a guard. It has four terminal jaws and accommodates a 1-1/4 inch hub opening.

• Rated for 125 Amps and 600 Volts AC
• Surface mount with G90 galvanized steel enclosure
• Features four terminal jaws for robust connectivity

Product Highlights

The Milbank meter socket is suitable for both overhead and underground installation. It features lay-in connections that allow for easy wiring with conductors between size six and twenty AWG on both line and load sides. The socket is UL listed, ensuring compliance with electrical standards.

Product Information

Standard Information

• Manufacturer: Milbank
• Part Number: U7487-YL-TG-KK-BLG

Technical Specifications

• Amperage Rating: 125 Amp
• Voltage Rating: 600 Volt AC
• Number of Jaws: 4
• Dimensions: 8 Inch Length x 3-5/16 Inch Width x 11-1/2 Inch Height
• Knockouts: (1) 1-1/2 Inch, (2) 1-1/2 Inch, (3) 2 Inch, (4) 1-1/4 Inch, (6) 1/4 Inch Concentric
• Country of Origin: United States
• Standards: UL Listed
• Finish: Powder Coated
