Milbank U7487-YL-QG-KK Ringless Meter Socket 600 VAC 125 A NEMA 3R

Product Description

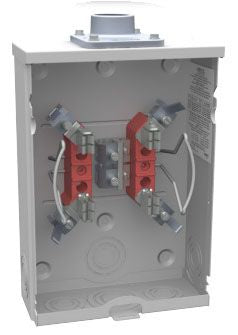

The Milbank U7487-YL-QG-KK is a Ringless Meter Socket rated for 600 VAC and 125 Amp continuous load. This meter socket is suitable for both overhead and underground cable entry and features a NEMA 3R enclosure.

• Four terminal jaws
• Horn bypass type
• 1-1/4 inch hub opening

Product Highlights

The Ringless Meter Socket is designed for durability and reliable performance. It meets UL standards and is suitable for diverse applications in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Milbank Manufacturing
• Category: Safety Socket Bypass Meter Sockets

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 125 A
• Wire Size: 6 - 2/0 AWG
• Dimensions: 11.5 inches H x 8 inches W x 3.31 inches L
• Insulation: Glass Polyester
• Enclosure Type: NEMA 3R
• Feed Type: Overhead, Underground
• Mounting Type: Surface
