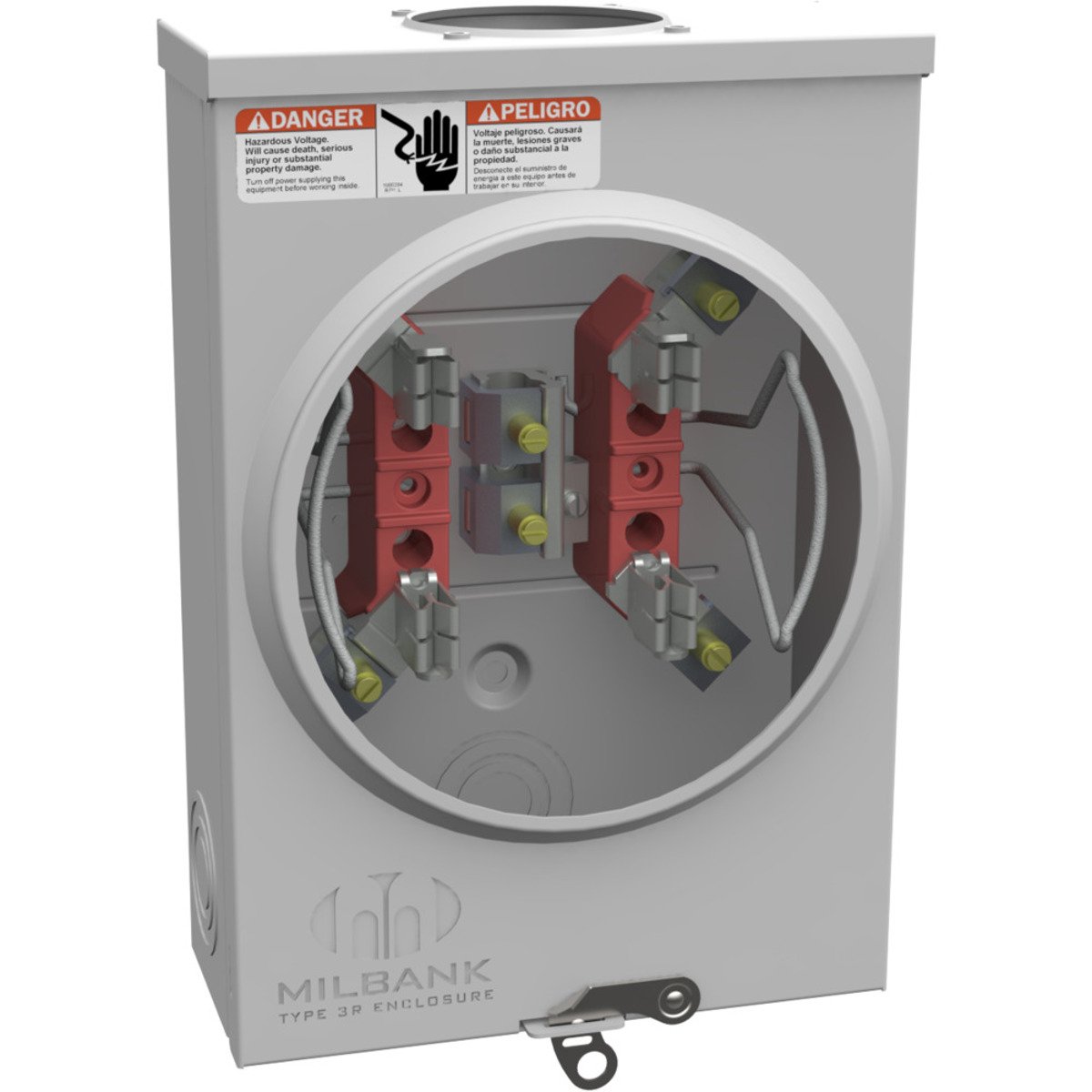

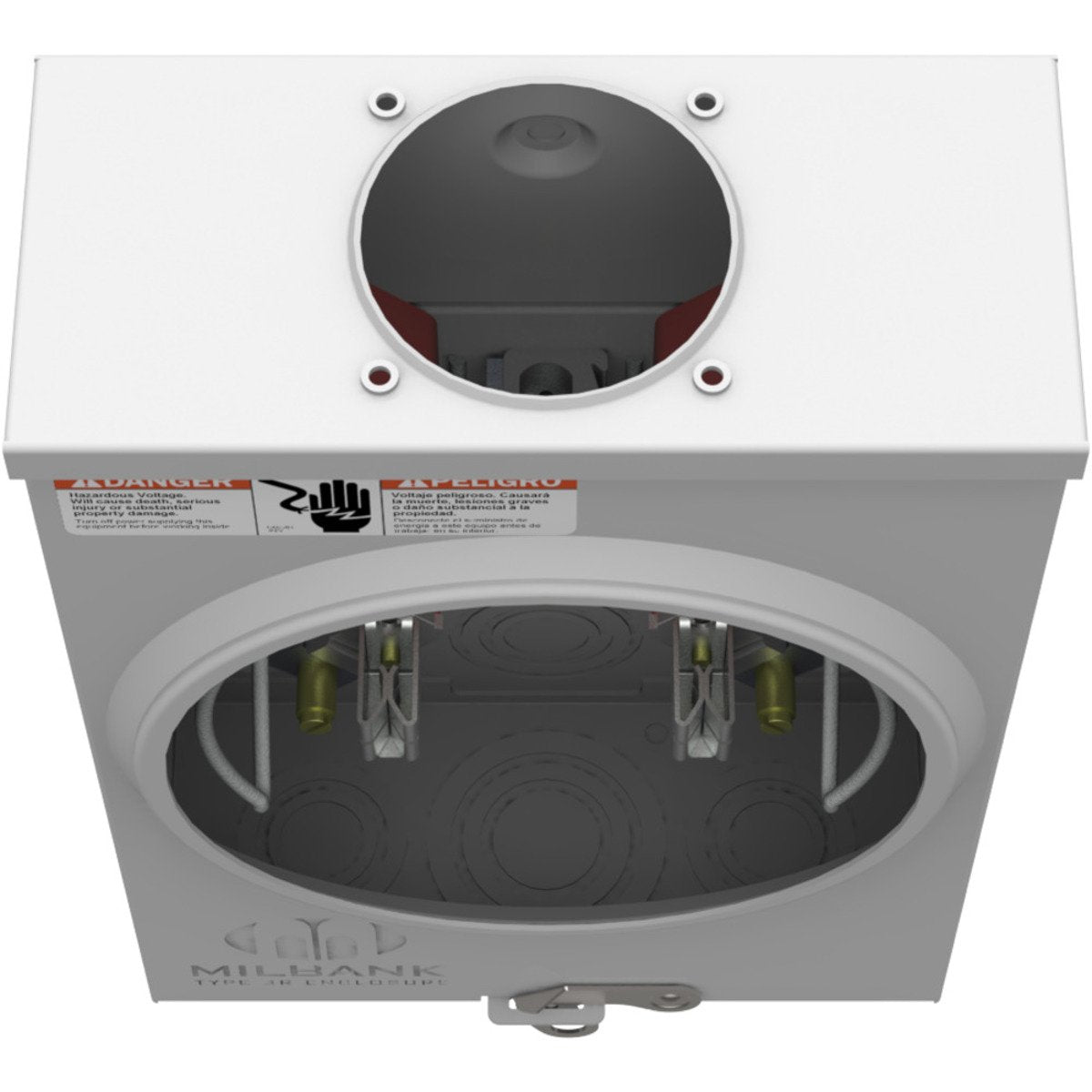

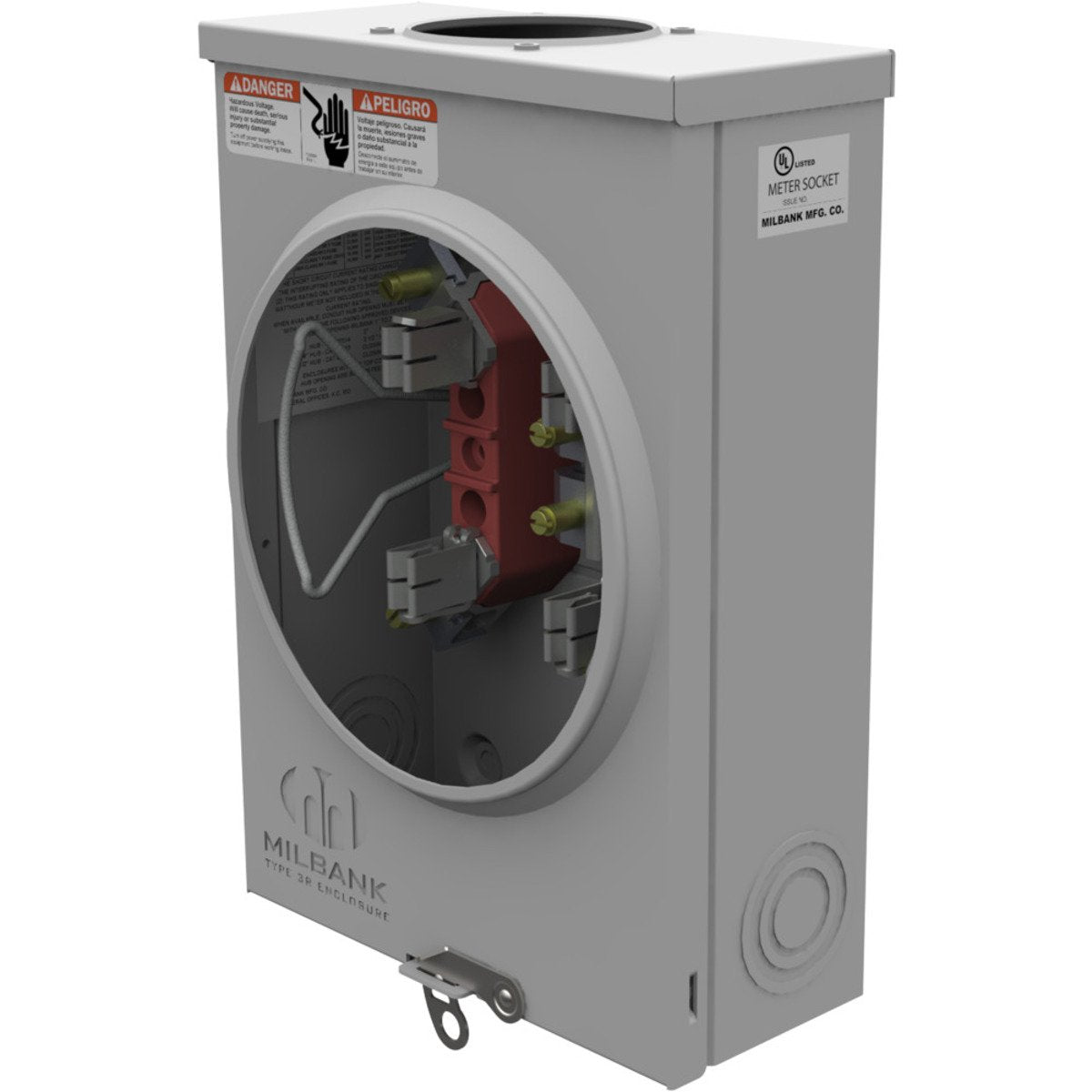

Milbank U7487-RL-TG Single Position Meter Socket 125 Amp 1 Phase Ringless No Bypass 4 Term OH UG 600V Triplex

Product Description

The Milbank U7487-RL-TG is a single position meter socket rated for 125 amps and designed for 1 phase applications. This product features a ringless design and does not allow for bypass, making it ideal for various metering setups. The socket can be used for overhead or underground applications and is constructed from G90 galvanized steel with a powder coat finish, ensuring durability.

• Rated for 125 amps
• Designed for overhead or underground cable entry
• Ringless with no bypass functionality

Product Highlights

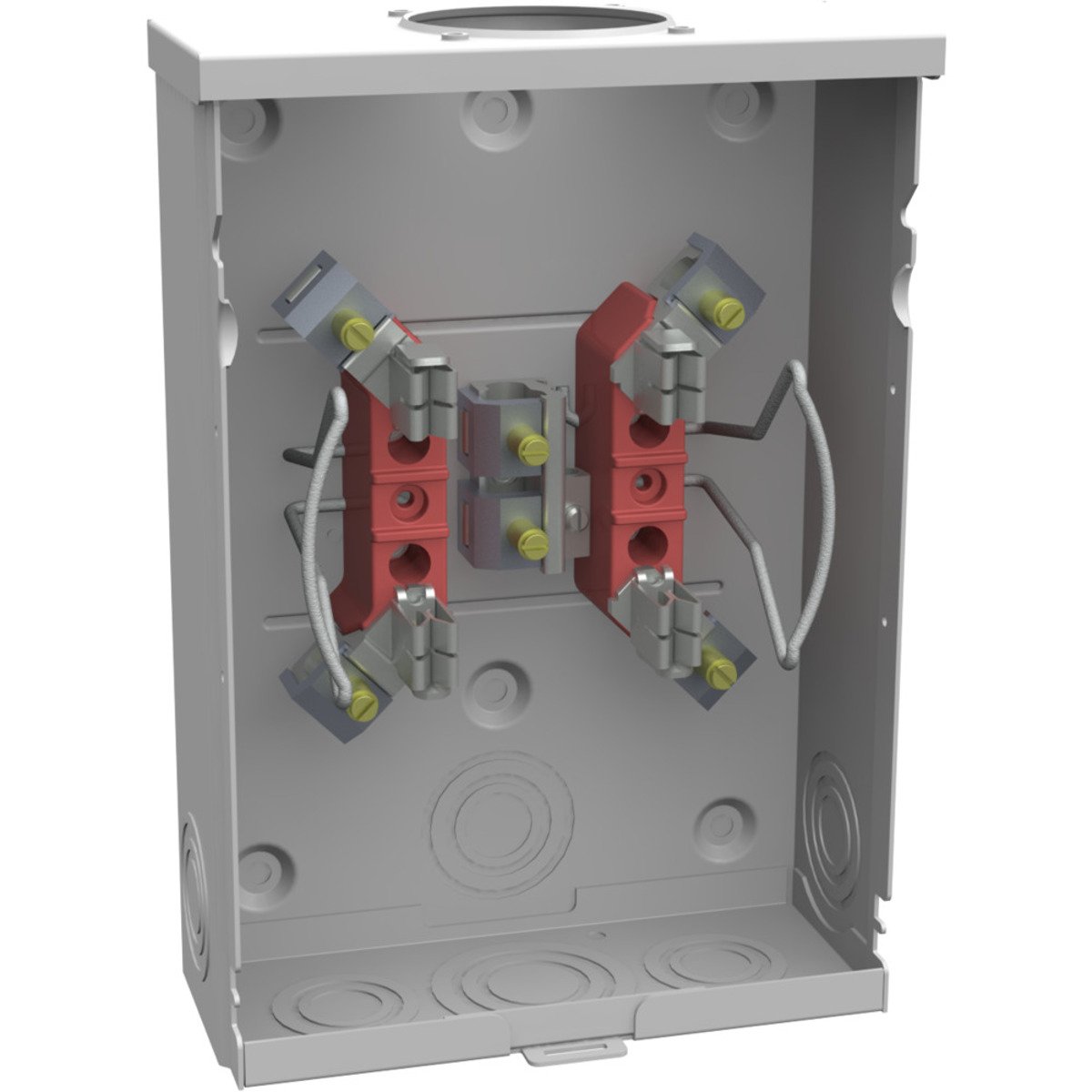

This meter socket accommodates multiple wire types and sizes, supporting 6 to 2/0 AWG copper or aluminum connections at both line and load sides. It includes four lay-in terminal jaws and comes prepped with concentric knockouts to ease installation.

Product Information

Standard Information

• Catalog Number: U7487-RL-TG
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 125
• Voltage Rating: 600 Volts AC
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
• Dimensions: 3.313 inches (Length) x 8 inches (Width) x 11.5 inches (Height)
• Country of Origin: United States
• Terminals: Lay In
• Number of Jaws: 4 Terminal
