Milbank U7487-RL-TG-KK 4 Term Ringless Small Hub Opening Triplex Ground Horn Bypass 125 Amp

Product Description

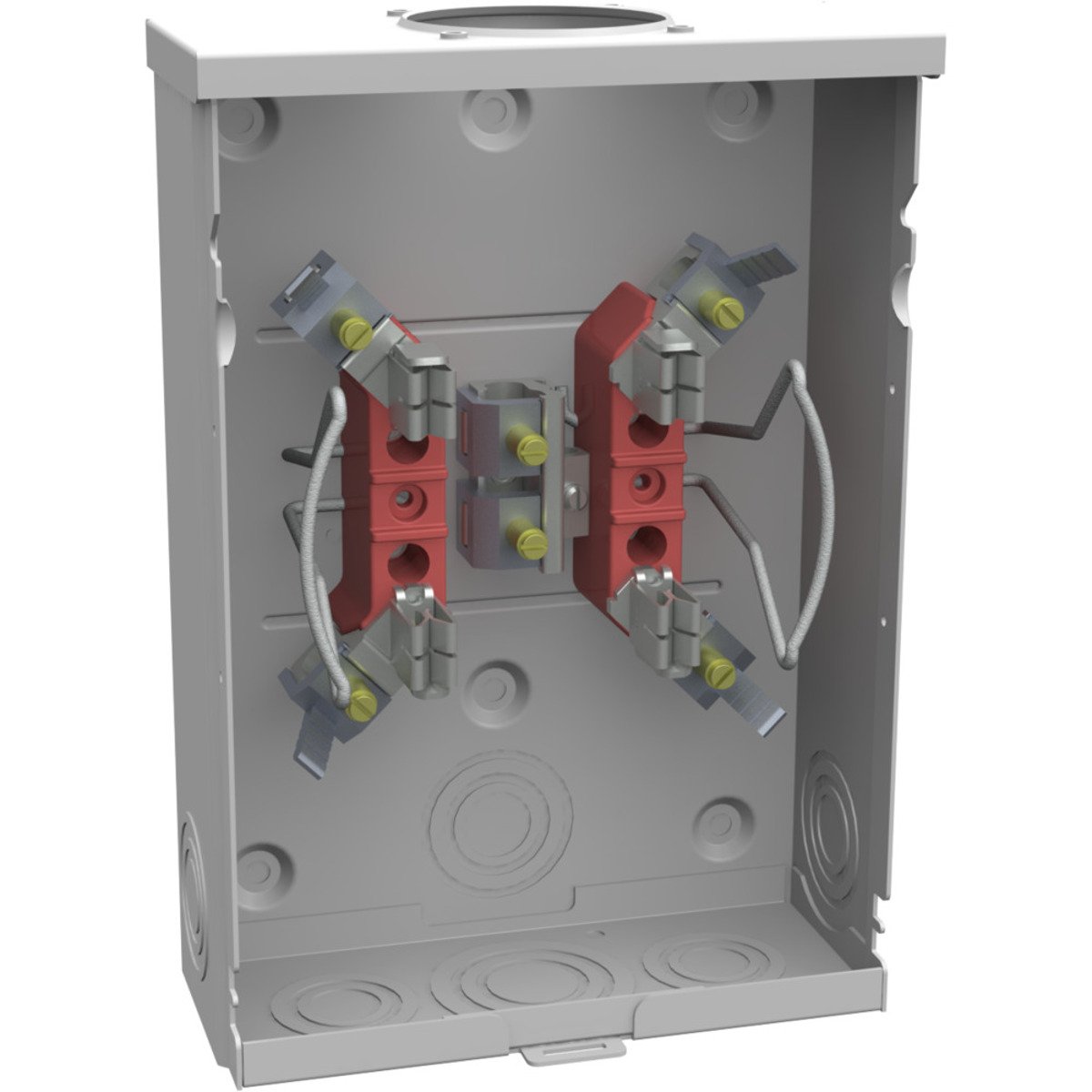

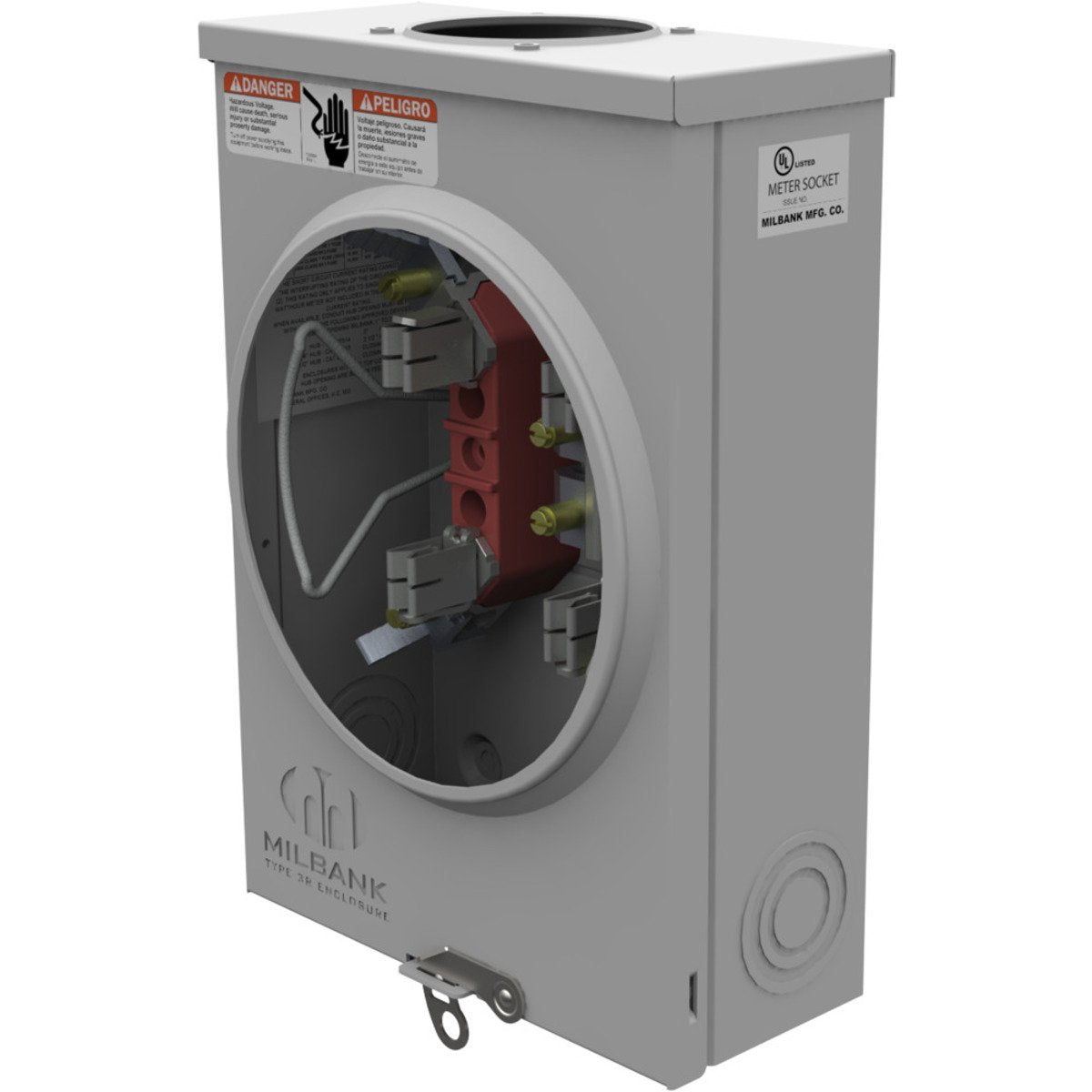

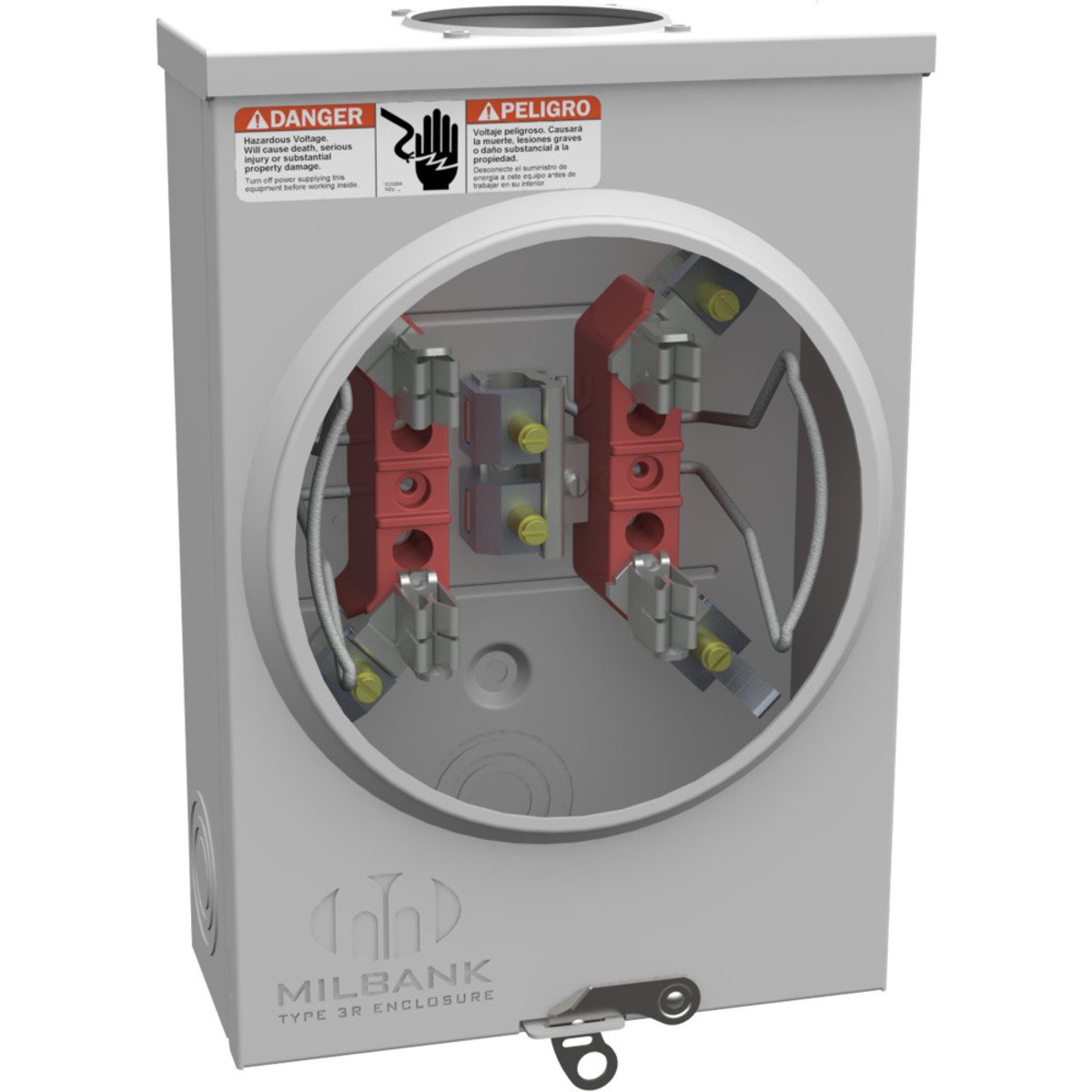

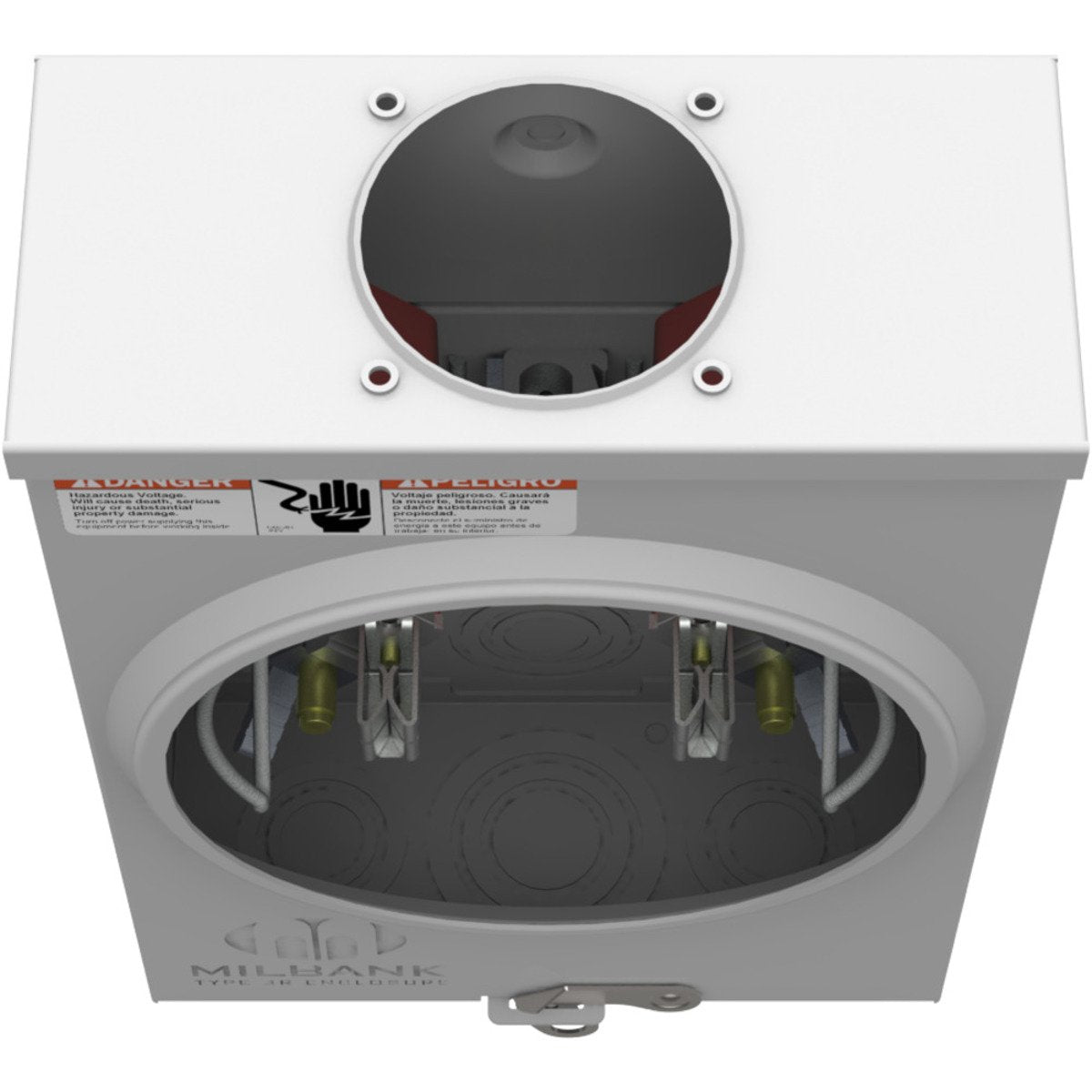

The Milbank U7487-RL-TG-KK is a ringless meter socket with a horn bypass. It is rated for 125 amps and 600 volts AC. This meter socket is designed for surface mounting and features a G90 galvanized steel enclosure with a powder-coated finish. It is equipped with four terminal jaws and a small hub opening. This 3-wire configuration allows for overhead and underground cable entry with lay-in terminal connections.

• Rated for 125 amps and 600 volts AC
• G90 galvanized steel construction
• Small hub opening and four terminal jaws

Product Highlights

This meter socket is UL listed, ensuring compliance with safety standards. It is ideal for residential and commercial applications requiring reliable power distribution.

Product Information

Standard Information

• Brand: Milbank
• MPN: U7487-RL-TG-KK

Technical Specifications

• Amperage Rating: 125 Amps
• Voltage Rating: 600 Volts AC
• Frequency Rating: 60 Hertz
• Enclosure: NEMA 3R
• Mounting: Surface Mount
• Construction Material: G90 Galvanized Steel with Powder Coat Finish
• Size: 8 Inches long x 3.313 Inches wide x 11.5 Inches high
• Terminals: Lay In
• Connection Type: Overhead or Underground
• Country of Origin: United States
