Milbank U7487-RL-QG-KK 4 Term, Ringless, Small Hub Opening, Quadplex Ground, Horn Bypass, 125 Amp

Product Description

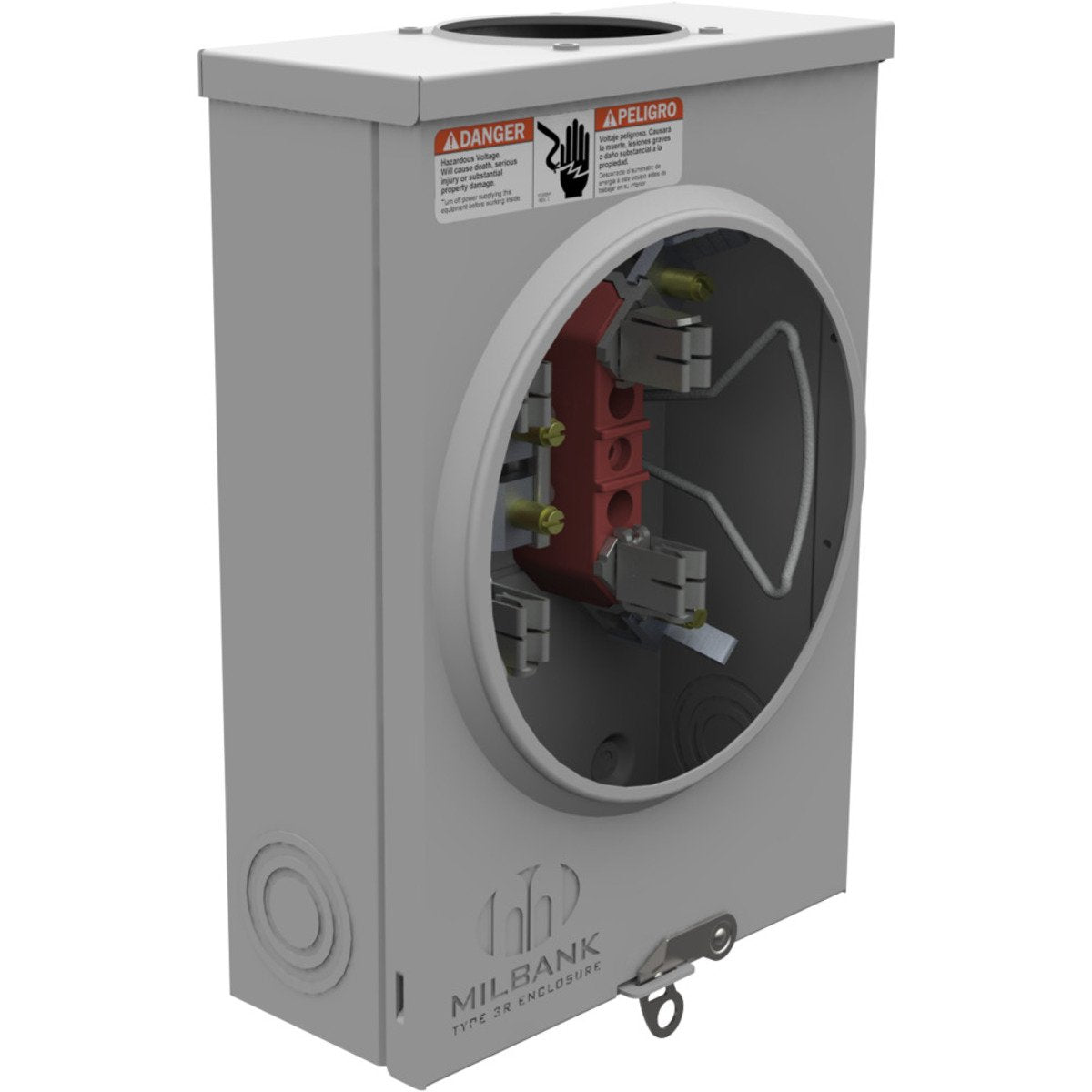

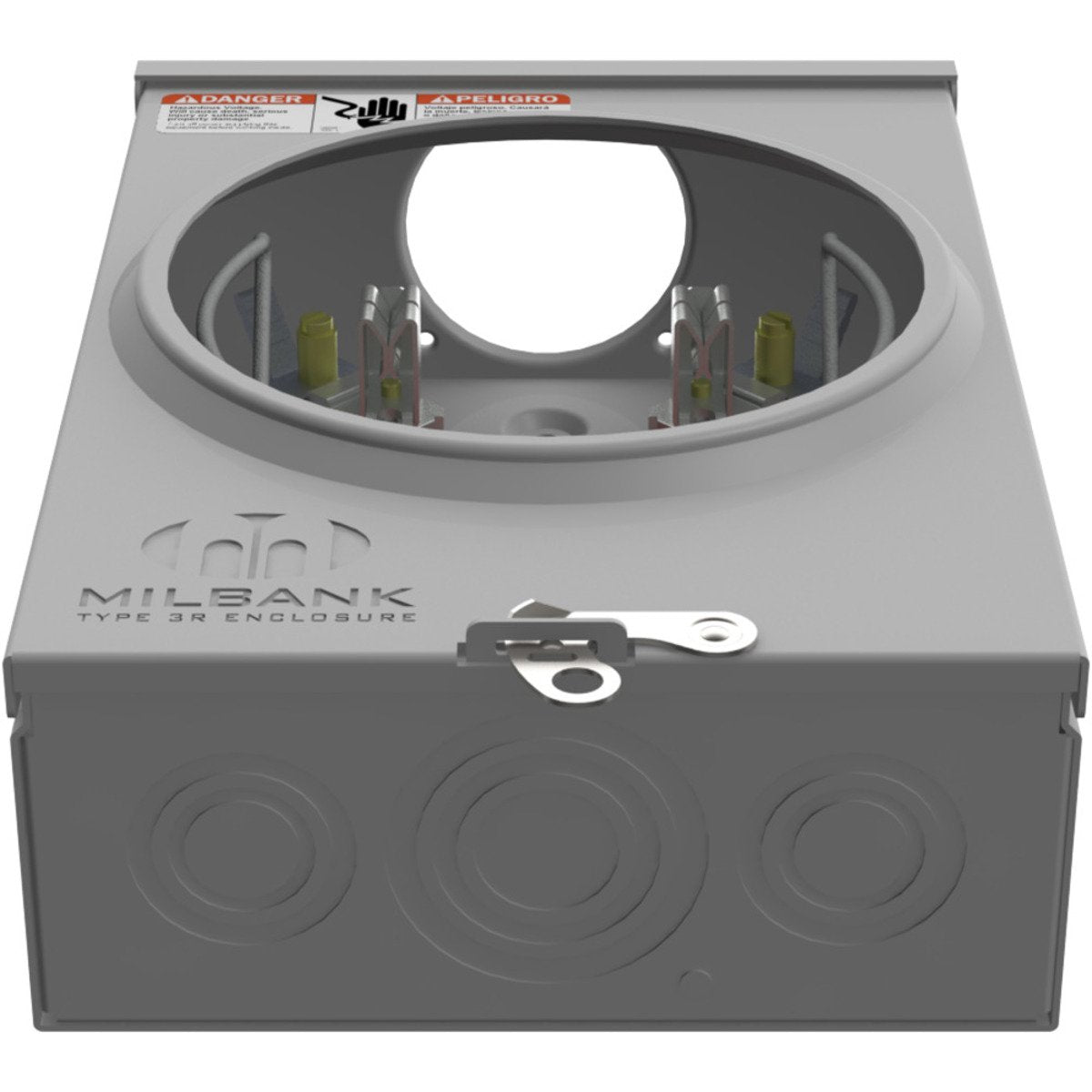

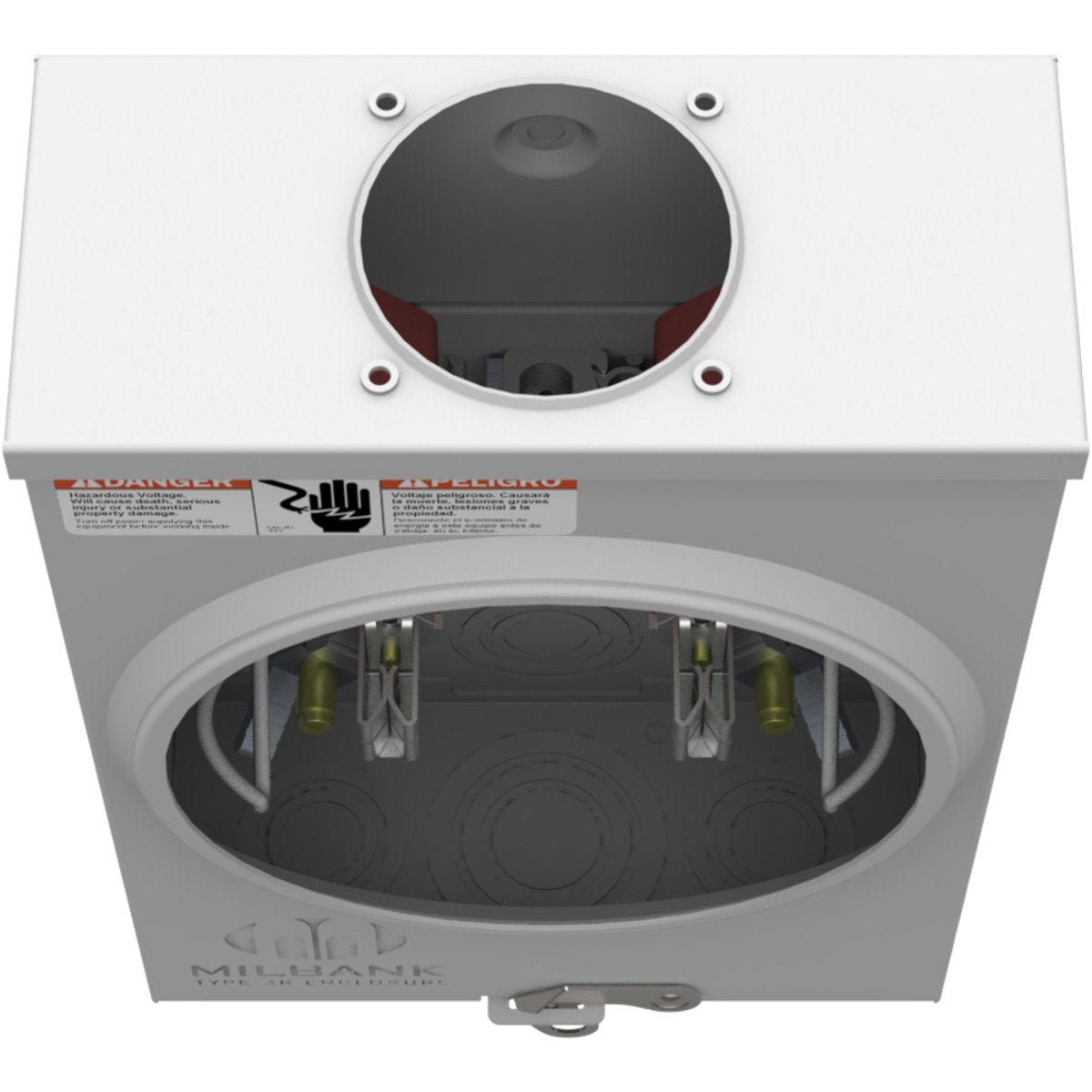

The Milbank U7487-RL-QG-KK is a 4 Term, Ringless meter socket with a small hub opening, quadplex ground, and horn bypass, designed for 125 Amp service. It supports overhead or underground cable entry and features a G90 galvanized steel enclosure with a powder coat finish. Suitable for meter mounting base applications, it operates at 60 Hertz and is UL Listed;Type 3R compliant.

• 125 Continuous Ampere
• Horn Bypass
• Overhead or Underground Cable Entry

Product Highlights

This meter socket features lay-in terminals and glass polyester insulation, ensuring reliable performance and easy installation.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U7487-RL-QG-KK
• Country of Origin: United States

Technical Specifications

• Catalog Number: U7487-RL-QG-KK
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 125
• Application: Meter Socket
• Bypass Type: Horn
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed;Type 3R
• UPC: 784572141162
• GTIN: 00784572141162
• Item Type: Ringless Meter Socket
• Length: 3.313 Inch
• Width: 8 Inch
• Height: 11.5 Inch
• Terminals: Lay In
• Voltage Rating: 600 Volts Alternating Current
• Main Breaker Size: No Main Breaker
• Equipment Ground: Quadplex Ground
• Hub/Closing Plate: Small Hub Opening
• Line Side Wire Range: 6 - 2/0 AWG
• Load Side Wire Range: 6 - 2/0 AWG
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Terminal Type: Lay-In
• Feed Type: Combination Overhead-Underground
• Wire Size: 6 - 2/0 AWG
