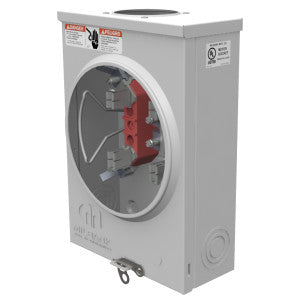

Milbank U7487-RL-KK-BL Meter Socket Ringless 125A 600V 1-Phase 4-Jaw OH/UG Small Hub Opening Horn Bypass Surface-Mount NEMA 3R

Product Description

The Milbank U7487-RL-KK-BL is a ringless meter socket designed for overhead and underground use. Rated for 125 amps at 600 volts, this surface-mount meter socket features a G90 galvanized steel enclosure with a powder-coated finish. This unit includes a barrel lock and four terminal jaws, accommodating wire sizes from six to twenty AWG on both line and load sides.

• Rated for 125 amps and 600 volts AC
• Overhead and underground cable entries
• UL listed for safety compliance

Product Highlights

This product is ideal for residential and commercial applications requiring reliable power distribution with easy installation in limited spaces.

Product Information

Standard Information

• Brand: Milbank
• MPN: U7487-RL-KK-BL

Technical Specifications

• Dimensions: 8 inches length x 3-5/16 inches width x 11-1/2 inches height
• Material: G90 galvanized steel
• No. of Jaws: 4
• Mounting Type: Surface
• Connection Type: Lay-In line and load side
• Knockouts: 1-1/2 inches (1), 2 inches (3), 1-1/4 inches (4), 1/4 inches (6)
• Voltage Rating: 600 Volt AC
• Amperage Rating: 125 Amp
• Standards: UL Listed
