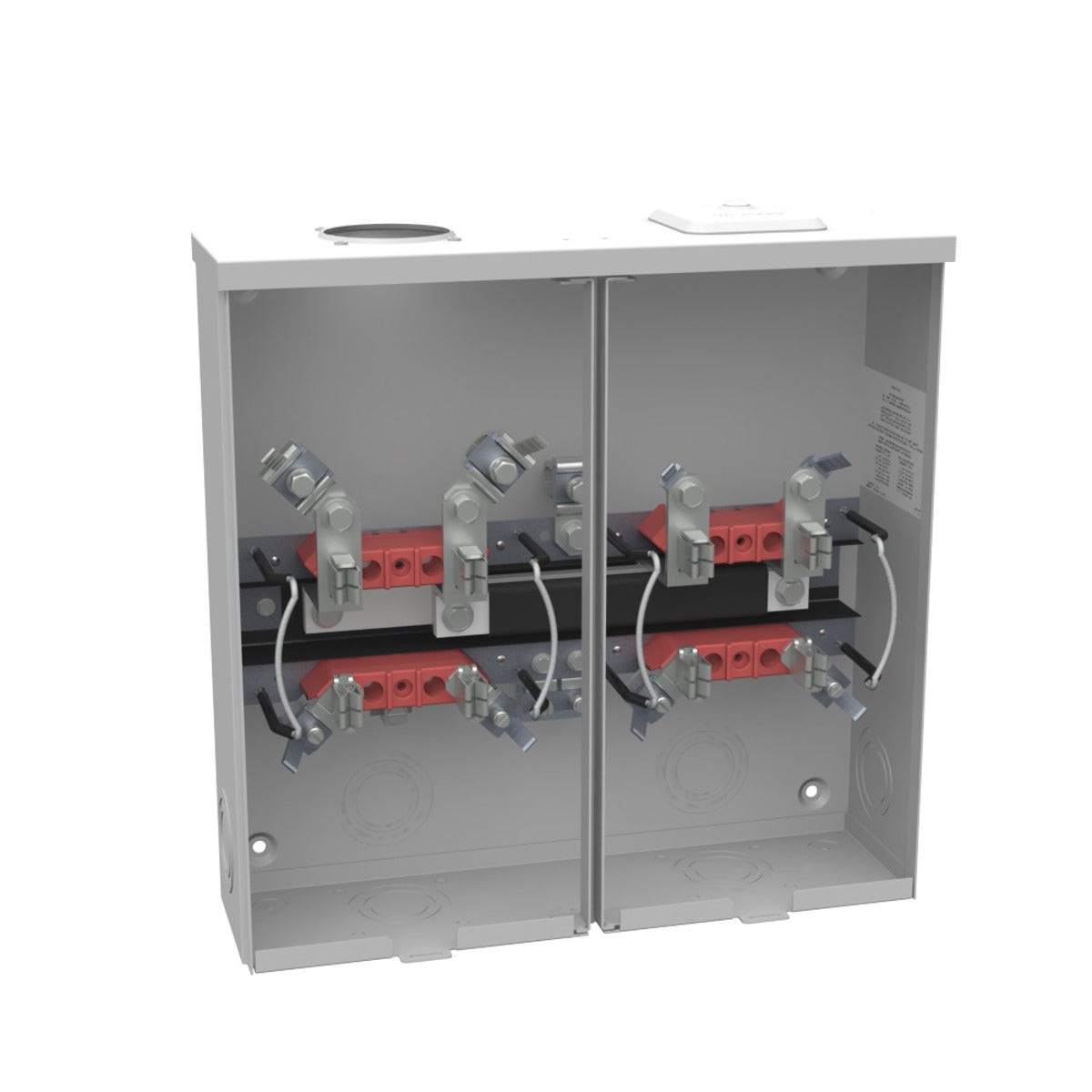

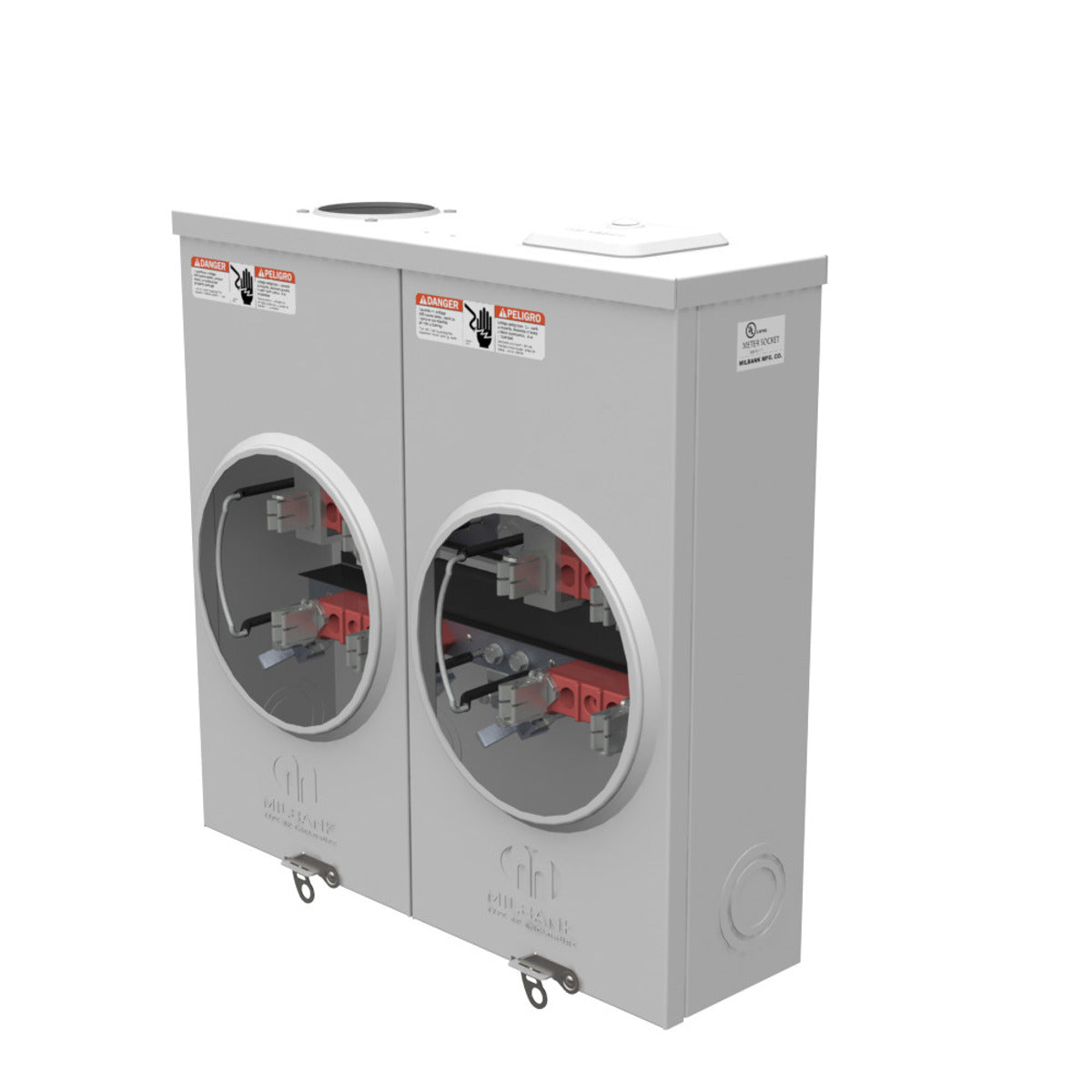

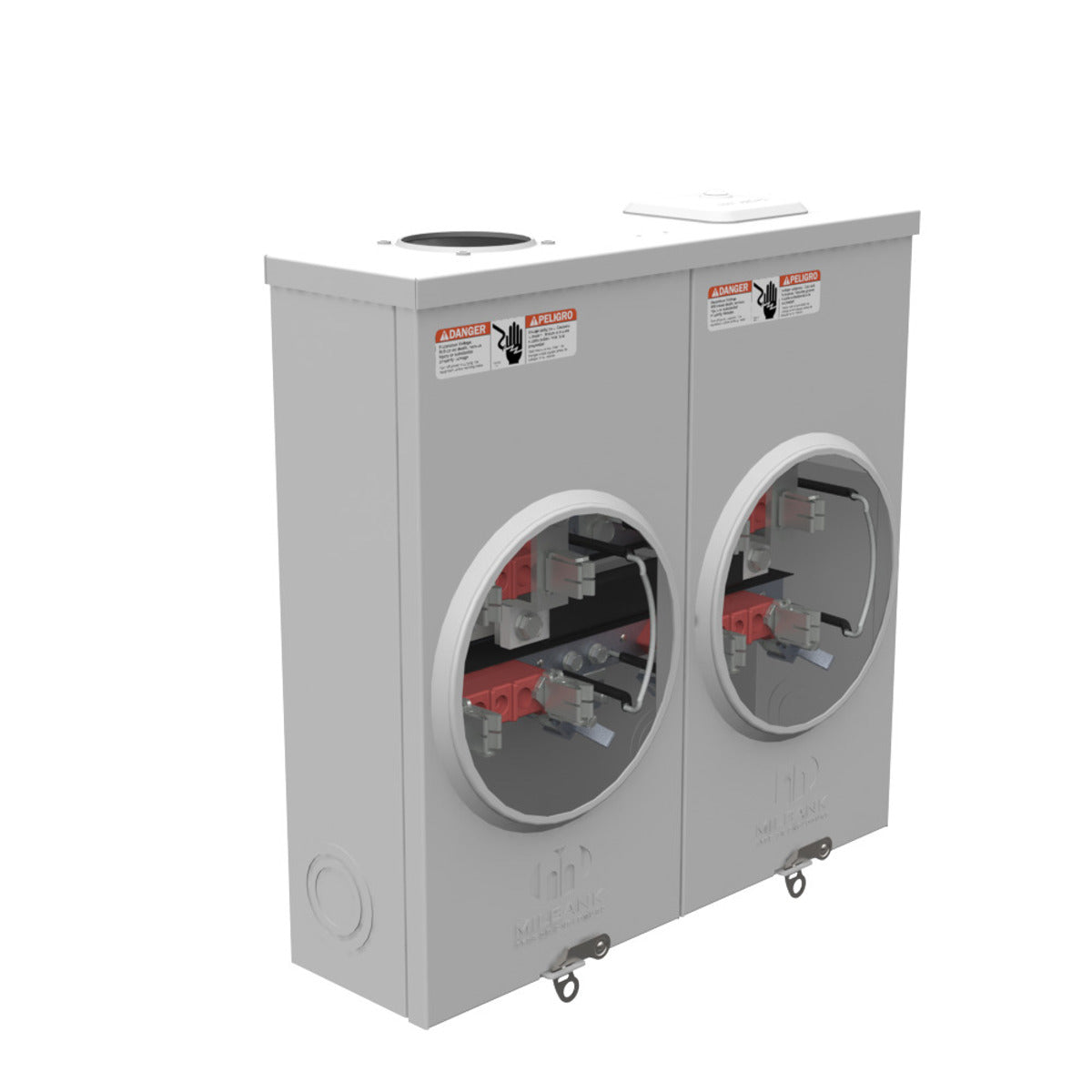

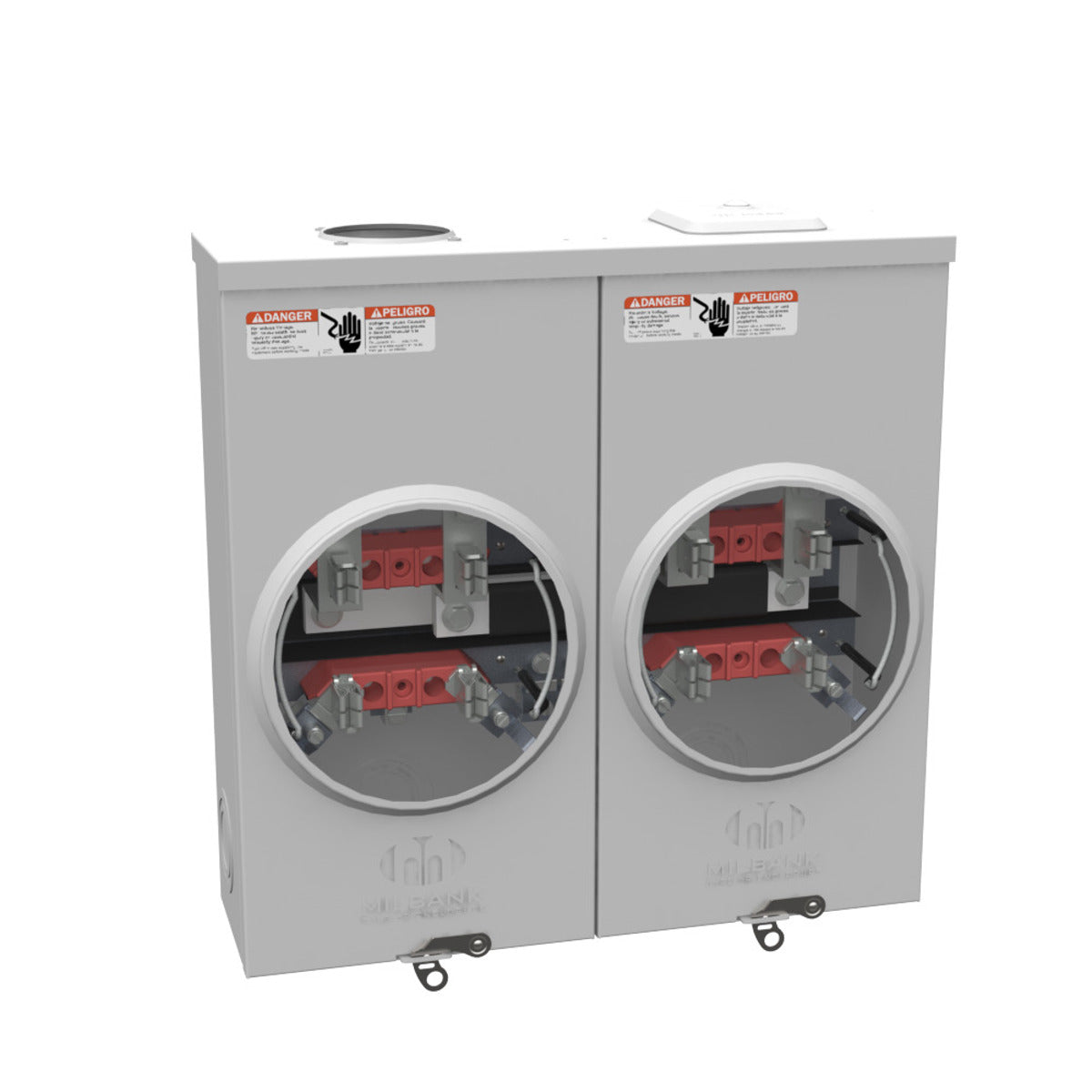

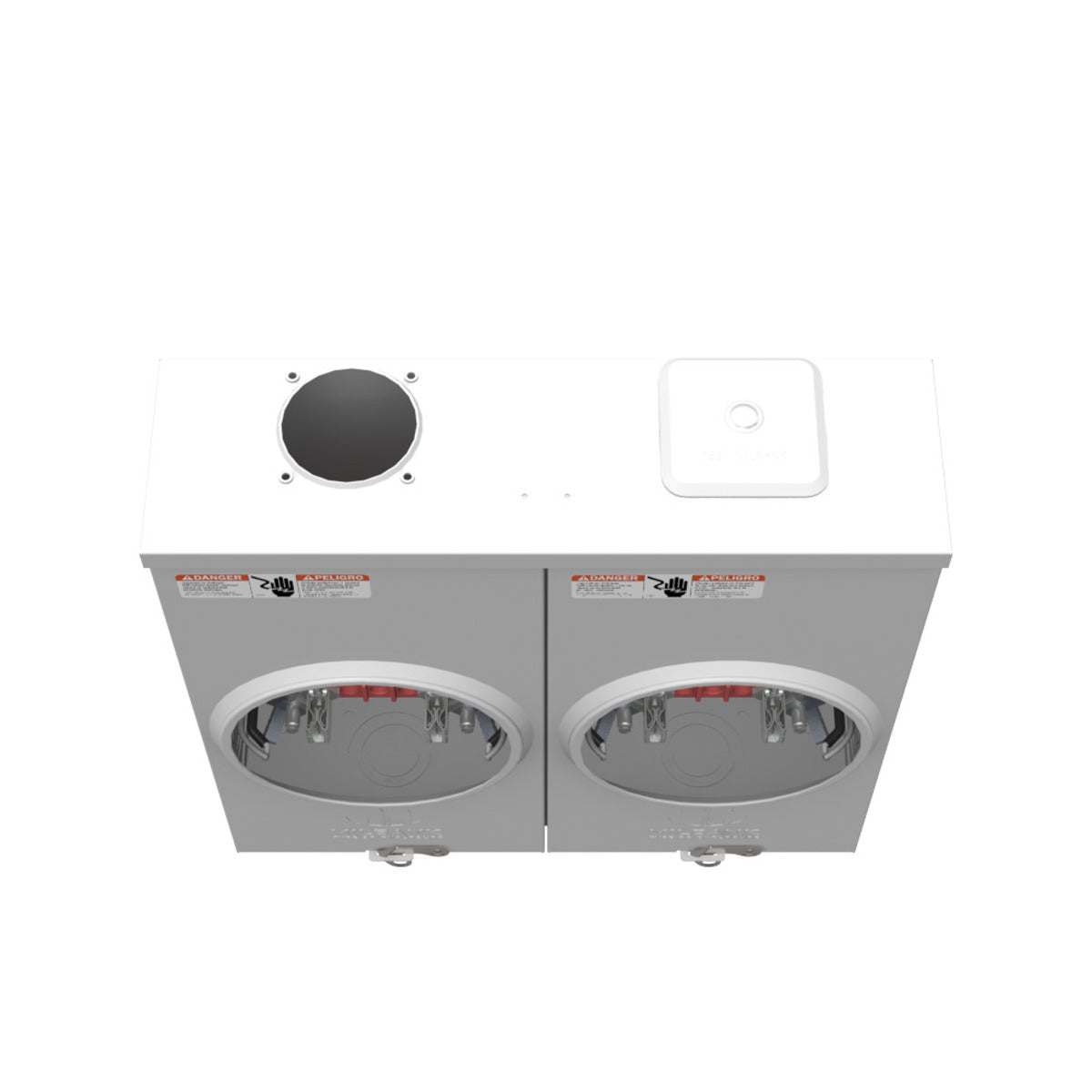

Milbank U7362-RL-KK Meter Socket Ringless 100A 300V 1 Phase 4 Jaw OH/UG Small Hub Opening Lever Bypass Surface-Mount NEMA 3R

Product Description

The Milbank U7362-RL-KK Meter Socket is designed for use in power distribution applications. This ringless socket provides reliable connections and comes with a horn bypass feature for enhanced functionality. It is ideal for both overhead and underground cable applications.

• Usage: Meter Socket for residential or commercial settings
• Bypass Type: Horn for uninterrupted service
• Amperage Rating: 100 Amps, supporting various electrical loads

Product Highlights

This meter socket meets UL standards and is made in the USA, ensuring quality and reliability for all installations.

Product Information

Standard Information

• Brand: Milbank
• MPN: U7362-RL-KK

Technical Specifications

• Catalog Number: U7362-RL-KK
• Country of Origin: United States
• Material: G90 Galvanized Steel with Powder Coat Finish
• Voltage Rating: 300 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Width: 16.313 inches
• Height: 16 inches
• Length: 4.5 inches
• Number of Jaws: 4 Terminal
• Bypass Type: Horn
• Cable Entry: Overhead or Underground
• Application: Meter Socket
• Phase: 1
