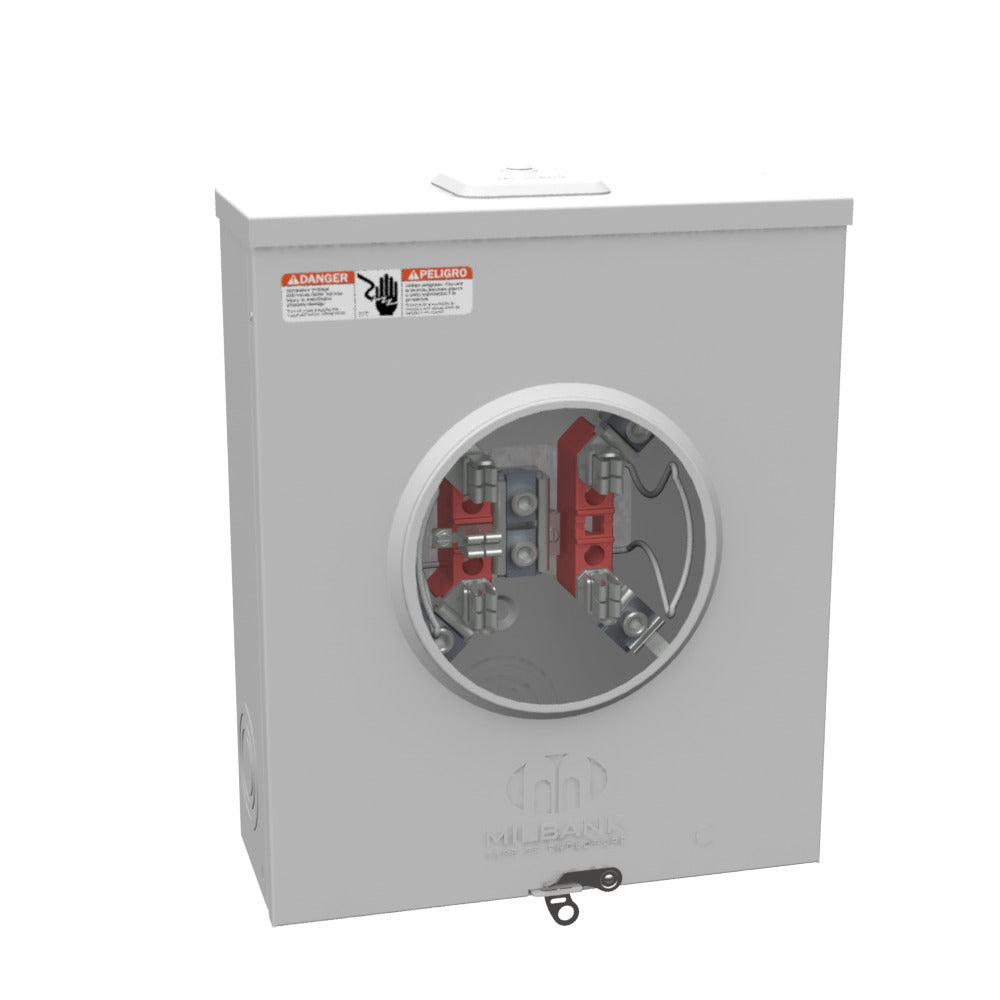

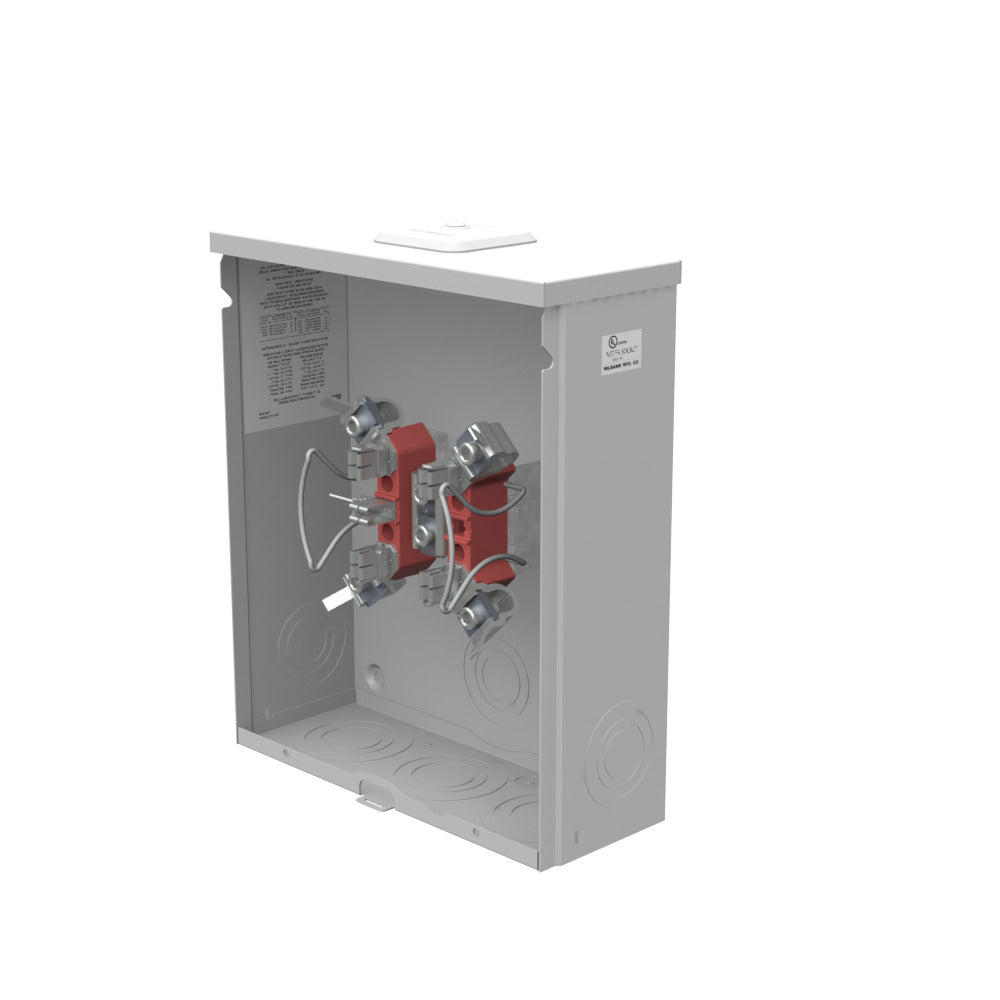

Milbank U7043-XL-TG-KK-IL-5T9W Ringless Meter Socket 600 VAC 200 Amp NEMA 3R

Product Description

The Milbank U7043-XL-TG-KK-IL-5T9W is a ringless meter socket designed for safety and efficiency. It operates at six hundred volts alternating current and supports a continuous amperage of two hundred. This meter socket is ideal for both overhead and underground applications, making it versatile for various installations.

• Ringless design for added safety
• Compatible with both overhead and underground cable entry
• Constructed from G90 galvanized steel for durability

Product Highlights

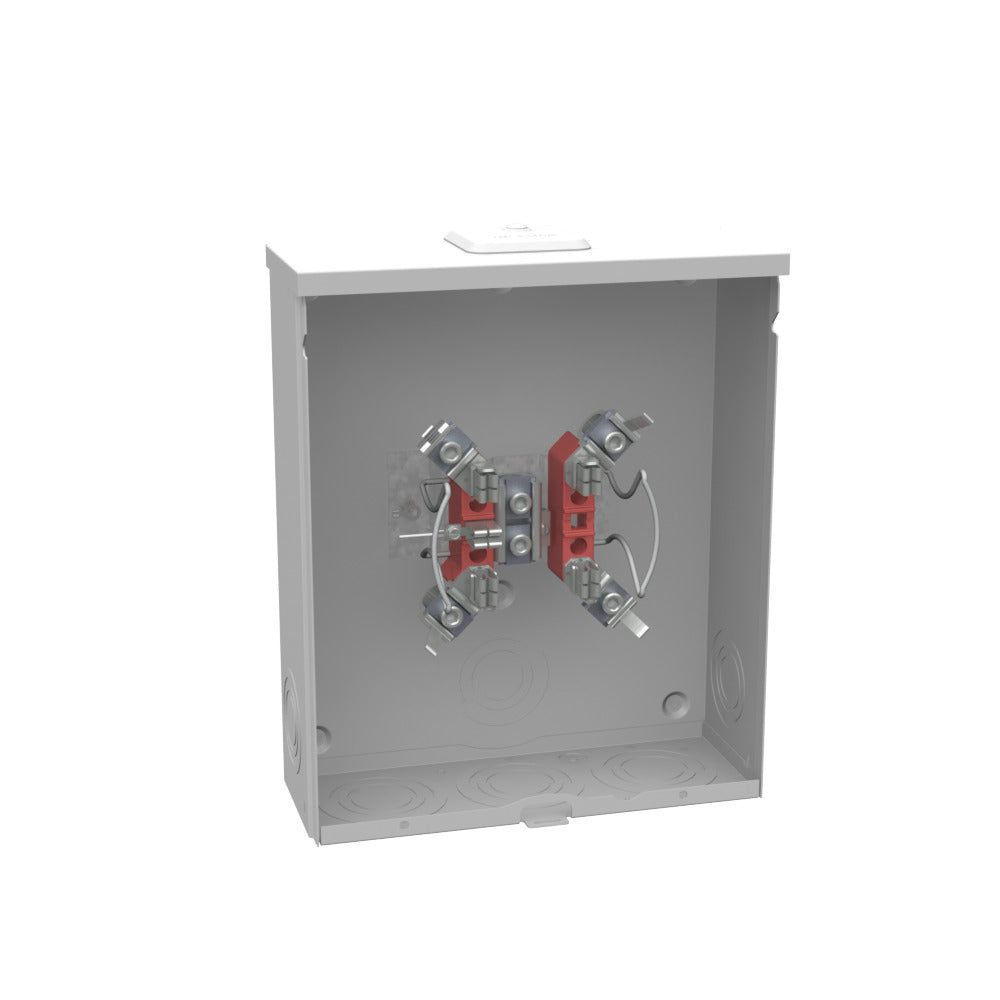

The Milbank U7043-XL-TG-KK-IL-5T9W meets NEMA 3R standards, ensuring reliable performance in challenging environments. It features five terminal jaws and is UL listed for safety and quality assurance.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank Manufacturing

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Frequency Rating: 60 Hz
• Bypass Type: Horn
• Wire Size: 6 AWG - 350 kcmil
• Dimensions: 4.84 inches Length x 13 inches Width x 15.5 inches Height
• Material: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Country of Origin: United States
• Number of Jaws: 5 Terminal
