Product Description

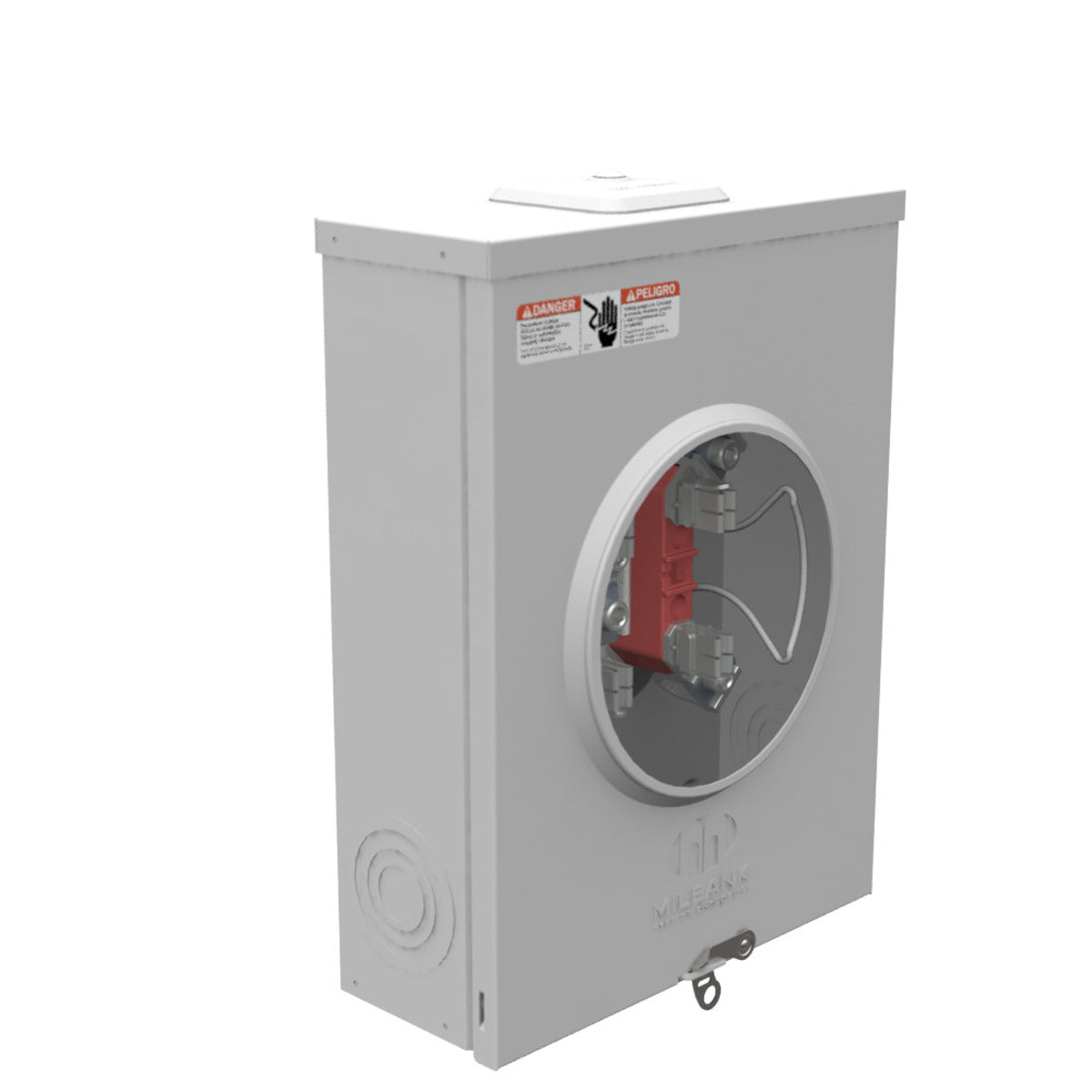

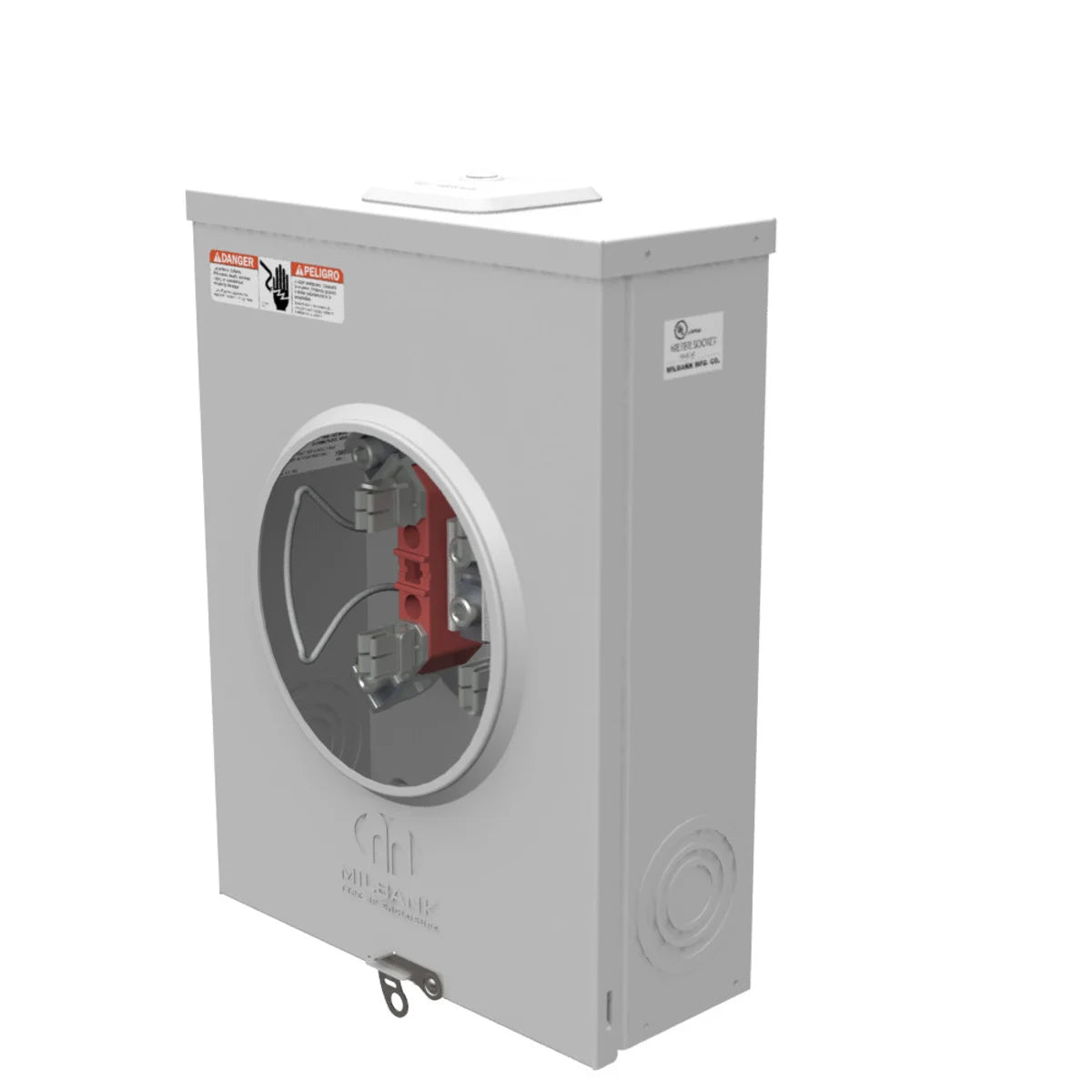

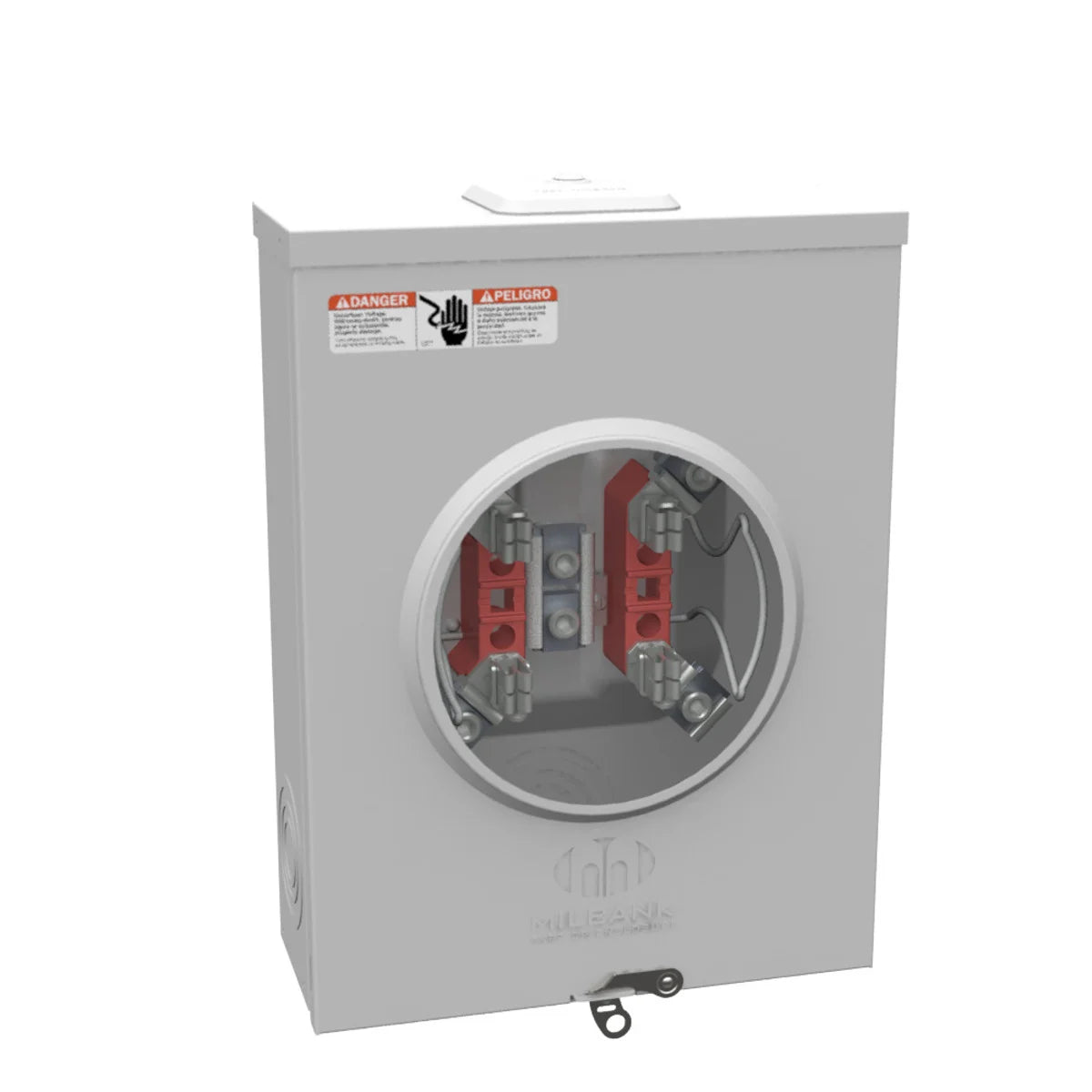

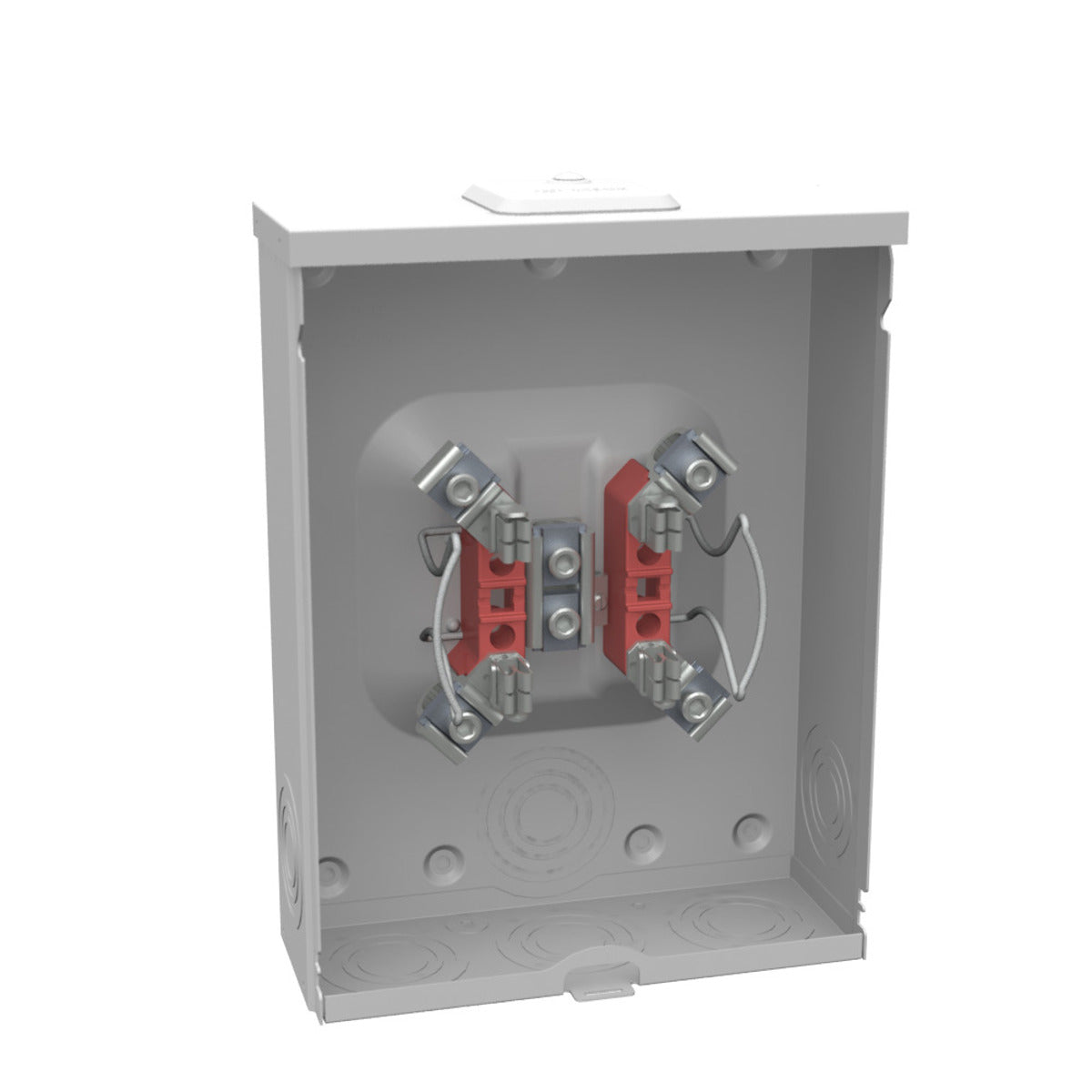

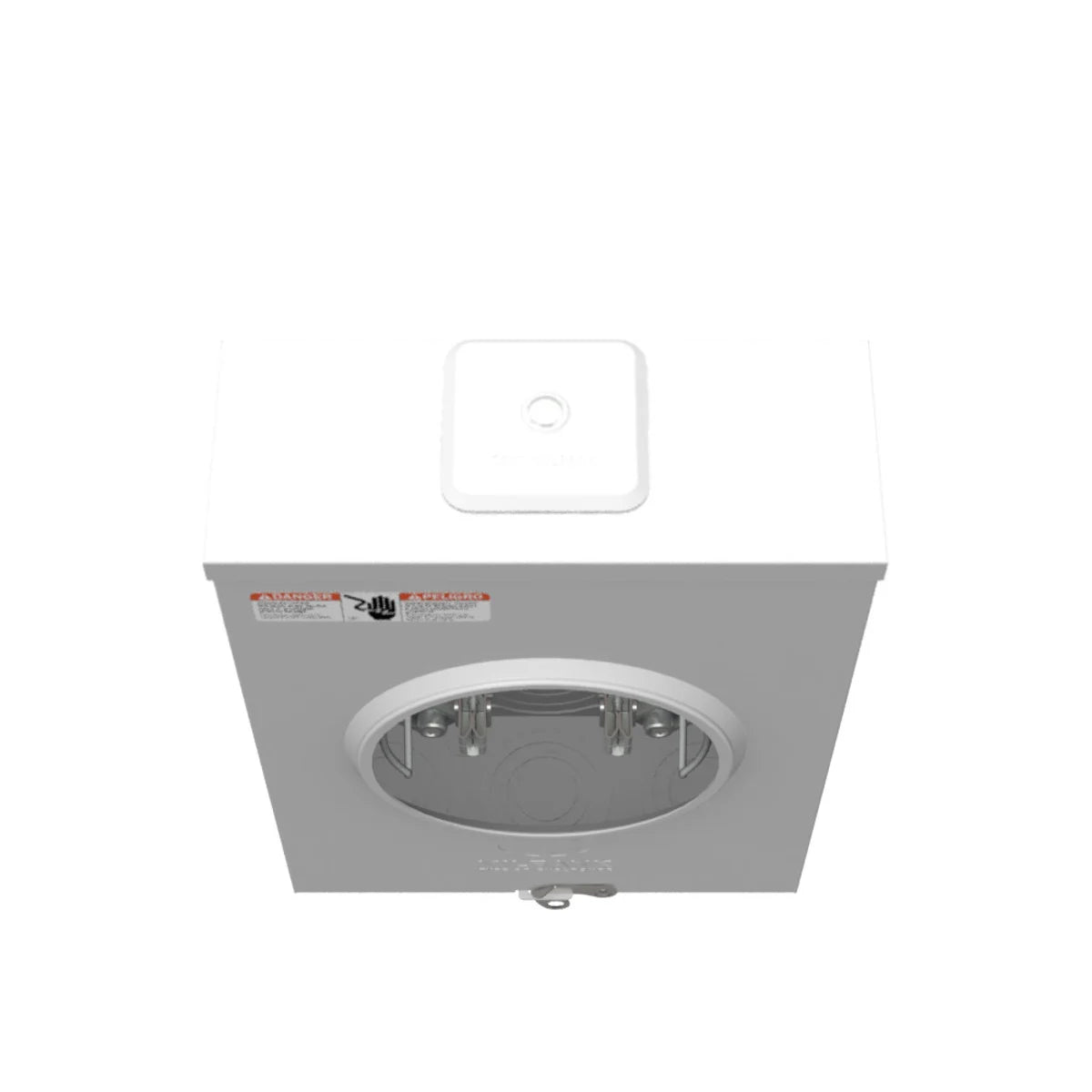

The Milbank U7040-XL-TG is a single position meter socket with a power rating of two hundred amps, designed for one phase applications. It features a ringless design with no bypass capabilities, making it reliable for overhead or underground cable entry. This meter socket is ideal for residential and commercial electric metering.
- Rated for 200 amps
- UL listed for safety
- Constructed from G90 galvanized steel
Product Highlights
This meter socket is built to withstand various environmental conditions. The G90 galvanized steel construction ensures durability and resistance against rust and corrosion. The assembly is suitable for overhead or underground installations, providing flexibility for different setups.
Product Information
Standard Information
-
Manufacturer: Milbank
-
Catalog Number: U7040-XL-TG
Technical Specifications
-
Amperage Rating: 200 Amps
-
Voltage Rating: 600 Volts AC
-
Phase: 1
-
Enclosure: G90 Galvanized Steel with Powder Coat Finish
-
Mounting: Surface Mount
-
Frequency Rating: 60 Hertz
-
Length: 4.125 inches
-
Width: 11 inches
-
Height: 14.563 inches
-
Insulation: Glass Polyester
-
Number of Jaws: 4 Terminal
-
Bypass Type: No Bypass
-
Cable Entry: Overhead or Underground
-
Application: Meter Socket
-
Country of Origin: United States
-
Made in USA: Yes
