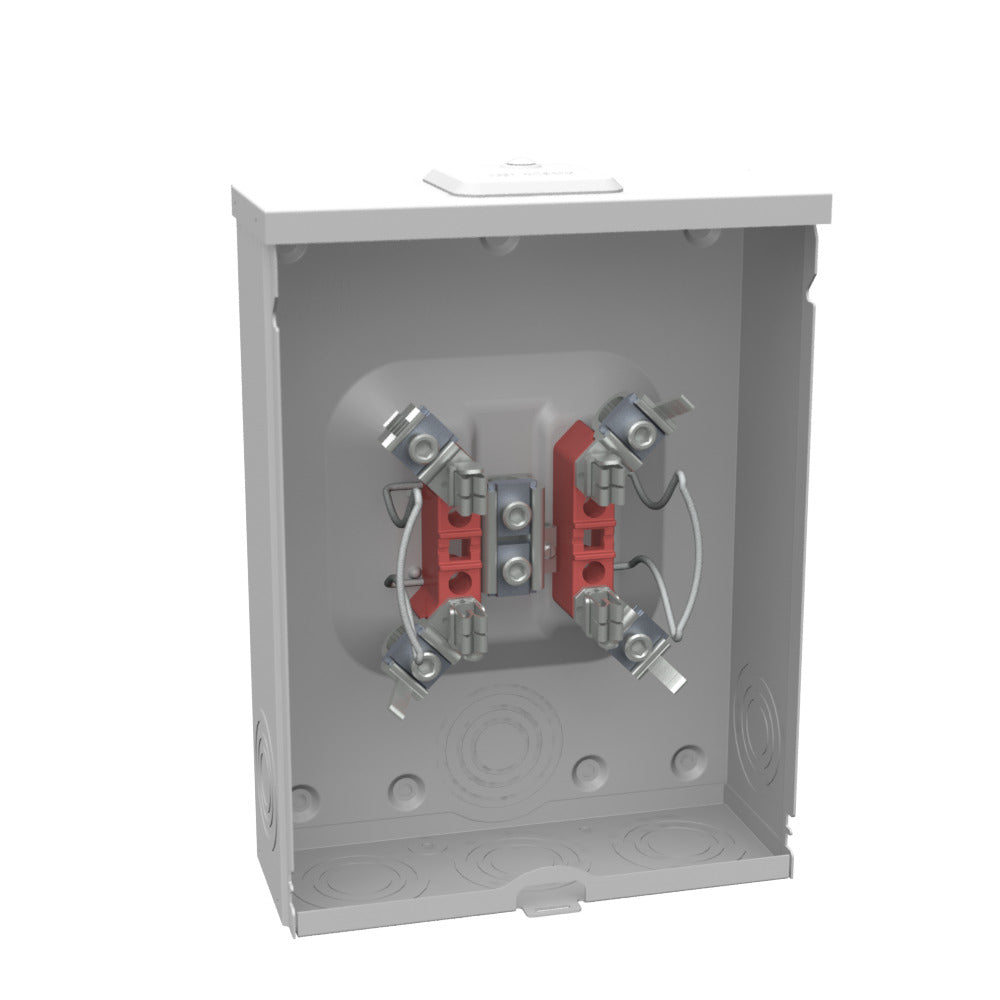

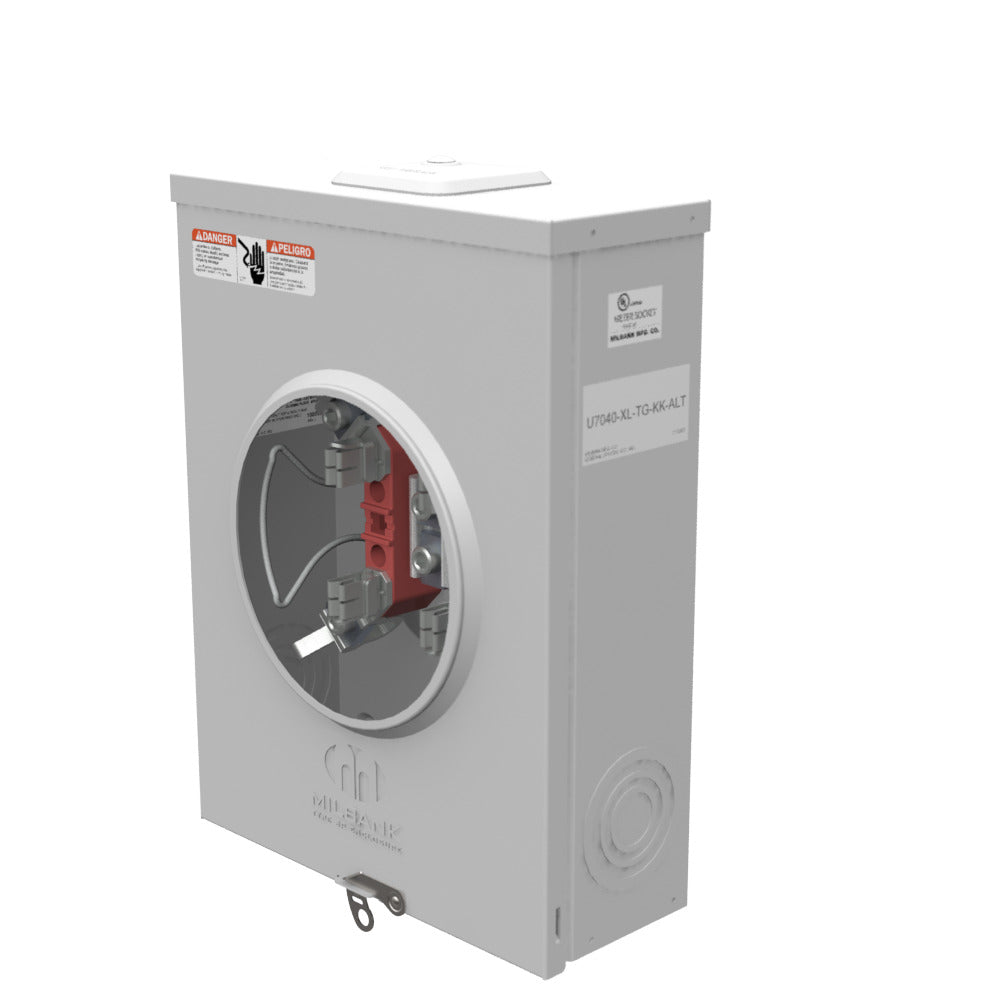

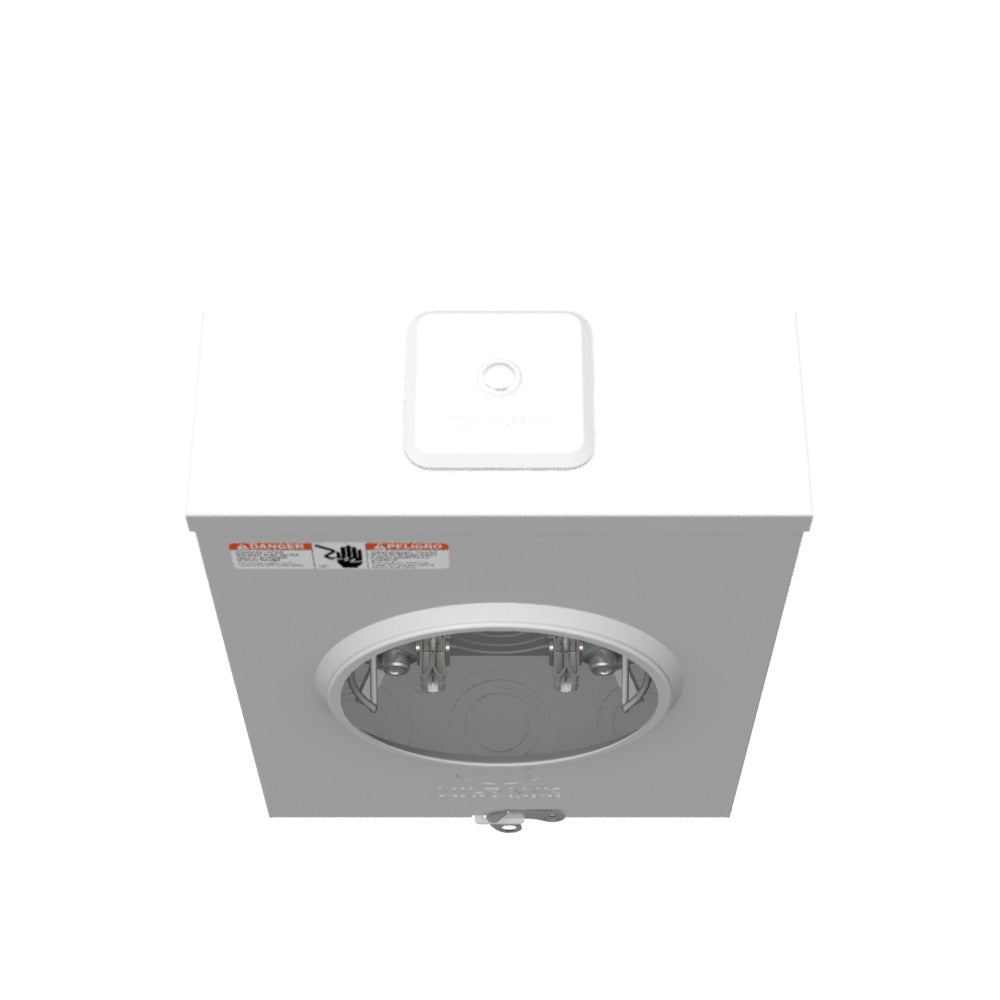

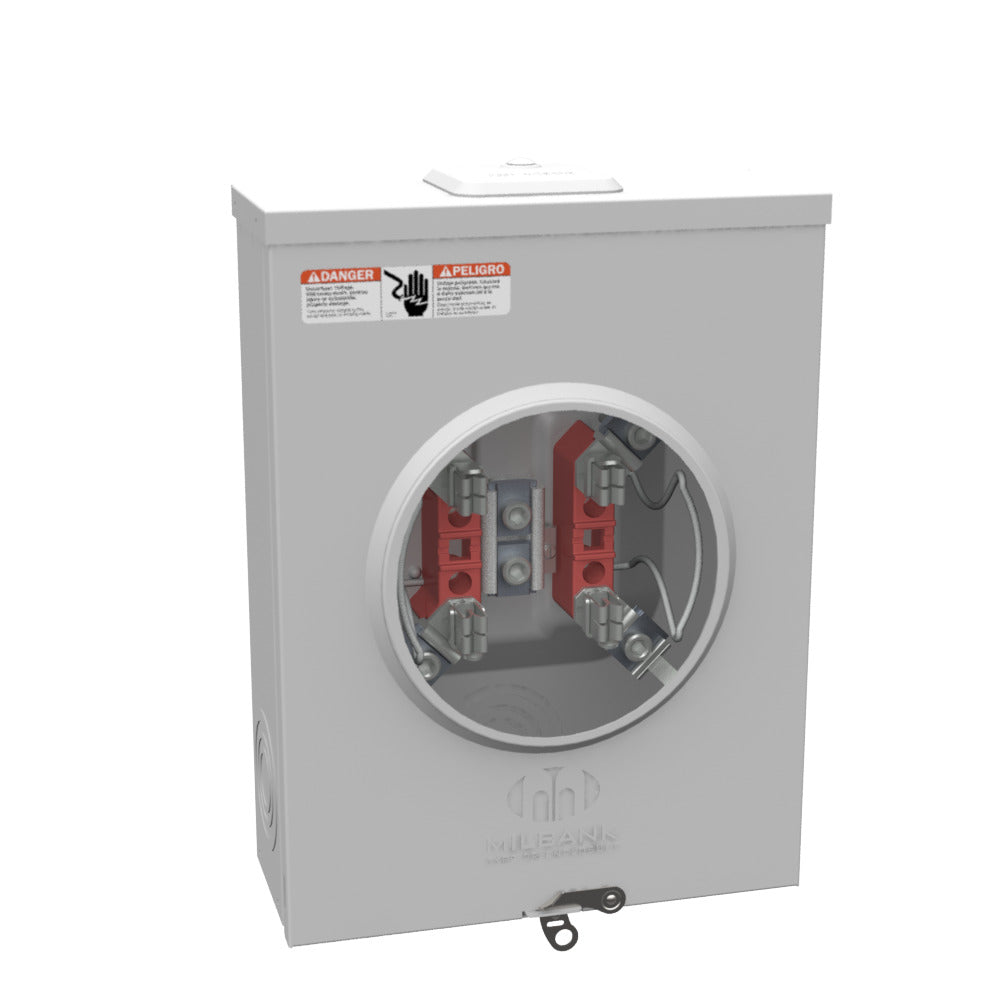

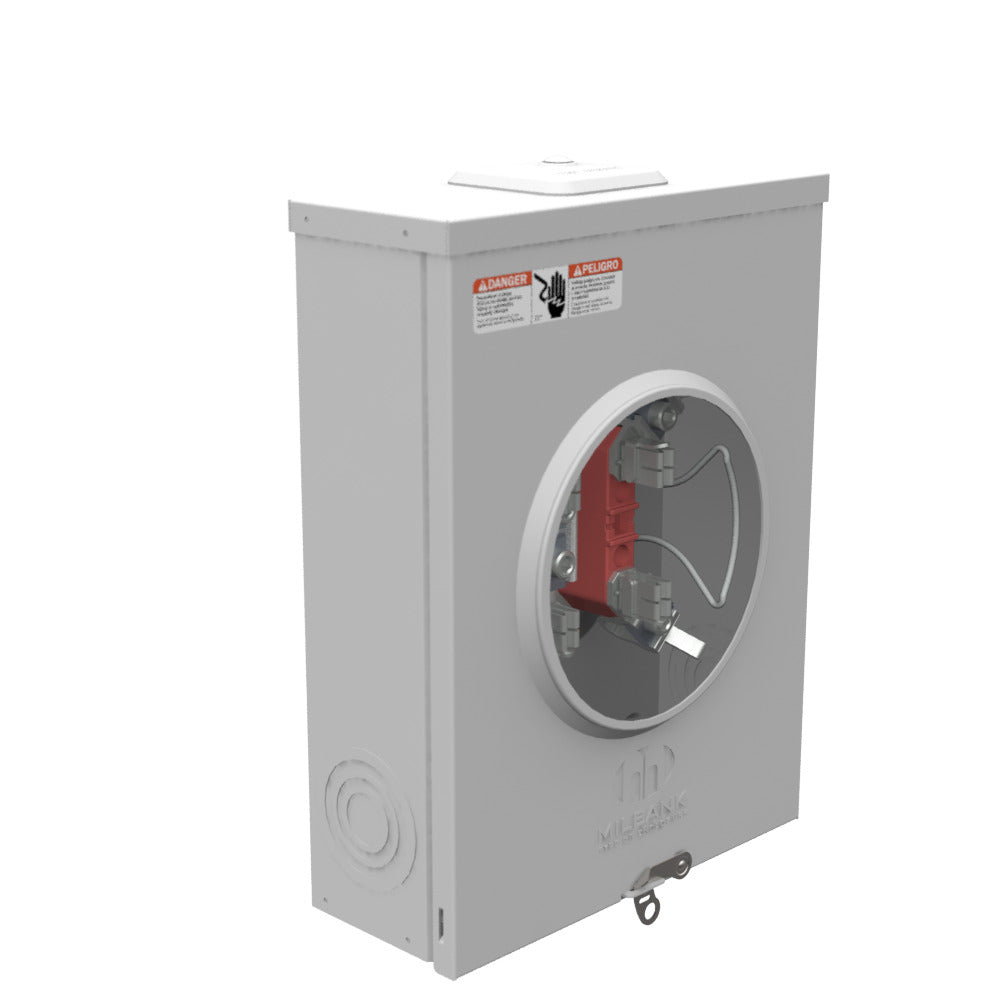

Milbank U7040-XL-TG-KK-ALT Meter Socket Ringless 4 Term, Small Closing Plate, Triplex Ground Horn Bypass Alliant Energy

Product Description

The Milbank U7040-XL-TG-KK-ALT is a meter socket designed for efficient electrical service. It accommodates ringless designs and features a four-terminal configuration. This product is suitable for overhead or underground cable entry and is built for durability with its G90 galvanized steel casing.

• Rated for 200 amperes
• UL Listed and Type 3R compliant
• Suitable for Alliant Energy applications

Product Highlights

Ideal for utility and residential applications, ensuring reliable service through a robust design.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U7040-XL-TG-KK-ALT
• Amperage Rating: 200
• Bypass Type: Horn
• Cable Entry: Overhead or Underground
• Voltage Rating: 600 Volts Alternating Current
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Dimensions: Length four point one two five inches, Width eleven inches, Height fourteen point five six three inches
• Frequency Rating: 60 Hertz
