Milbank U7040-XL-TG-KK 4 Terminal Ringless Small Closing Plate Triplex Ground Horn Bypass 200A

Product Description

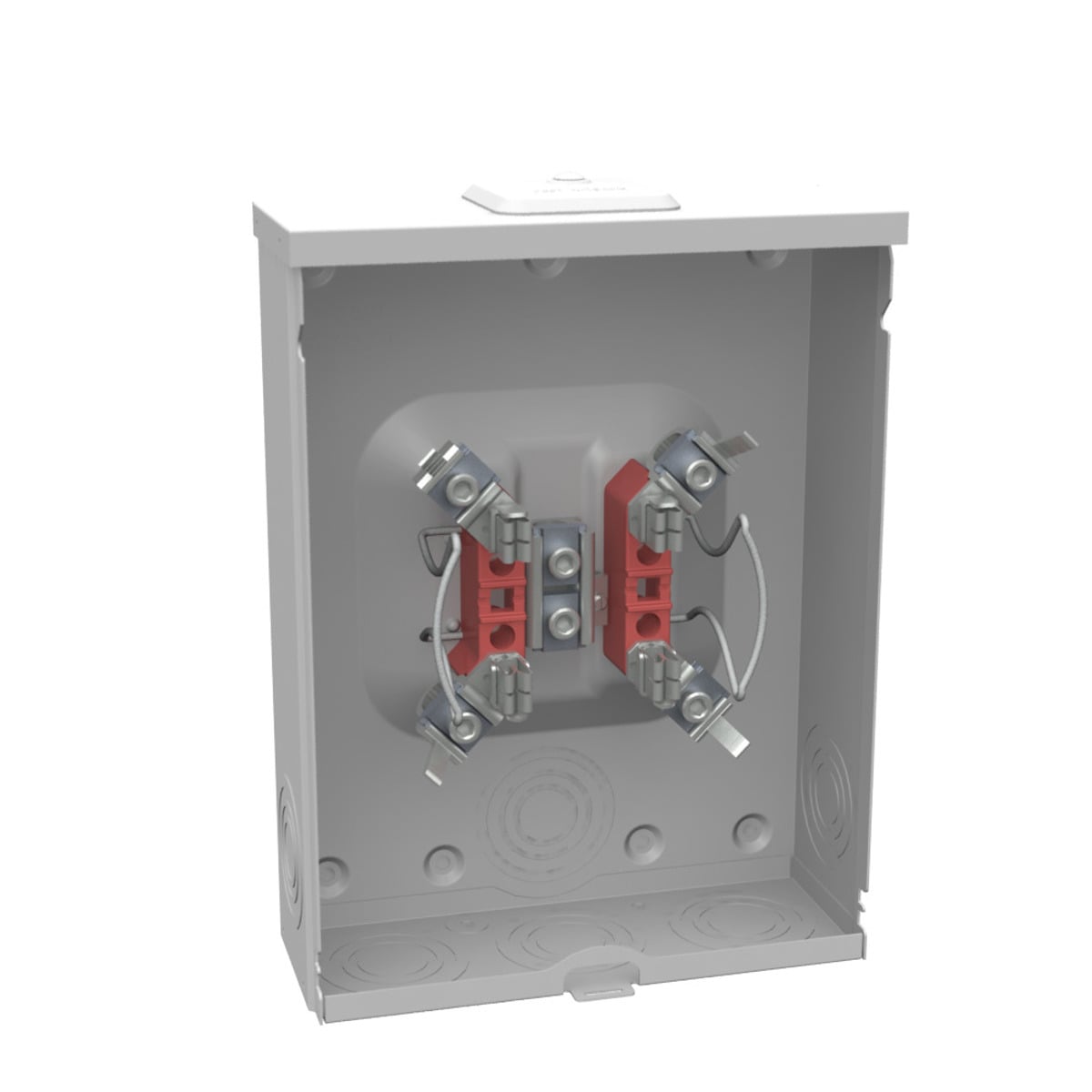

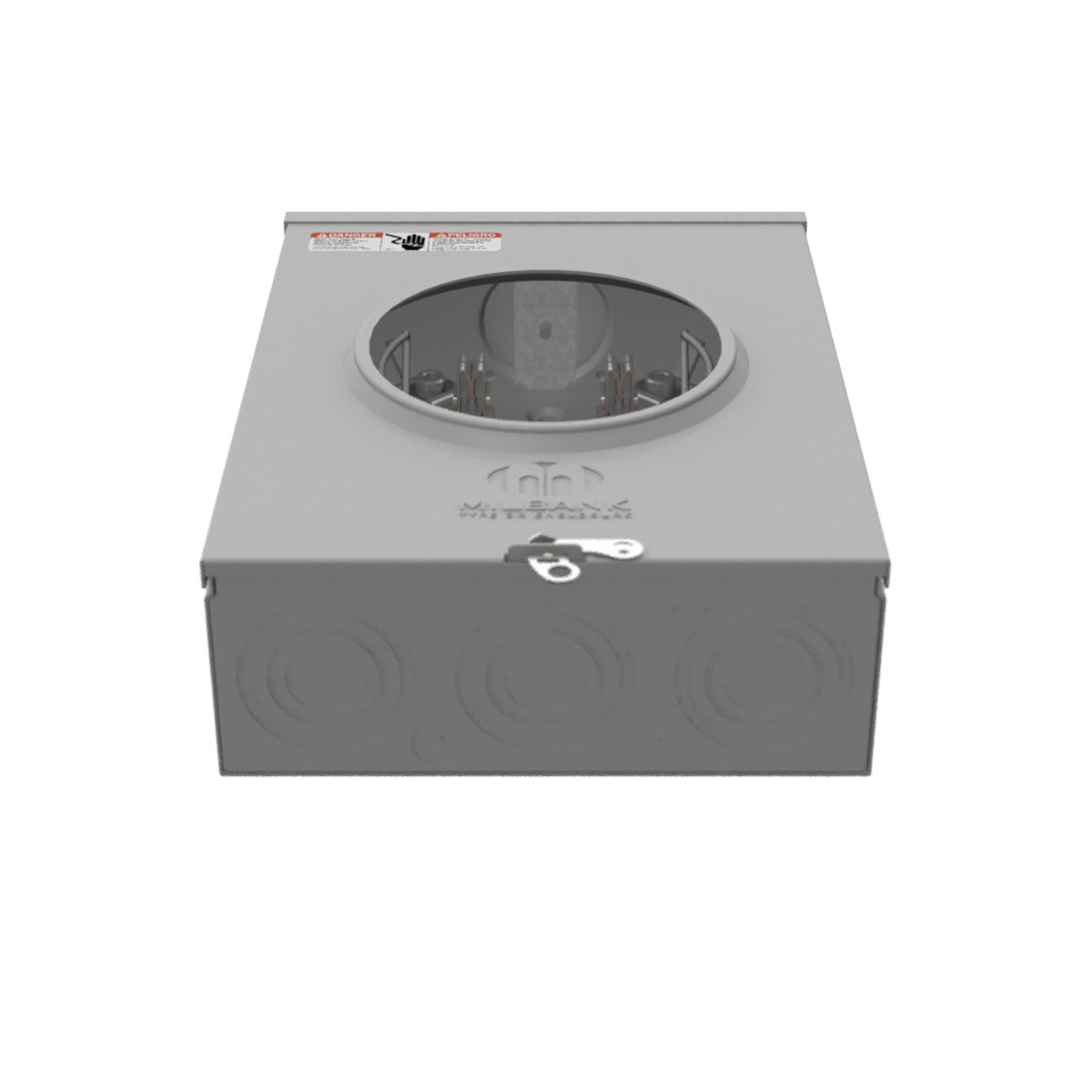

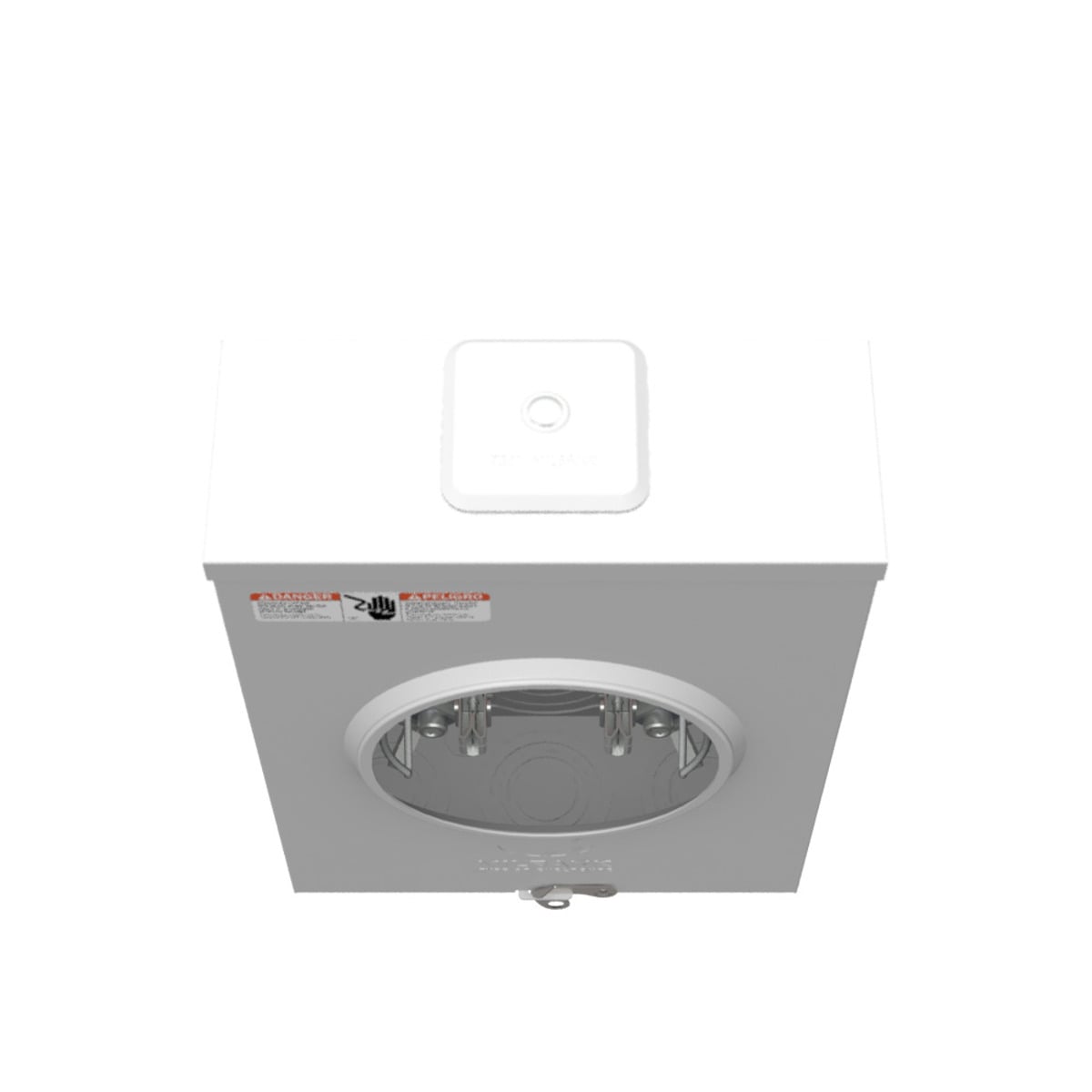

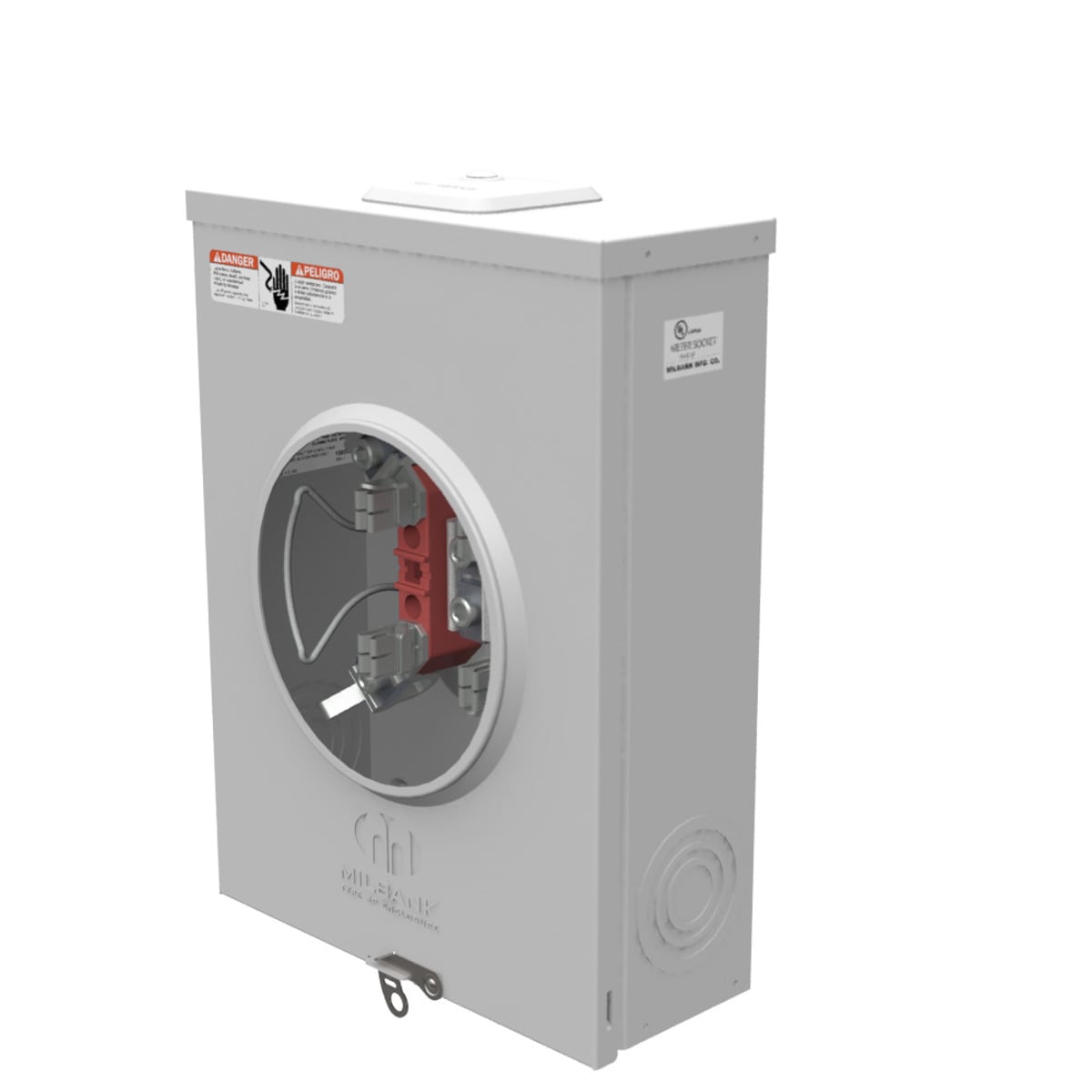

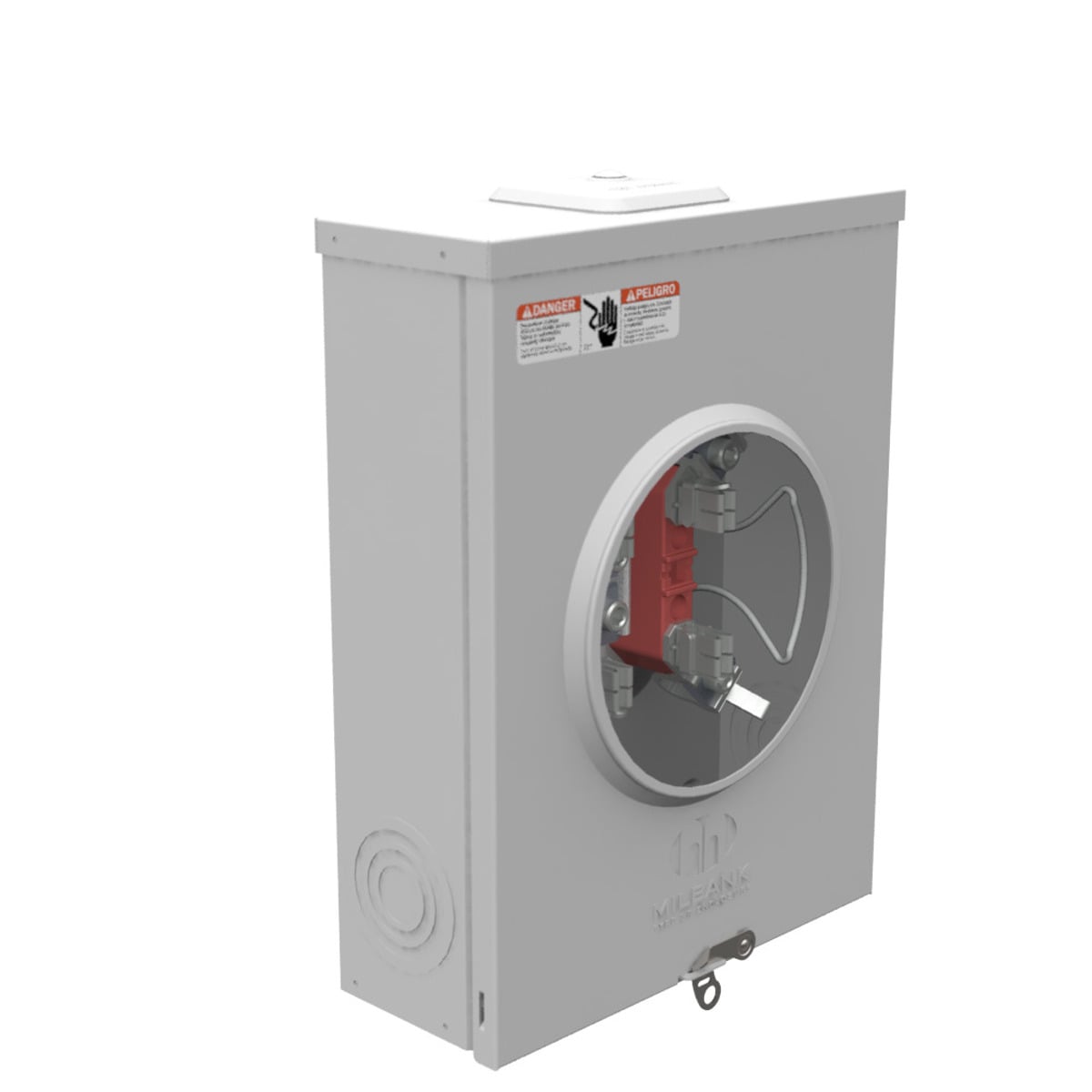

The Milbank U7040-XL-TG-KK is a 4-terminal, ringless meter socket designed for electrical service applications. It features a small closing plate, triplex ground, and horn bypass. This surface-mount unit is rated for 200 Continuous Ampere and 600 Volt AC 60 Hertz, operating in 1-phase configurations. Its G90 galvanized steel enclosure with a powder coat finish provides NEMA 3R protection, suitable for both overhead and underground cable entry.

• 4 Terminal, Ringless design with a Small Closing Plate.
• Features Triplex Ground and Horn Bypass for safety and service.
• NEMA 3R G90 Galvanized Steel enclosure with powder coat finish.

Product Highlights

200 Amp, 600 Volt AC, 1-Phase meter socket with surface mount and overhead/underground cable entry.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U7040-XL-TG-KK
• Country of Origin: United States

Technical Specifications

• Catalog Number: U7040-XL-TG-KK
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Bypass Type: Horn Bypass
• Cable Entry: Overhead or Underground
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hz
• Insulation Type: Glass Polyester
• Mounting Type: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1-Phase
• Certifications: UL Listed
• UPC: 784572140394
• GTIN: 00784572140394
• Type: Ringless, 1-Position
• Terminal Type: Lay In
• Voltage Rating: 600 Volt AC 60 Hertz
• Service Type: Overhead/Underground
• Hub Type: Small Closing Plate
• Knockouts: (1) 2-1/2 Inch, (2) 1/4 and 1/2 Inch, (3) 1/4 Inch
• Neutral Type: Triplex Ground
• Enclosure Rating: NEMA 3R
• Main Breaker Size: No Main Breaker
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number Of Receptacles: 0
