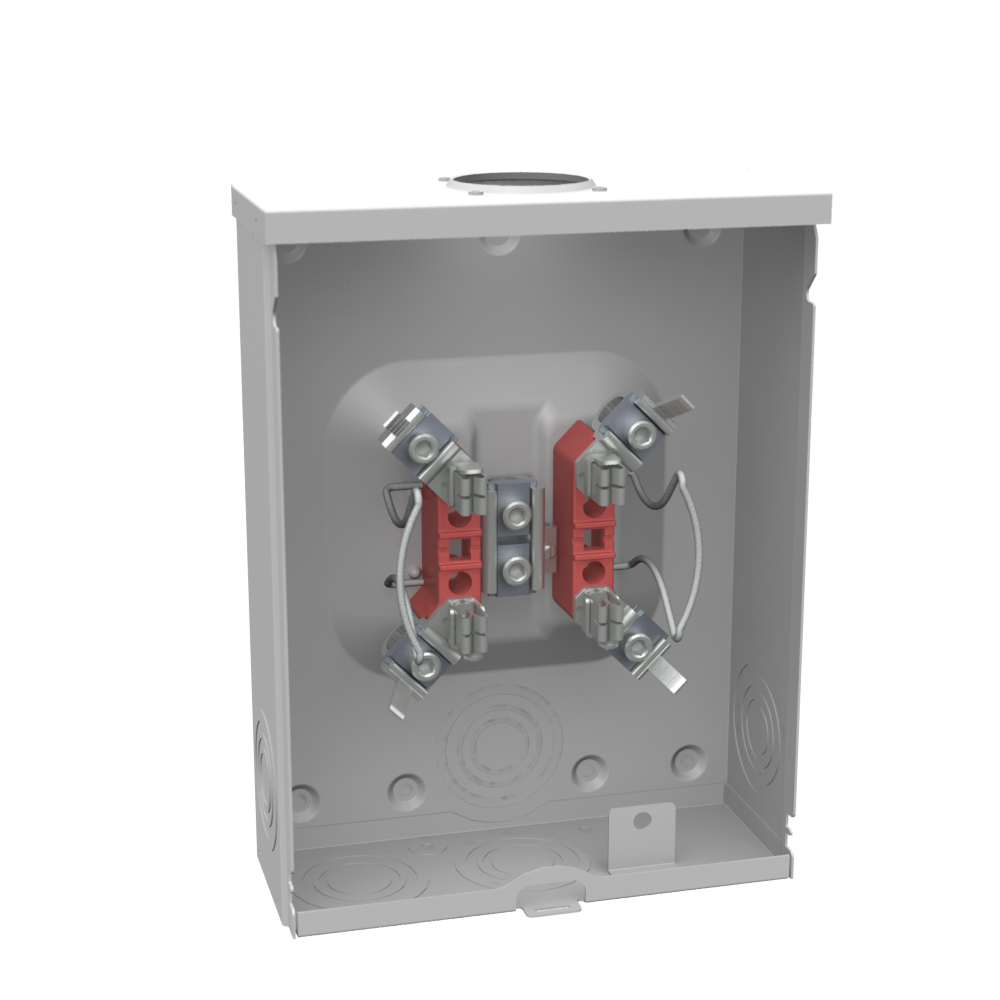

Milbank U7040-RL-TG-KK-BLG 4 Terminal Ringless Small Hub Open Triplex Ground Horn Bypass 7-8 In Barrel Lock Ground With Bracket Provision

Product Description

The Milbank U7040-RL-TG-KK-BLG is a reliable 4 terminal ringless meter socket designed for efficiency and ease of use. This meter socket features a small hub for simple installation and a barrel lock for secure connections. It is ideal for both overhead and underground cable entry applications.

• Voltage rating of six hundred volts
• Amperage rating of two hundred amps
• UL listed for safety and compliance

Product Highlights

This product by Milbank Manufacturing is engineered for surface mounting and offers a robust steel construction for durability.

Product Information

Standard Information

• Brand: Milbank Manufacturing
• Manufacturer: Milbank Mfg. Co.

Technical Specifications

• Size: four and one eighth inches by eleven inches by fourteen and563 inches
• Type: Ringless Meter Socket
• Voltage: 600 Volt
• Amperage: 200 Amp
• Material: Steel
• Standard: Type 3R, UL Listed
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency: 60 Hz
• Hub Style: Small Hub Opening
• Cable Entry: Overhead or Underground
• Mounting Type: Surface Mount
• Terminal Type: Lay In
• Insulation Type: Glass Polyester
• Number of Phases: 1 Phase
• Number of Terminations: 4
