Brand: MILBANK
SKU: U7040-RL-KK-DPL
Availability: In Stock

Ships same day if ordered by 12 pm
$192.43
$192.43
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

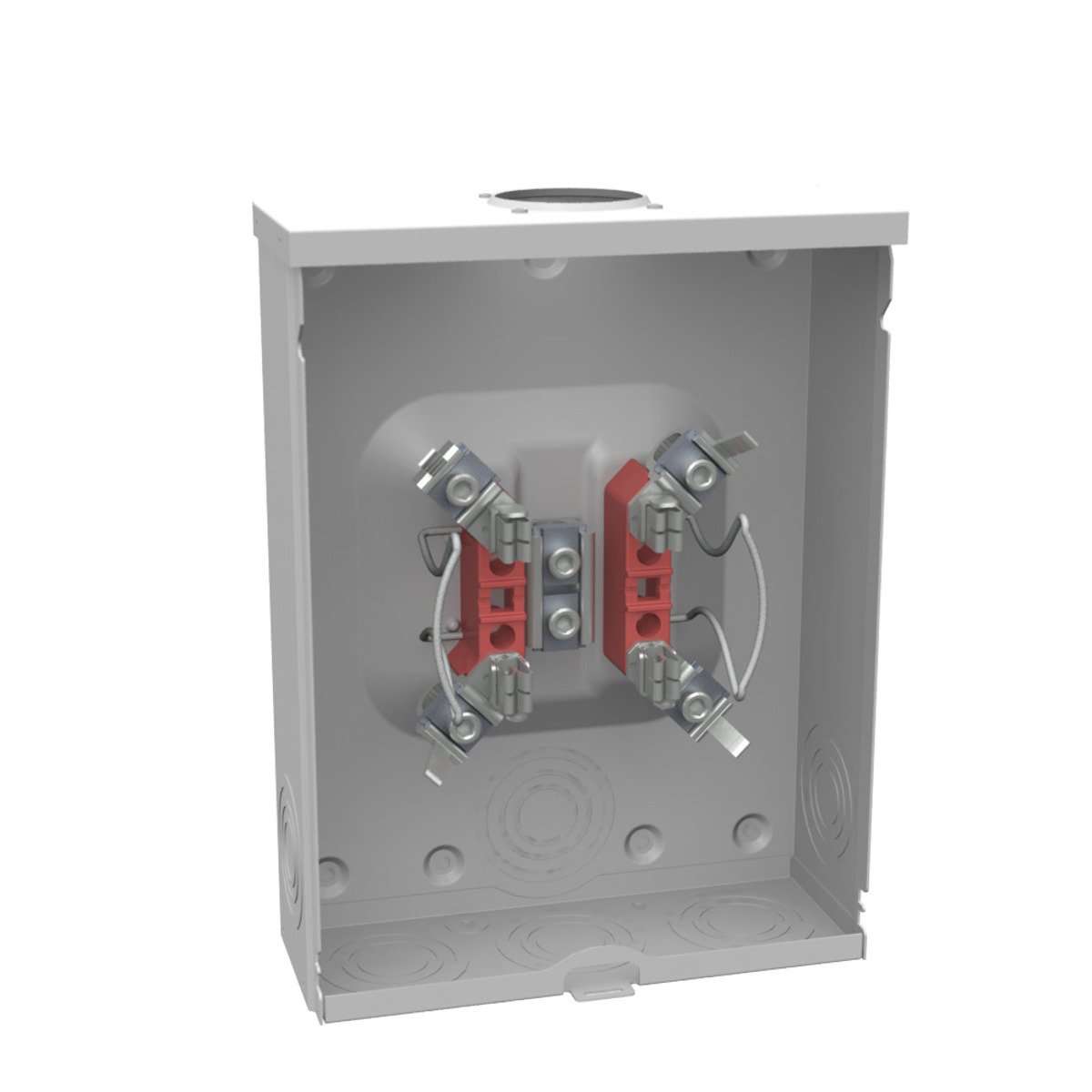

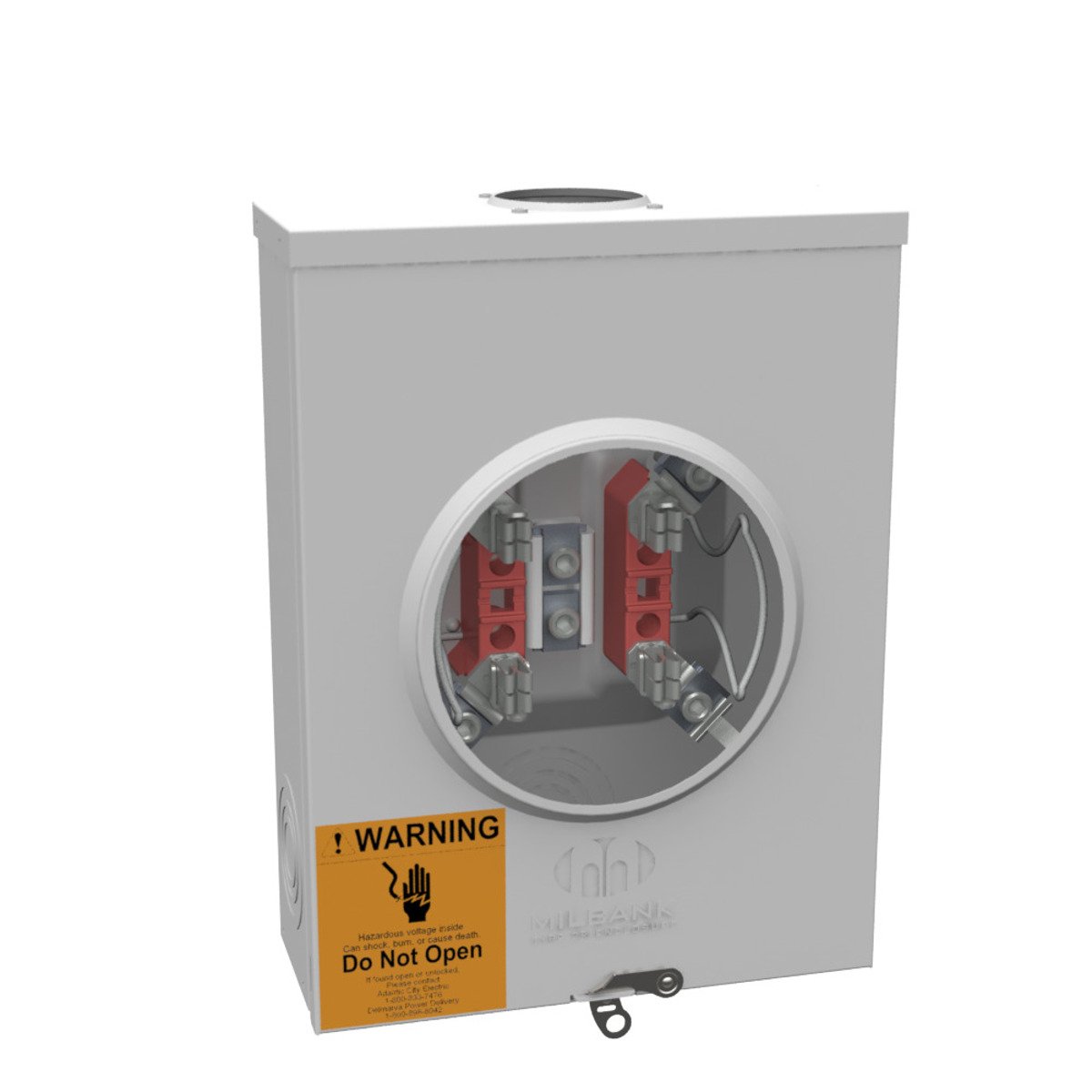

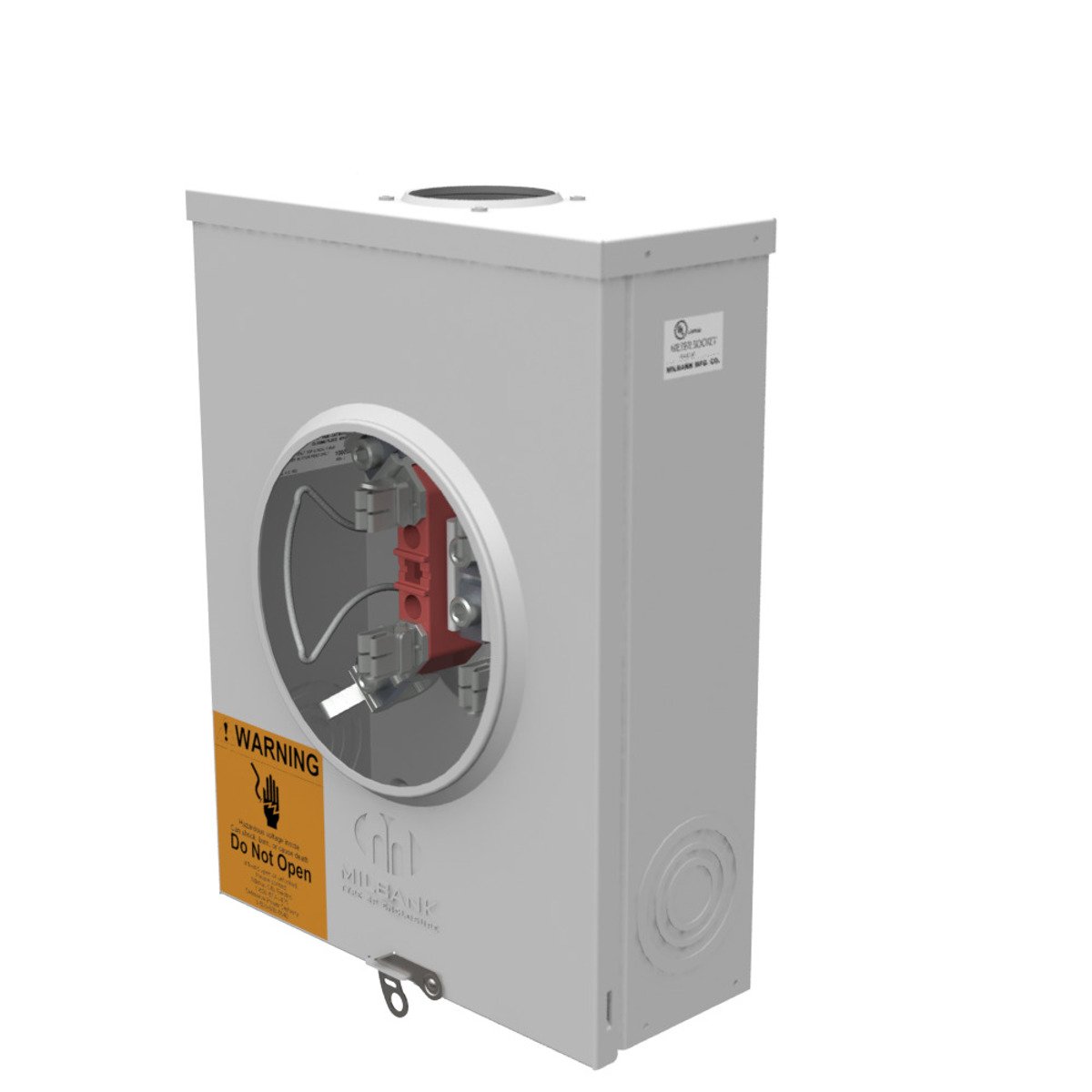

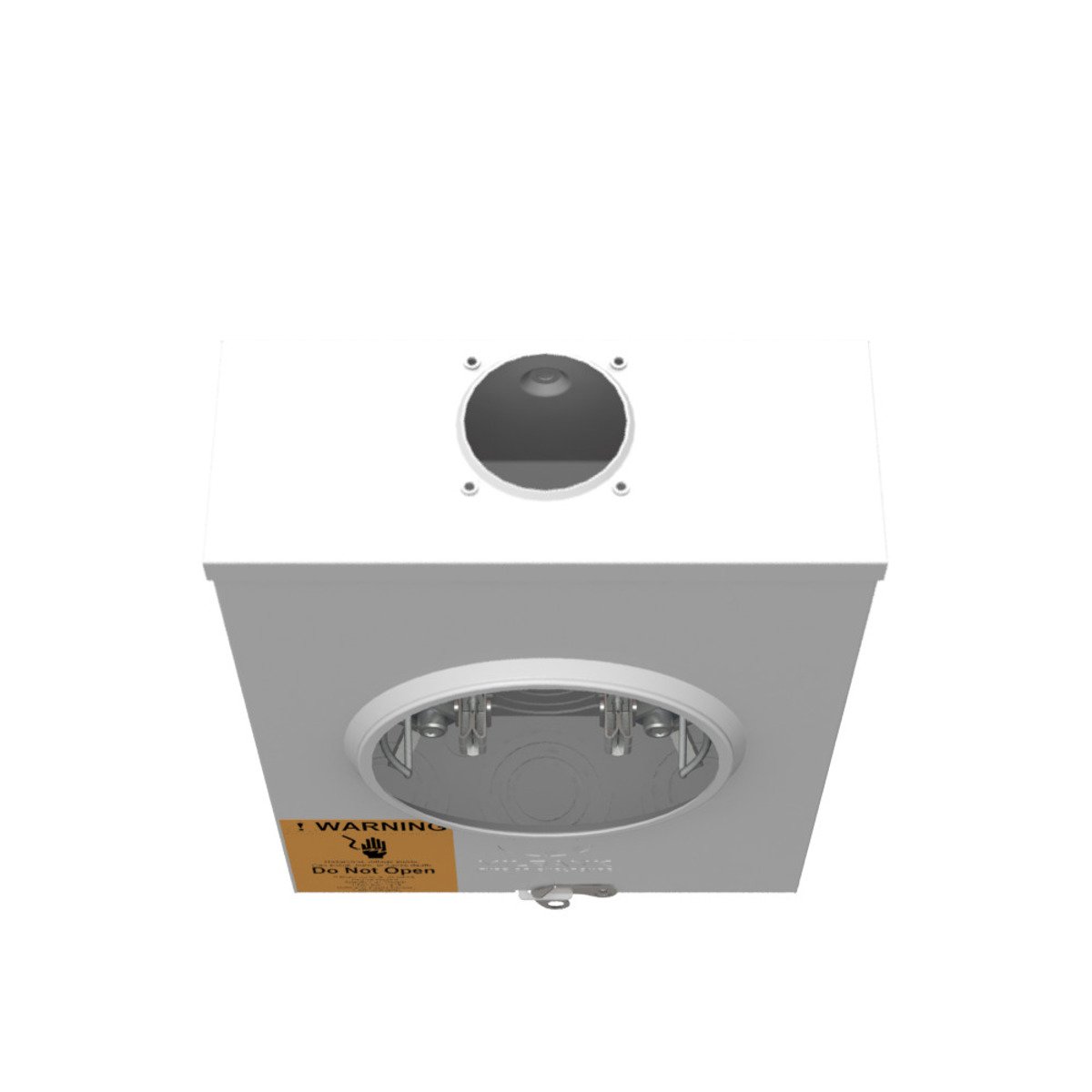

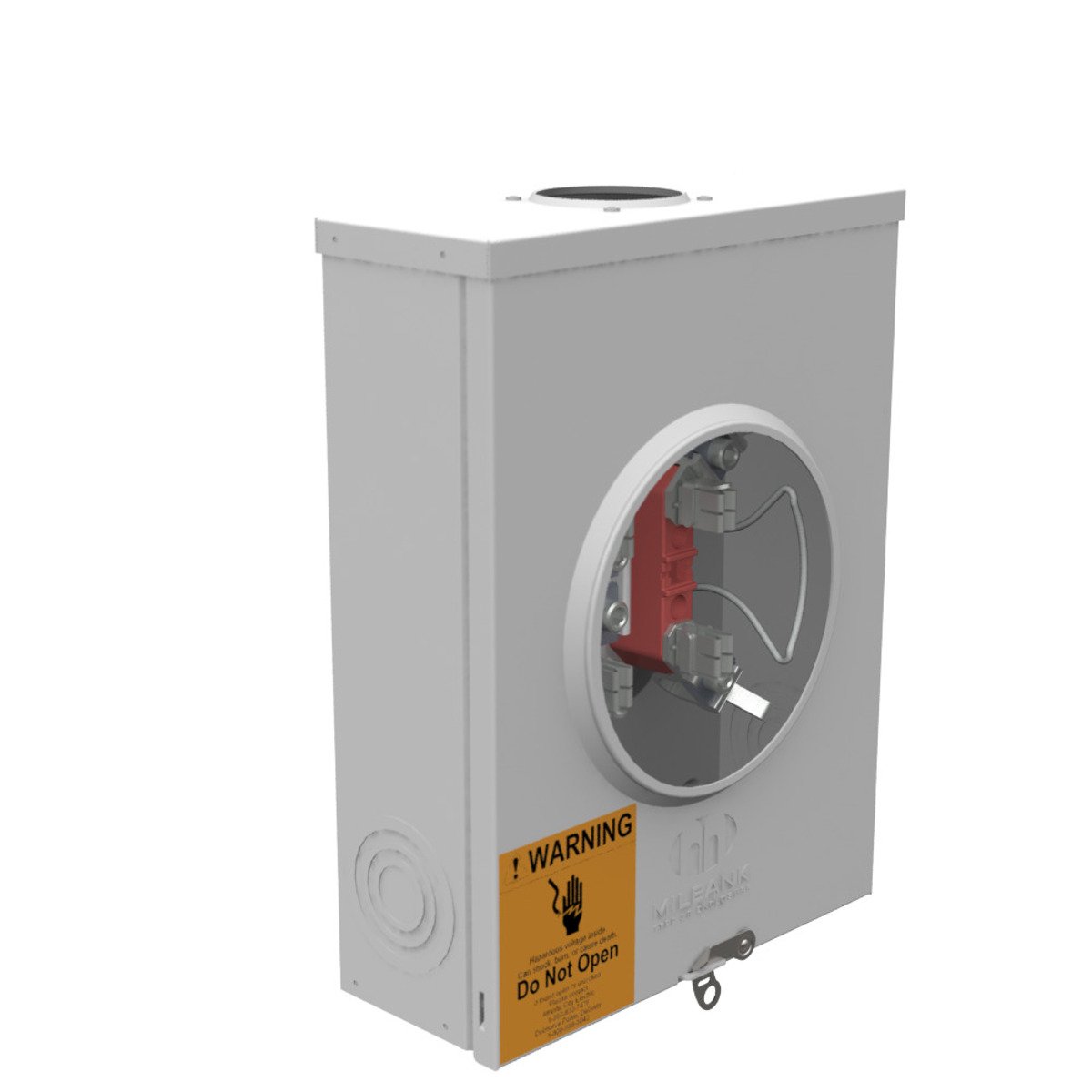

The Milbank U7040-RL-KK-DPL is a ringless meter socket designed for use with a 200 amp service. This model features a horn bypass and small hub opening. It is suitable for overhead or underground cable entry. The meter socket measures eleven inches in length, four and one-eighth inches in width, and fourteen and nine-sixteenths inches in height.

  • UL listed for safety
  • Compatible with 6 AWG to 350 KCMIL wire sizes
  • Constructed from G90 galvanized steel with a powder-coated finish

Product Highlights

The Milbank meter socket is a durable and reliable solution for electrical metering needs. Its sturdy design supports efficient and safe operation.

Product Information

Standard Information

  • Manufacturer: Milbank
  • Catalog Number: U7040-RL-KK-DPL
Technical Specifications
Amperage Rating:
200
Voltage Rating:
600 Volts AC
Number of Jaws:
4 Terminal
Phase:
1
Insulation:
Glass Polyester
Material:
G90 Galvanized Steel
Cable Entry:
Overhead or Underground
Enclosure:
NEMA 3R
Frequency Rating:
60 Hertz
Dimensions:
11 x 4.125 x 14.563 inches
