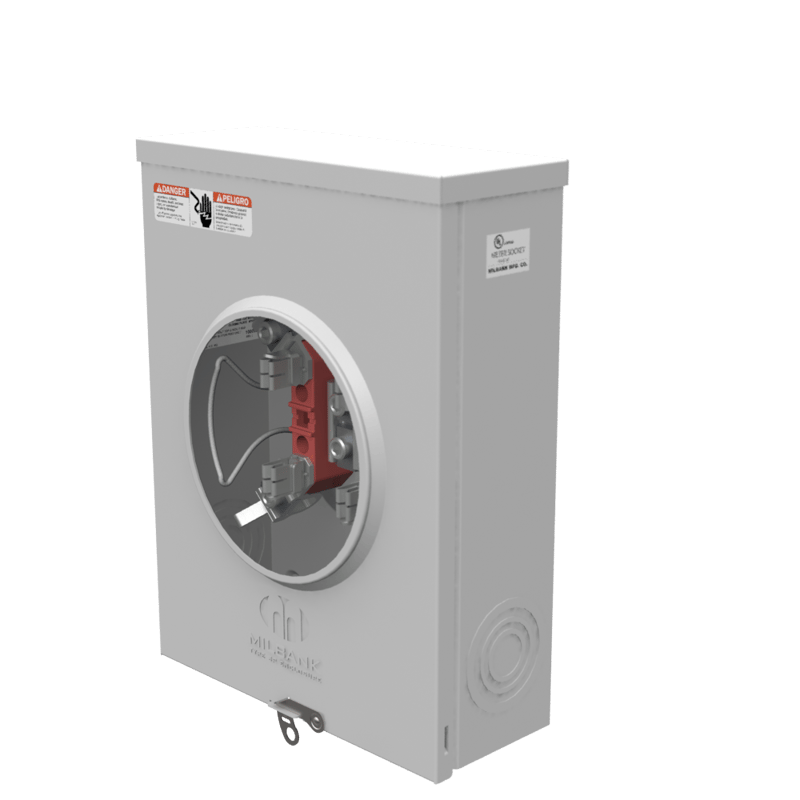

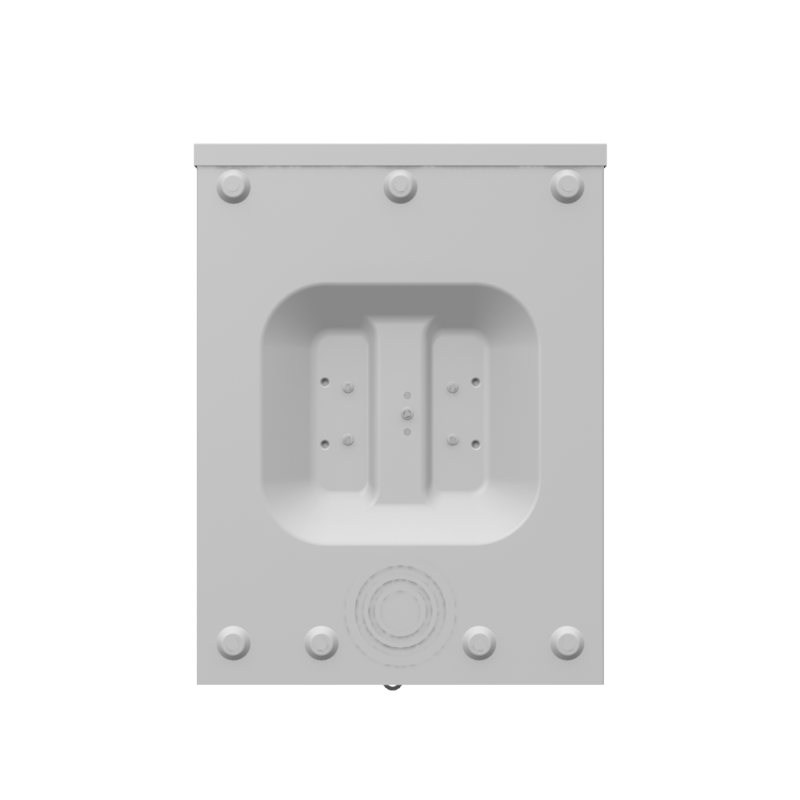

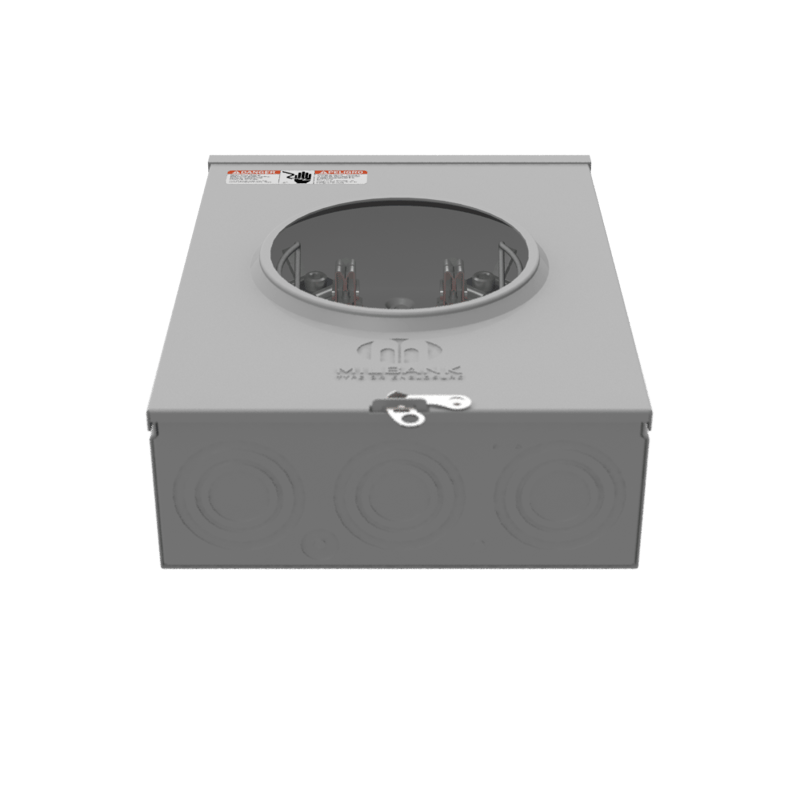

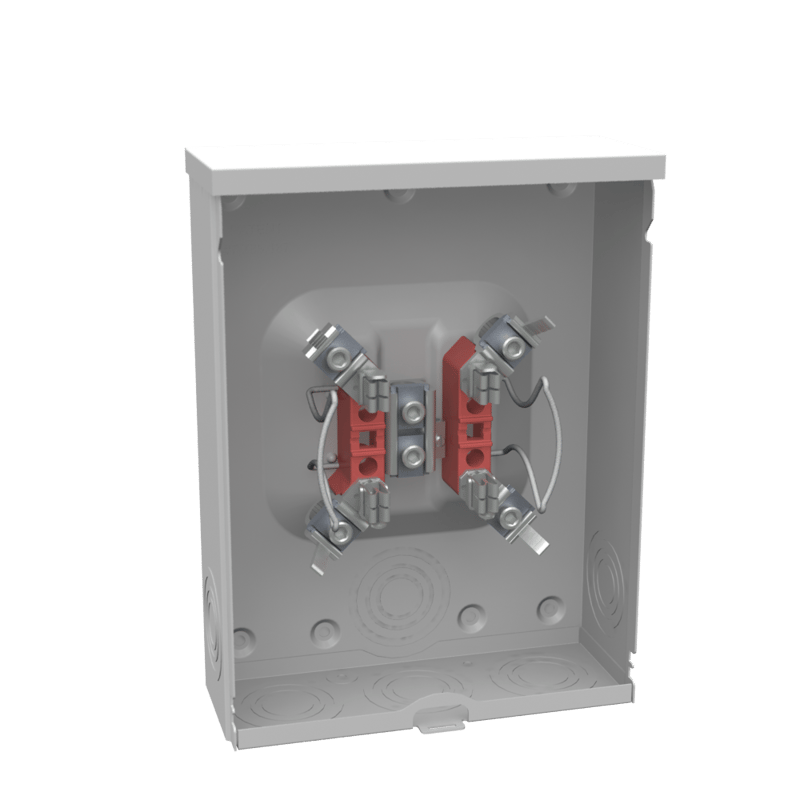

Milbank U7040-O-TG-KK 200 Amp Ringless Meter Socket 4 Terminal Blank Top Triplex Ground Horn Bypass

Product Description

The Milbank U7040-O-TG-KK is a 200 Amp ringless meter socket designed for surface mounting applications. This four-terminal socket features a blank top and a triplex ground horn bypass, making it suitable for underground cable entry. It is built with G90 galvanized steel and comes with a powder coat finish for added durability.

• 200 Amp rated with a four-terminal configuration
• Designed for underground use with a plain top hub opening
• UL listed and compliant with industry standards

Product Highlights

Ideal for residential and commercial installations, this meter socket supports efficient power distribution. Its design allows for easy access and maintenance.

Product Information

Standard Information

• Brand: Milbank
• Part Number: 18028

Technical Specifications

• Voltage Rating: 600V
• Amperage Rating: 200 A
• Terminals: 4 Terminal
• Phase: 1 Phase
• Frequency Rating: 60 Hertz
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Bypass Type: Horn Bypass
