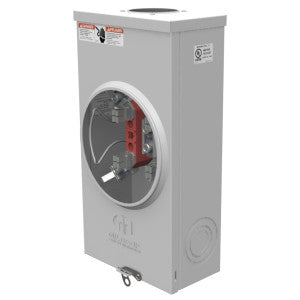

Milbank U7021-RL-KK-BL Meter Socket Ringless 200A 600V 1-Phase 4-Jaw OH Small Hub Opening Horn Bypass Surface-Mount NEMA 3R

Product Description

The Milbank U7021-RL-KK-BL is a ringless meter socket designed for overhead applications. This 200 Amp, 600 Volt AC meter socket is built for reliability and ease of installation. It features a surface-mount design and a G90 galvanized steel enclosure with powder-coated finish for durability and corrosion resistance.

• Rated at 200 Amps and 600 Volts AC
• Four terminal jaws for effective connections
• Accommodates wire sizes from 6 AWG to 350 KCMIL

Product Highlights

This meter socket includes a barrel lock for added security and is UL listed for safety compliance. The socket measures eight inches in length, four and one-eighth inches in width, and fifteen and one-half inches in height. Concentric knockouts include one two and one-half inches, two two and one-half inches, three two and one-half inches, five one-quarter inches, six one-quarter inches, and six one-half inches.

Product Information

Standard Information

• Brand: Milbank
• MPN: U7021-RL-KK-BL

Technical Specifications

• Country Of Origin: United States of America
• Amperage Rating: 200 Amp
• Voltage Rating: 600 Volt AC
• Number of Jaws: 4
• Feed Location: Overhead
• Mounting: Surface
• Material: G90 Galvanized Steel
• Knockouts: (1) 2-1/2 Inch, (2) 2-1/2 Inch, (3) 2-1/2 Inch, (5) 1/4 Inch, (6) 1/4 Inch, (6) 1/2 Inch Concentric
• Dimensions: 8 Inch Length x 4-1/8 Inch Width x 15-1/2 Inch Height
• UL Listed: Yes
