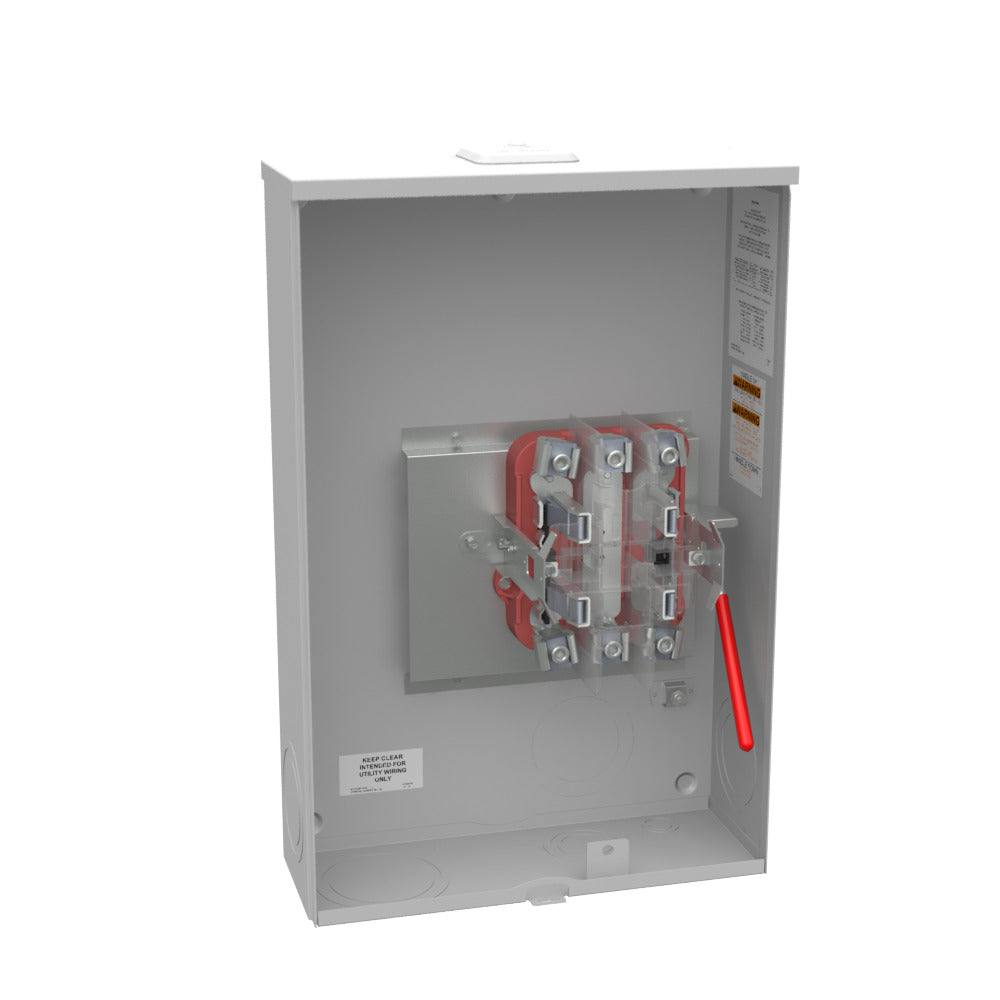

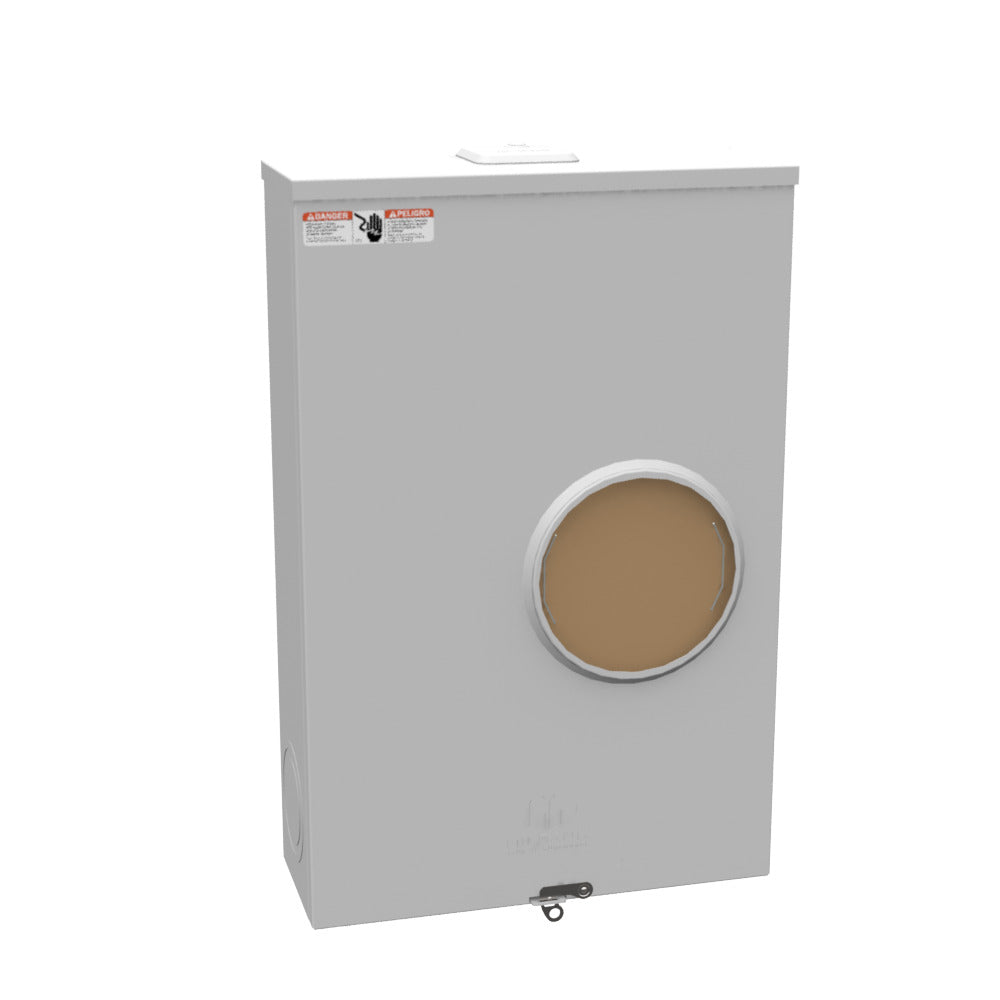

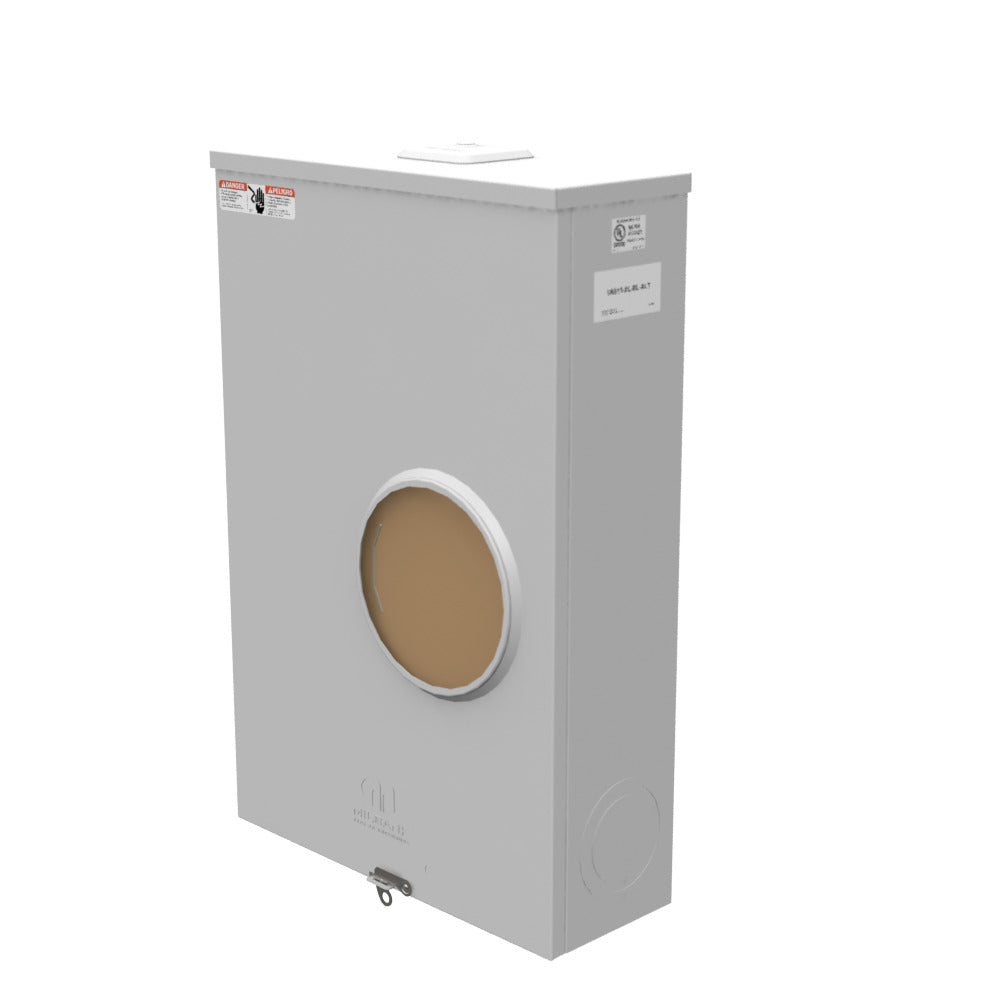

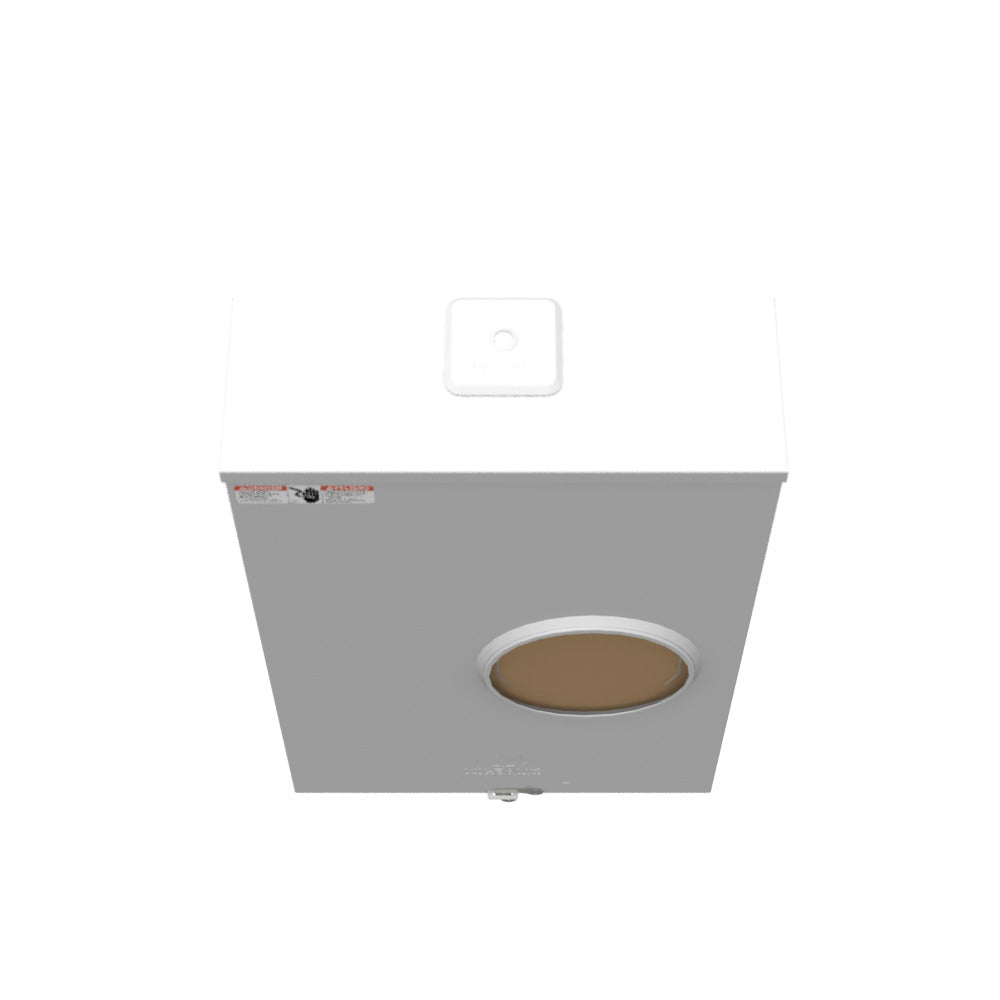

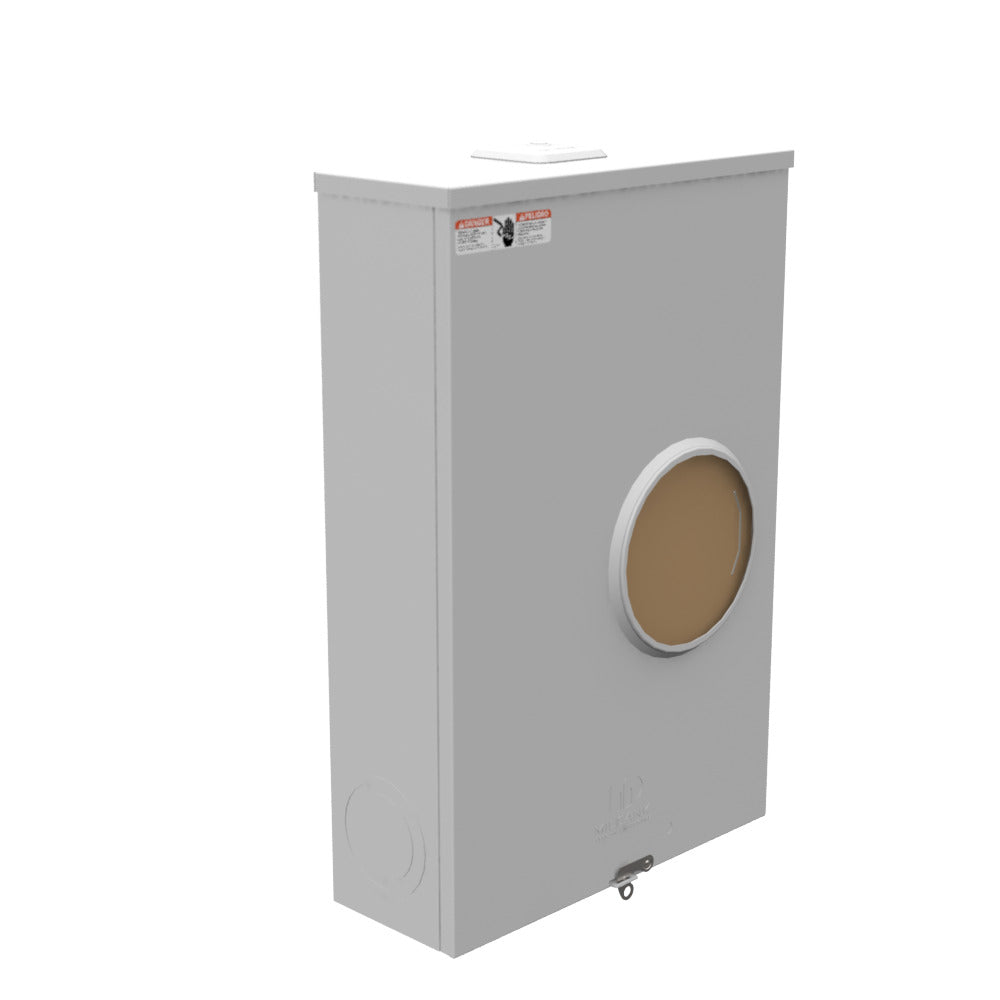

Milbank U6513-XL-BL-ALT Meter Socket with Lever Bypass 4 Term Ringless 200 Amperage

Product Description

The Milbank U6513-XL-BL-ALT is a meter socket designed for reliable connections and effective power distribution. It features a lever bypass option and is suitable for both overhead and underground cable entry, making it versatile for various installation needs.

• Rated for 200 amperes at 600 volts
• Constructed from G90 galvanized steel with a powder coat finish
• UL Listed; Type 3R enclosure for outdoor use

Product Highlights

This meter socket is designed for easy surface mounting and includes a bracket provision for additional stability.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U6513-XL-BL-ALT
• Application: Meter Socket
• Amperage Rating: 200
• Voltage Rating: 600 Volts Alternating Current
• Bypass Type: Lever
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Size: 5.75L x 16W x 24.25H
