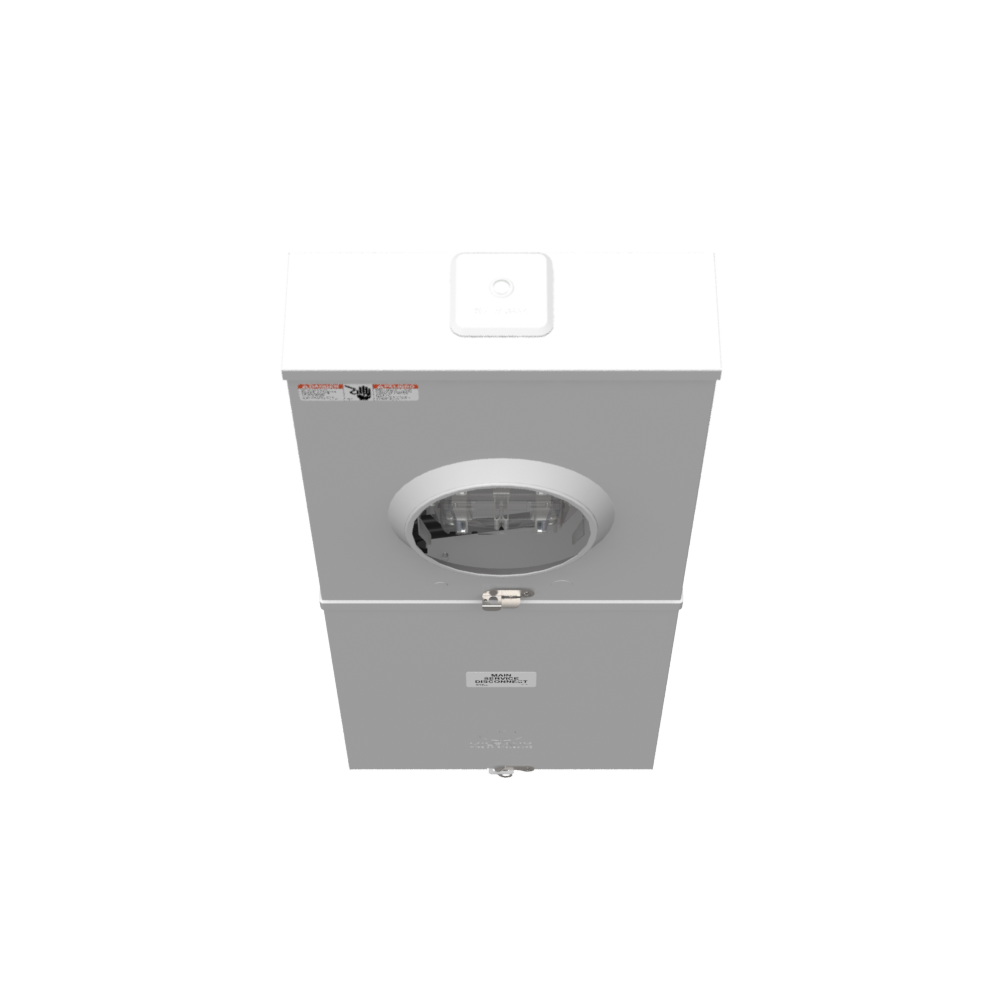

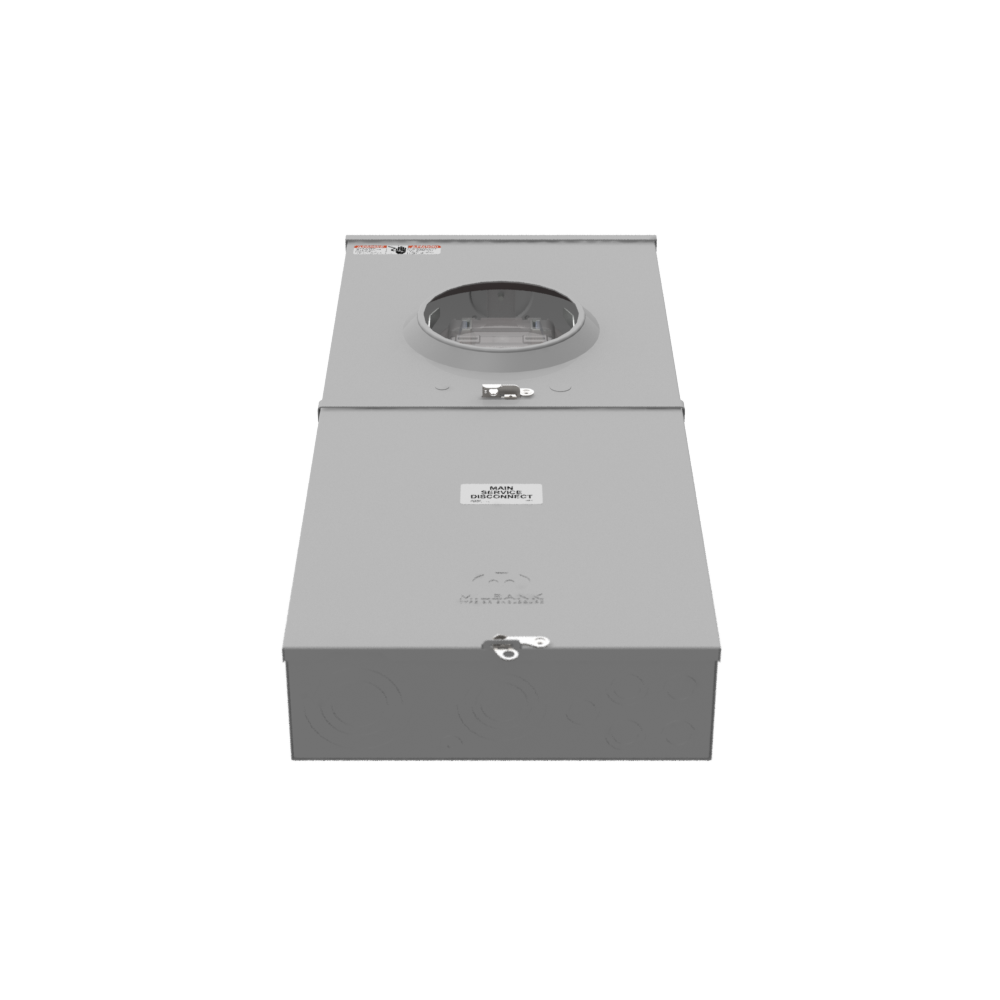

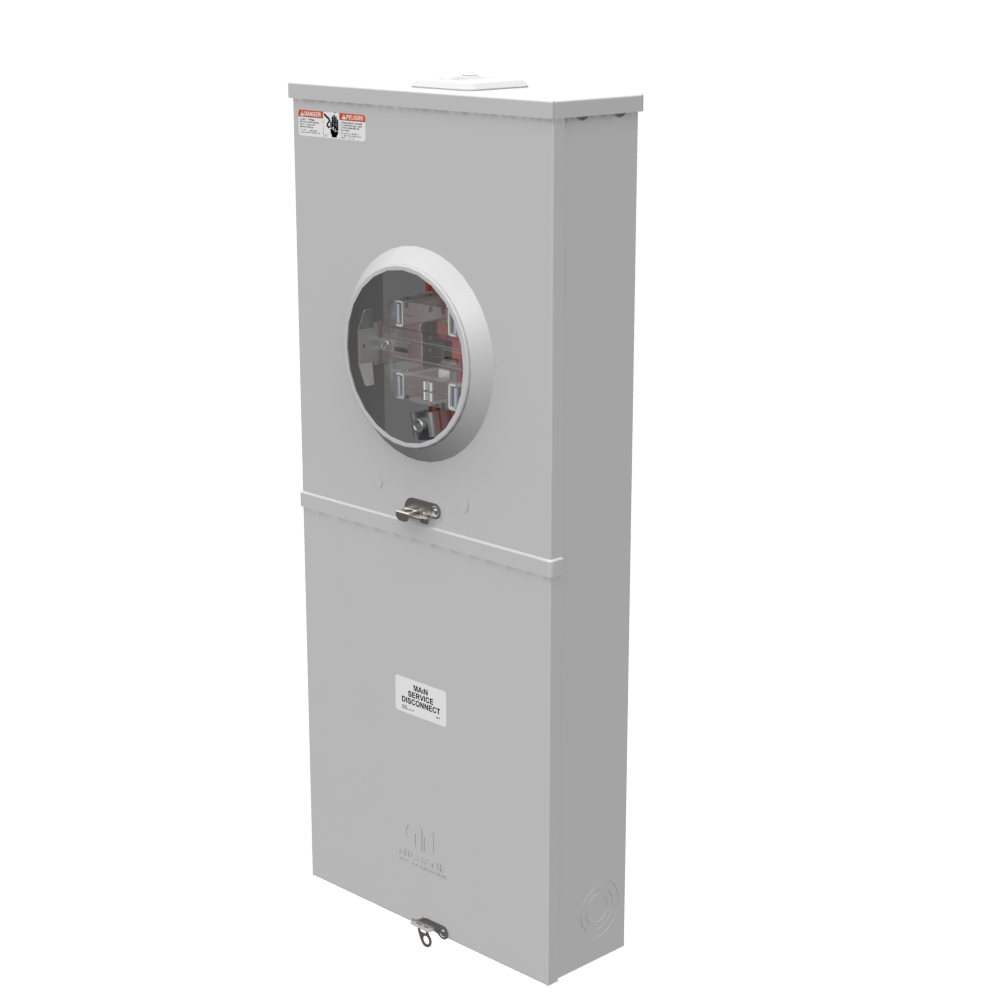

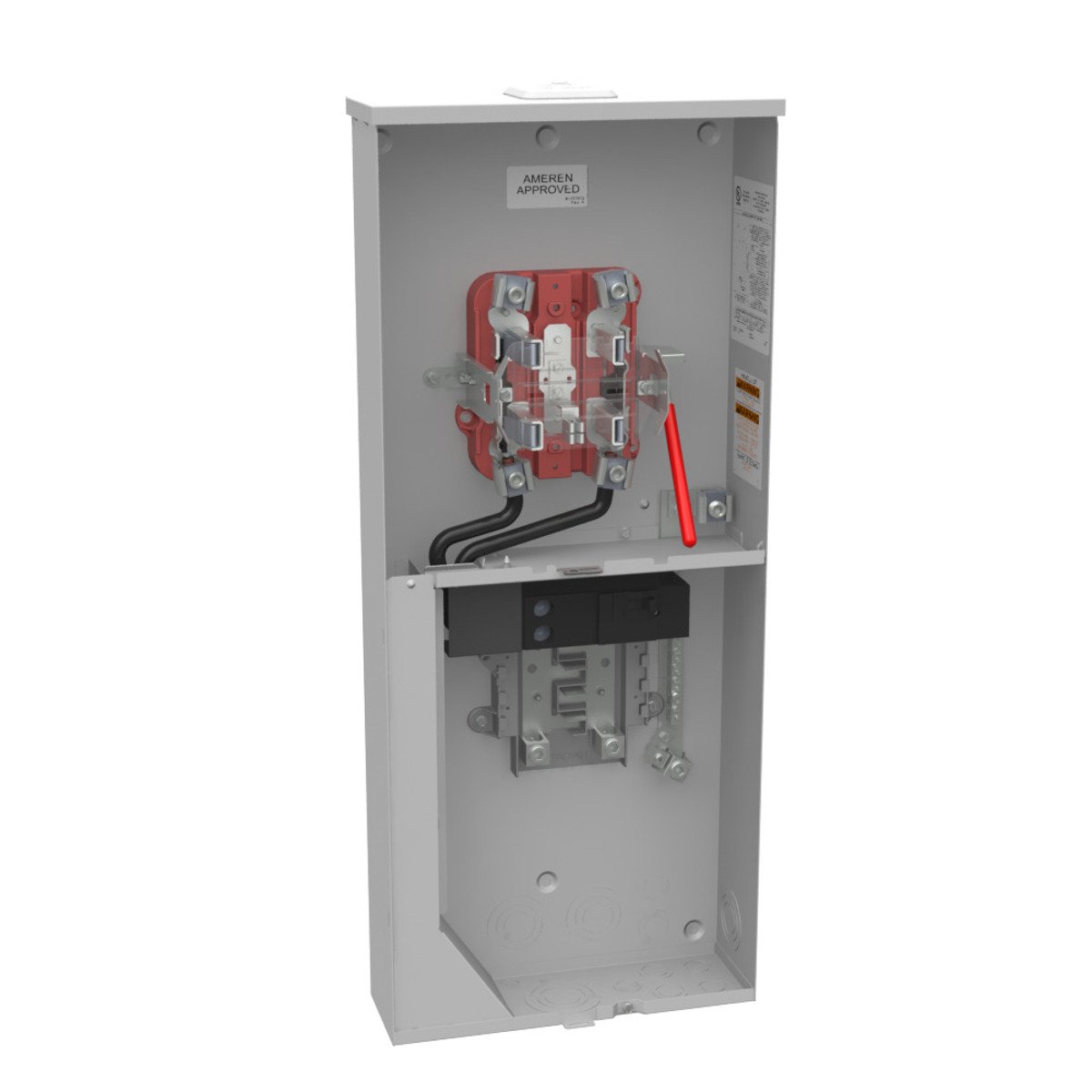

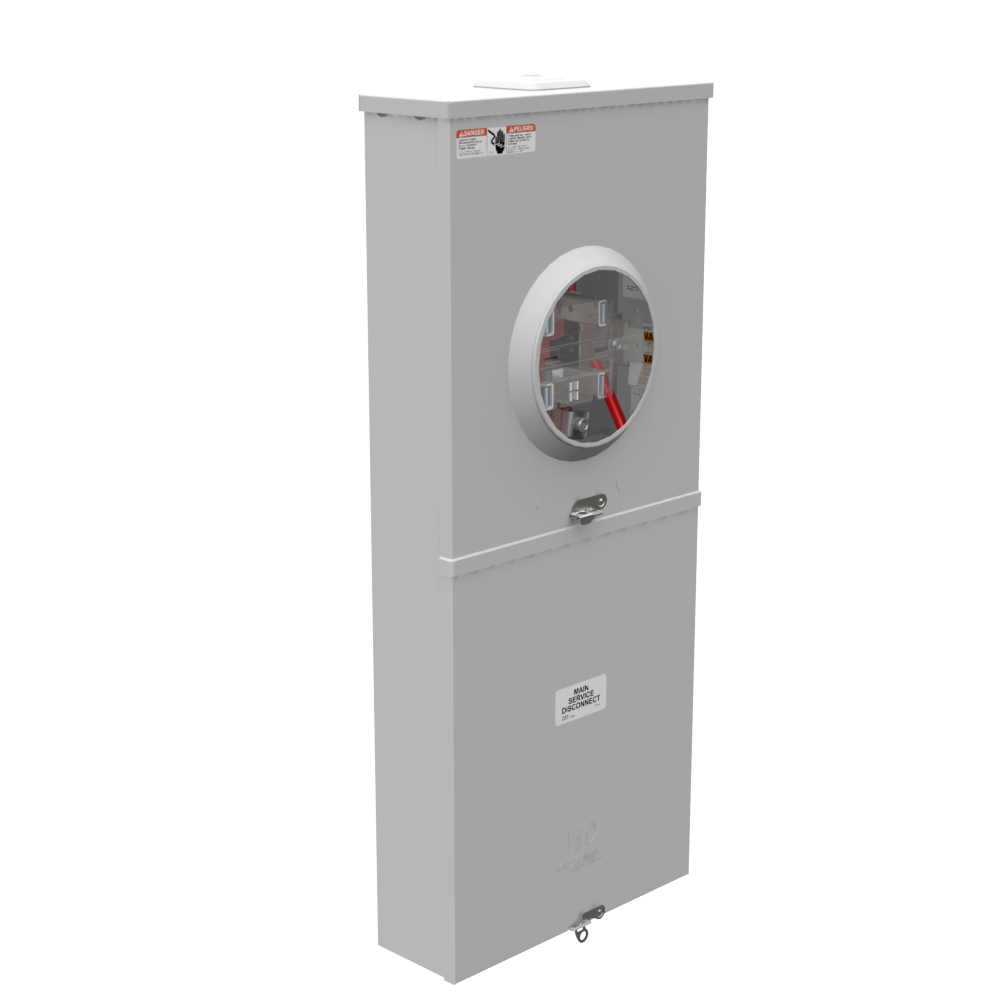

Milbank U6281-XL-200-5T6-AMS Ringless Meter Socket with Main and Load Center 200 Ampere

Product Description

The Milbank U6281-XL-200-5T6-AMS is a ringless meter socket with main and load center, designed for 120/240 VAC and 200 continuous Ampere. It supports both overhead and underground cable entries and features a lay-in terminal. Constructed with a G90 galvanized steel enclosure with powder coat finish, it ensures durability and resistance to environmental factors. This meter socket is UL Listed and NEMA 3R rated.

• Ringless Meter Socket with Main and Load Center
• 1 - 200 Ampere Main Breakers Cutout
• Overhead or Underground Cable Entry

Product Highlights

This Milbank meter socket offers a reliable solution for electrical metering with added load center capabilities and robust construction.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U6281-XL-200-5T6-AMS
• Country of Origin: USA

Technical Specifications

• Type: Ringless, With Main And Load Center, Lever Bypass
• Series: Ameren Approved
• Hub Size: Small
• Hub Type: Small Closing Plate
• Feed Type: Overhead, Underground
• Wire Size: 6 AWG - 350 kcmil
• Mounting Type: Surface Mount
• Terminal Type: Lay in
• Enclosure Type: NEMA 3R
• Number of Jaws: 5
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Frequency Rating: 60 Hz
• Main Breaker: Yes
• Branch Circuit: 8
• 5th Terminal Position: 6 O'clock
• Phase: 1
