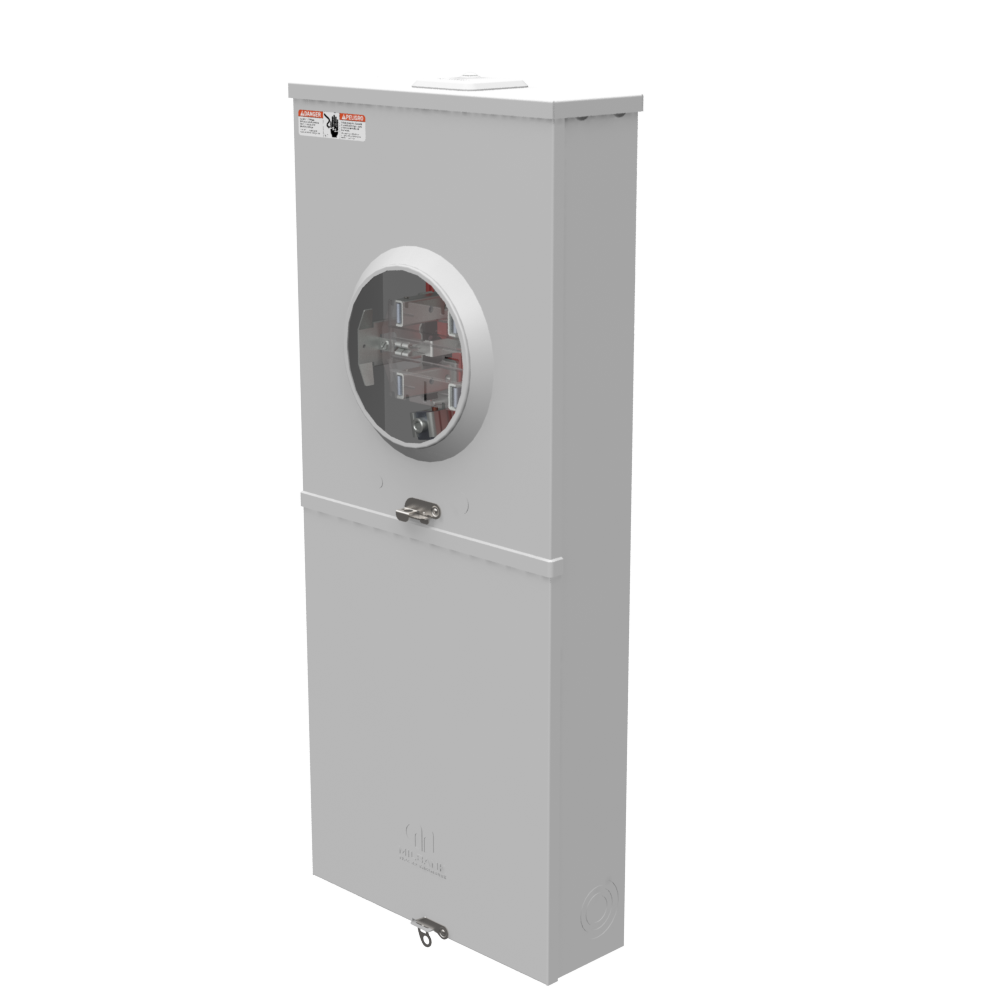

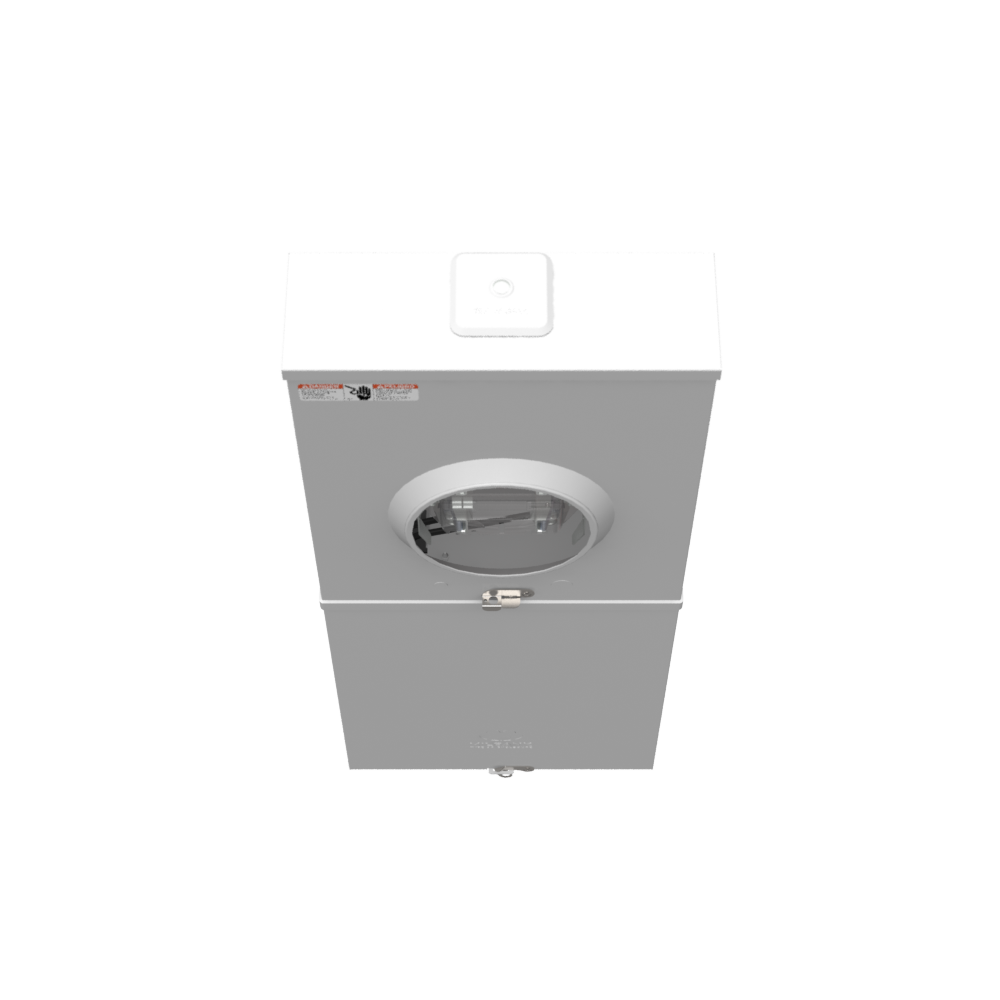

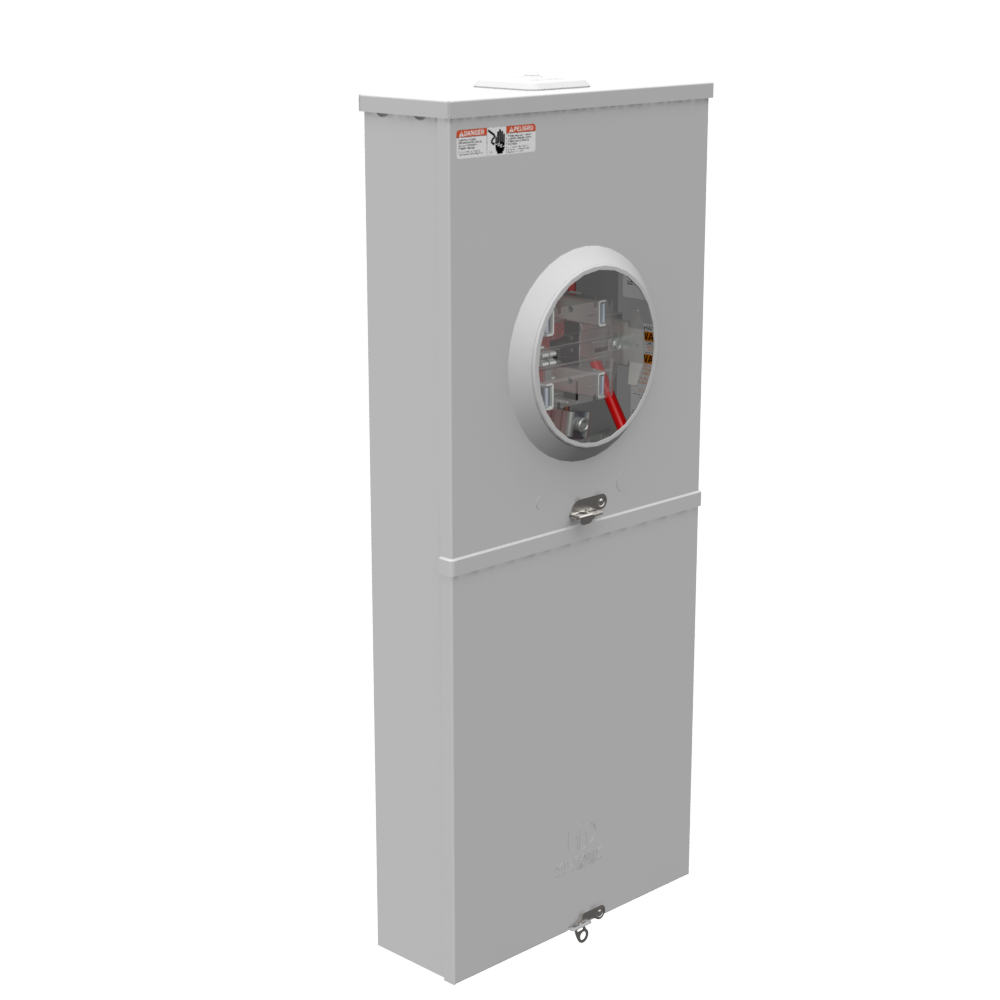

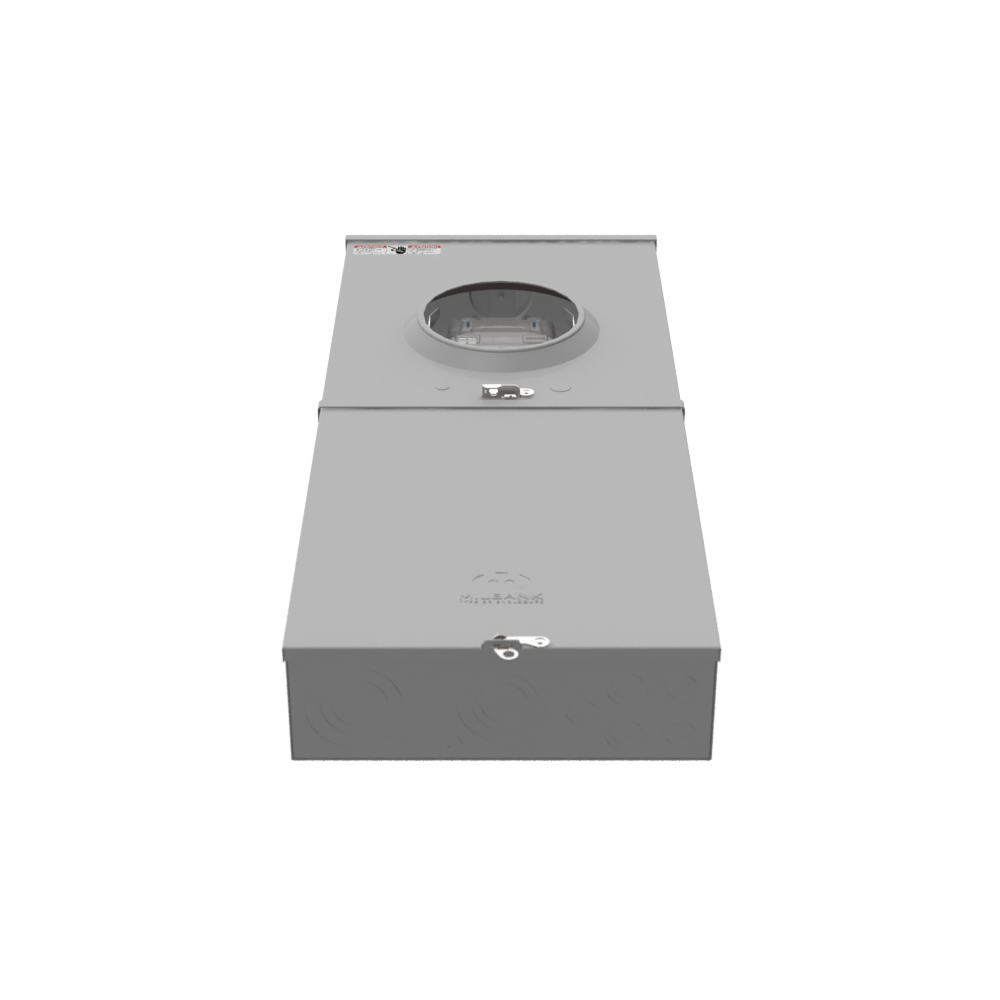

Milbank U6281-XL-100-5T9 5 terminal ringless small closing plate lever bypass meter socket 100 ampere 5th terminal 9 o'clock

Product Description

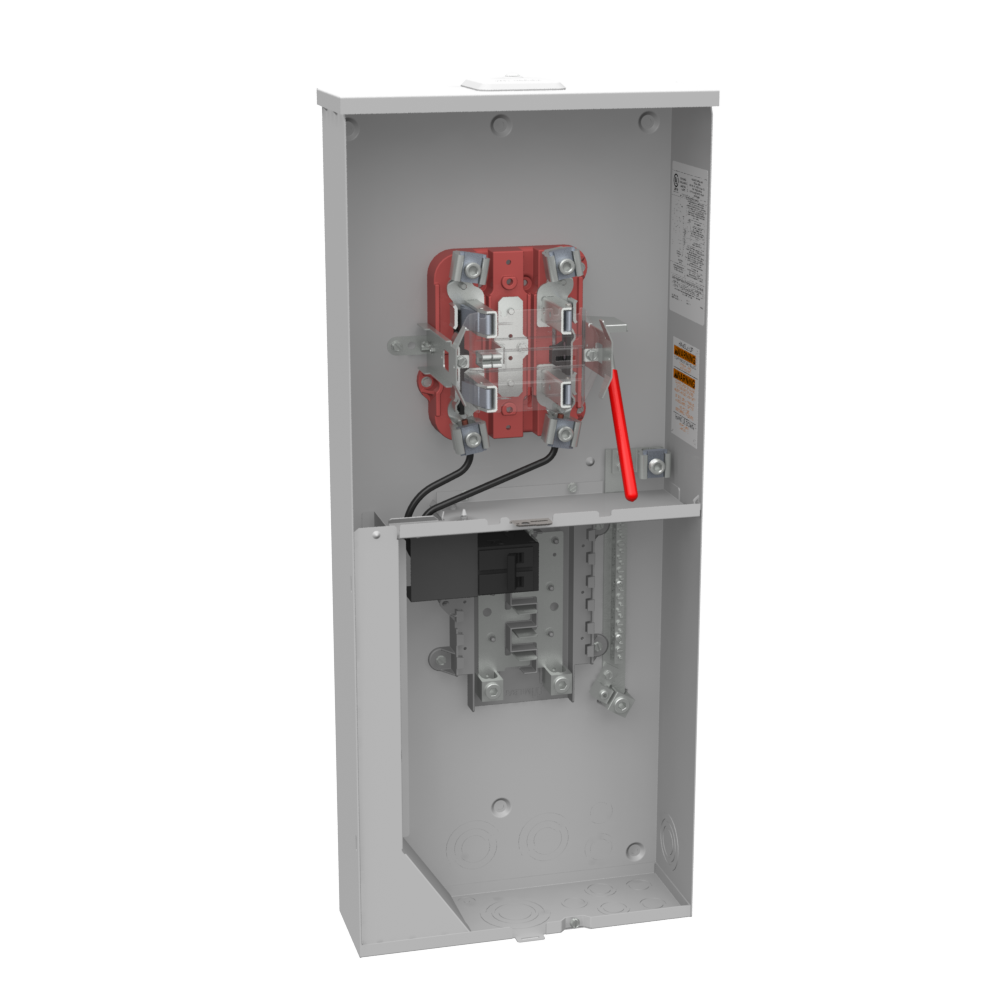

The Milbank U6281-XL-100-5T9 is a 5 terminal ringless meter socket designed for electrical service applications. This unit features a lever bypass, a 100 ampere main breaker, and supports 8 branch circuits. Constructed from G90 galvanized steel with a powder coat finish, it is UL Listed and Type 3R rated for outdoor use, accommodating up to 240 Volts AC. It supports both overhead or underground cable entry and includes an equipment ground bar.

• 5 terminal ringless design with 5th terminal at 9 o'clock position.
• Integrated 100 Ampere main breaker and 8 branch circuits.
• UL Listed and Type 3R rated for outdoor surface mount installations.

Product Highlights

Durable G90 galvanized steel meter socket with lever bypass, suitable for 240V AC service.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U6281-XL-100-5T9

Technical Specifications

• Amperage: 100 Continuous Ampere
• Application: Meter Socket With Main And Load Center
• Brand: Milbank
• Bypass Type: Lever Bypass
• Cable Entry: Overhead or Underground
• Main Breaker Amperage: 100 Ampere
• Material: G90 Galvanized Steel with Powder Coat Finish
• Grounding: Ground Bar
• Frequency: 60 Hertz
• Closing Plate Type: Small Closing Plate
• Insulation Material: Glass Polyester
• Number of Terminals: 5
• Knockouts Included: True
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Mounting Type: Surface Mount
• Number of Branch Circuits: 8
• Number of Main Breakers: 1
• Number of Meter Positions: 1
• Number of Receptacles: 0
• Phase: 1 Phase
• Certifications/Standards: UL Listed; Type 3R
• Terminal Type: Lay in
• Product Type: Ringless Meter Socket
• Voltage Rating: Up to 240 Volts AC
