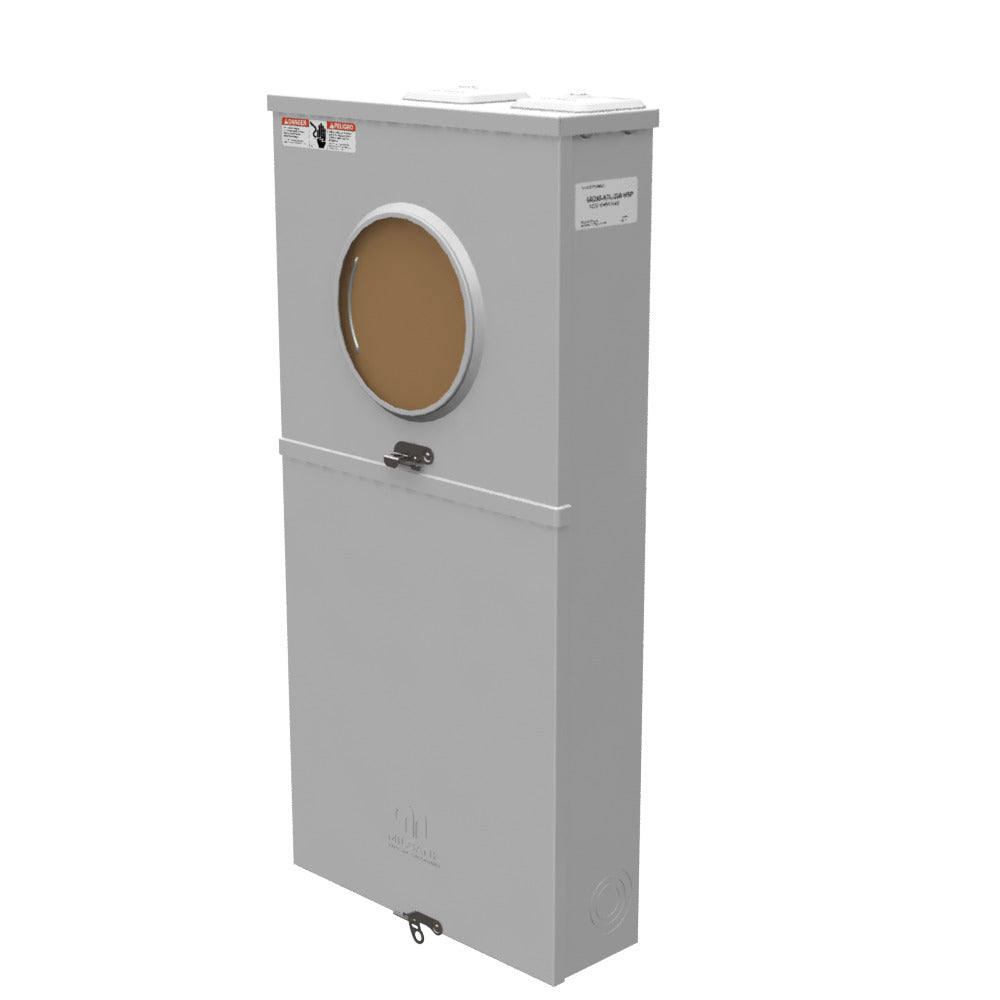

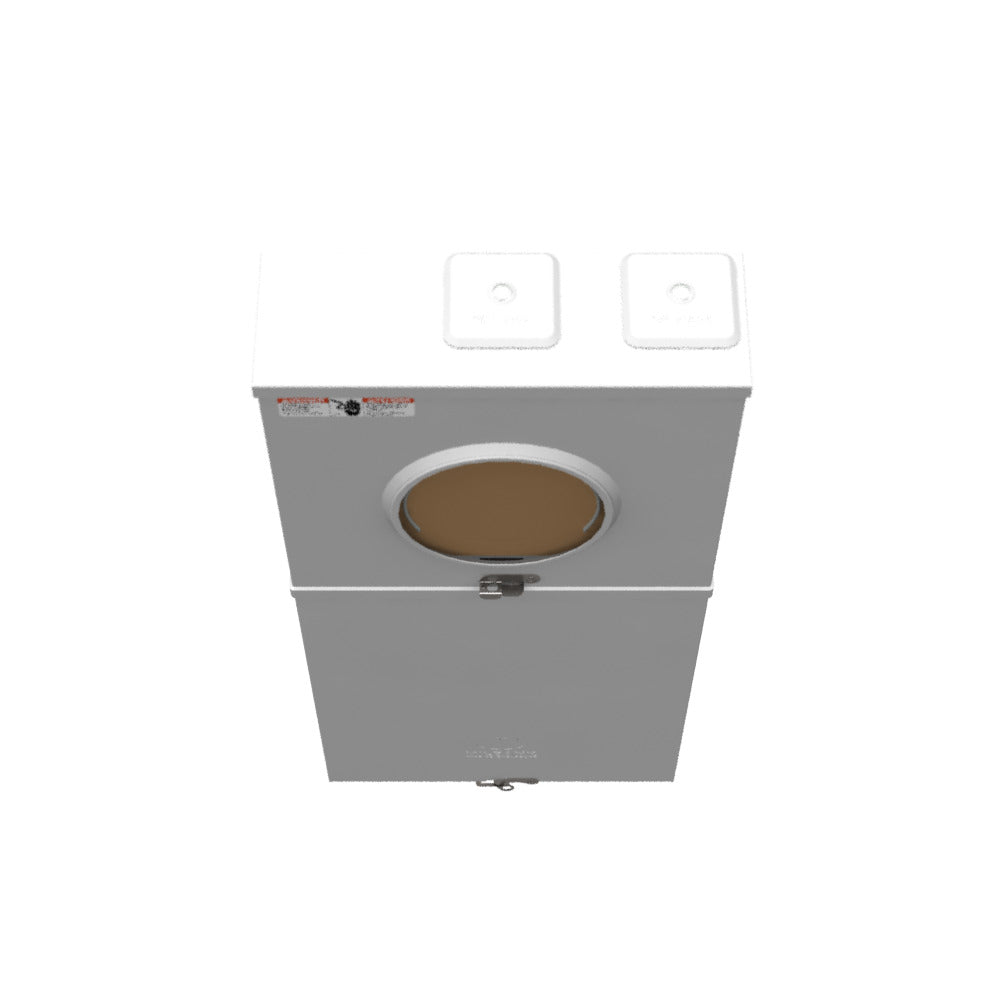

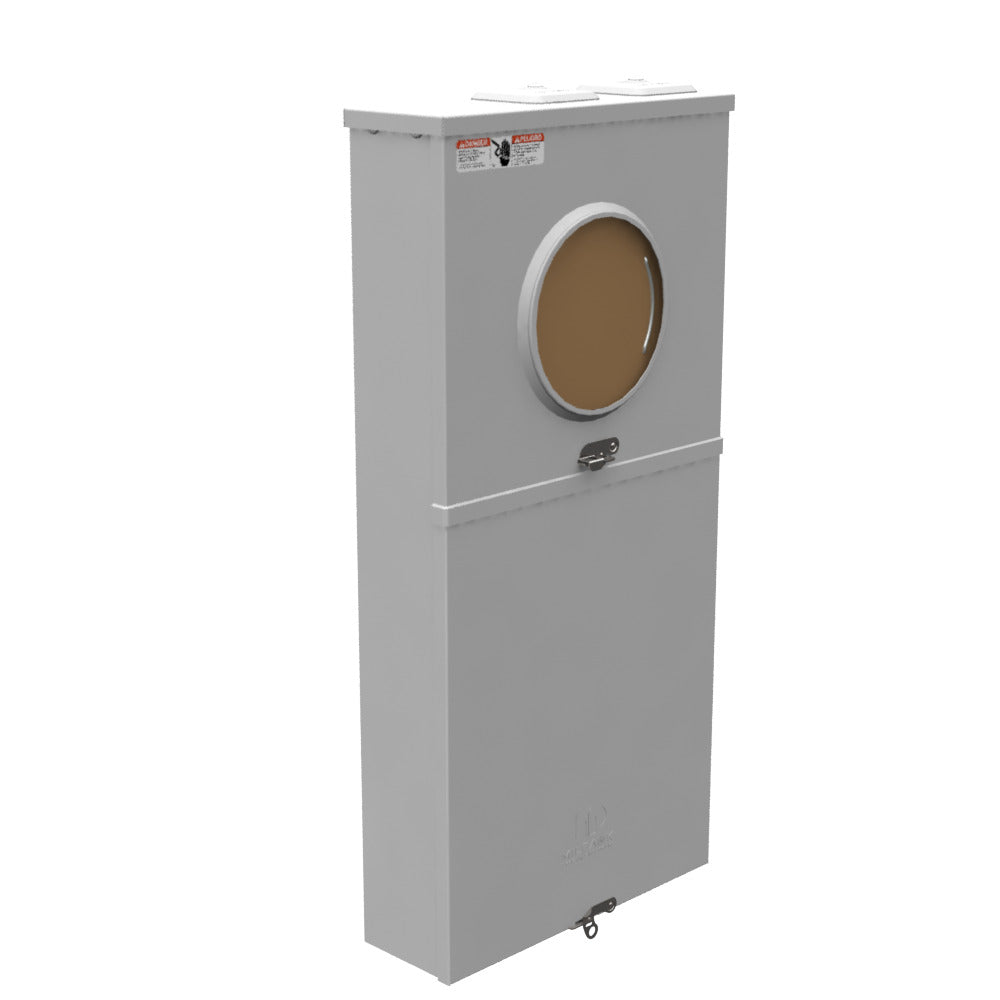

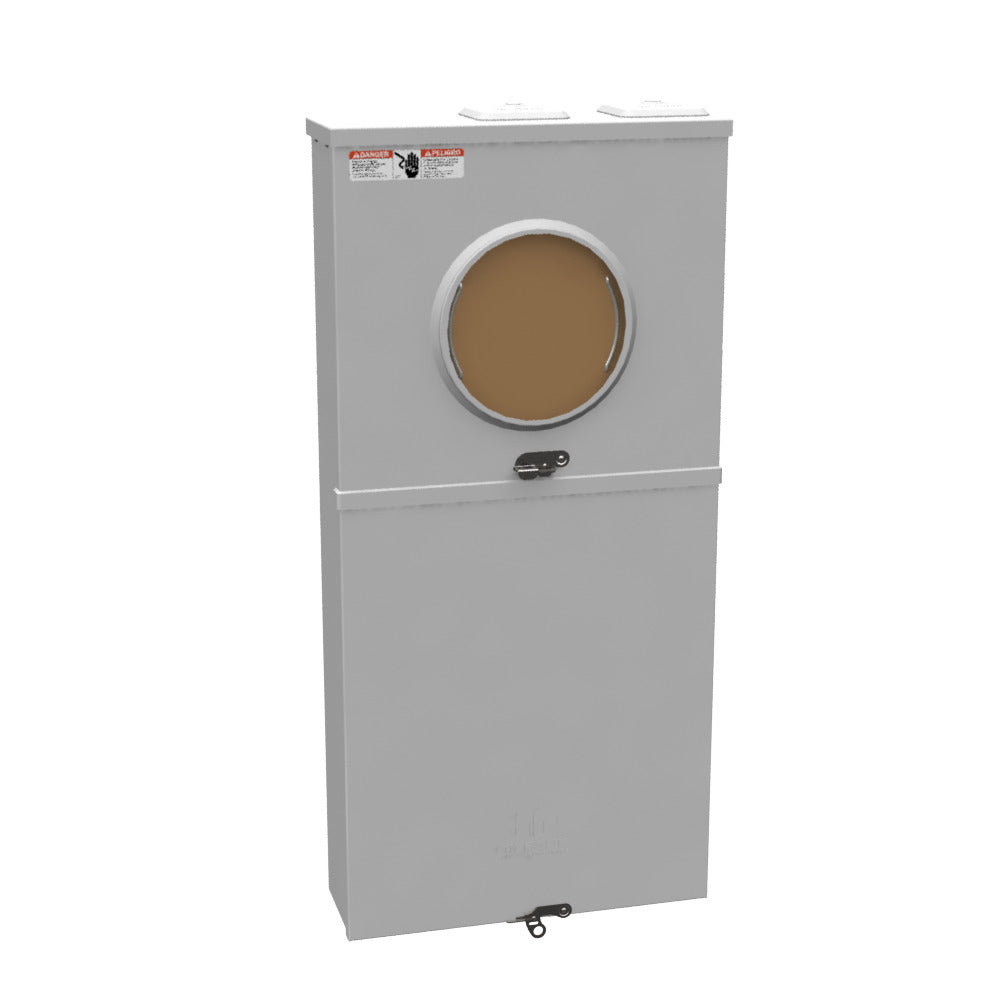

Milbank U6266-XTL-200-HSP Single Position Meter Socket With Main Breaker 200 Amp 1 Phase Ringless No Bypass

Product Description

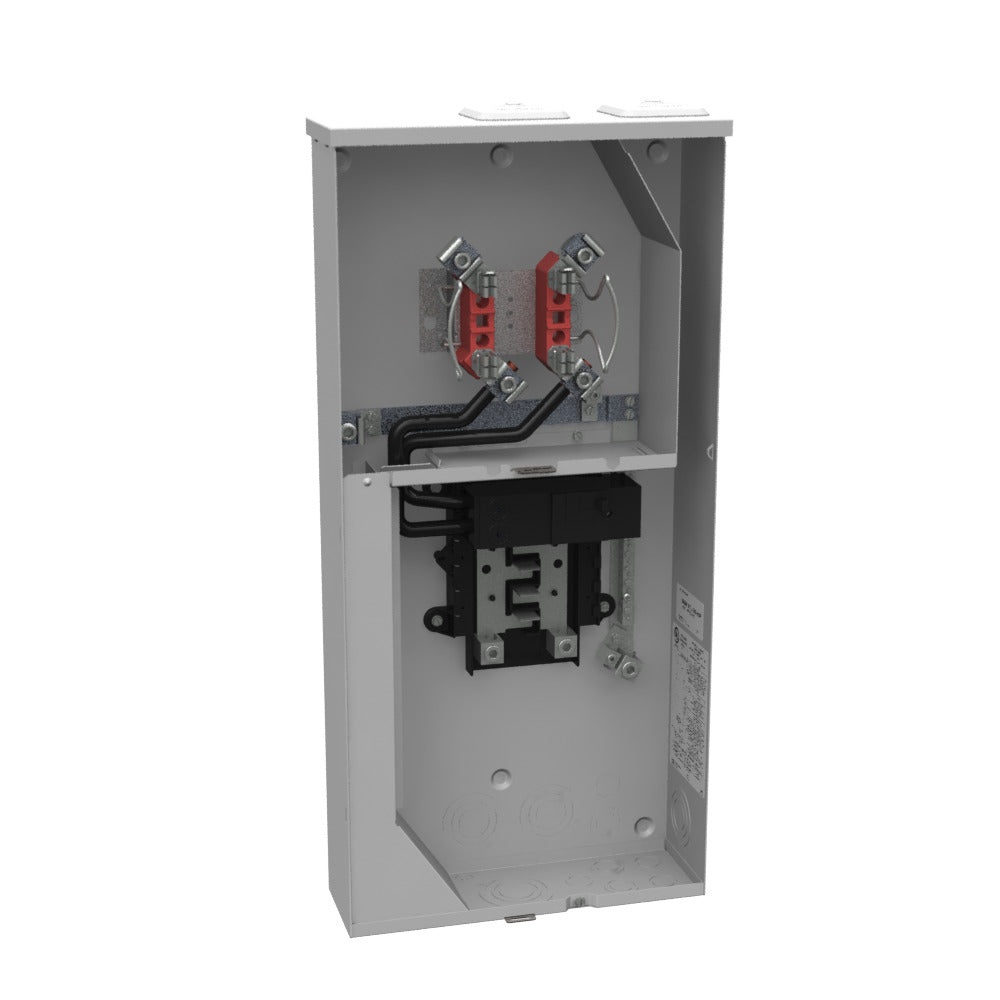

The Milbank U6266-XTL-200-HSP is a single position meter socket designed for 200 amp applications. This product is ideal for use in both overhead and underground installations. It features a main breaker and a ringless design, ensuring ease of access and safe operation.

• Rated for 200 amps
• Suitable for 1-phase applications
• Available with four terminals

Product Highlights

This meter socket is constructed from G90 galvanized steel, designed to withstand the elements, and is UL listed for safety compliance.

Product Information

Standard Information

• Brand: Milbank
• Catalog Number: U6266-XTL-200-HSP

Technical Specifications

• Application: Meter Socket With Main
• Bypass Type: No Bypass
• Amperage Rating: 200
• Voltage Rating: Up to 240 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Dimensions: 4.5L x 14.125W x 30H inches
• Material: G90 Galvanized Steel With Powder Coat Finish
• Country of Origin: United States
