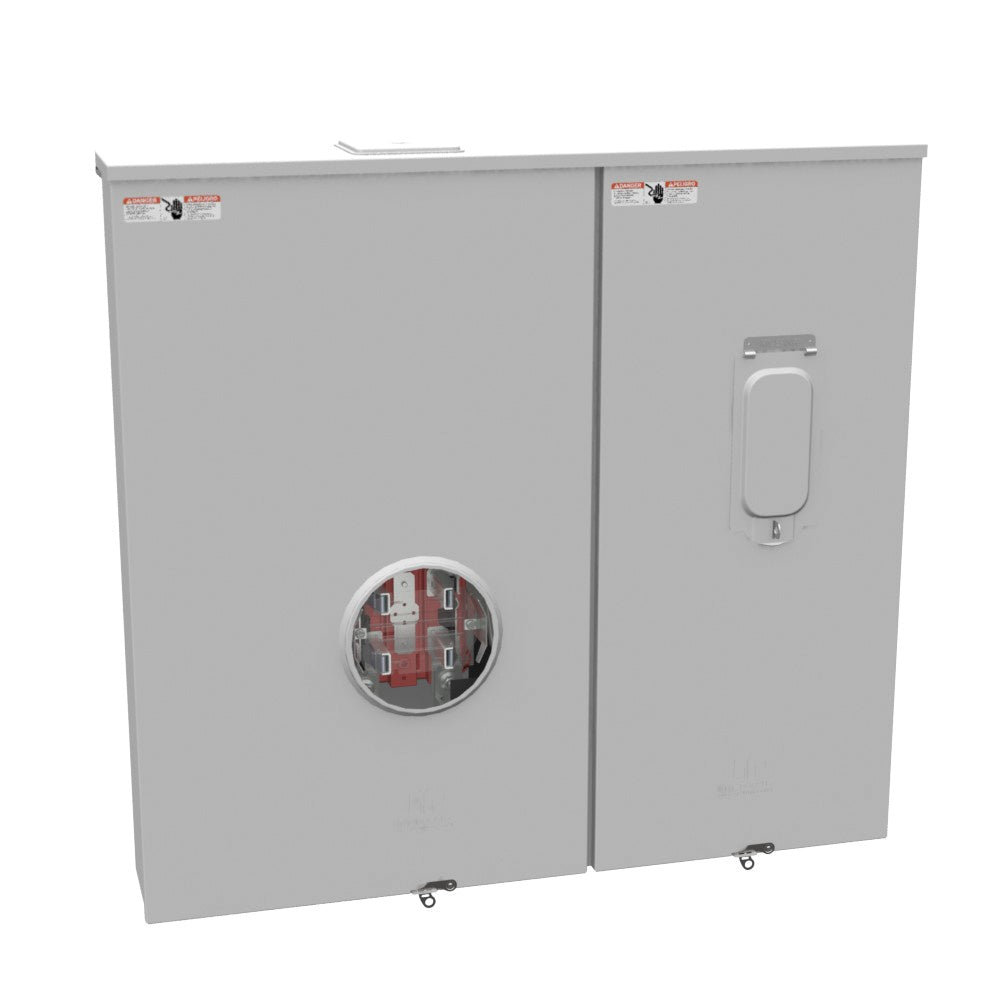

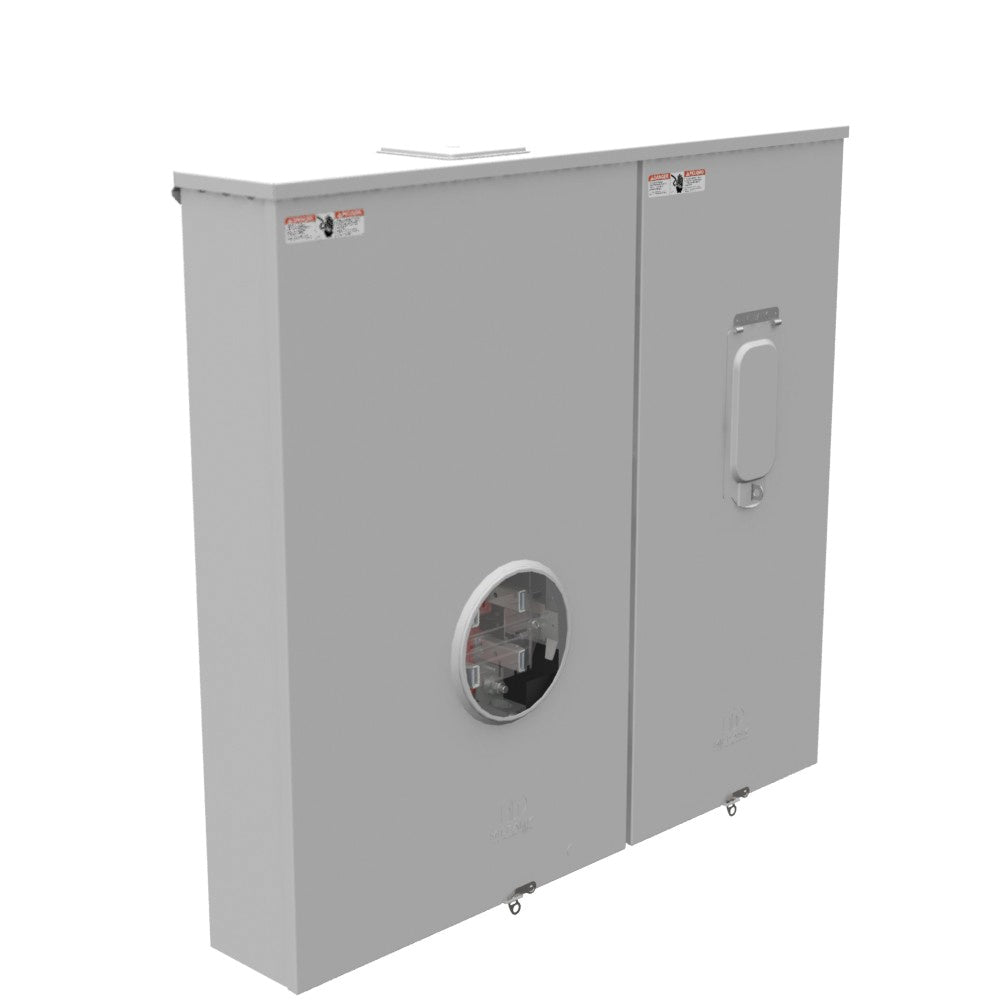

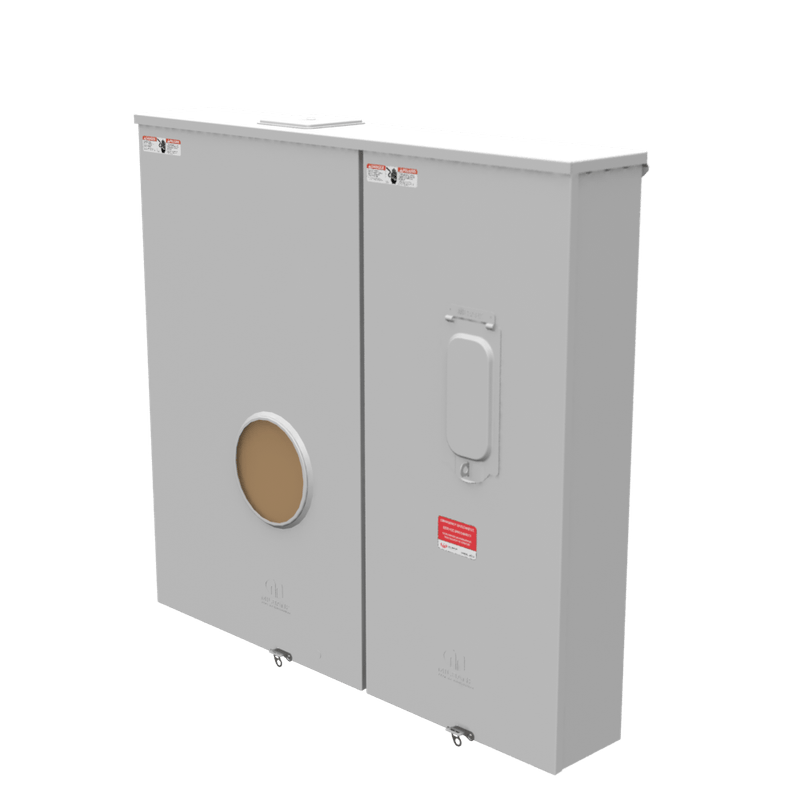

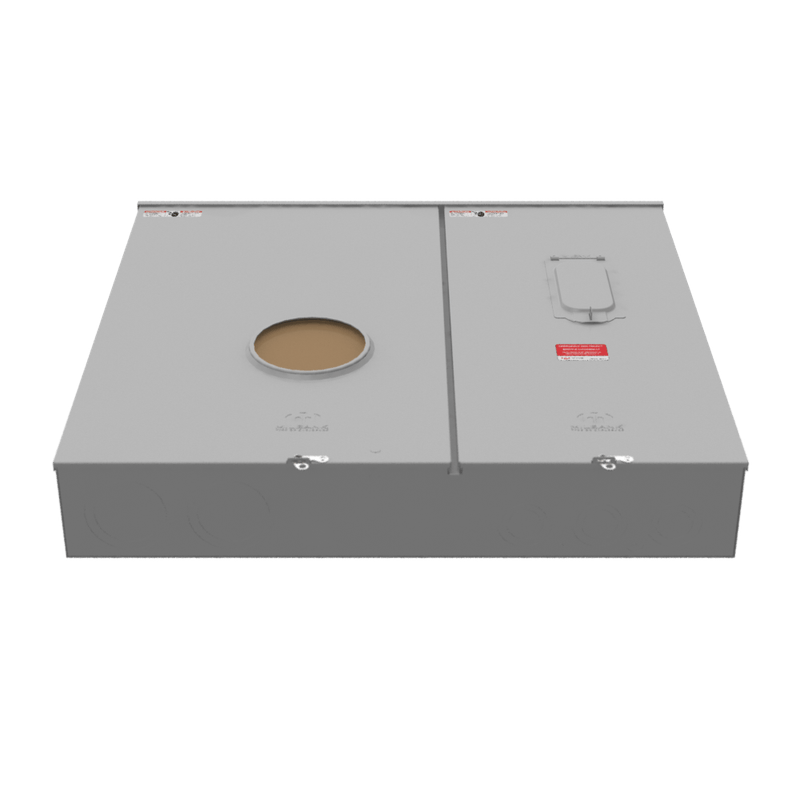

Milbank U6227-X-400-K3L-BL 1-Phase 320A Ringless Meter Socket

Product Description

The Milbank U6227-X-400-K3L-BL is a 1-phase, 320A ringless meter socket designed for surface mounting. This unit is made from G90 galvanized steel and features a powder-coated finish, ensuring durability and resistance to environmental factors.

• Rated for 320A continuous duty at 240VAC and 60 Hz

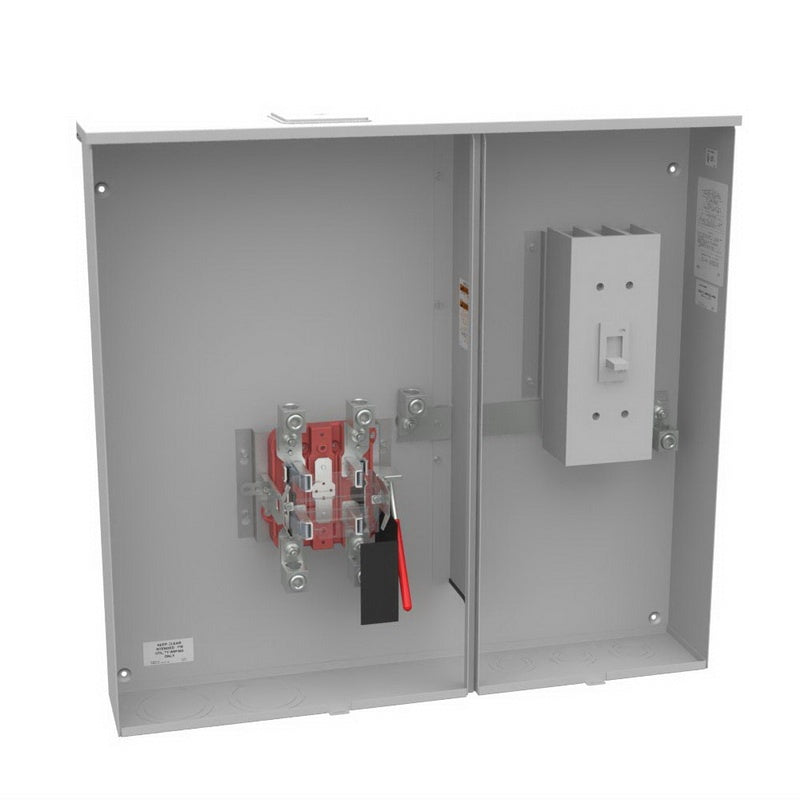

• Includes a 400A main breaker with lever bypass for safe maintenance
• Supports overhead and underground cable entries

Product Highlights

This meter socket features a NEMA 3R enclosure, providing protection against rain, sleet, and snow, making it ideal for outdoor installations. It includes various knockouts for versatile wiring options and accommodates a wide range of conductor sizes.

Product Information

Standard Information

• Brand: Milbank
• MPN: U6227-X-400-K3L-BL

Technical Specifications

• UPC: 78457280622
• Amperage Rating: 320 Amp
• Voltage Rating: 240 Volt AC
• Dimensions: 6 inches Length x 36.25 inches Width x 34 inches Height
• Material: G90 Galvanized Steel
• Knockouts: (1) 4 Inch, (2) 2.5 Inch, (3) 1/2 Inch, (4) 1/4 Inch
• Weight: 128 pounds
• Standards: UL Listed
