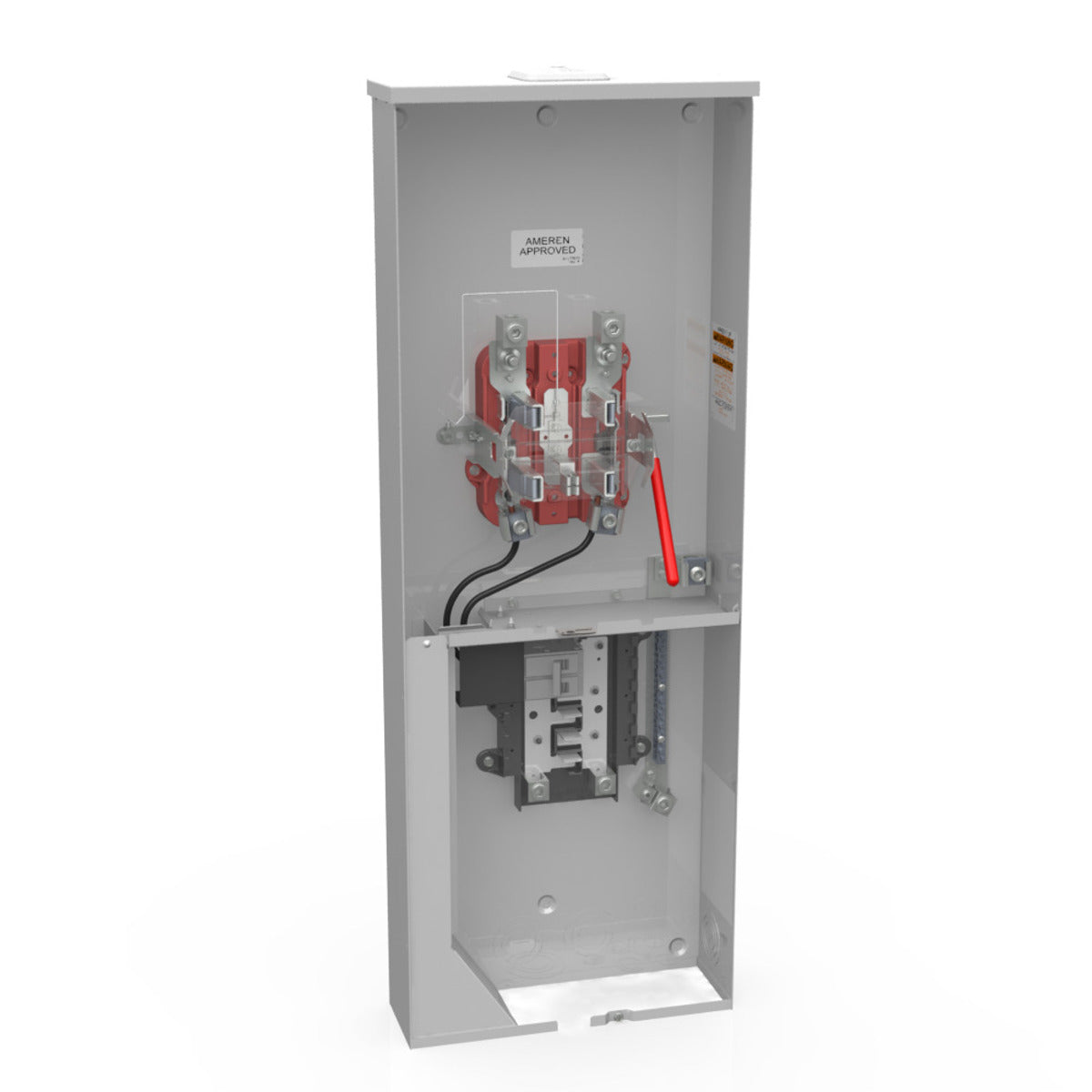

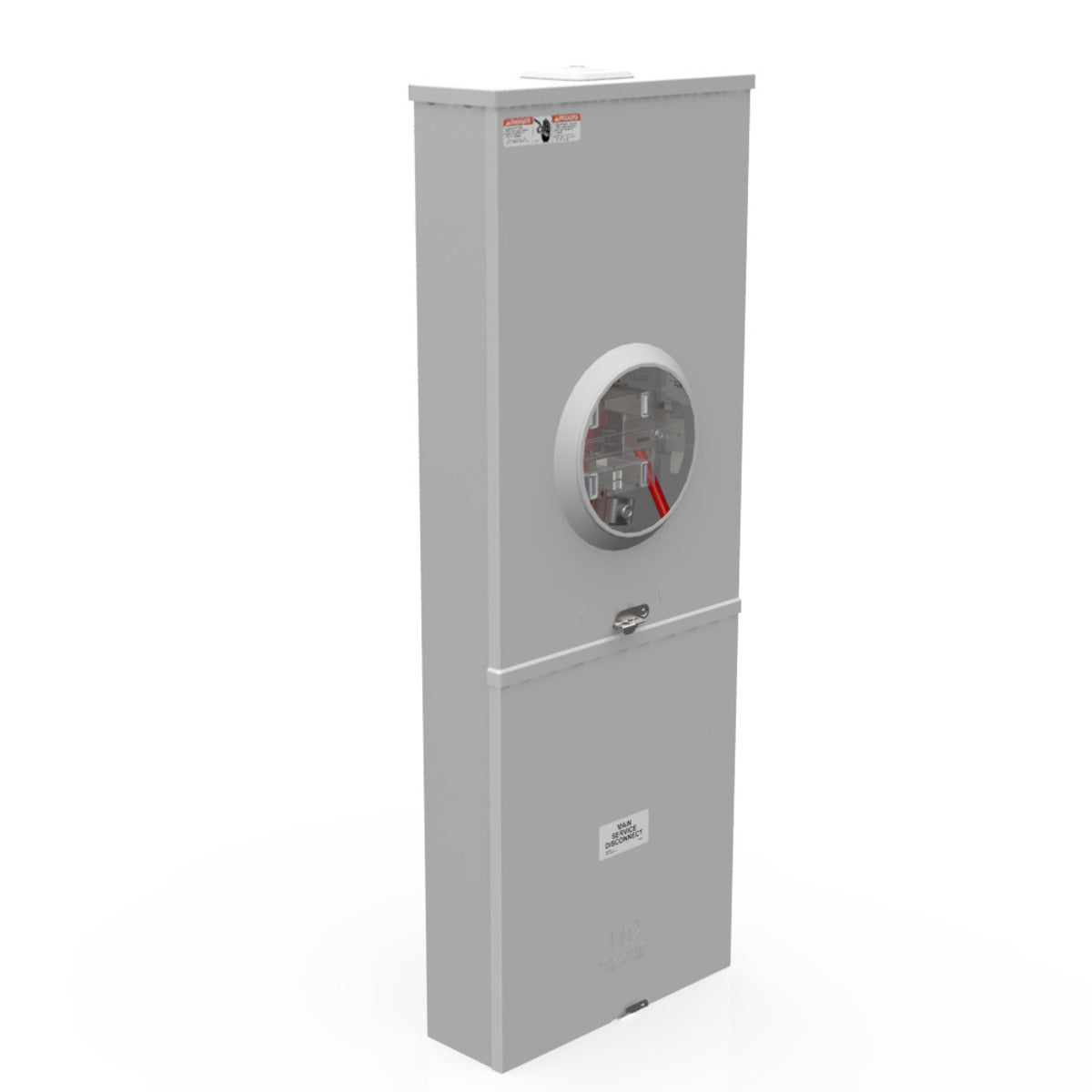

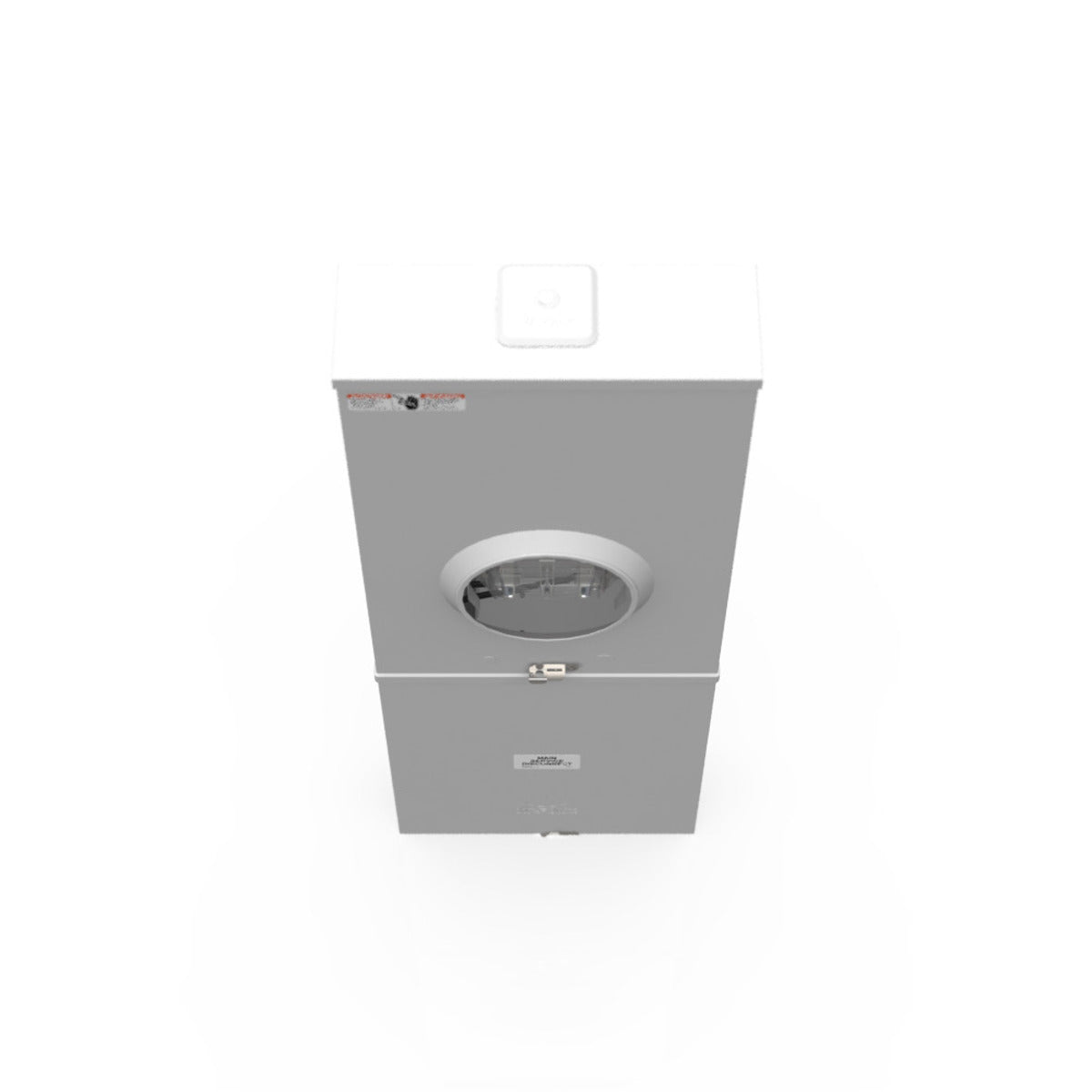

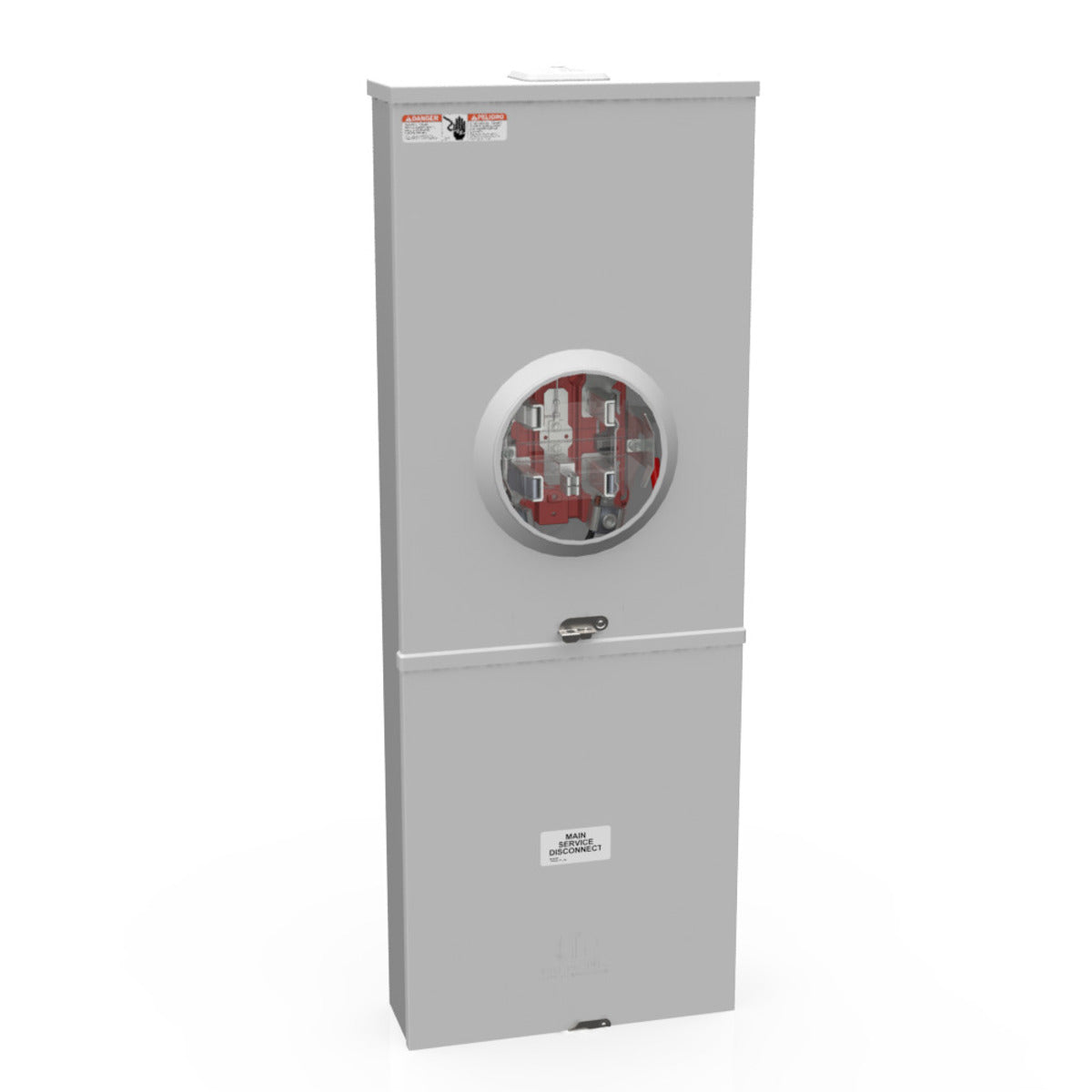

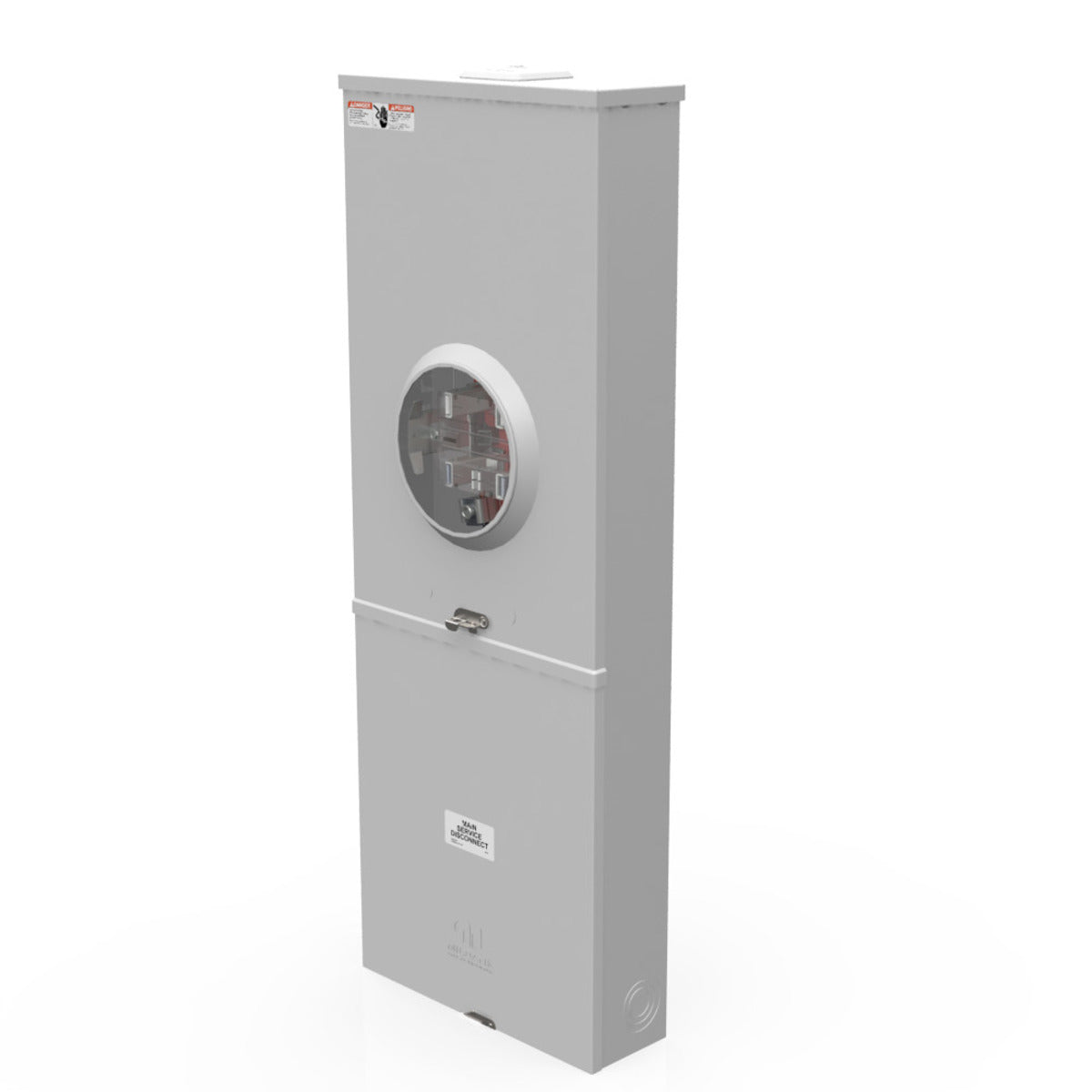

Milbank U6012-XL-200-K1-ALT 200 Amp Main Breaker 4 Term Ringless

Product Description

The Milbank U6012-XL-200-K1-ALT is a 200 amp main breaker designed for use in meter sockets and load centers. This model includes a ringless design for easy access and durability. It features an 8 branch circuit and a single connector.

• Amperage rating of 200 amps
• Compatible with overhead or underground cable entry
• UL Listed and meets Type 3R standards

Product Highlights

This breaker is ideal for residential and commercial applications, providing reliable power distribution. The lever bypass allows for safe operation during maintenance.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U6012-XL-200-K1-ALT
• Voltage Rating: Up to 240 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Size: Four point five inches by fourteen point thirteen inches by thirty-nine point twenty-five inches
• Number of Jaws: Four Terminal
• Phase: One
• Mounting: Surface Mount
• Bypass Type: Lever
• Application: Meter Socket with Main and Load Center
