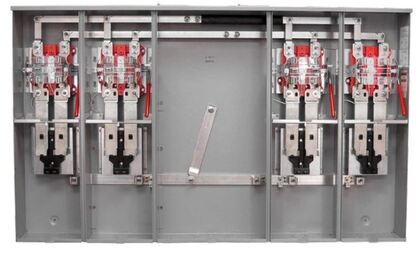

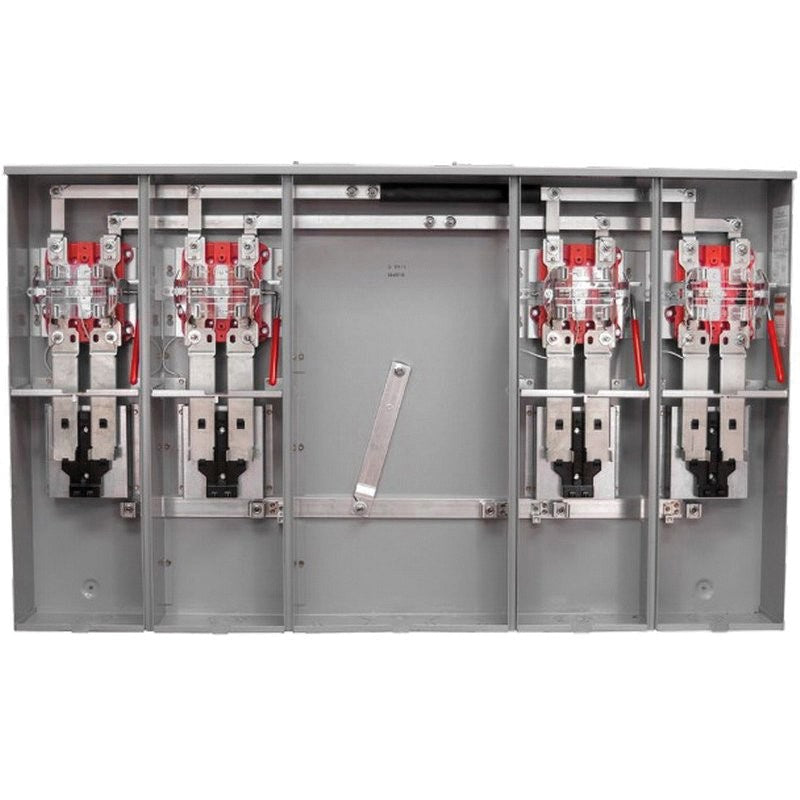

Milbank U5973-XT-5T9-BL Meter Main, 3-Socket, Ringless, with Lever Bypass

Product Description

The Milbank U5973-XT-5T9-BL is a meter main suitable for various metering applications. It supports three sockets and features a ringless design. The unit is equipped with a lever bypass, suitable for both overhead and underground cable entries. It accommodates QN/QNH breakers and features line/load lug terminal connections.

• Features three sockets for multiple meters.
• Includes a lever bypass for easy access.
• Compatible with overhead or underground cable entry.

Product Highlights

This meter main provides reliable performance while ensuring safety and efficiency in multi-position metering environments.

Product Information

Standard Information

• Manufacturer: Milbank Manufacturing
• UPC: 78457263774

Technical Specifications

• MPN: U5973-XT-5T9
• Amperage Rating: 200 Amp
• Voltage Rating: 120/240 Volt AC
• Interrupt Rating: 22 Kilo-Amp
• Number of Sockets: 3
• Number of Jaws: 5
• Type: Ringless
• Cable Entry: Overhead/Underground
• Terminal Connection: Line/Load Lug
• Dimensions: 5-31/32 Inch Length x 46.5 Inch Width x 34 Inch Height
• Standards: UL Listed
• Hub Type: (2) Large Closing Plates
• Hub Size: Large
• Terminal Type: Multi-Position
