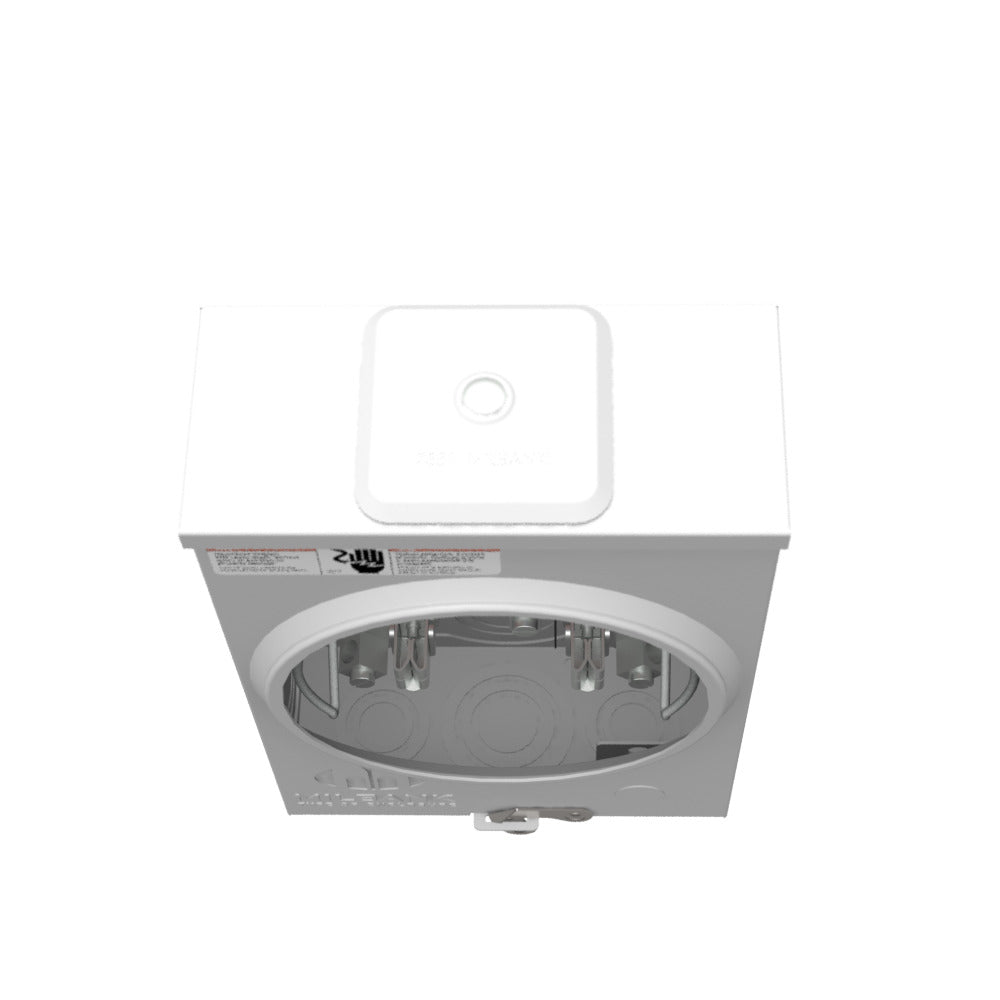

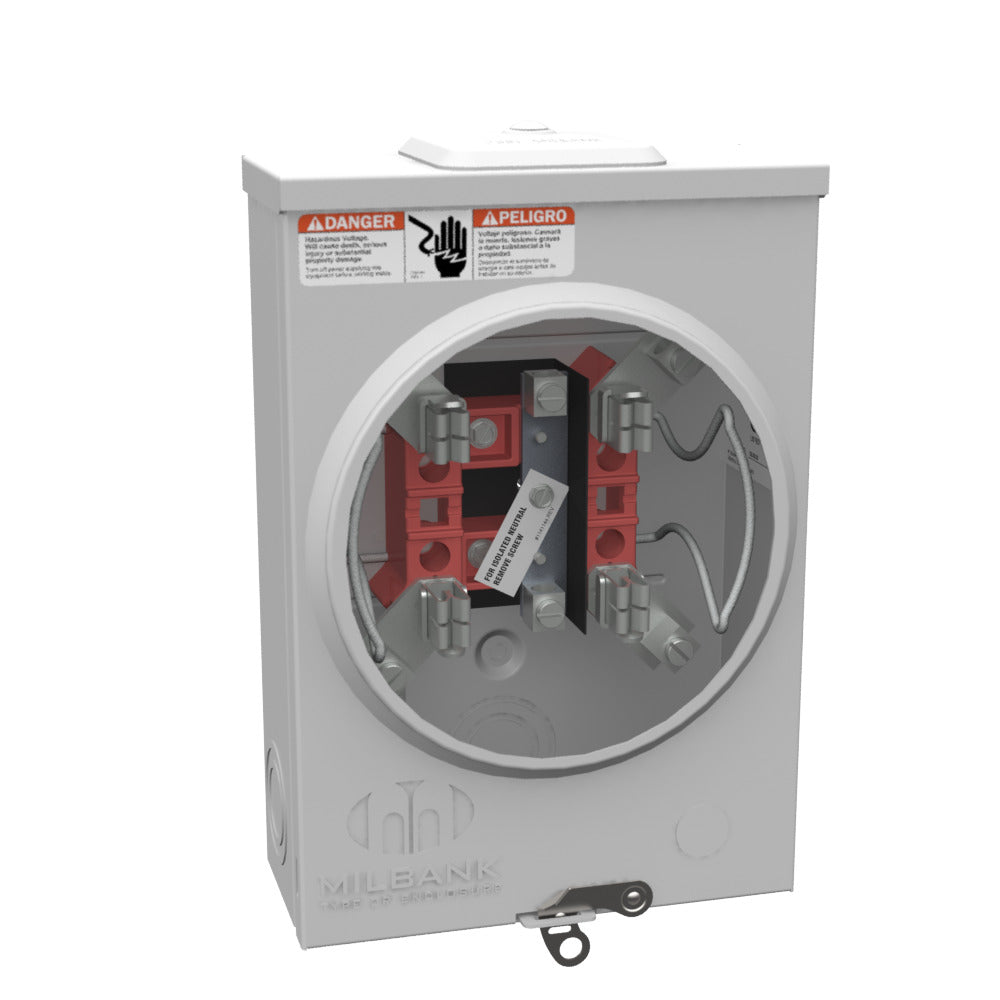

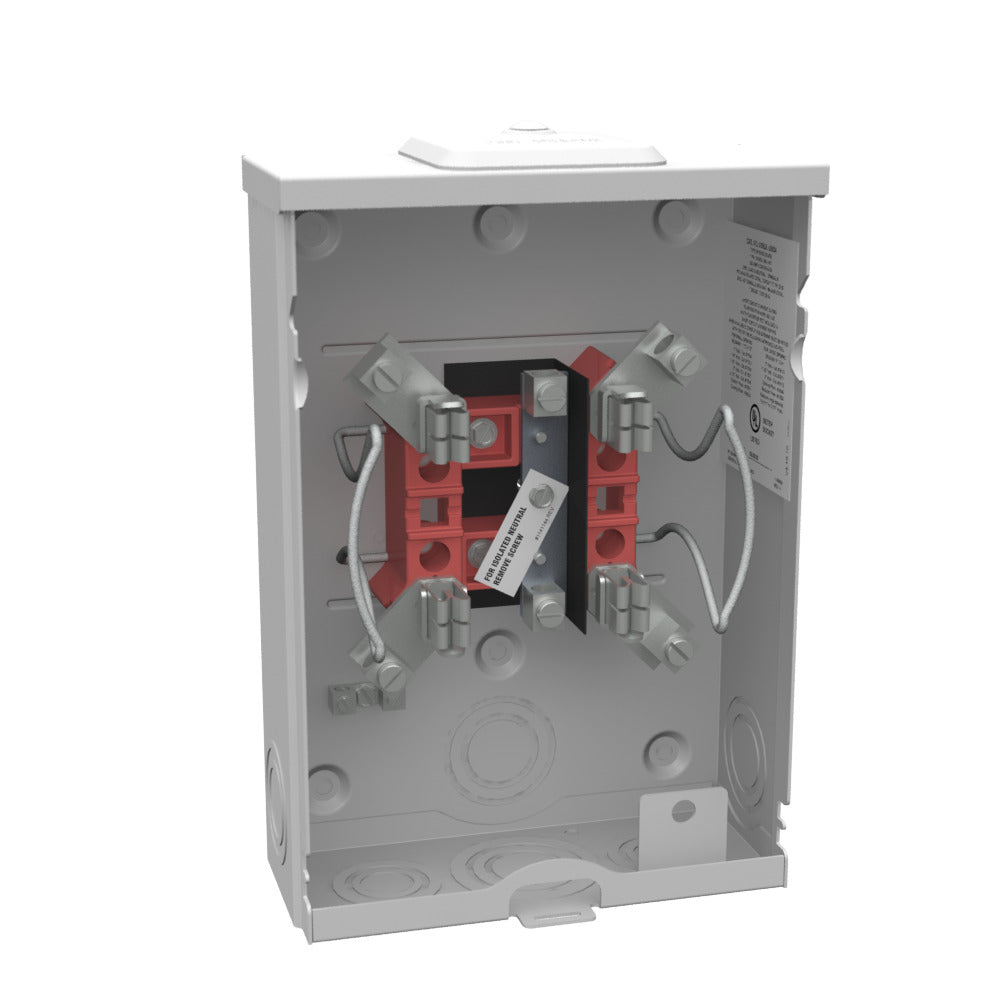

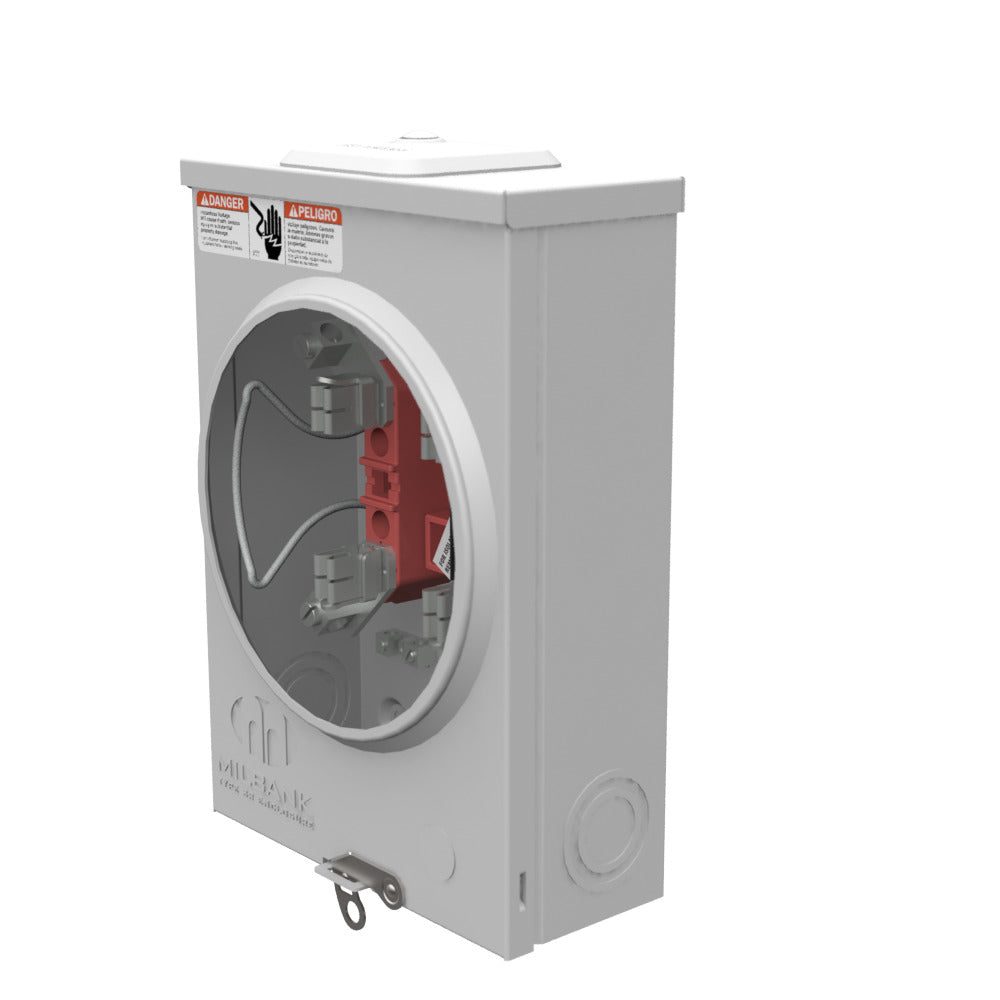

Milbank U5934-XL-BLG Single Position Meter Socket 125 Amp 1 Phase Ringless No Bypass 4 Term OH UG 600V

Product Description

The Milbank U5934-XL-BLG is a single position meter socket. This socket is designed to handle a maximum current of 125 amps and operates on a single phase. It features a ringless design and does not include a bypass.

• Four terminal configuration
• Compatible with overhead or underground cable entry
• Constructed from G90 galvanized steel

Product Highlights

This meter socket is suitable for residential and commercial applications where ample space and safety for wire connections are needed.

Product Information

Standard Information

• Catalog Number: U5934-XL-BLG
• Manufacturer: Milbank

Technical Specifications

• Voltage Rating: 600 Volts Alternating Current
• Amperage Rating: 125 Amps
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel with Powder Coat Finish
• Enclosure: G90 Galvanized Steel
• Item Type: Ringless Meter Socket
• Number of Jaws: 4 Terminal
• Application: Meter Socket
• Bypass Type: No Bypass
• Cable Entry: Overhead or Underground
• Mounting: Surface Mount
• Dimensions: 3.61L x 8W x 11.5H inches
• Made in USA: Yes
• Country of Origin: United States
