Milbank U5903-X-BL Metering Bank 100 Amperes Up to 240 Volts

Product Description

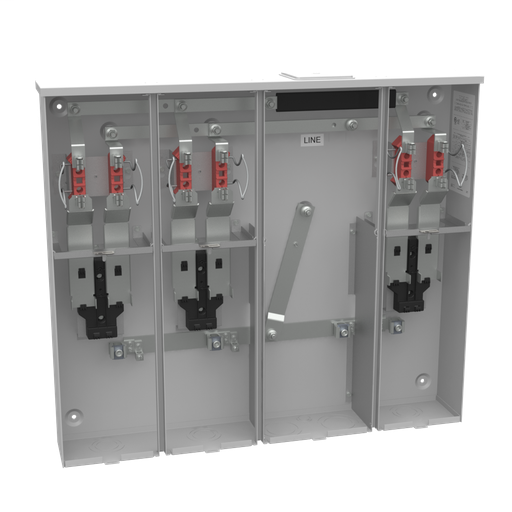

The Milbank U5903-X-BL metering bank is suitable for multiple meter setups. It accommodates three meter positions and is rated at one hundred amperes for voltages up to two hundred forty. The design features a ringless meter socket with four terminals, with each being a three-eighth inch stud type. This unit is constructed using G90 galvanized steel and finished with powder coating, providing durability and resistance against environmental factors.

• Supports three meter positions for diverse applications.
• Rated for 100 amperes at up to 240 volts AC.
• Type 3R enclosure ensures adequate protection against the elements.

Product Highlights

Ideal for both overhead and underground cable entry, the Milbank U5903-X-BL metering bank includes a ground lug for proper grounding and various knockouts to enhance installation options.

Product Information

Standard Information

• Brand: Milbank
• MPN: U5903-X-BL

Technical Specifications

• Amperage: 100 amperes
• Voltage: 240 volts
• Frequency: 60 Hertz
• Mounting Type: Surface mount
• Enclosure: Type 3R
• Material: G90 galvanized steel with powder coat finish
• Hub Style: Large closing plate
• Number of Meter Positions: 3
• Bypass Provision: No bypass
• Weight: Not specified
• Dimensions: 5.125 inches length, 34.563 inches width, 30 inches height
