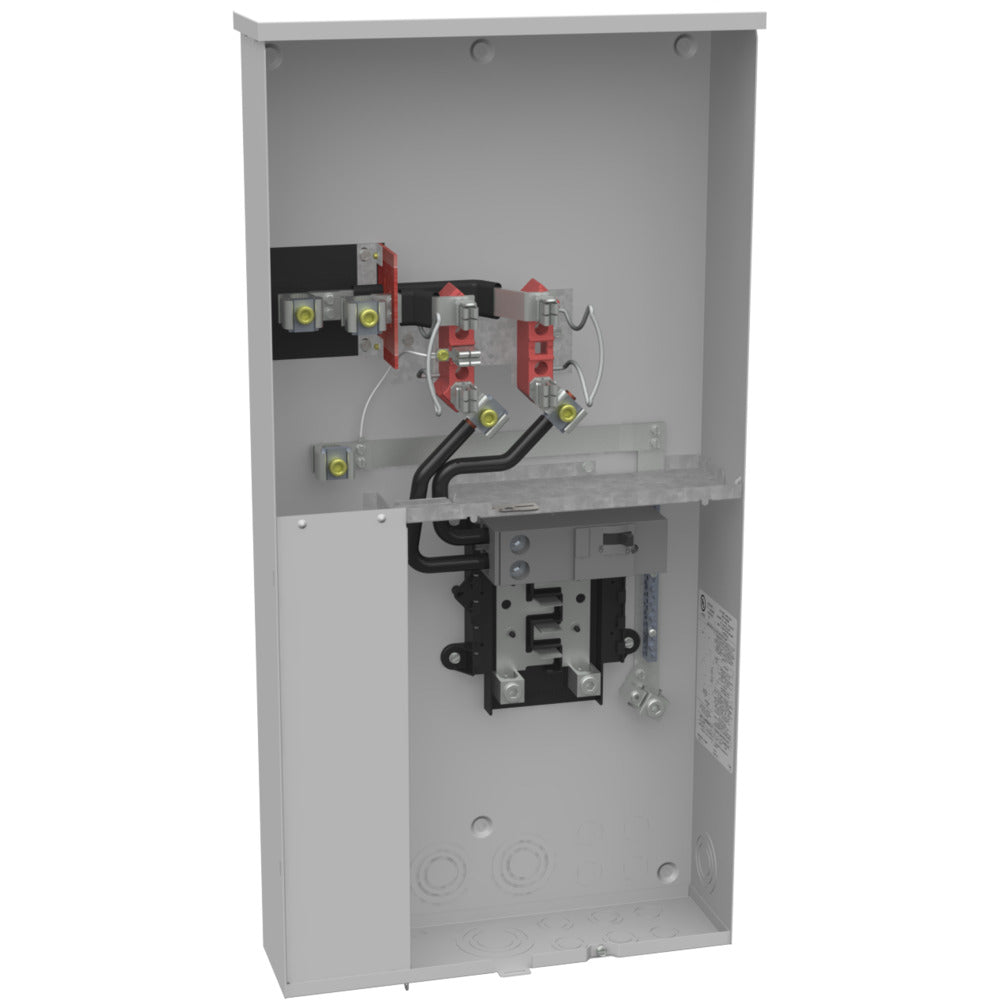

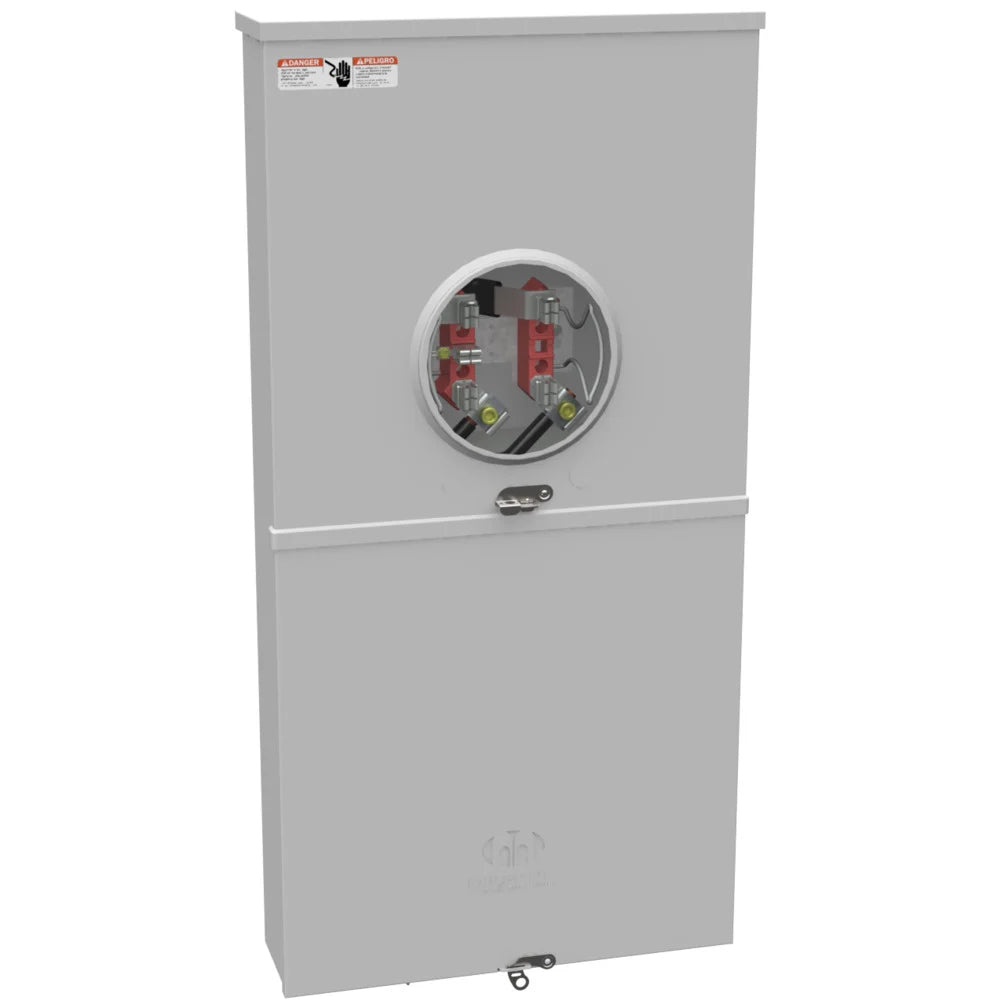

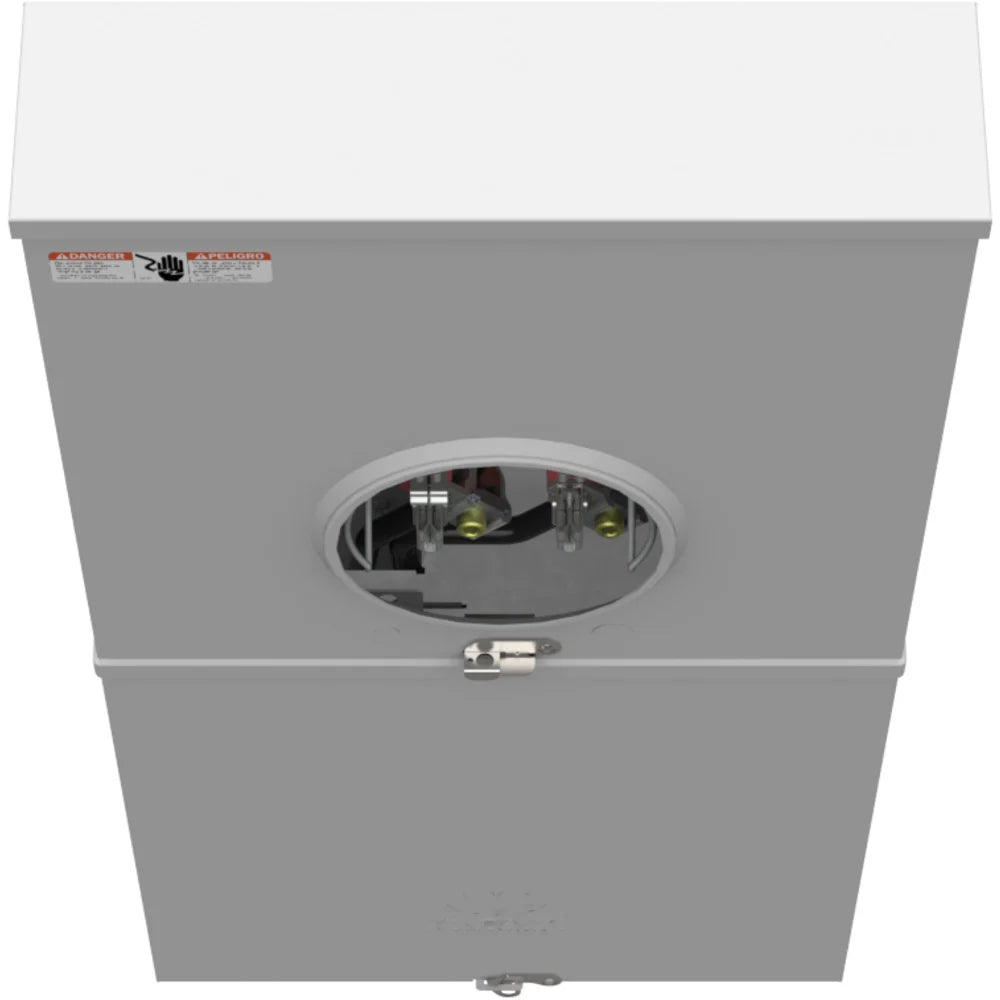

Milbank U5898-O-200 4 Term, Ringless, Plain Top, 1-200 Amp, Main Breaker, 8 Circuit, Side Wireway

Product Description

The Milbank U5898-O-200 is a ringless meter socket with a main breaker and a rating of two hundred amps. It features an eight circuit side wireway. This product is suitable for overhead and underground services, making it flexible for various applications.

• Rated for 200 amps with a voltage rating of up to 240 volts AC.
• Constructed with G90 galvanized steel that has a powder coat finish to enhance durability.
• Includes four terminals for electrical connection, designed for surface mounting.

Product Highlights

This meter socket can be used in residential and commercial settings where reliable service entry is needed.

Product Information

Standard Information

• Manufacturer: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U5898-O-200
• Amperage Rating: 200 amps
• Application: Meter socket with main and load center
• Voltage Rating: Up to 240 volts alternating current
• Enclosure: G90 galvanized steel with powder coat finish
• Frequency Rating: 60 Hertz
• Cable Entry: Underground with side wireway
• Dimensions: 4.5 inches (Length) x 17 inches (Width) x 34.5 inches (Height)
• Insulation: Glass polyester
• Number of Jaws: 4 terminals
• Phase: 1
