Milbank U5852-RL-100 4 Term, Ringed, Small Hub Opening, 1-100 Amp Main Breaker, 200 Amp

Product Description

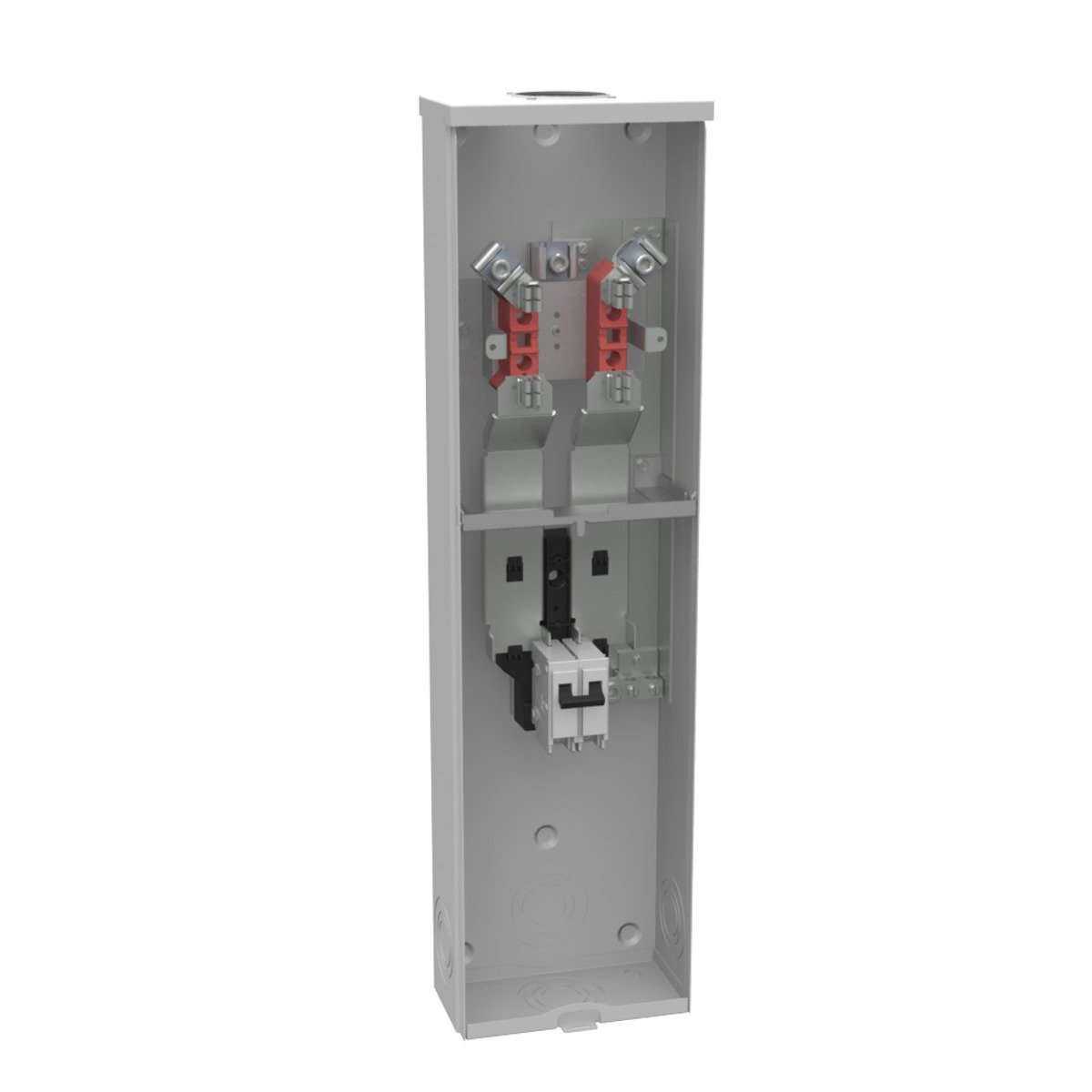

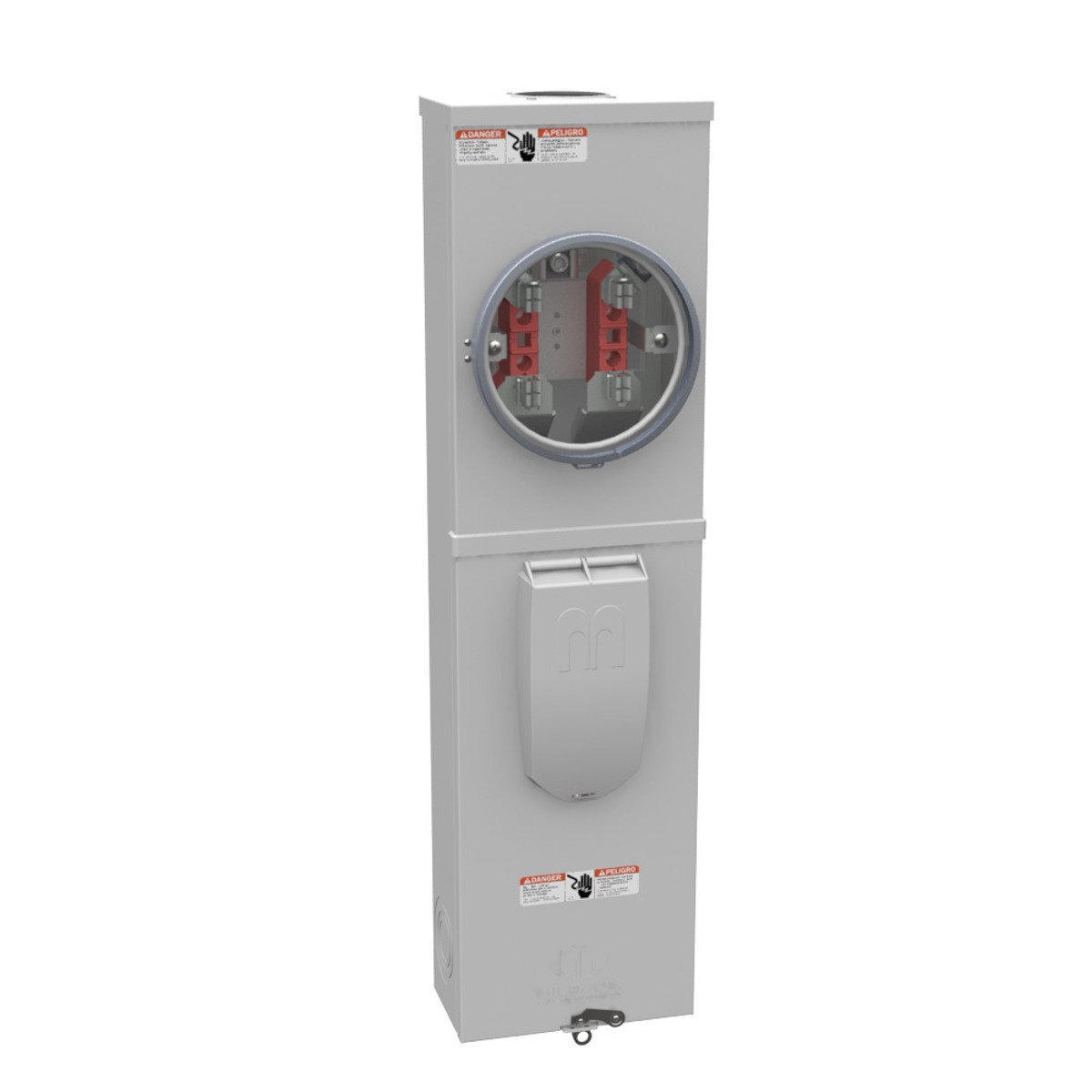

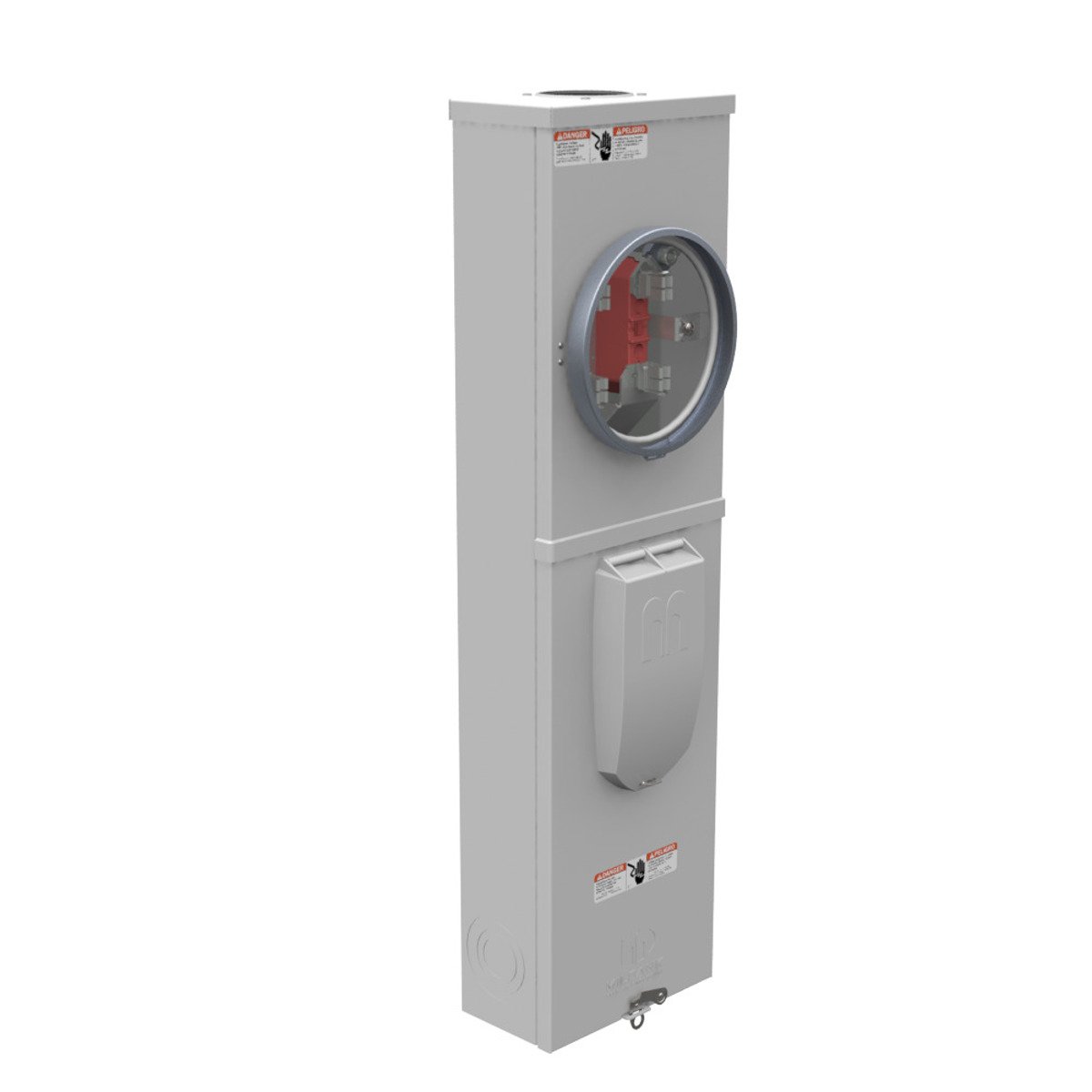

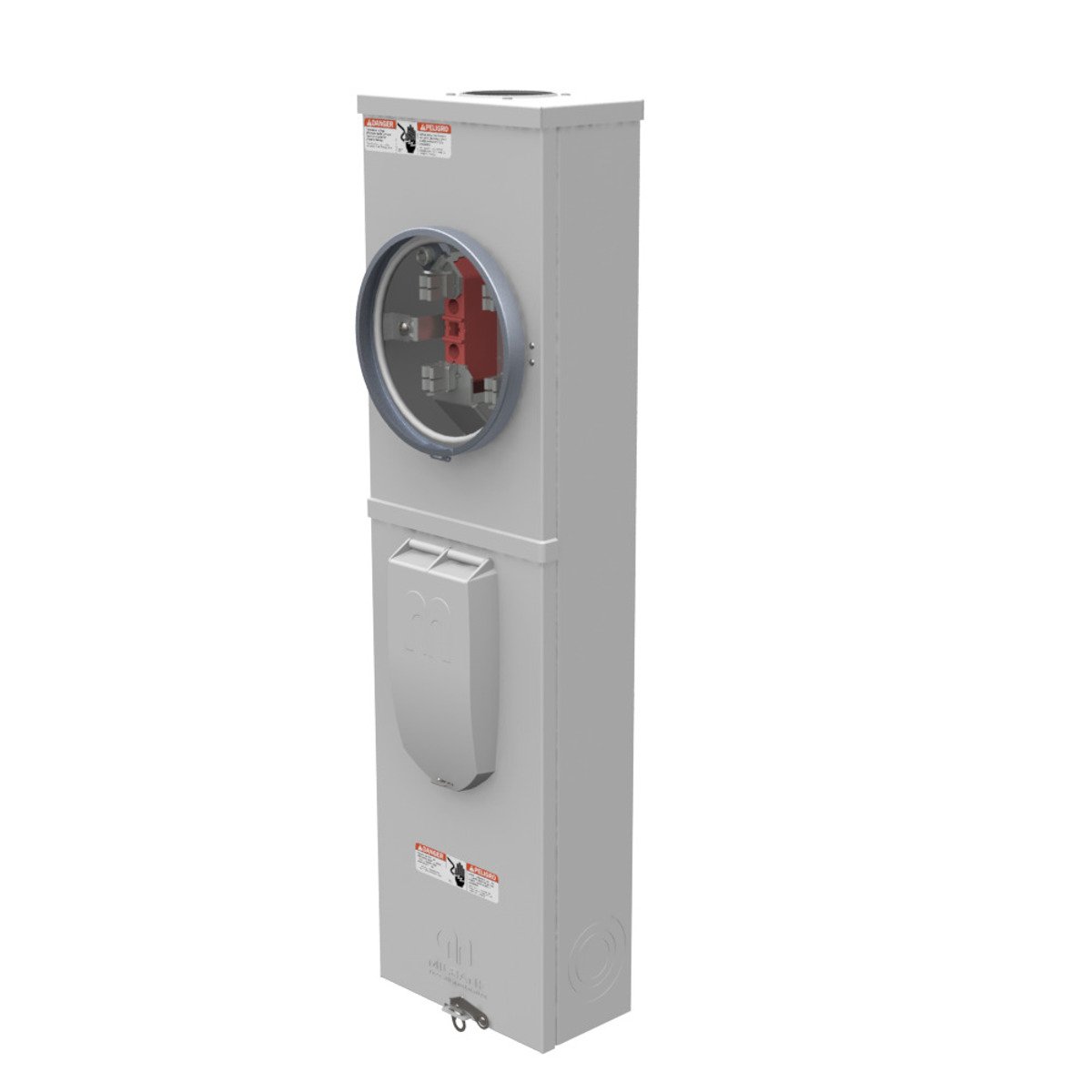

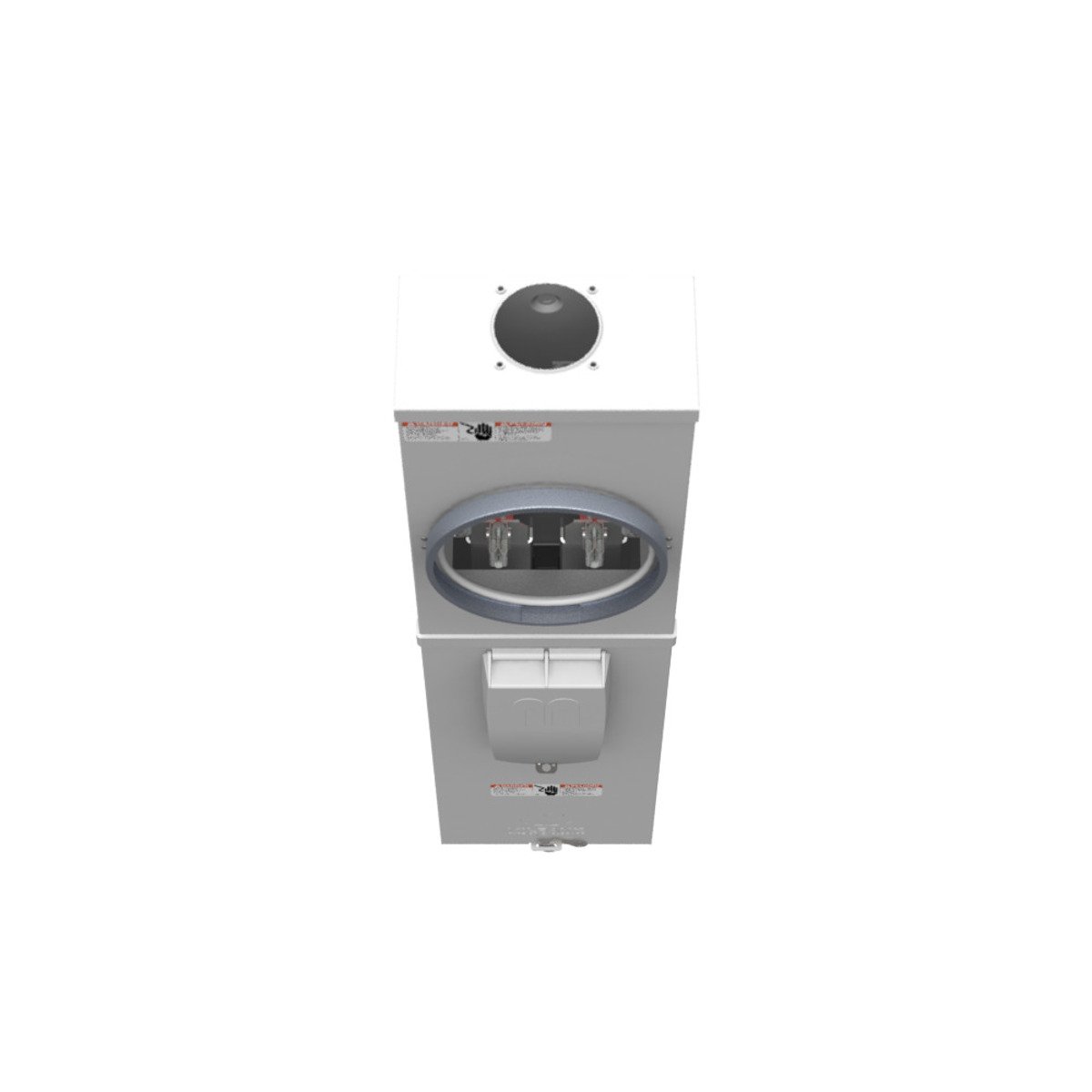

The Milbank U5852-RL-100 is a ring type meter socket designed for a maximum of 200 amps. This unit features four terminal points and is suitable for main breaker applications. It is built with a small hub opening and is made to support overhead cable entry.

• Rated for up to 240 volts alternating current.
• Constructed from G90 galvanized steel with a powder coat finish.
• Standard UL Listed; Type 3R for exterior use.

Product Highlights

This meter socket provides reliable performance and holds up against various weather conditions, making it suitable for outdoor installation.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank

Technical Specifications

• Catalog Number: U5852-RL-100
• Amperage Rating: 200
• Application: Meter Socket With Main
• Cable Entry: Overhead
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Voltage Rating: Up to 240 Volts Alternating Current
• Made in USA: Yes
• Country of Origin: United States
• Size: 4.125L x 8W x 30H inches
