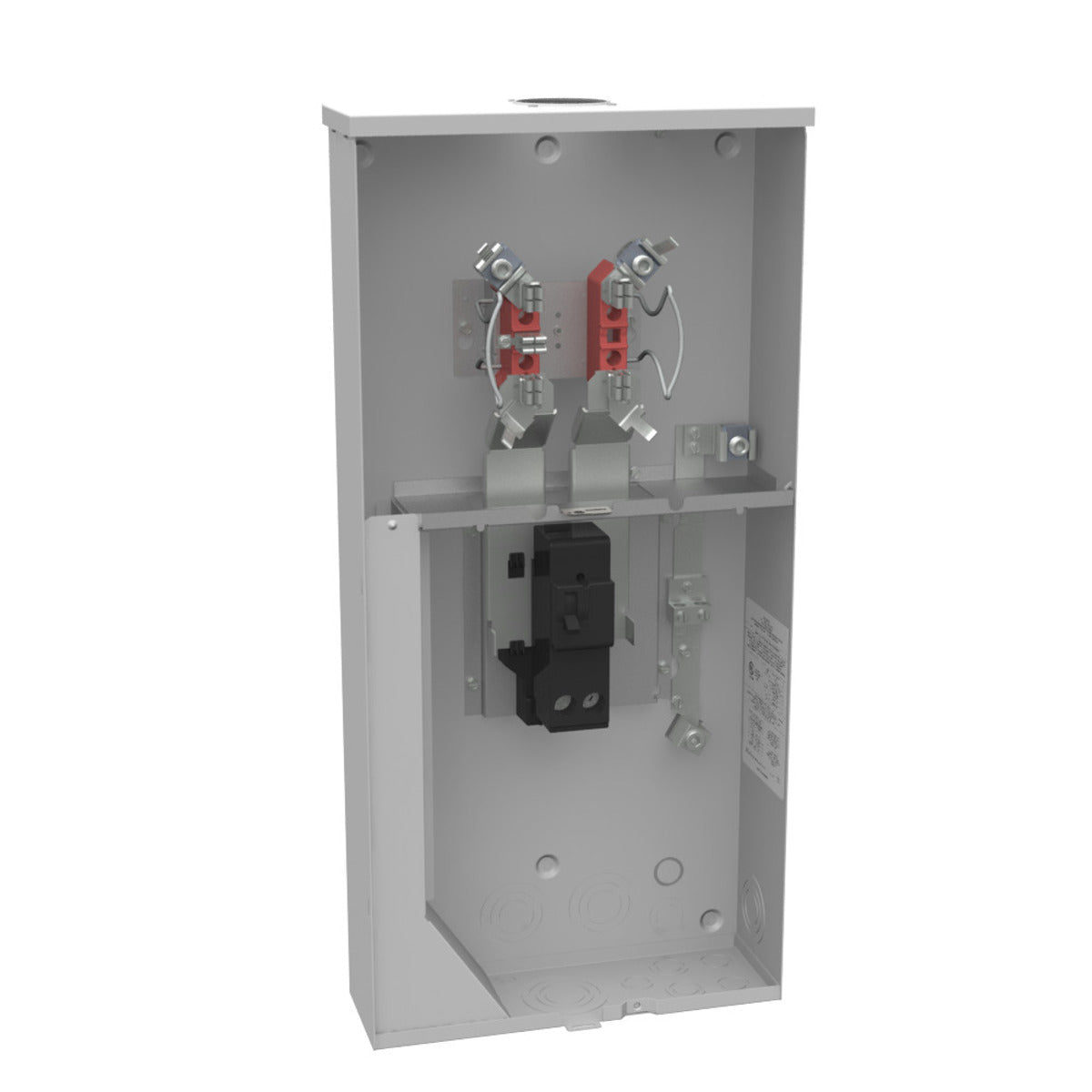

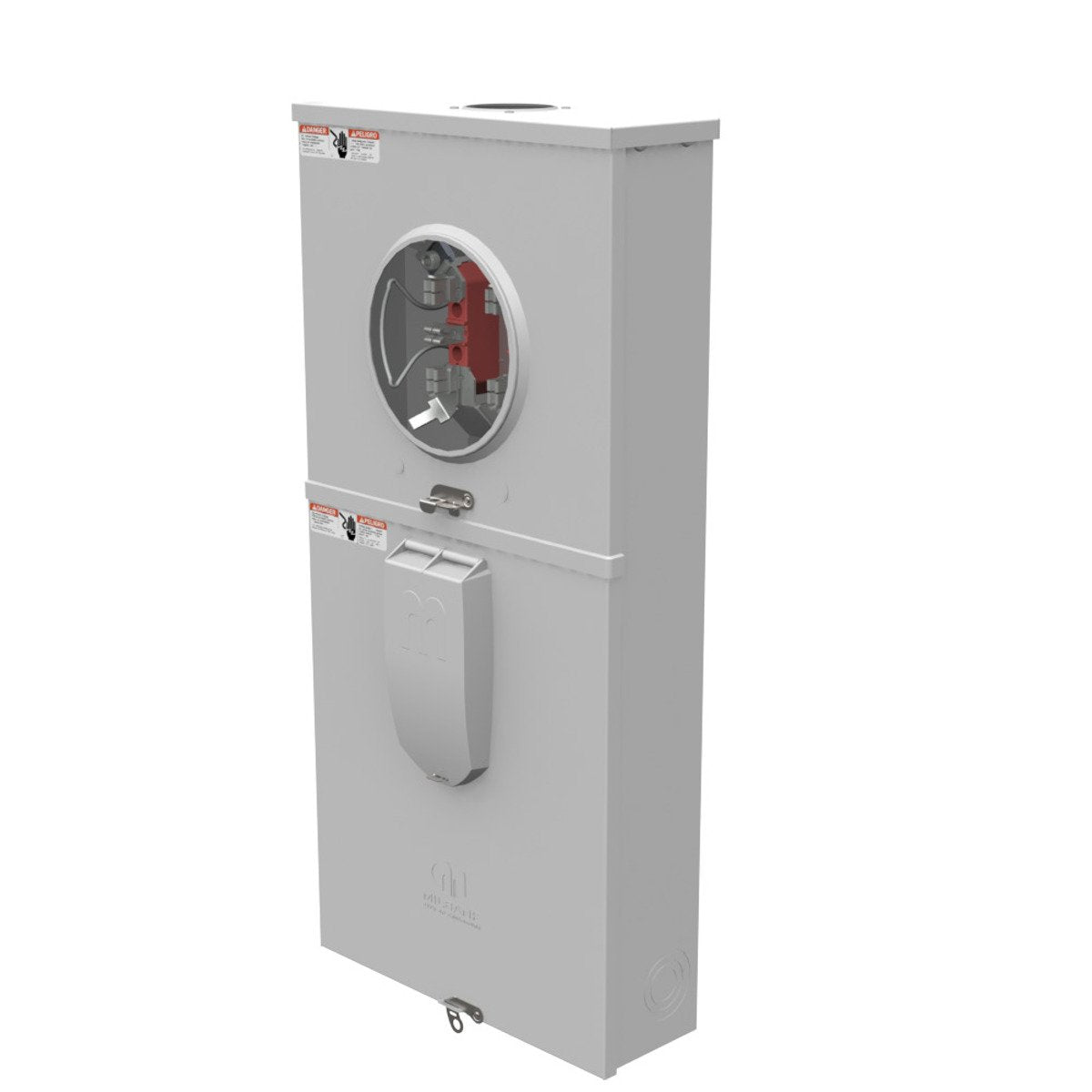

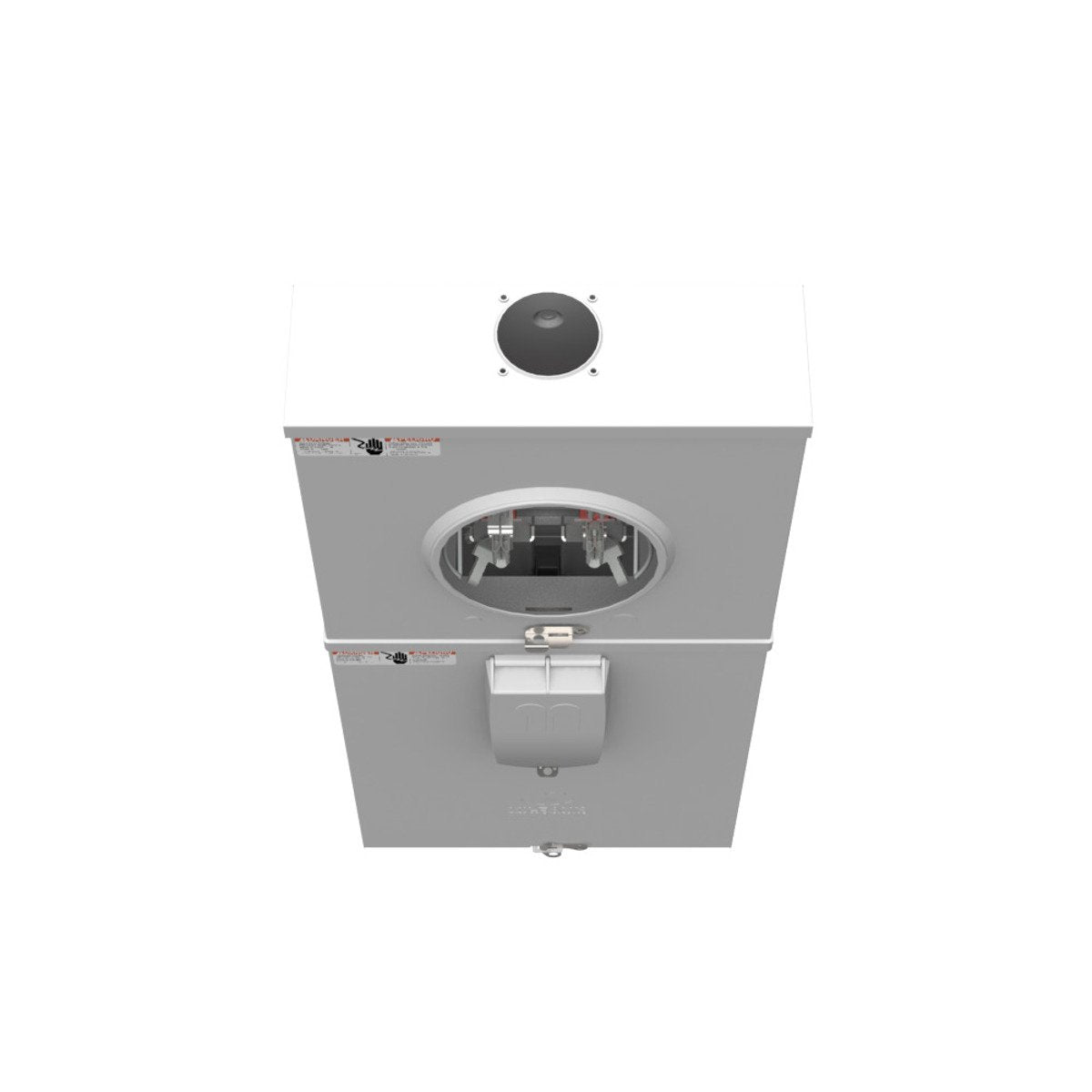

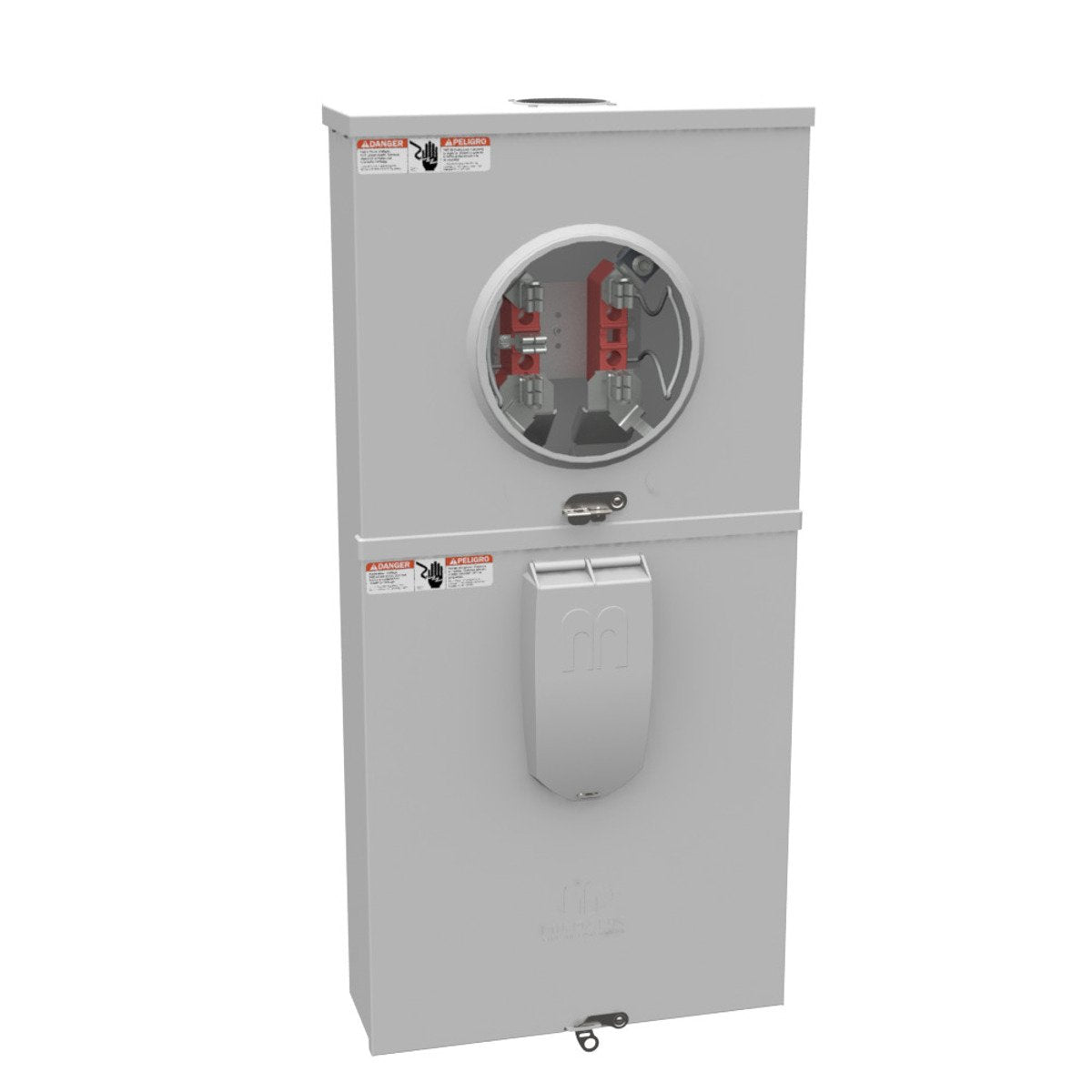

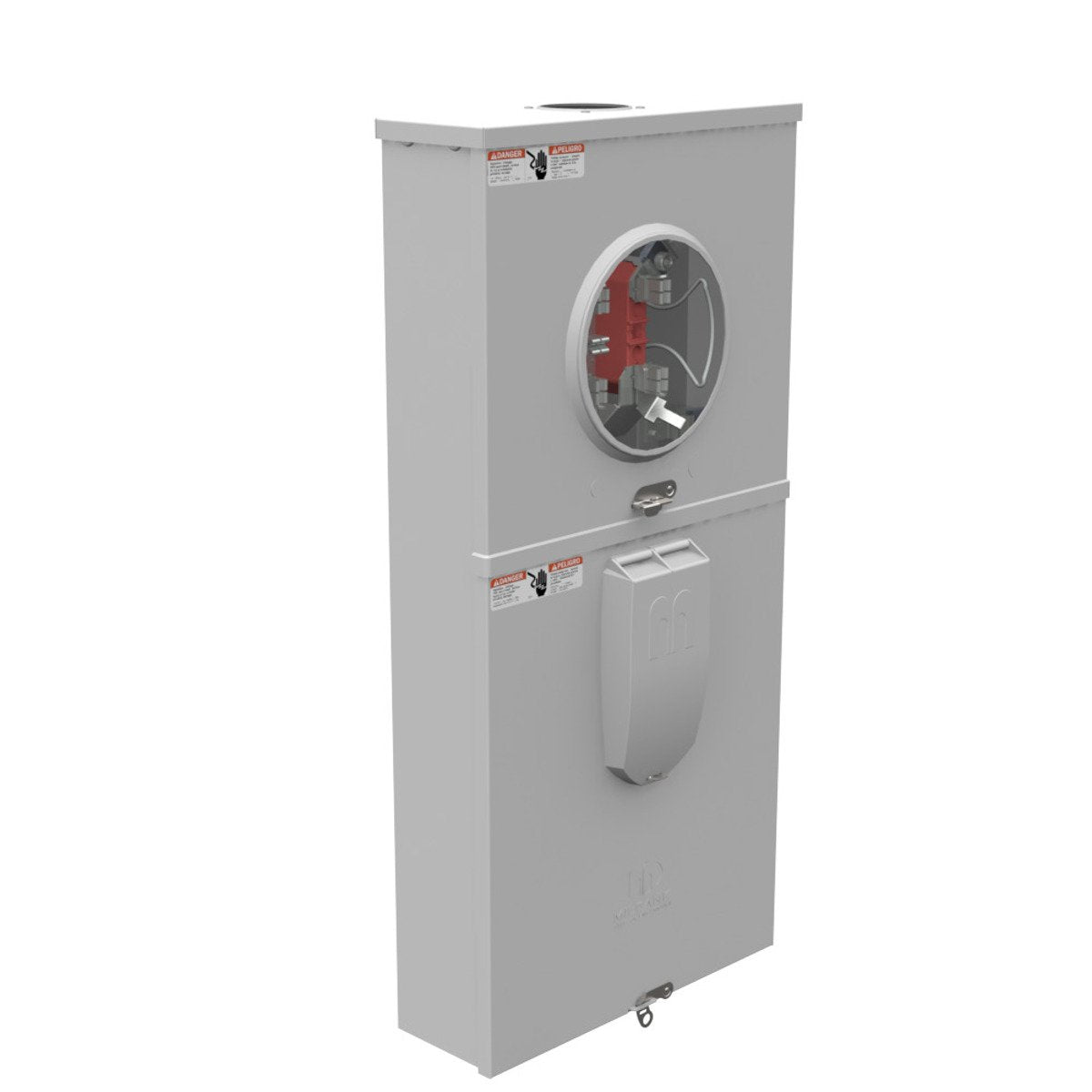

Milbank U5844-PXL-200-KK 4 Term, Ringless, Small Closing Plate Pack Inside Meter Socket, Horn Bypass, 1-200 Amp, Main Breaker

Product Description

The Milbank U5844-PXL-200-KK is a meter socket designed for various electrical applications. This product supports a maximum amperage rating of two hundred and a voltage rating of up to two hundred forty volts alternating current. It is suitable for both overhead and underground cable entry configurations.

• 200 amp maximum capacity
• UL listed type 3R enclosure
• Made in the USA with G90 galvanized steel

Product Highlights

This meter socket is ideal for residential and commercial installations, providing reliable service and easy access for maintenance and safety.

Product Information

Standard Information

• Manufacturer: Milbank
• Catalog Number: U5844-PXL-200-KK

Technical Specifications

• Amperage Rating: 200
• Voltage Rating: Up to 240 Volts Alternating Current
• Application: Meter Socket With Main
• Bypass Type: Horn
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount
• Phase: 1
• Standard: UL Listed; Type 3R
• Height: 30 inches
• Width: 14.01 inches
• Length: 4.5 inches
• Insulation: Glass Polyester
• Number of Jaws: 4 Terminal
• GTIN: 00784572529199
• UPC: 784572529199
