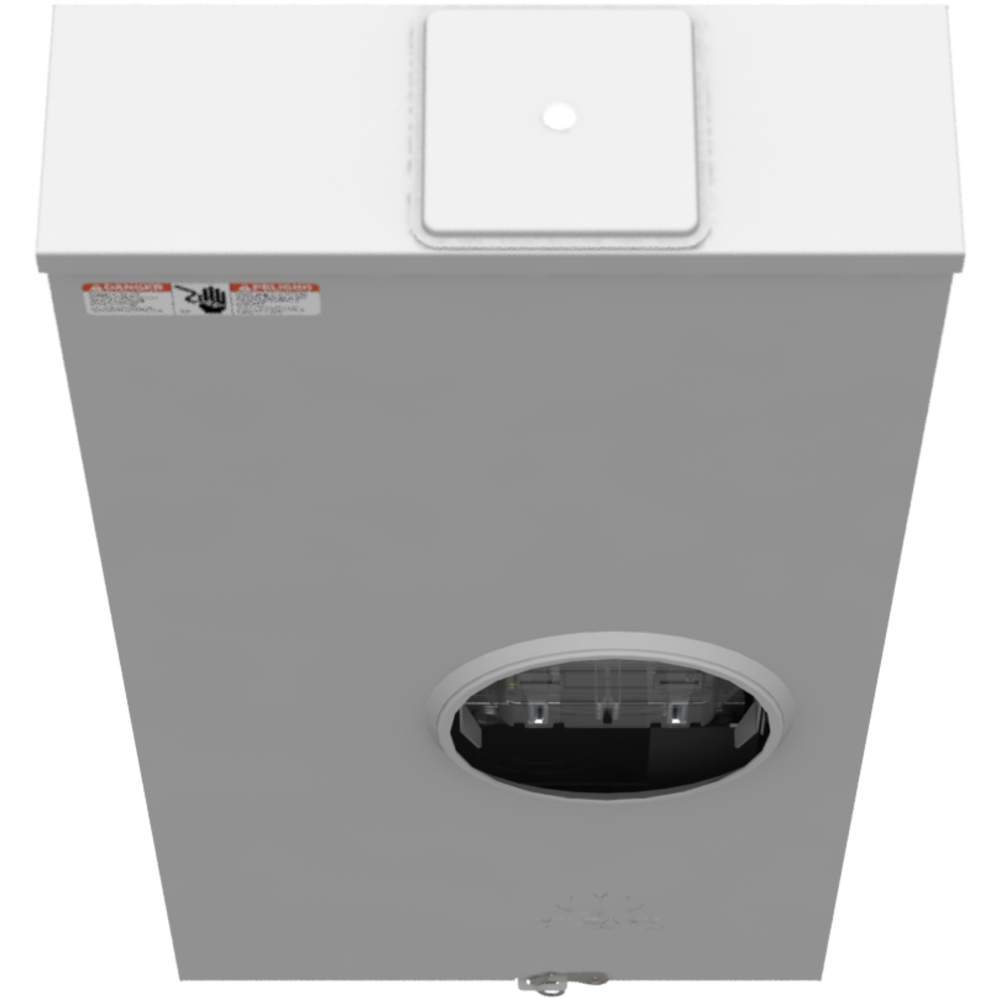

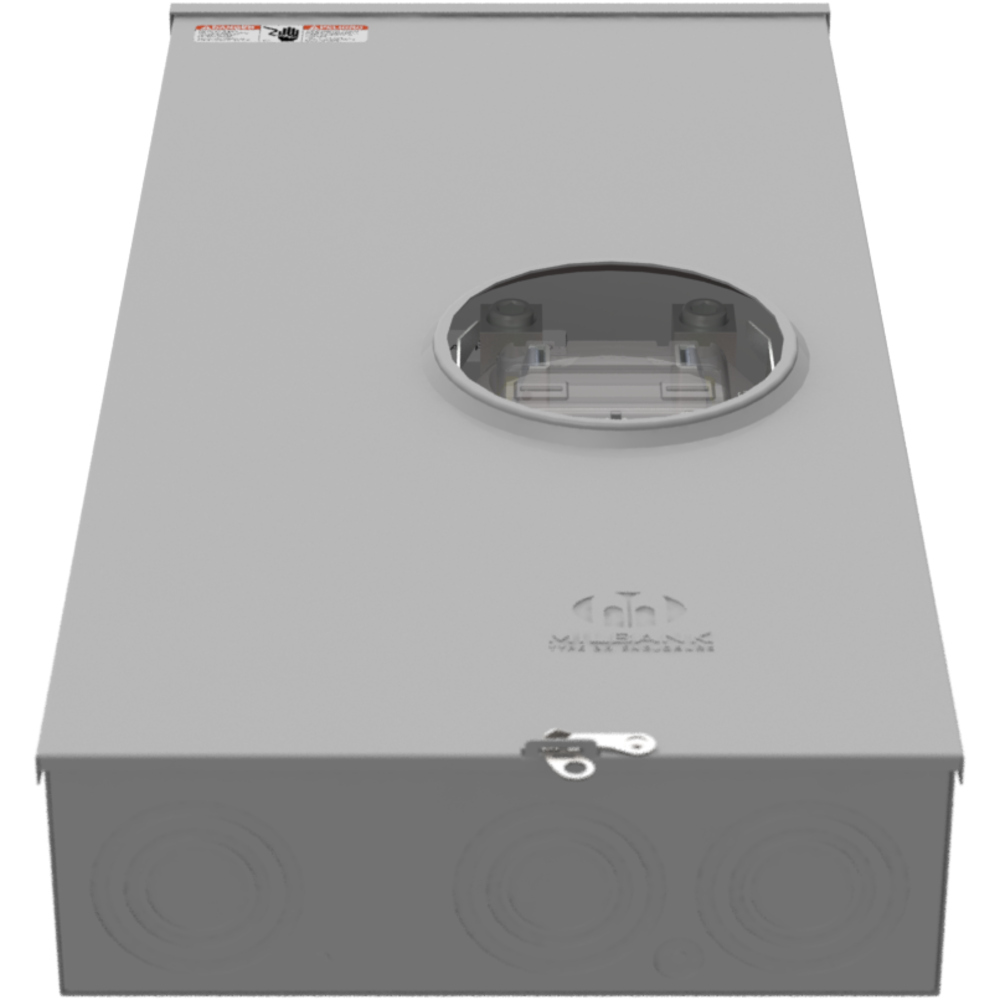

Milbank U5740-X-K3L-K2L-5T6-AMS Ringless Meter Socket 320A

Product Description

The Milbank Manufacturing U5740-X-K3L-K2L-5T6-AMS is a ringless meter socket that supports a continuous current of three hundred twenty amperes and operates at six hundred volts alternating current. This product is ideal for both overhead and underground cable entry, featuring a lever bypass for convenient operation.

• Supports 320 continuous amperes
• Suitable for overhead or underground cable entry
• Constructed from durable G90 galvanized steel

Product Highlights

This meter socket is built for single-phase, three-wire systems and is designed to meet Ameren Energy requirements, proving its reliability in various applications.

Product Information

Standard Information

• Brand: Milbank
• Application: Meter Socket

Technical Specifications

• Amperage Rating: 320 continuous amperes
• Bypass Provision: Lever bypass
• Cable Entry: Overhead or underground
• Main Breaker Size: No main breaker
• Material: G90 galvanized steel with powder coat finish
• Equipment Ground: Ground lug
• Frequency Rating: 60 Hertz
• Number of Jaws: 5 terminal
• Terminal Type: Single mechanical
• Voltage Rating: 600 volts alternating current
• Enclosure Type: NEMA 3R
• Hub Type: Closing plate
• Jaw Quantity: 5 terminal
