Milbank U5240-O-200S 4 Terminal Ring Type Plain Top 1-200 Ampere Main Breaker Single Pedestal Direct Bury Series Wired 40 Block

Brand: MILBANK MANUFACTURING
SKU: U5240-O-200S
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

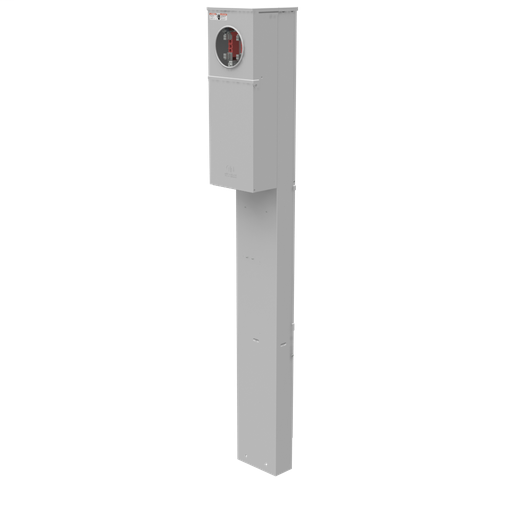

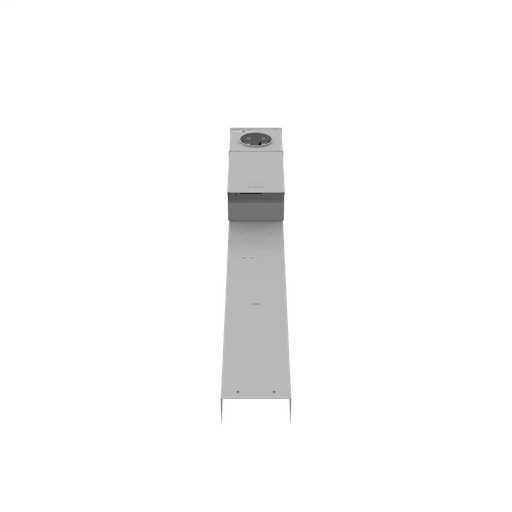

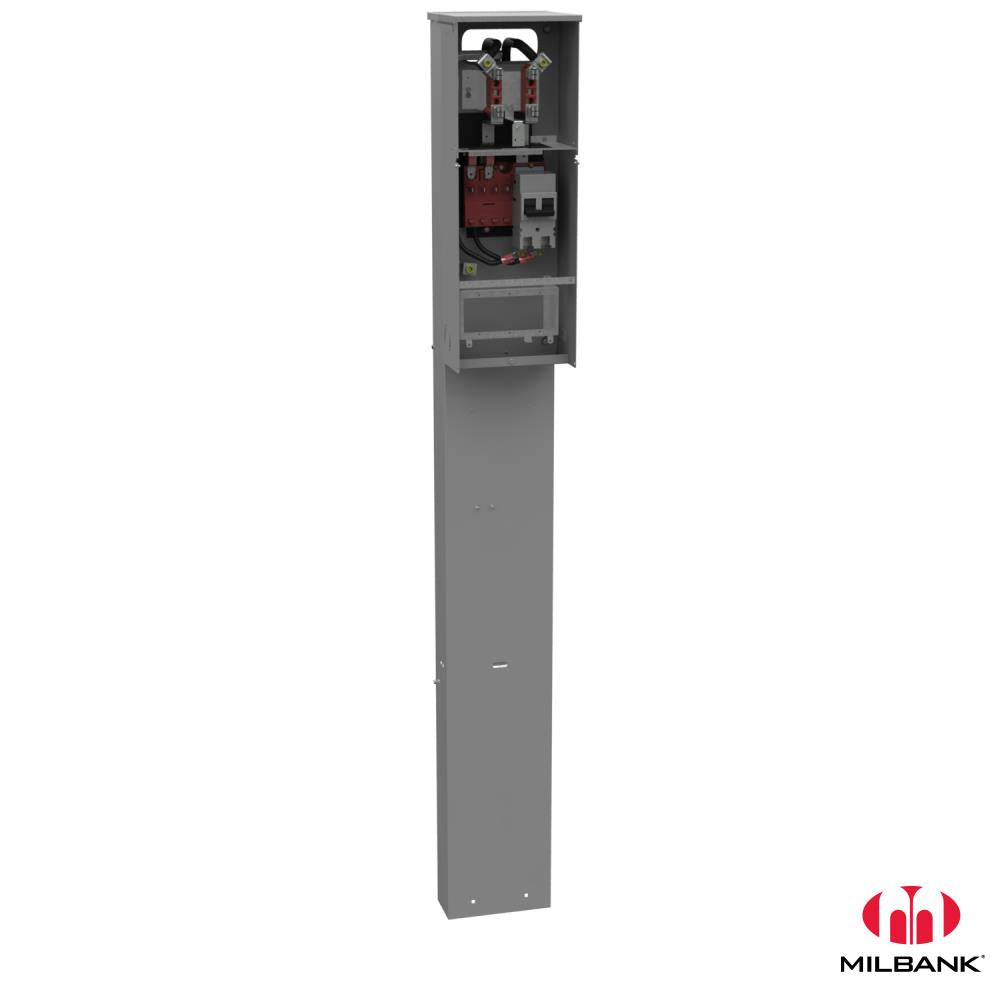

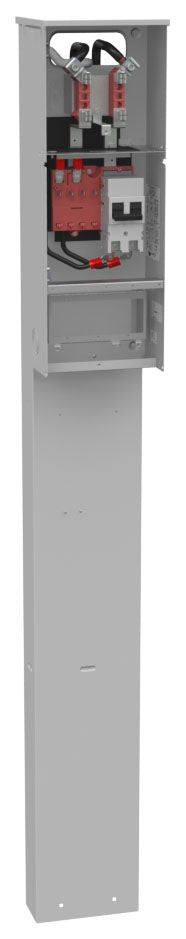

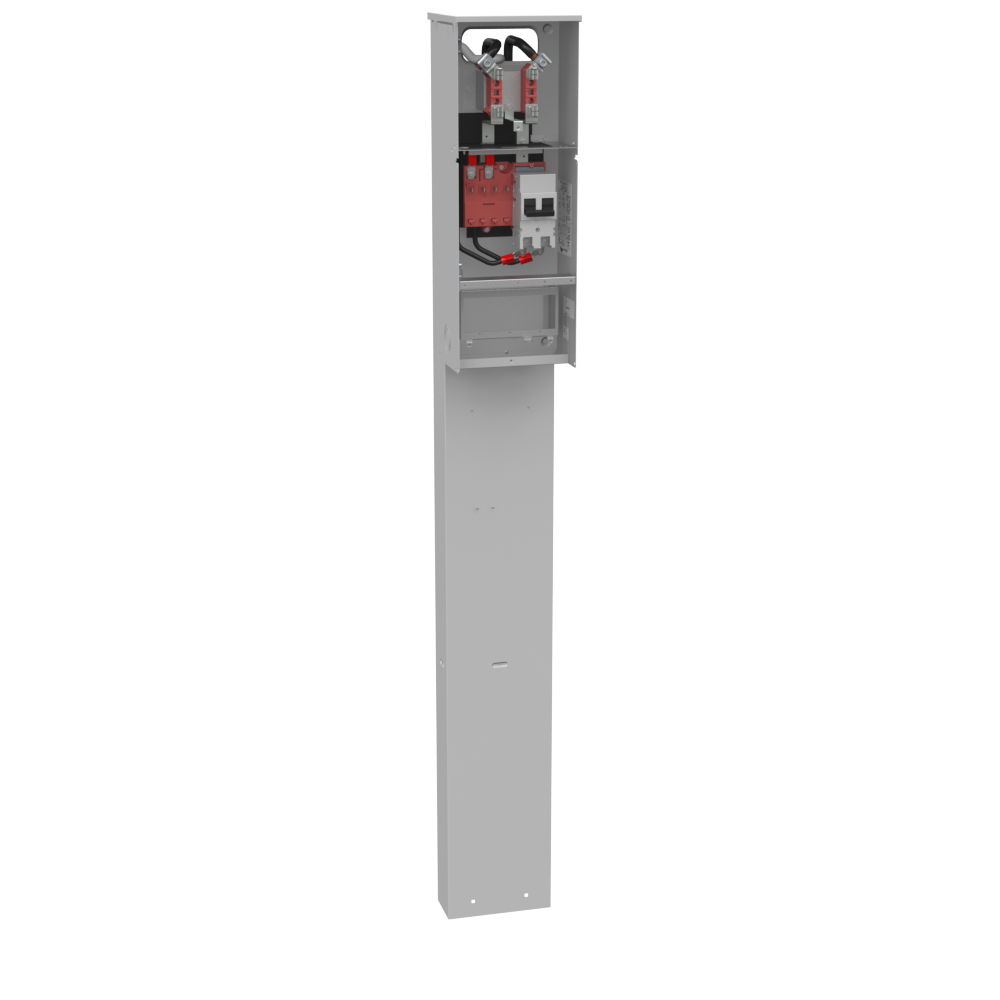

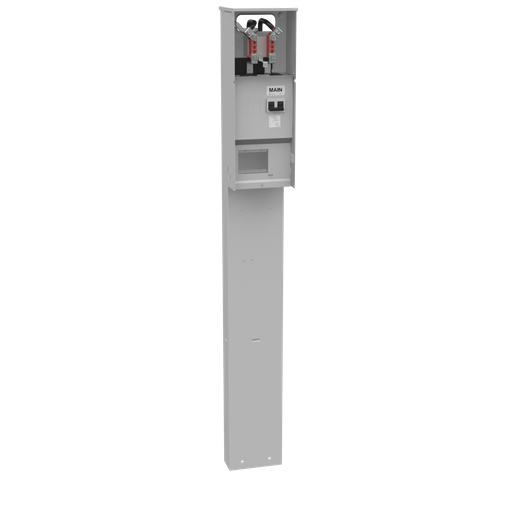

The Milbank U5240-O-200S is a ring type meter socket and serves as a main breaker for up to two hundred amperes. It is designed for single pedestal and direct bury applications. This model is suitable for installations requiring efficiency in mobile home power distribution.

  • Type 3R, UL listed for outdoor applications.
  • Made of G90 galvanized steel with a powder coat finish.
  • Designed for easy underground cable entry.

Product Highlights

This product meets the standards for mobile home power distribution and includes a plain top and multiple terminations.

Product Information

Standard Information

  • Brand: Milbank Manufacturing
  • Catalog Number: U5240-O-200S

Technical Specifications

  • Voltage Rating: 240 Volt
  • Current Rating: 200 Ampere
  • Size: 10.25 inches L x 9.688 inches W x 80 inches H
  • Material: G90 Galvanized Steel
  • Enclosure Type: NEMA 3R
  • Mounting Type: Pedestal
  • Wire Size: 6 AWG to 350 KCMIL
  • Number of Phases: 1 Phase
  • Number of Terminations: 4
