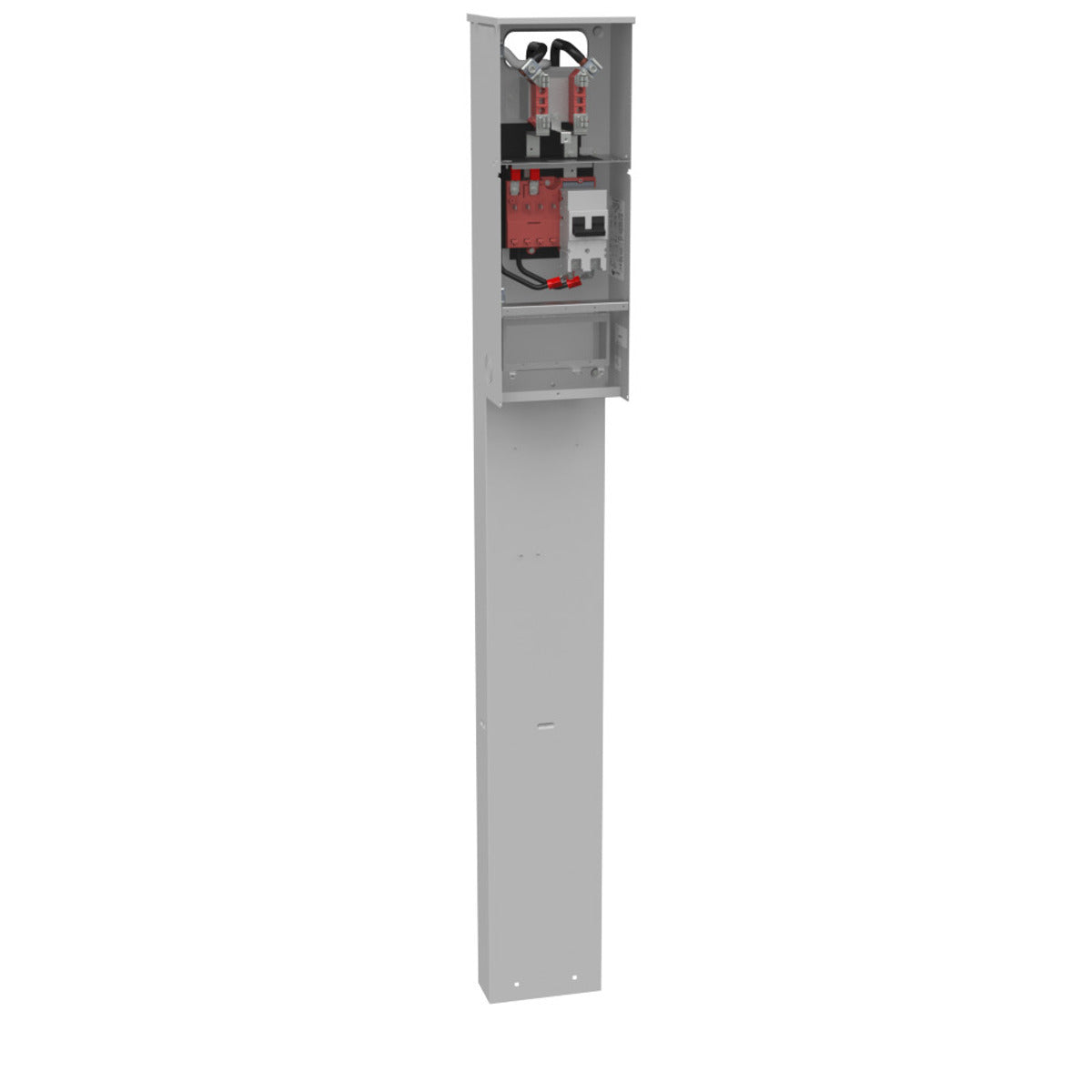

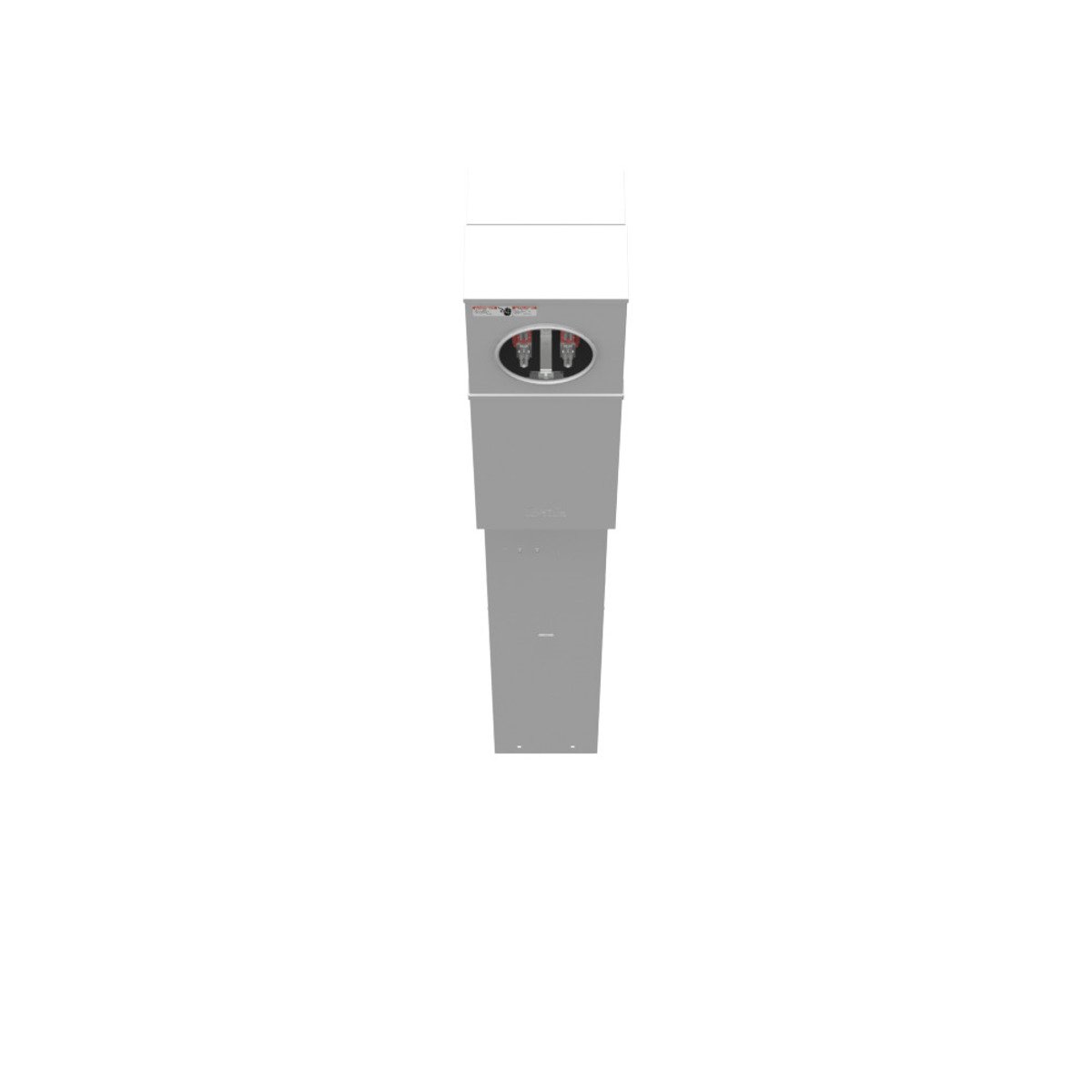

Milbank U5240-O-200S 4 Terminal Ring Type Plain Top 1-200 Ampere Main Breaker Single Pedestal Direct Bury Series Wired 40 Block

Product Description

The Milbank U5240-O-200S is a 4 Terminal Ring Type Meter Socket designed for mobile home power applications. This product features a single pedestal design for direct bury installation, making it ideal for temporary power setups. It allows for a maximum amperage rating of two hundred and can handle voltages up to 240 volts AC.

• Durable G90 galvanized steel construction
• UL Listed and rated for Type 3R
• Includes 4 terminal connections for enhanced efficiency

Product Highlights

This meter socket is engineered for underground cable entry and offers a non-bypass type configuration, which enhances safety in power distribution.

Product Information

Standard Information

• Brand: Milbank
• MPN: U5240-O-200S

Technical Specifications

• Amperage Rating: 200
• Voltage Rating: Up to 240 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel with Powder Coat Finish
• Dimensions: 10.25L x 9.688W x 80H inches
• Application: Mobile Home Power
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Pedestal
• Country of Origin: United States
• Standard: UL Listed; Type 3R
• Special Features: Series Wired
