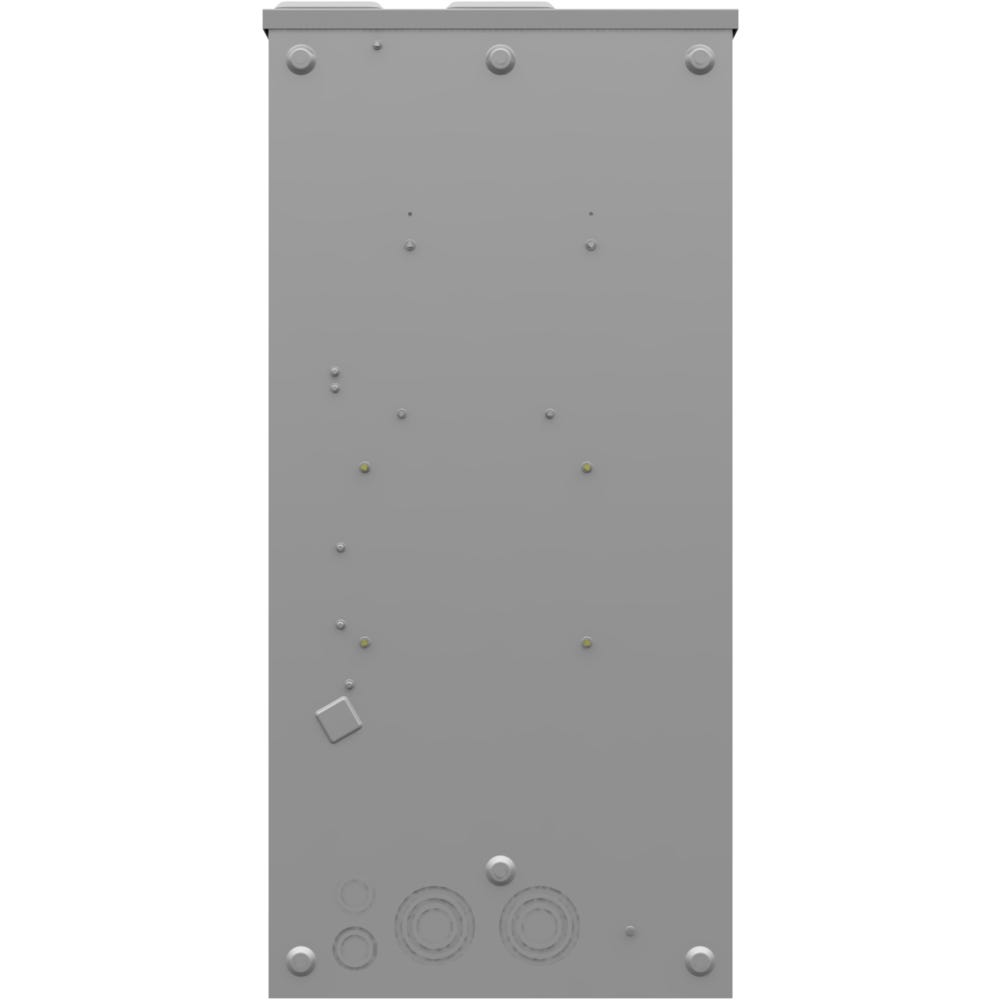

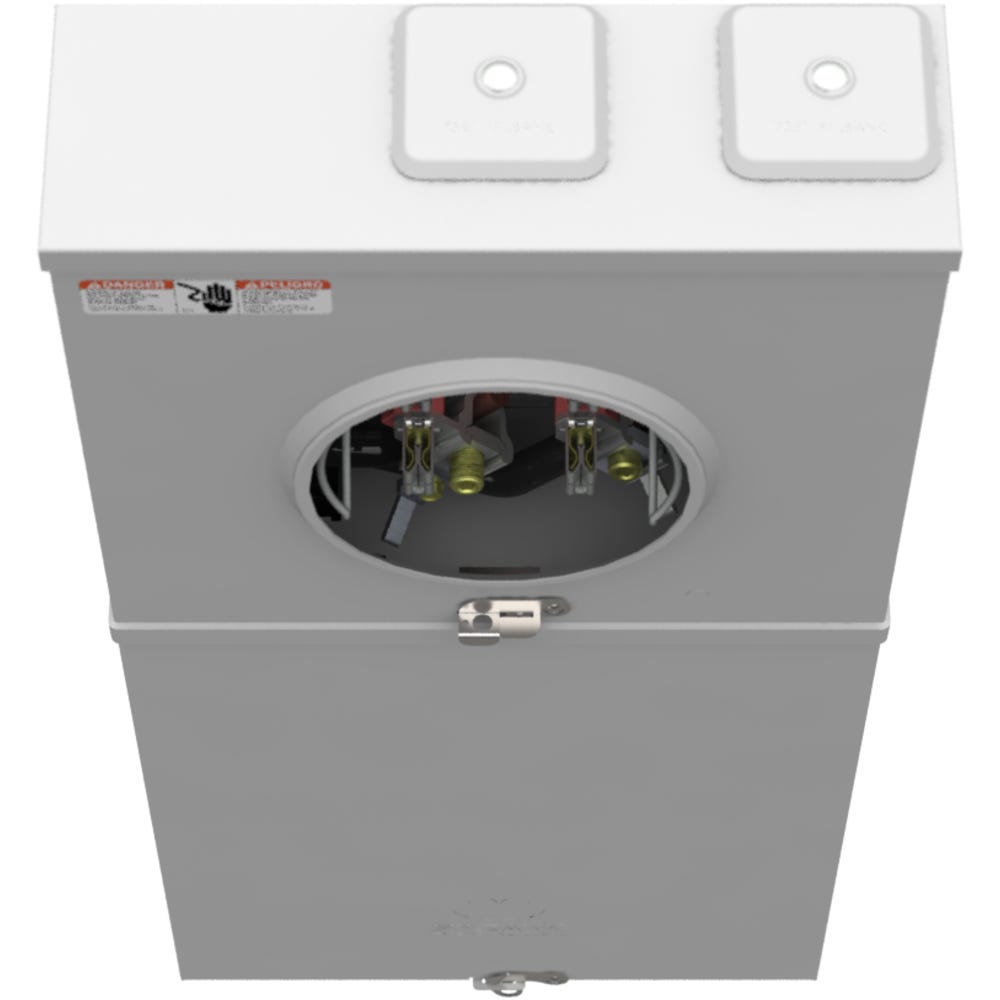

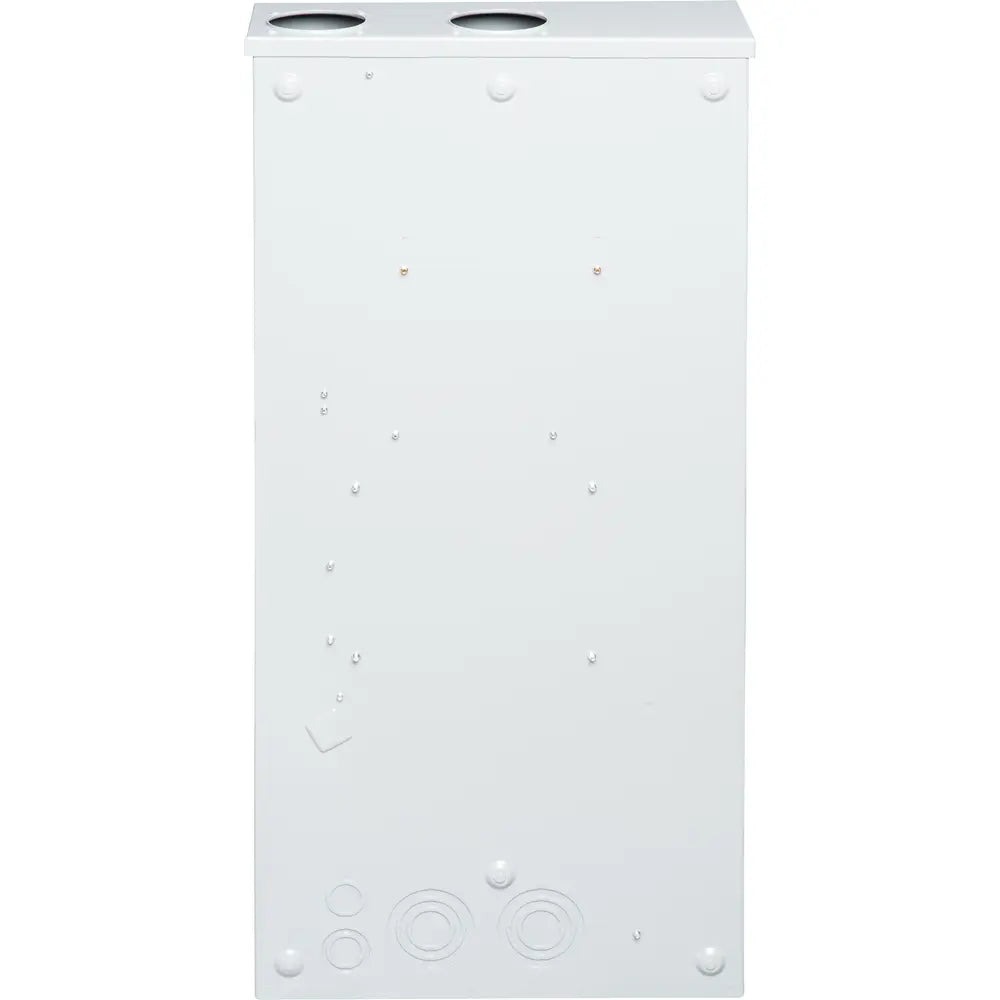

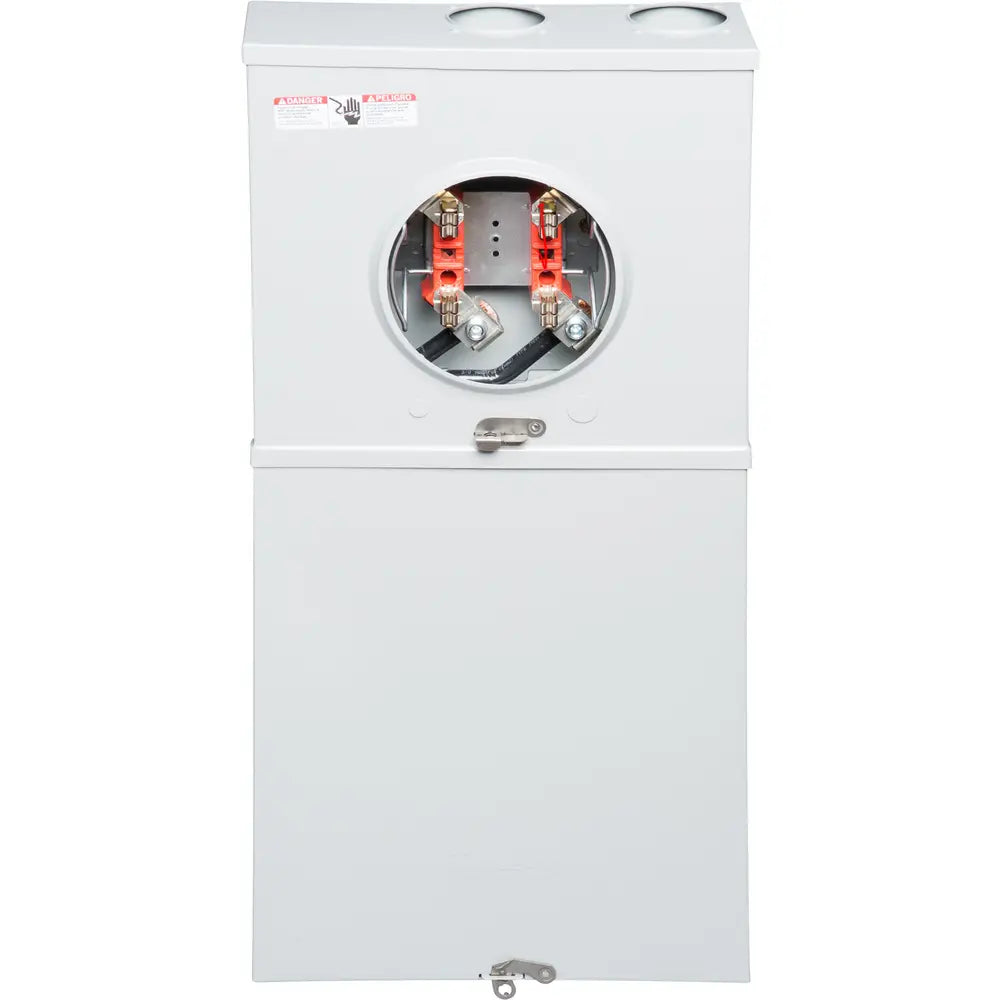

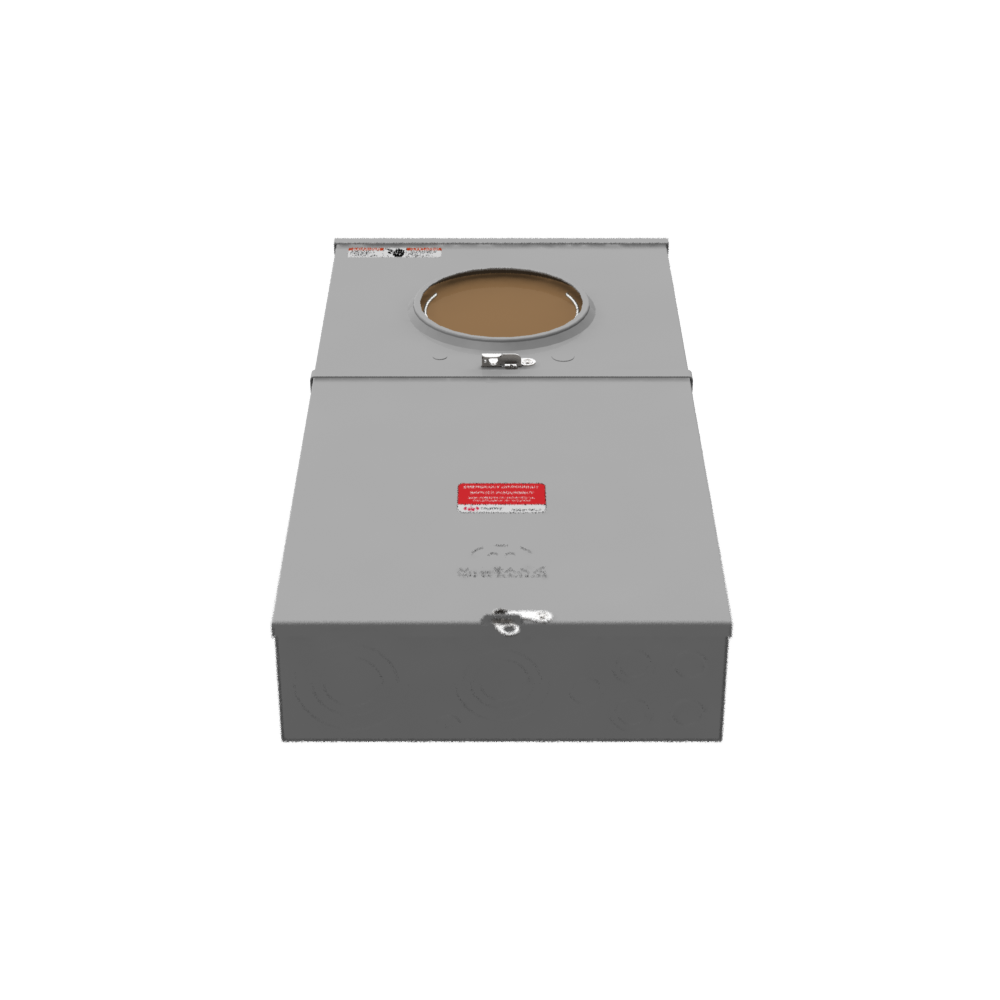

Milbank U5168-XTL-200 4-Jaw Ringless Meter Socket 200A 1 Position No Bypass

Product Description

The Milbank U5168-XTL-200 single-phase meter base features 4 terminals with a ground rod and heavy-duty steel construction. Rated at 240 volts and 200 amperes, it is NEMA 3R rated for outdoor use. Designed for overhead or underground cable entry, this ringless meter socket provides a reliable solution for meter mounting applications.

• Single-phase meter base with 4 terminals and ground rod
• Rated at 240V and 200A
• NEMA 3R rated for outdoor use

Product Highlights

Durable meter socket suitable for single-phase, 200A service applications. Features robust construction and NEMA 3R rating for outdoor use.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U5168-XTL-200
• Country of Origin: US

Technical Specifications

• Type: Pedestal/Surface
• Depth: 4.5 Inches
• Phase: Single-Phase
• Width: 14.12 Inches
• Height: 30 Inches
• Length: 4.5 Inches
• Material: Galvanized Steel
• Mounting: Surface Mount
• Standard: UL Listed;Type 3R
• Bypass Type: No Bypass
• Cable Entry: Overhead/underground
• Jaw Quantity: 4-Jaw
• Voltage Rating: 240 VAC
• Amperage Rating: 200 Amperes
• Country of Origin: US
• Line Side Wire Range: 6 AWG to 350 MCM
• Load Side Wire Range: 6 AWG to 350 MCM
• Number Of Meter Positions: 1
• Frequency Rating: 60 Hertz
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Application: Meter Socket
• Wire Size: 6 AWG to 350 KCMIL
• Service Type: Overhead/Underground
• Circuit Configuration: 1-Phase 3-Wire
• Current Rating: 200 Ampere
• Bypass Switch Type: No
• Knockouts: (3) 2 Inch, (1) 3 Inch, (1) 2-1/2 Inch, (4) 1 Inch, (3) 3/4 Inch
• Enclosure Type: NEMA 3R
• Feed Type: Overhead/Underground
• Number Of Jaws: 4
• Terminal Type: Lay-In
• Hub Size: Small
• Equipment Ground: Ground Bar
• Terminal: Lay in
