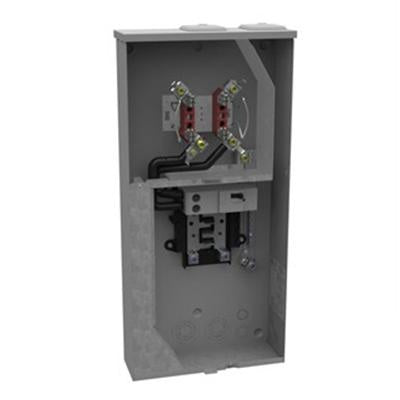

Milbank U5168-XTL-200-KK-PL 1-Phase Ringless Meter Socket With Horn Bypass 4 Jaw 200-Amp

Product Description

Milbank U5168-XTL-200-KK-PL is a 1-phase ringless meter socket rated for 200 Amps and up to 240 Volts AC. This unit features a 22 Kilo-Amp interrupt rating, ideal for high-demand applications. The socket provides a G90 galvanized steel enclosure with a powder-coated finish, ensuring durability and protection against harsh environments.

• Surface mountable with a compact design
• Accommodates conductor sizes from 6 AWG to 350 KCMIL
• Includes various concentric knockouts for flexible installation

Product Highlights

This 3-wire, 8-circuit meter socket supports both overhead and underground cable entries, making it suitable for different installation scenarios.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States of America

Technical Specifications

• Amperage Rating: 200 Amp
• Voltage Rating: 240 Volt AC
• Dimensions: 14-1/8 Inch Width x 4-1/2 Inch Depth x 32 Inch Height
• Material: G90 Galvanized Steel
• Mounting Type: Surface
• Number of Jaws: 4
• Number of Circuits: 8
• Knockouts: (1) 2 Inch, (2) 2 Inch, (3) 3 Inch, (4) 2-1/2 Inch, (5) 1/2 Inch, (6) 3/4 Inch, (6) 1 Inch concentric
