Milbank U5168-XTL-200-KK-CECHA 4 Term, Ringless, 2 Small Closing Plates, 1-200 Amp, Main Breaker, 8 Branch Circuit, Horn Bypass, Commonwealth Edison Chicago Housing Authority

Product Description

The Milbank U5168-XTL-200-KK-CECHA is a meter socket designed for commercial and residential applications. This device includes a main breaker rated at two hundred amps and accommodates eight branch circuits. The construction of the unit allows overhead or underground cable entry, providing flexibility in installation. It is UL listed under Type 3R for outdoor use.

• Rated for up to 240 volts alternating current.
• Manufactured from G90 galvanized steel with a powder coat finish.
• Suitable for Commonwealth Edison and Chicago Housing Authority applications.

Product Highlights

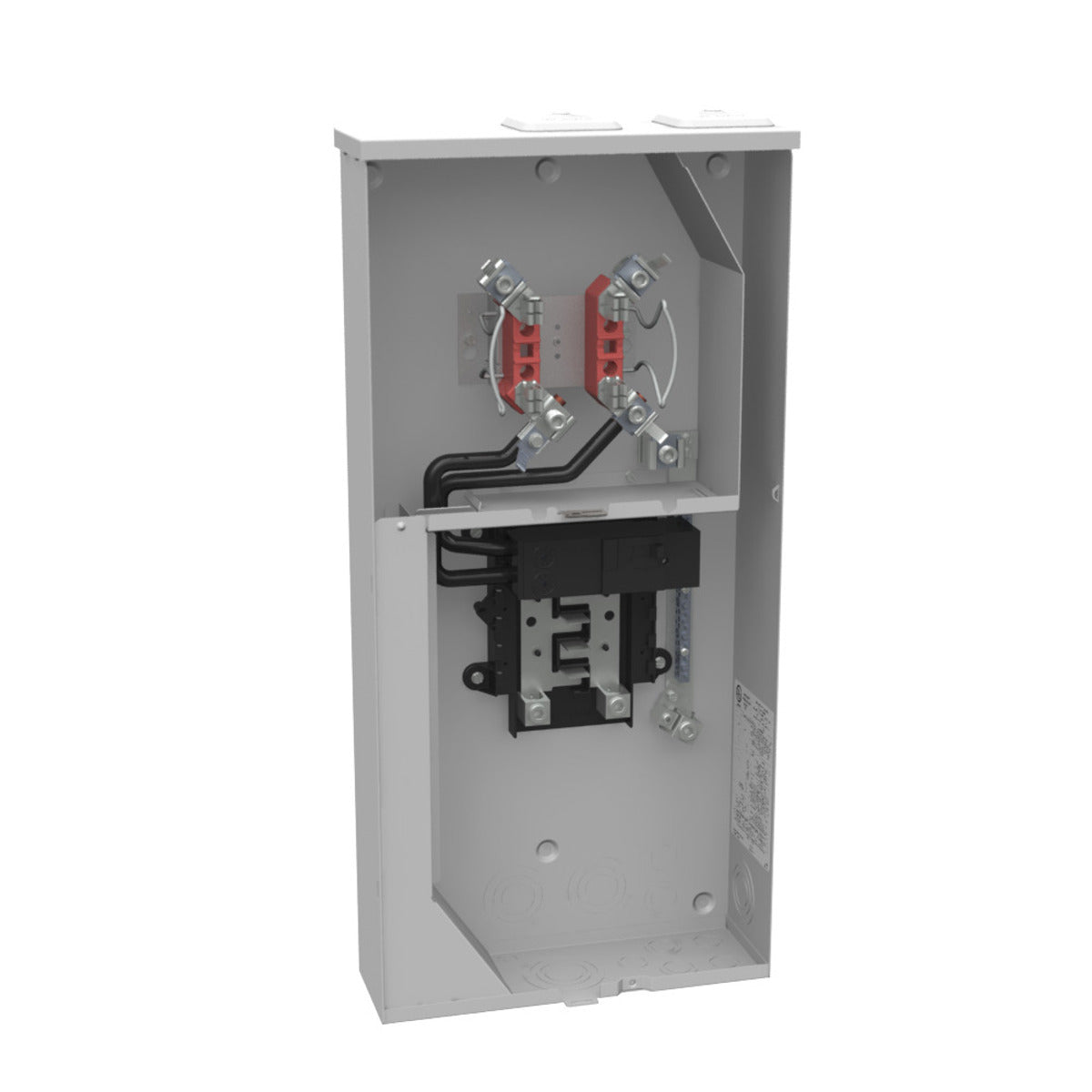

This meter socket features four terminal jaws, a horn bypass, and is surface mounted for easy installation.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U5168-XTL-200-KK-CECHA
• Amperage Rating: 200
• Application: Meter Socket with Main and Load Center
• Bypass Type: Horn
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Special Features: Commonwealth Edison Chicago Housing Authority
• Standard: UL Listed; Type 3R
• UPC: 784572500280
• Length: 4.5 Inch
• Width: 14.125 Inch
• Height: 30 Inch
• Voltage Rating: Up to 240 Volts Alternating Current
