Milbank U5168-XTL-200-KK-BLG 4 Term Ringless 200 Amp Main Breaker

Product Description

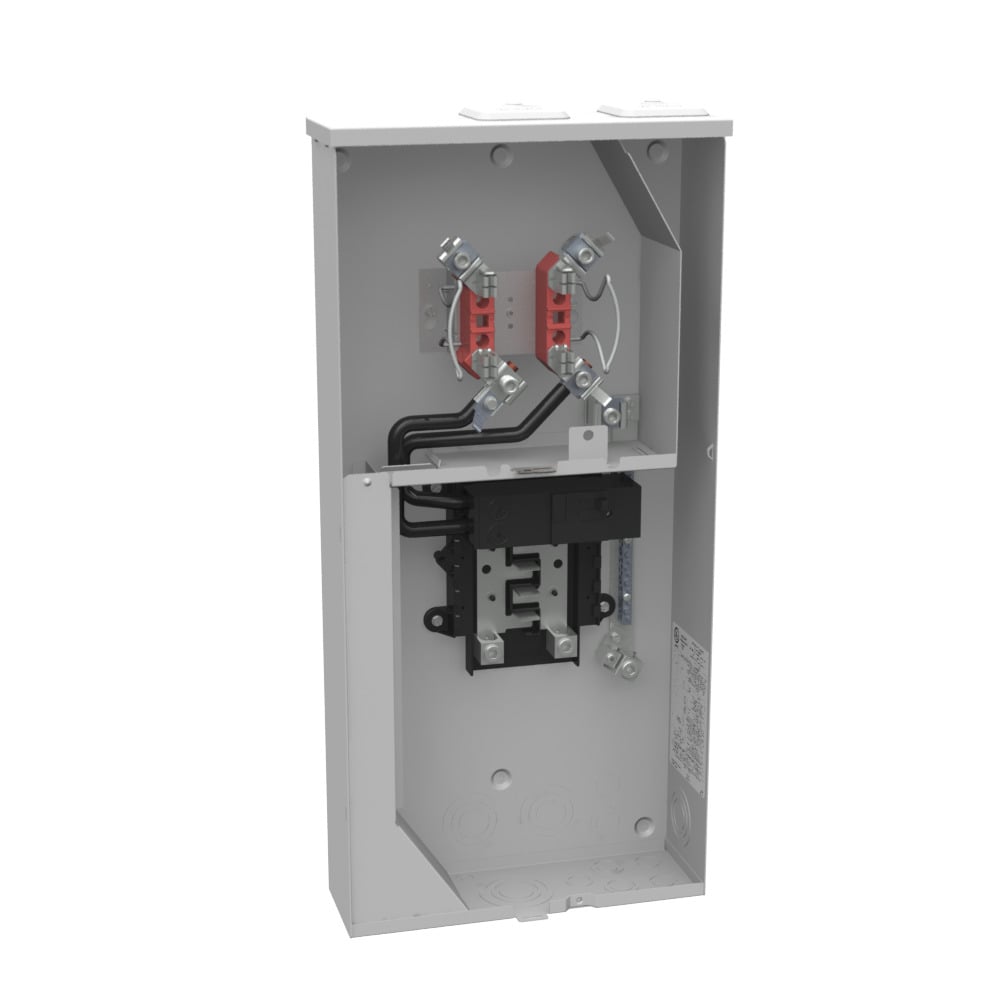

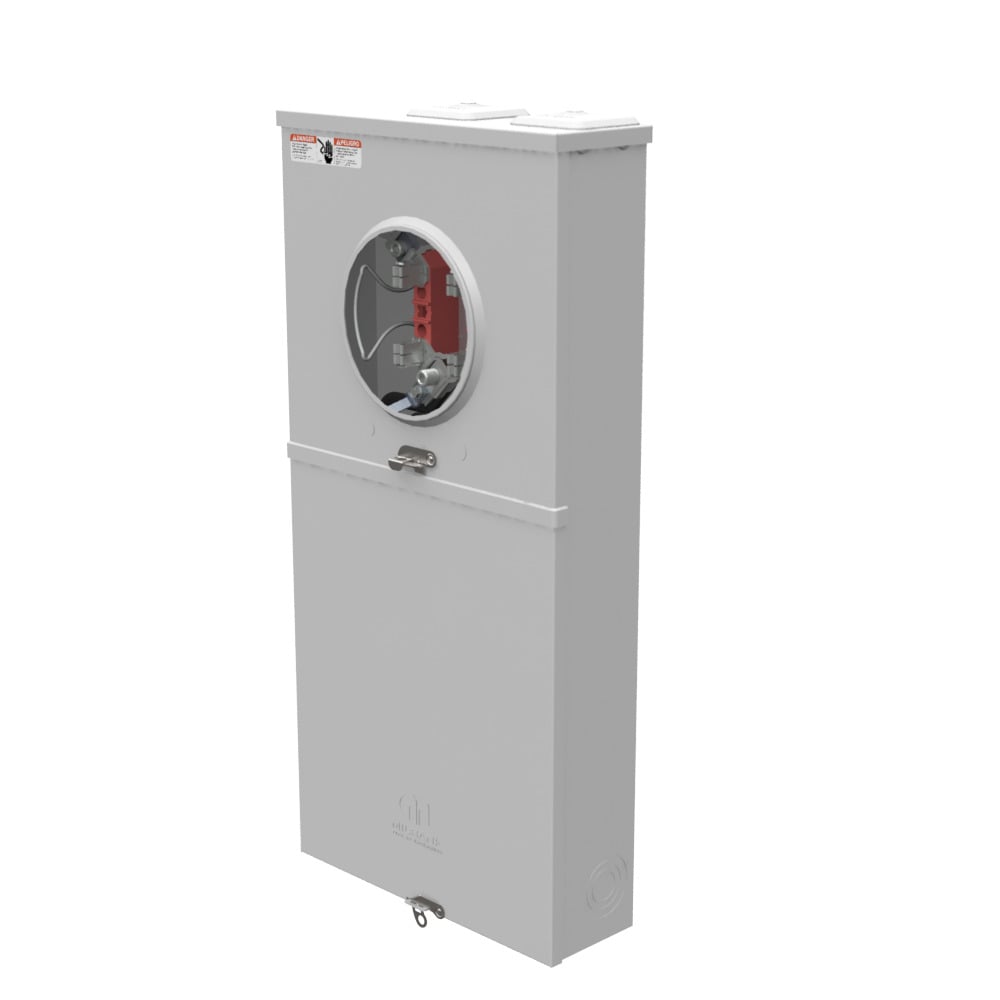

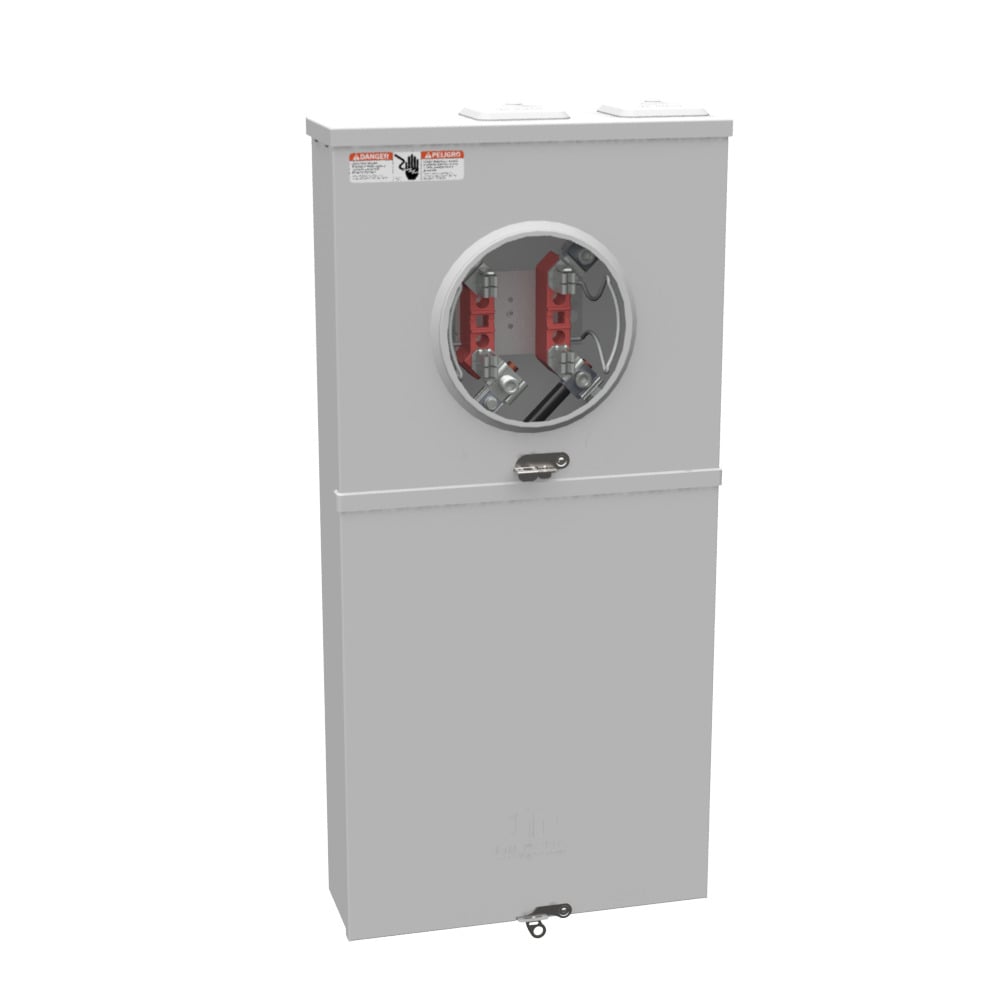

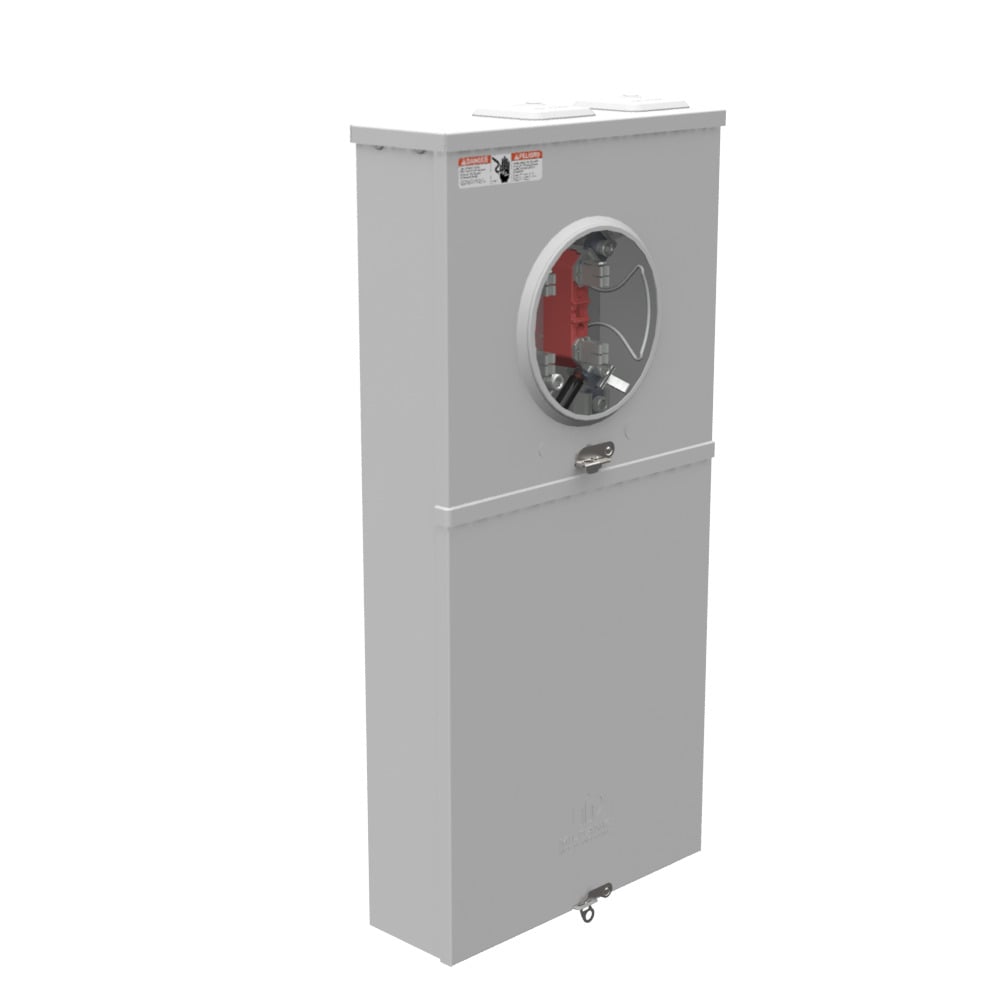

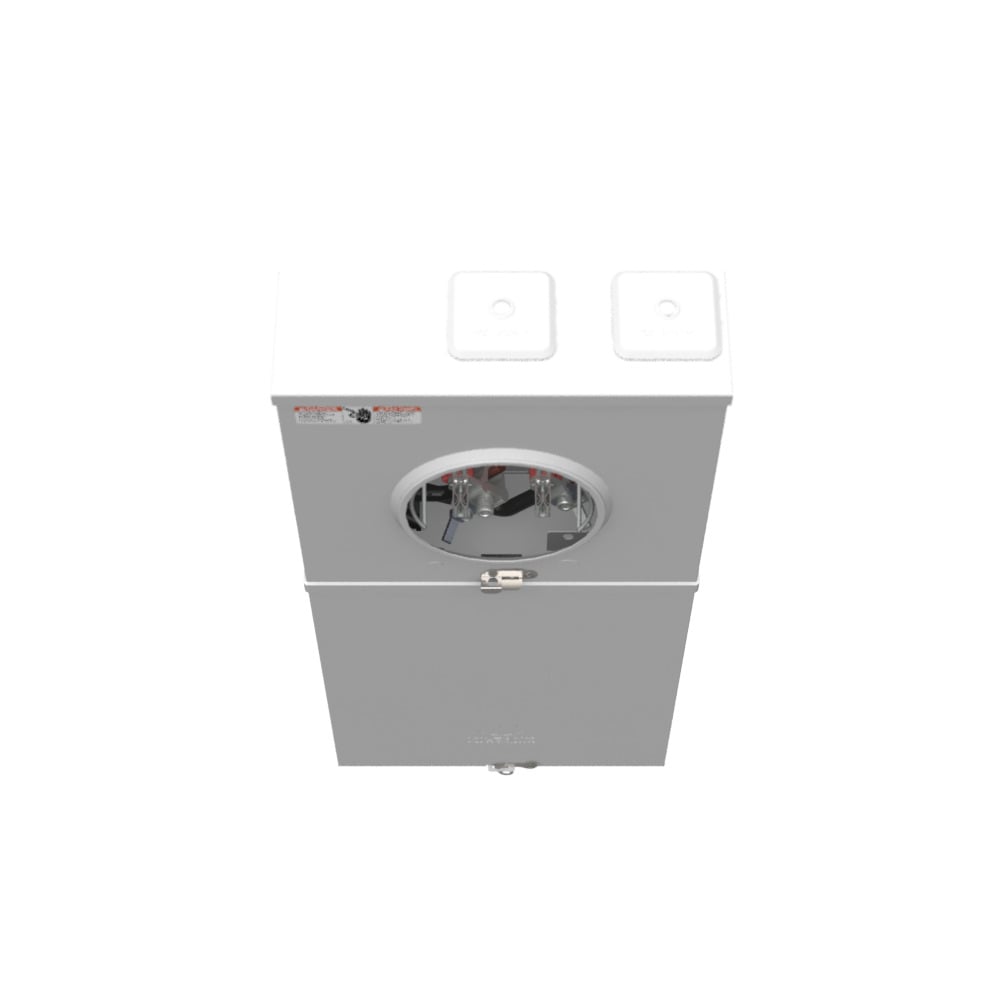

The Milbank U5168-XTL-200-KK-BLG is a 200 Amp ringless meter socket designed for overhead or underground service. This model features four terminals and includes two small closing plates. The enclosure is made of G90 galvanized steel with a powder coat finish.

• 200 Amp main breaker
• 8 branch circuits available
• UL Listed and meets NEMA Type 3R standards

Product Highlights

Ideal for residential and commercial applications requiring reliable power distribution.

Product Information

Standard Information

• Catalog Number: U5168-XTL-200-KK-BLG
• Manufacturer: Milbank

Technical Specifications

• Voltage Rating: Up to 240 Volts Alternating Current
• Amperage Rating: 200
• Application: Meter Socket with Main and Load Center
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Size: 4.5L x 14.125W x 30H inches
