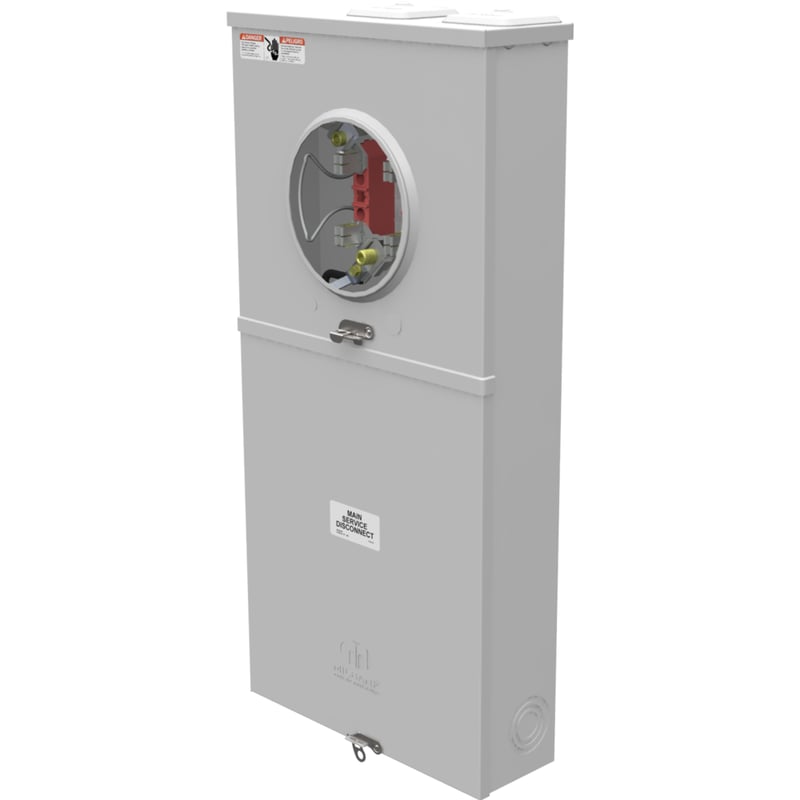

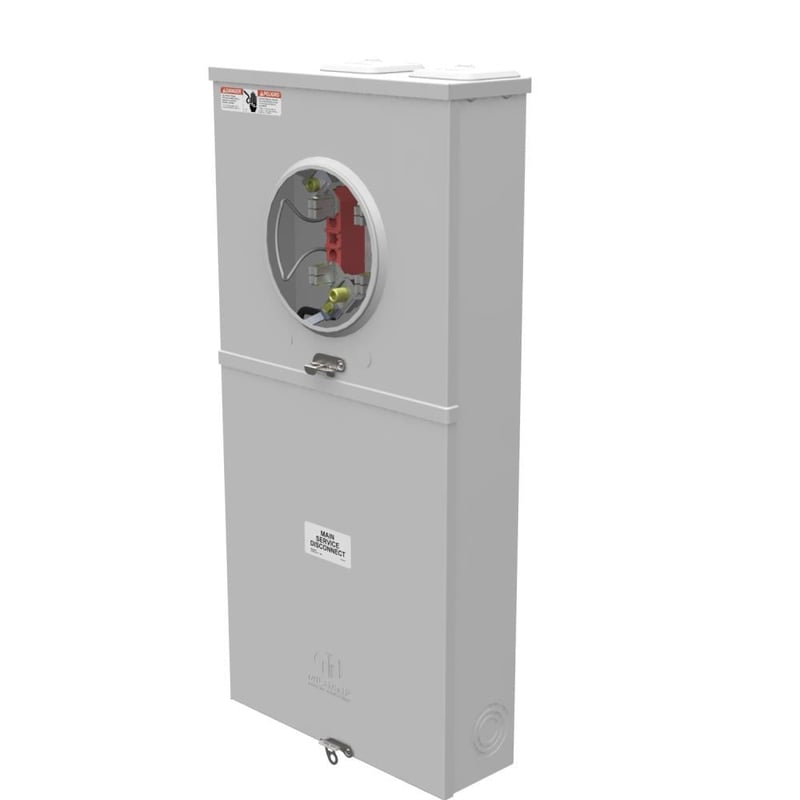

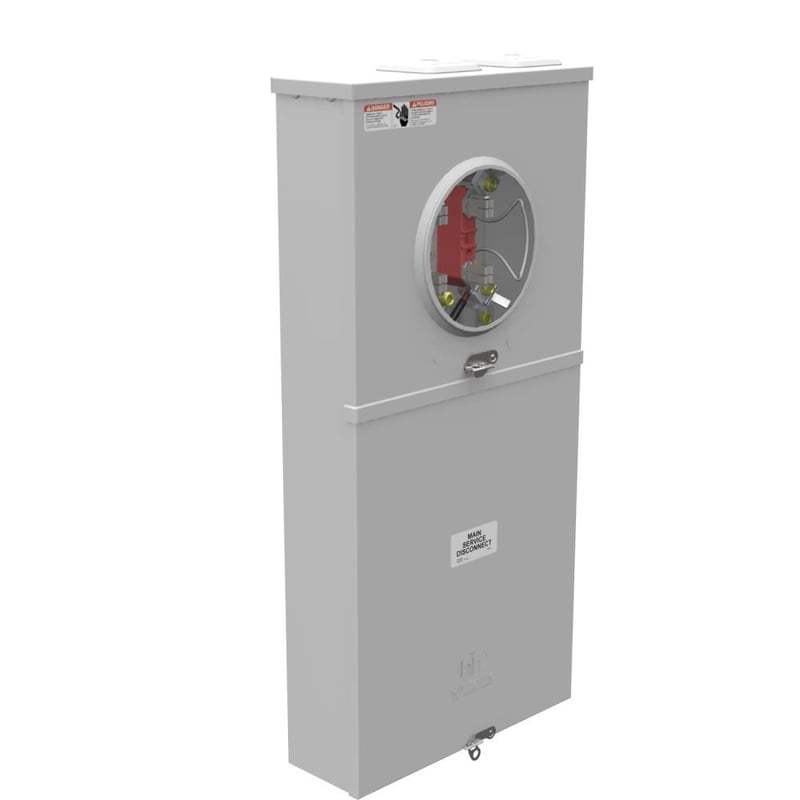

Milbank U5168-XTL-100-KK Ringless Meter Socket with Main and Load Center 240 VAC 200 Ampere

Product Description

The Milbank U5168-XTL-100-KK ringless meter socket features a main and load center, operating at 240 VAC and 200 continuous Ampere. Designed for 1 Phase, 60 Hz systems, it includes one 100 Ampere main breaker cutout. Suitable for overhead or underground cable entry, it uses lay-in terminals and glass polyester insulation. The NEMA 3R enclosure is made of G90 galvanized steel with a powder coat finish.

• Meter socket with main and load center
• Lay in line side and single mechanical load side terminal
• G90 galvanized steel with powder coat finish enclosure

Product Highlights

Ringless meter socket with a 100A main breaker cutout, suitable for overhead or underground cable entry.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U5168-XTL-100-KK
• Country of Origin: US - United States

Technical Specifications

• Type: Ringless Meter Socket With Main and Load Center
• Hub Size: Small
• Hub Type: Twin Small Closing Plates
• Feed Type: Overhead/Underground
• Wire Size: 6 AWG to 350 kcmil
• Insulation: Glass Polyester
• Manufacturer: Milbank Manufacturing
• Mounting Type: Surface
• Terminal Type: Lay-In
• Enclosure Type: NEMA 3R
• Number of Jaws: 4
• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Frequency Rating: 60 Hz
• Phase: 1 Phase
• Mounting: Surface Mount
• Standard: UL Listed;Type 3R
• Application: Meter Socket With Main And Load Center
• Bypass Type: Horn Bypass
• Cable Entry: Overhead or Underground
• Cutout Size: One 100 Ampere Main Breaker
• Hub Opening: Twin Small Closing Plates
• Jaw Quantity: 4 Terminal
• Product Name: Loadcenter Combination Meter Socket
• Equipment Ground: Ground Bar
• Number Of Cutouts: 1
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Meter Positions: 1 Position
• Brand Name: Milbank
