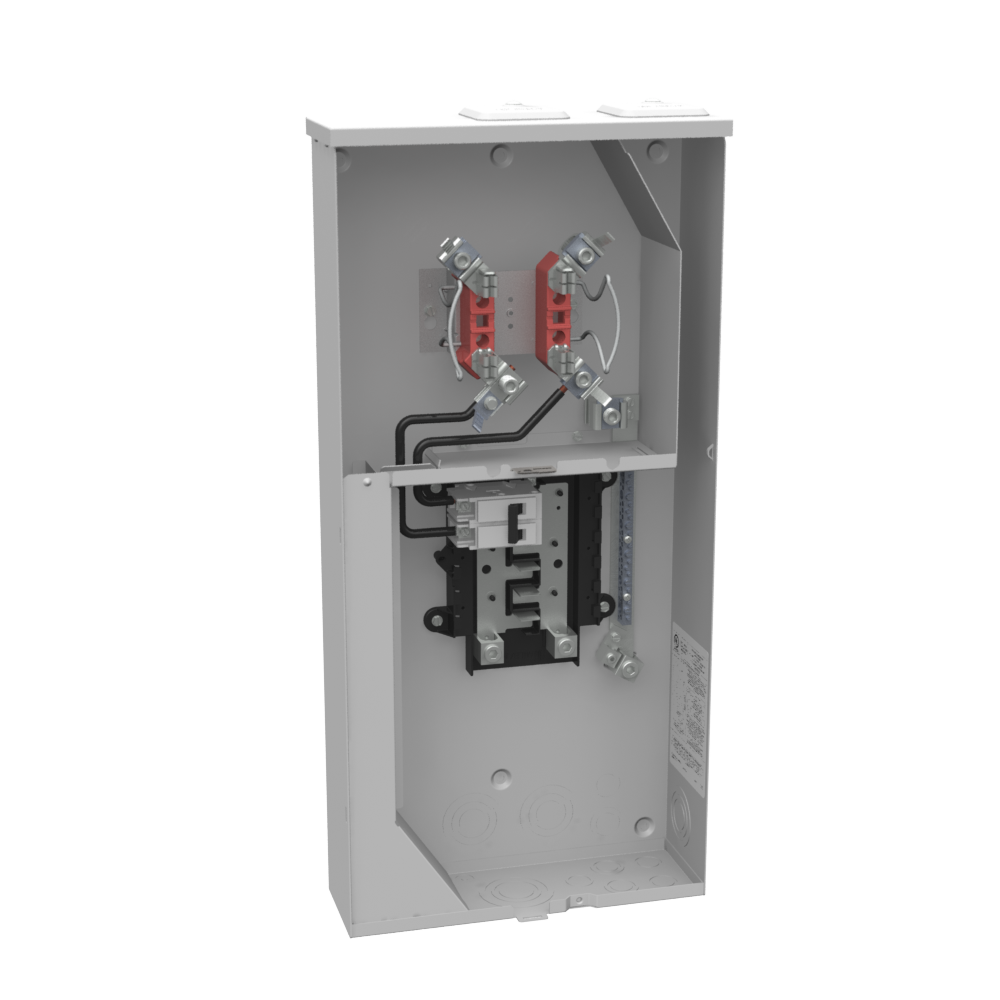

Milbank U5168-XTL-100-KK-ALT Single Position Meter Socket with Main and Load Center, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, OH, UG, 240V

Product Description

The Milbank U5168-XTL-100-KK-ALT is a single position meter socket designed for use in residential and commercial applications. This meter socket can handle a load of 200 amps, with a voltage rating of up to 240 volts alternating current. It features a ringless design with a horn bypass, making it suitable for overhead or underground cable entry.

• Single position meter socket with main and load center
• Designed for 200 amp service
• UL Listed; Type 3R enclosure

Product Highlights

This meter socket is built from G90 galvanized steel with a powder coat finish, ensuring durability and corrosion resistance. The surface mount installation is straightforward, making it an ideal choice for both electricians and contractors.

Product Information

Standard Information

• Catalog Number: U5168-XTL-100-KK-ALT
• Manufacturer: Milbank

Technical Specifications

• Country of Origin: United States
• Amperage Rating: 200
• Application: Meter socket with main and load center
• Bypass Type: Horn
• Cable Entry: Overhead or underground
• Enclosure: G90 galvanized steel with powder coat finish
• Frequency Rating: 60 Hertz
• Insulation: Glass polyester
• Material: G90 galvanized steel
• Mounting: Surface mount
• Number of Jaws: 4 terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Voltage Rating: Up to 240 Volts AC
