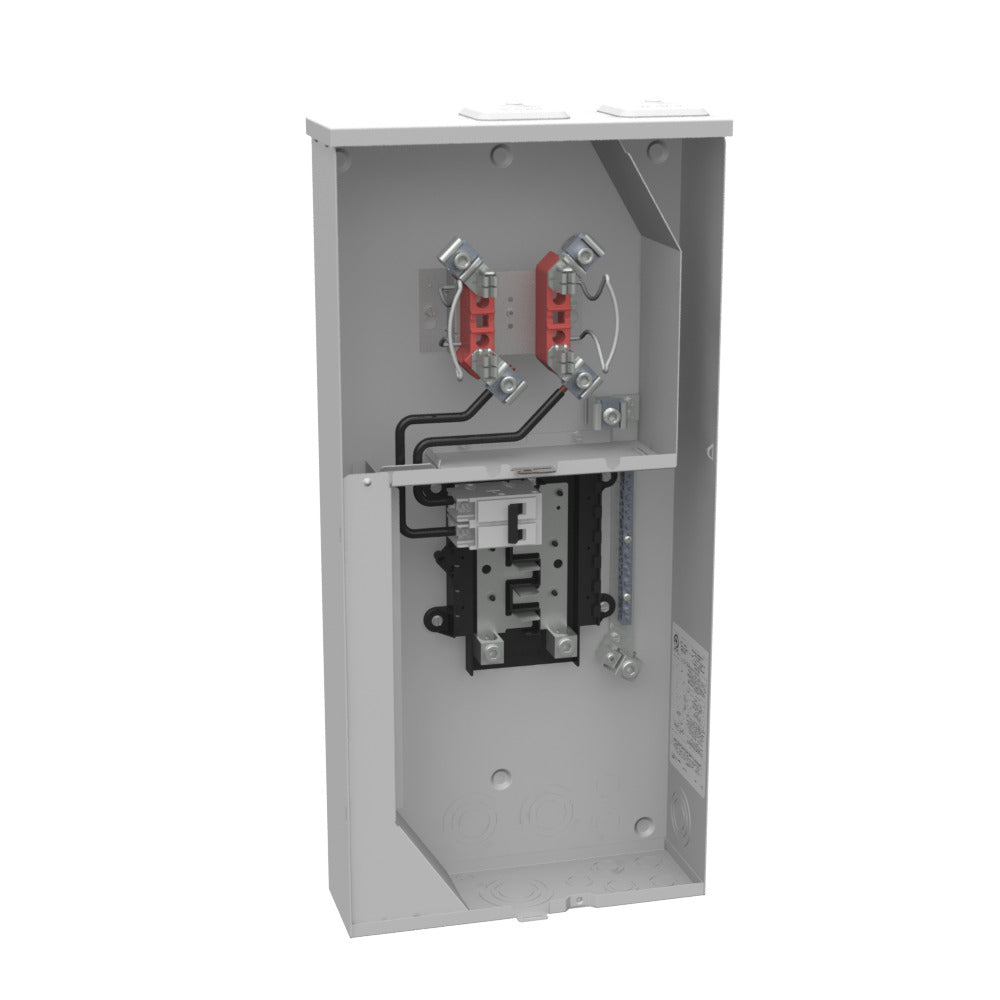

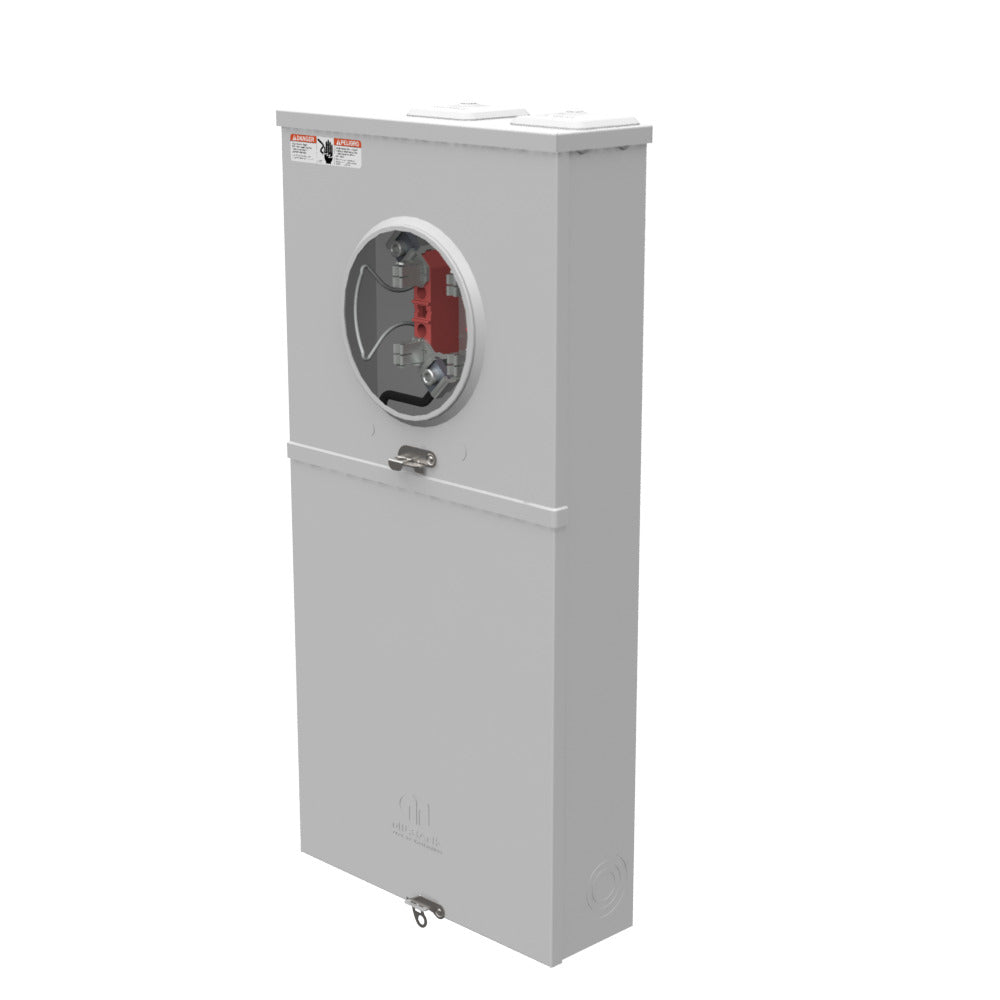

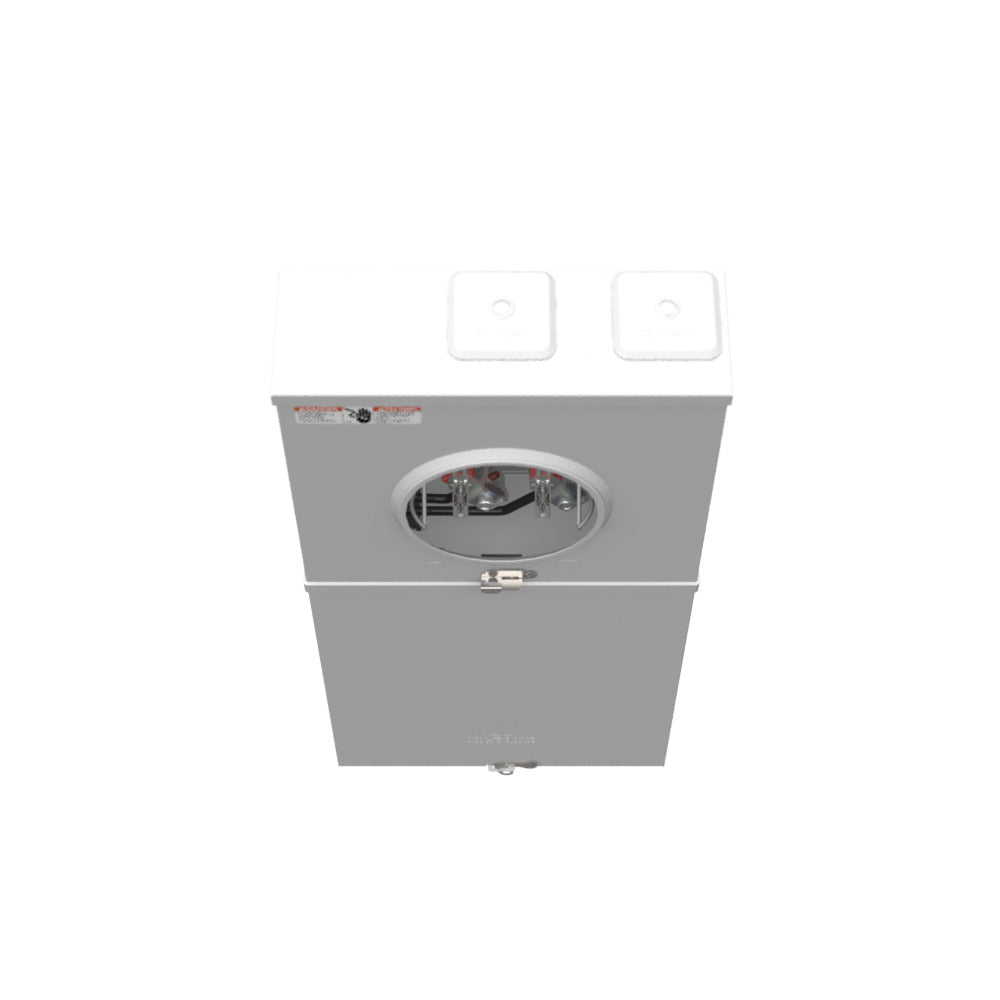

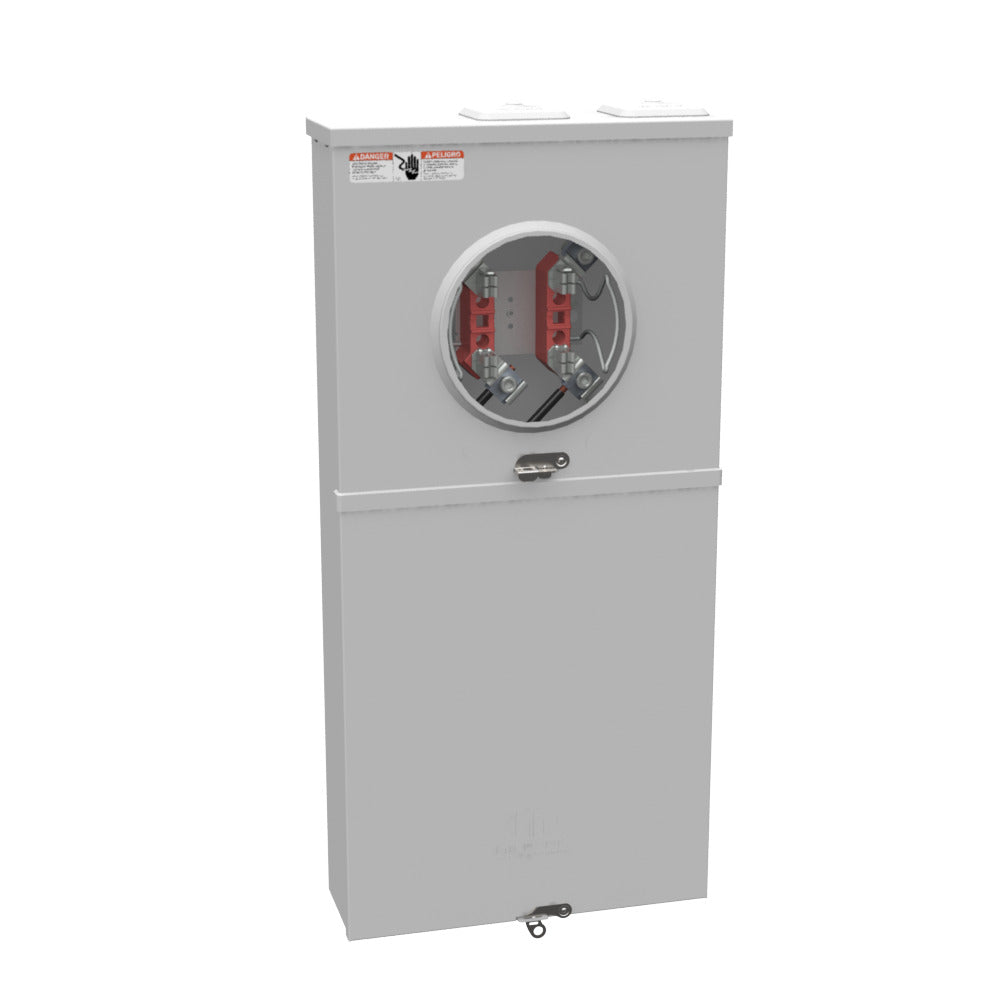

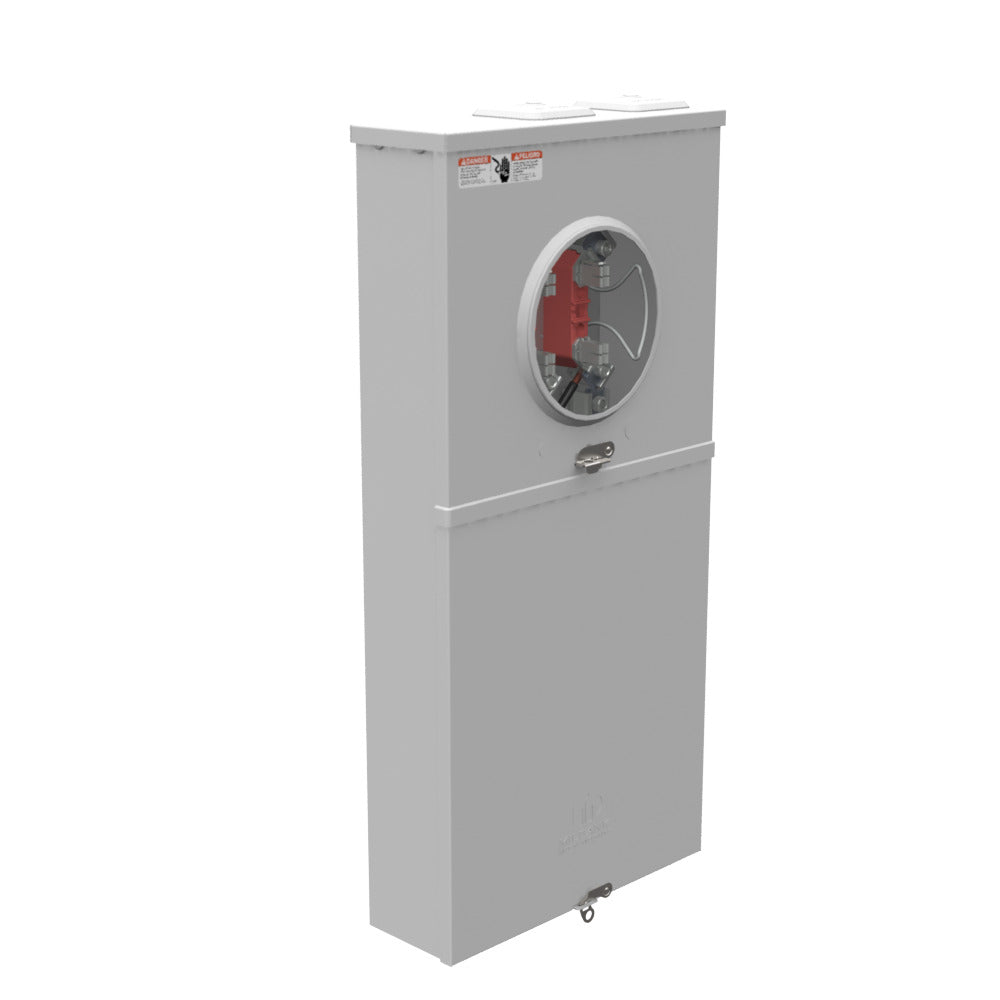

Milbank U5168-XTL-100 4 Term, Ringless, 2 Small Closing Plates, 1-100 Amp, Main Breaker, 10 Branch Circuit

Product Description

The Milbank U5168-XTL-100 provides a reliable meter socket solution with a one hundred amp main breaker and ten branch circuits. This model features four terminal connections and a ringless design suitable for residential or commercial applications. It is designed for overhead or underground cable entry, offering flexibility for installation.

• 200 Amperage rating
• G90 galvanized steel construction
• UL Listed, Type 3R

Product Highlights

This product is ideal for use in electrical distribution systems requiring robust and safe metering solutions.

Product Information

Standard Information

• Catalog Number: U5168-XTL-100
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 200
• Voltage Rating: Up to 240 Volts Alternating Current
• Application: Meter Socket With Main And Load Center
• Bypass Type: No Bypass
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Item Type: Ringless Meter Socket
• Size: 4.5L x 14.125W x 30H
