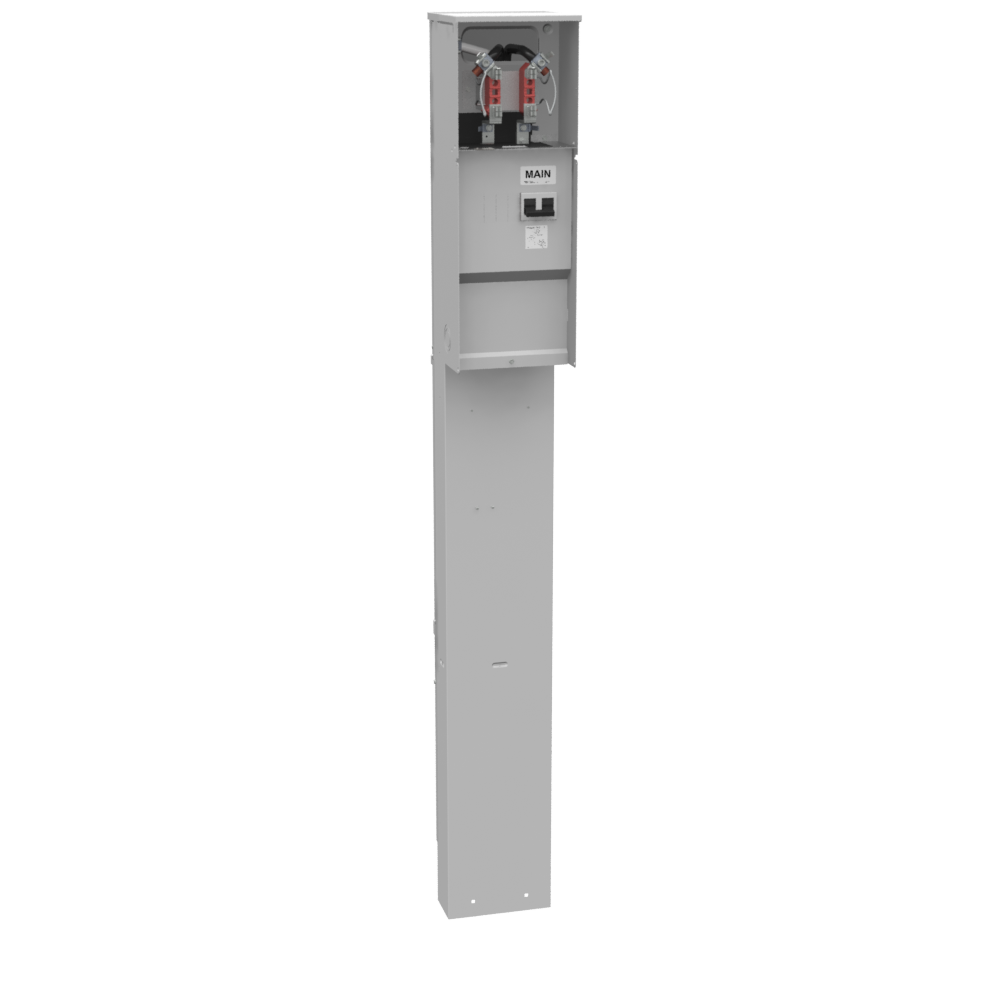

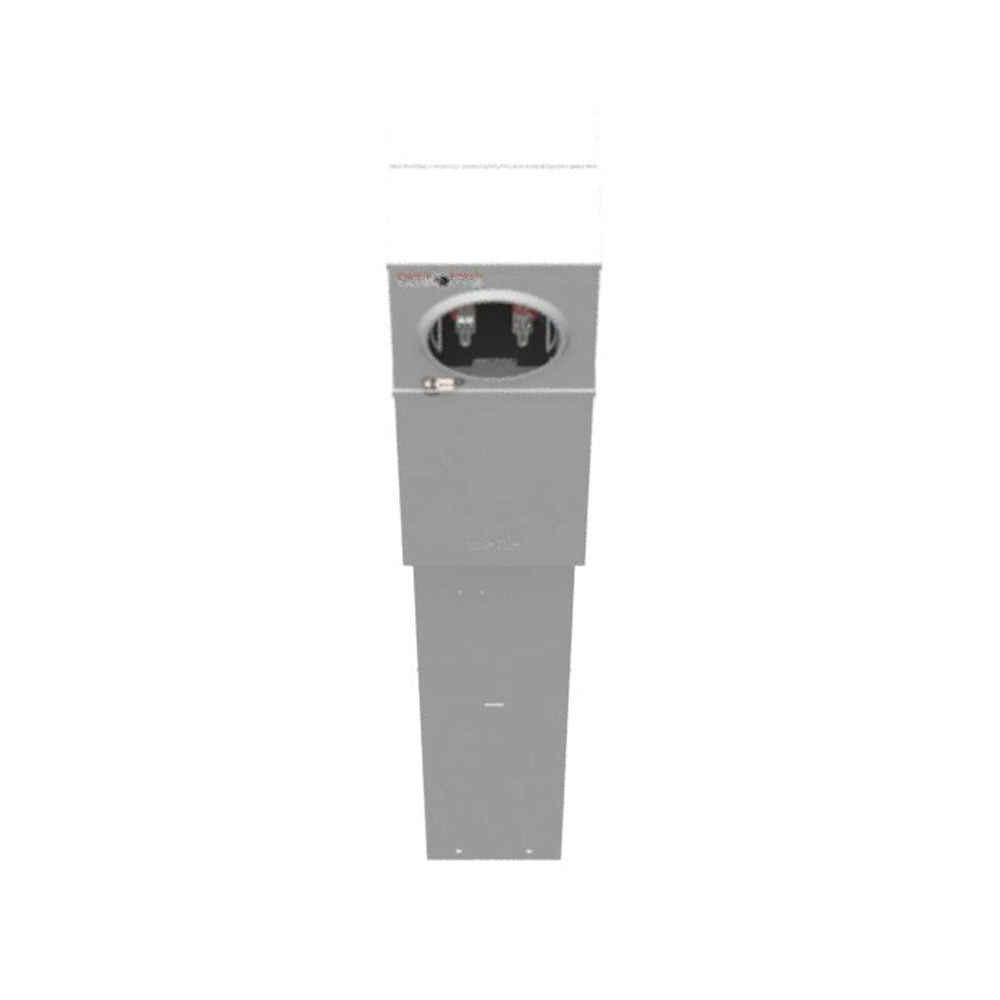

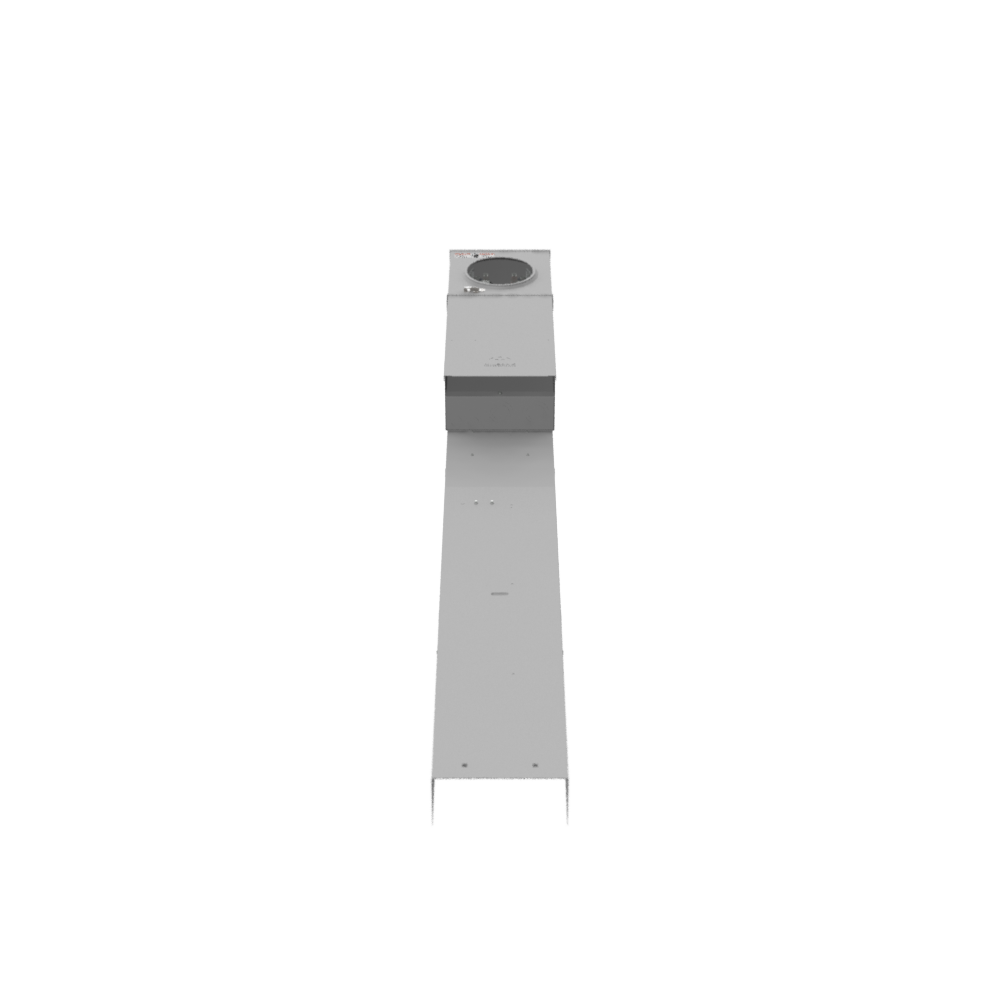

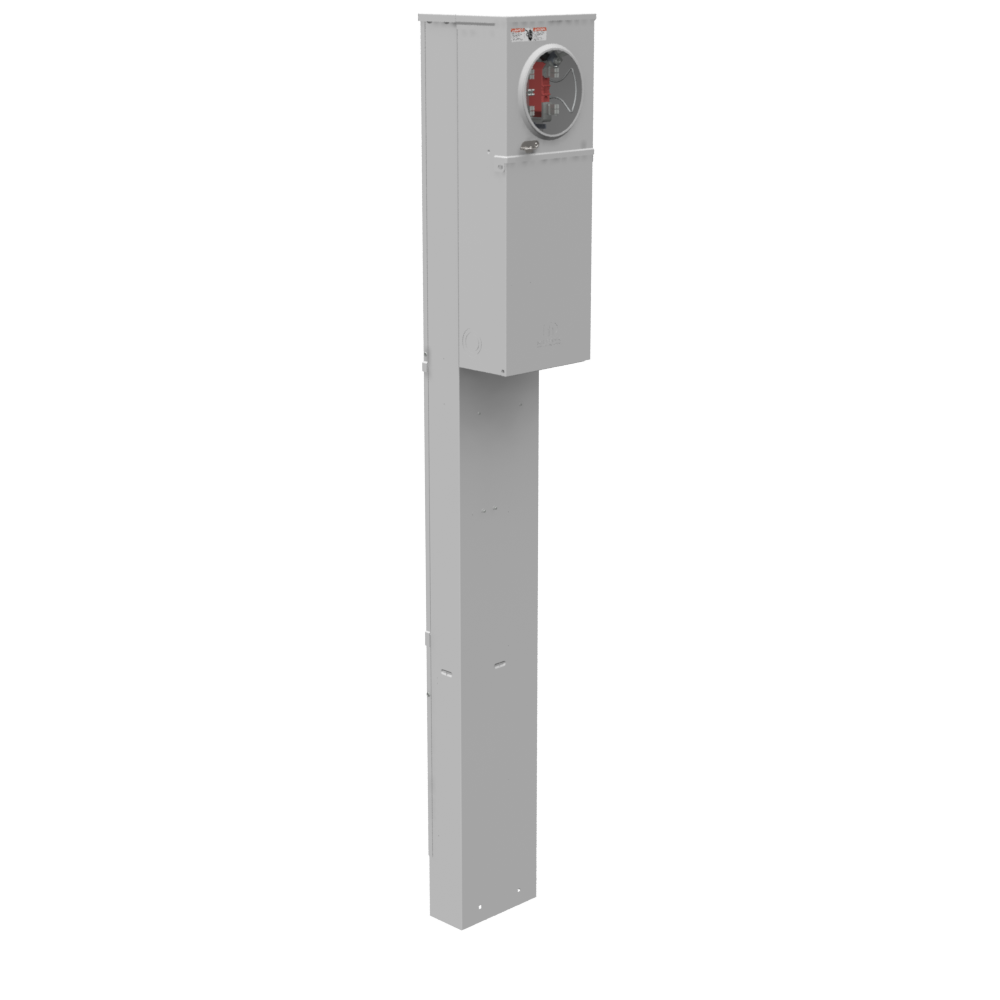

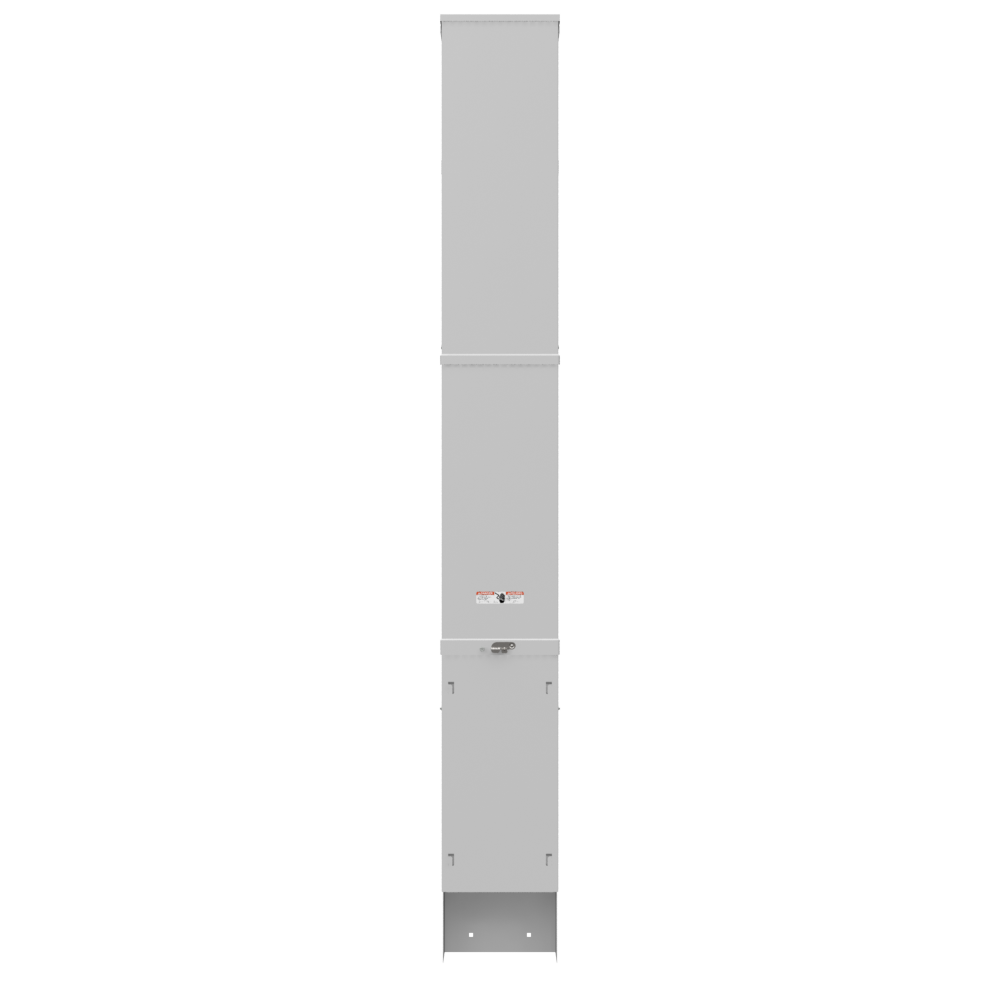

Milbank U5136-O-200S-NHB Ringless Meter Socket

Product Description

The Milbank U5136-O-200S-NHB is a ringless meter socket suitable for single-phase applications with a continuous service of 200 Amps at a maximum of 240 Volts. Made from G90 galvanized steel, this socket provides a durable enclosure rated NEMA 3R, ensuring protection against various environmental conditions. Key features include a horn bypass for easy access and underground cable entry connections. The unit includes a ground bar for equipment grounding, along with double mechanical lugs for secure line and load connections. It supports a wire range from six AWG to 350 kcmil on the line side and from one AWG to 300 kcmil on the load side, making it versatile for various installations.

• Designed for 200 Amp continuous service up to 240 Volts.
• Features a protected NEMA 3R enclosure for outdoor use.
• Equipped with a ground bar and double mechanical lugs.

Product Highlights

Product Information

Standard Information

• Brand Name: Milbank
• Type: Ringless Meter Socket

Technical Specifications

• Amperage Rating: 200 Amp Continuous
• Voltage Rating: Up to 240 Volt
• Enclosure: NEMA 3R
• Dimensions: 10.25 inches Length x 9.688 inches Width x 80 inches Height
• Wire Size: Line side 6 AWG to 350 kcmil, Load side 1/0 AWG to 300 kcmil
• Number of Circuits: 4
• Hub Type: Plain Top
• Mounting Type: Direct Burial
