Milbank U5136-O-100S 4 Term Rngls Plain Top HRN Byps 1-100 AMP MN Brkr Sgl Ped Dir Bury

Product Description

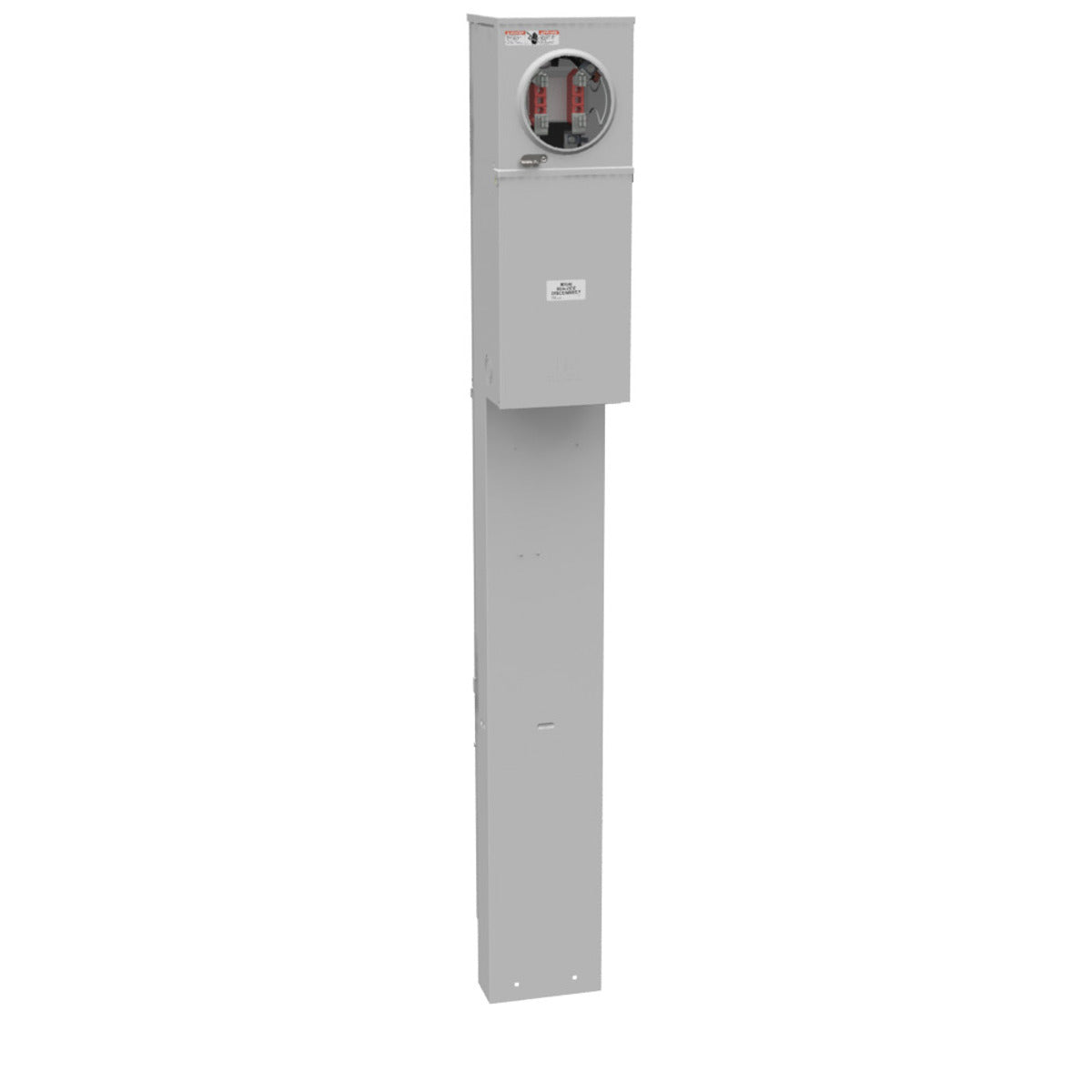

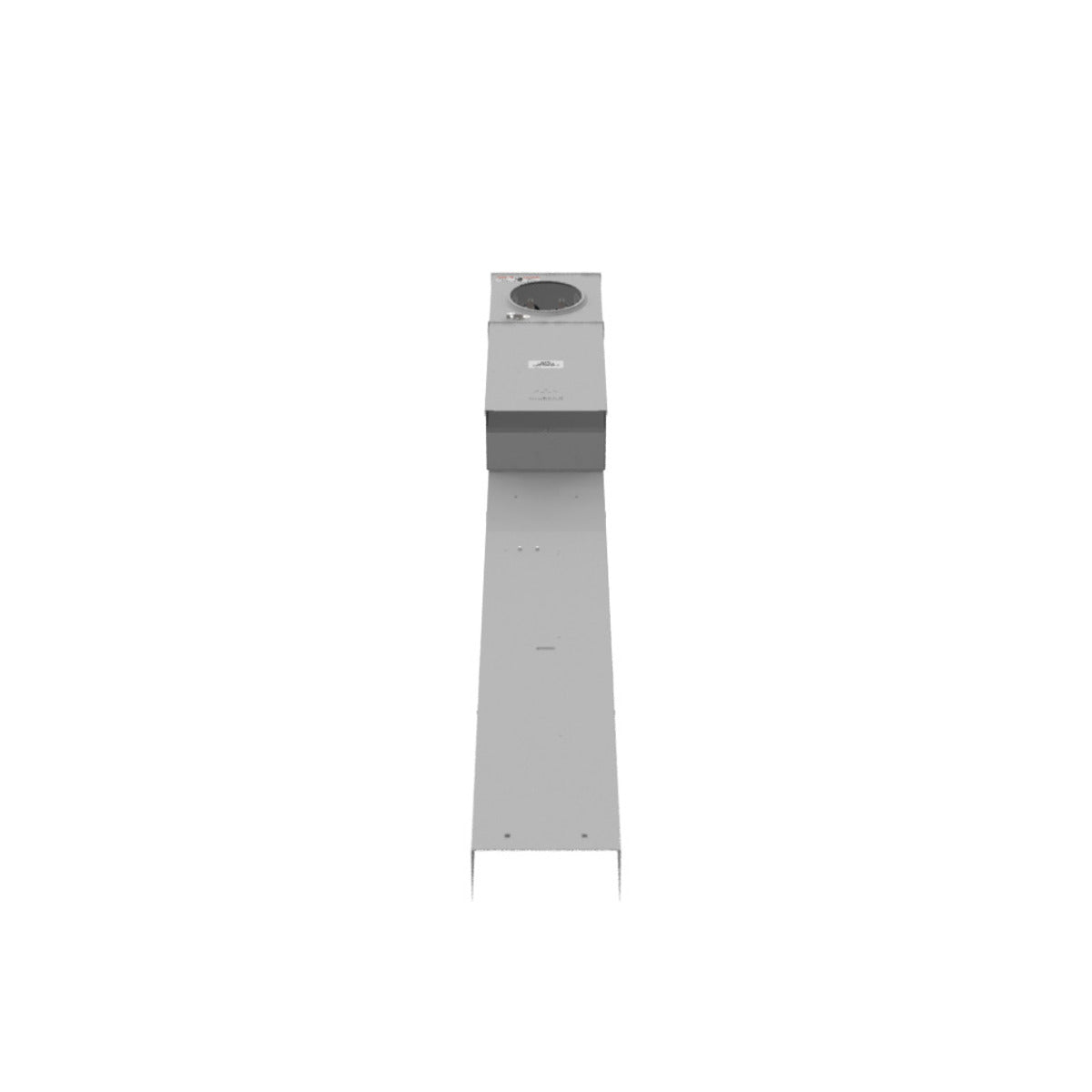

The MILBANK U5136-O-100S is a 4 terminal ringless meter socket with plain top, horn bypass, and a 1-100 AMP main breaker, designed for single pedestal direct bury applications. It is constructed from G90 galvanized steel with a powder coat finish and features a NEMA 3R enclosure. This meter socket supports underground cable entry and is UL listed.

• Ringless meter socket with horn bypass
• G90 galvanized steel enclosure with powder coat finish
• Suitable for underground cable entry

Product Highlights

The Milbank U5136-O-100S meter socket is ideal for mobile home power distribution, providing a robust and reliable connection point.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U5136-O-100S
• Country of Origin: United States

Technical Specifications

• Catalog Number: U5136-O-100S
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 100 A
• Application: Mobile Home Power
• Bypass Type: Horn
• Cable Entry: Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Pedestal
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed;Type 3R
• Item Type: Ringless Meter Socket
• Length: 10.25 Inch
• Width: 9.688 Inch
• Height: 80 Inch
• Terminals: Double Mechanical
• Voltage Rating: Up to 240 Volts Alternating Current
• UNSPSC: 39121102
• Service Type: Underground
• Main Disconnect Type: UQFPH-M-100 Main Breaker
• Circuit Configuration: 1-Phase
• Knockouts: (4) 2 Inch, (2) 3/4 Inch, (2) 1/4 Inch
• Enclosure Material: Galvanized Steel
• Wire Size: 6 AWG to 350 KCMIL
• Approval: UL
• Enclosure Type: NEMA 3R
