Milbank U5101-XL-11GR 1-Phase Ringless Meter Socket 125 Amp Up to 240 Volt AC

Product Description

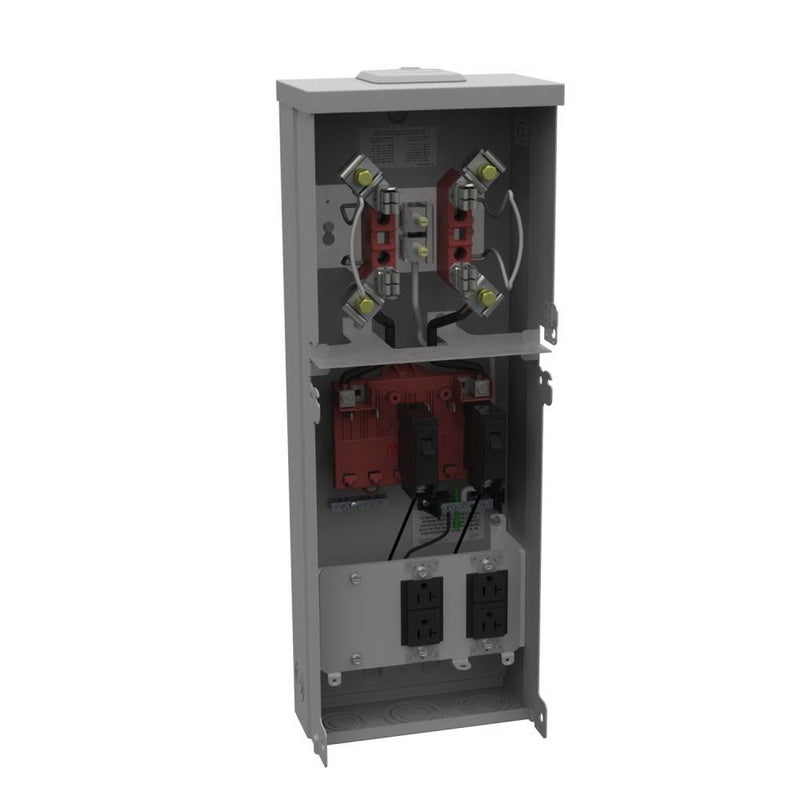

The Milbank U5101-XL-11GR is a 1-phase ringless meter socket designed for RV power applications. This socket has a current rating of 125 amps and supports a voltage rating of up to 240 volts AC at 60 Hertz.

• NEMA 3R rated powder-coated G90 galvanized steel enclosure
• Features overhead or underground cable entry
• Includes four terminal jaws and one socket

Product Highlights

This product is ideal for use in various residential and RV power setups. It is UL listed for safety and reliability, making it suitable for demanding environments.

Product Information

Standard Information

• Catalog Number: U5101-XL-11GR
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 125
• Voltage Rating: Up to 240 volts AC
• Frequency Rating: 60 Hertz
• Material: G90 galvanized steel with powder coat finish
• Insulation: Glass polyester
• Height: 25 inches
• Width: 8.875 inches
• Depth: 5.188 inches
• Terminals: Lay-in
• Enclosure: NEMA 3R
