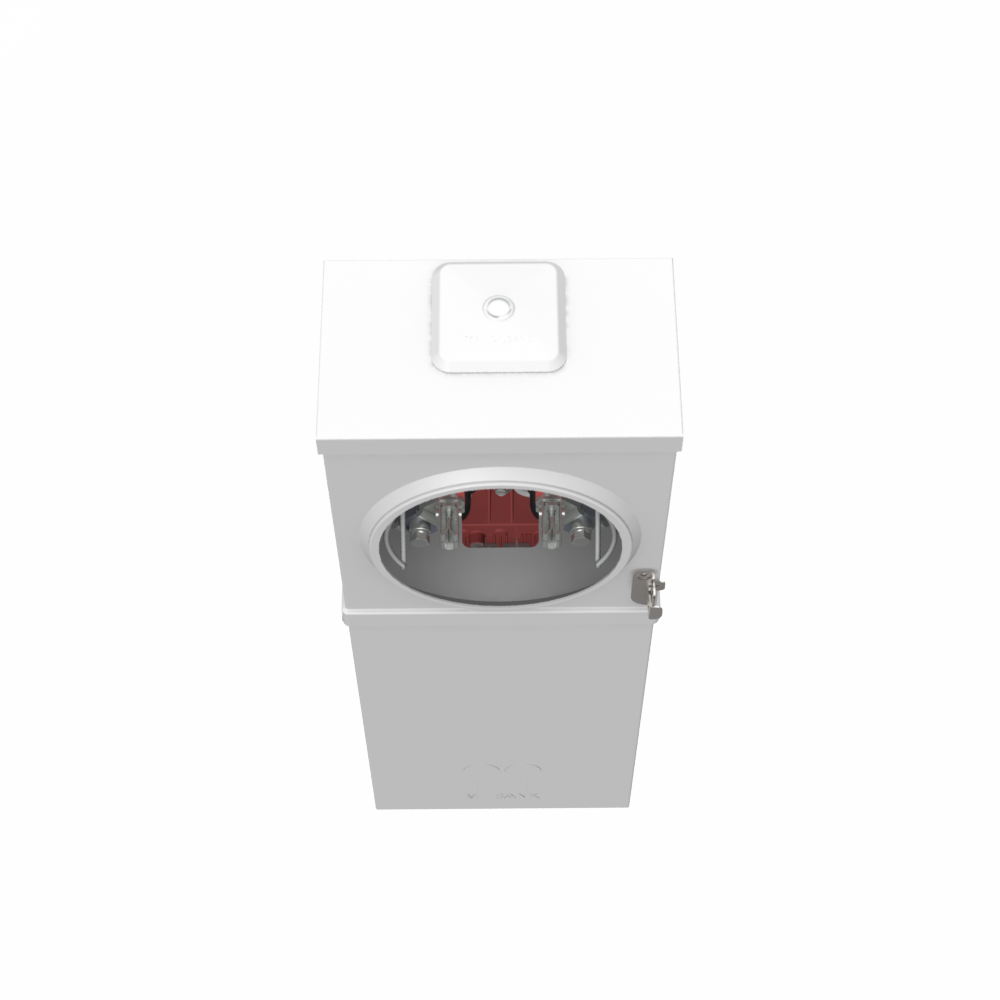

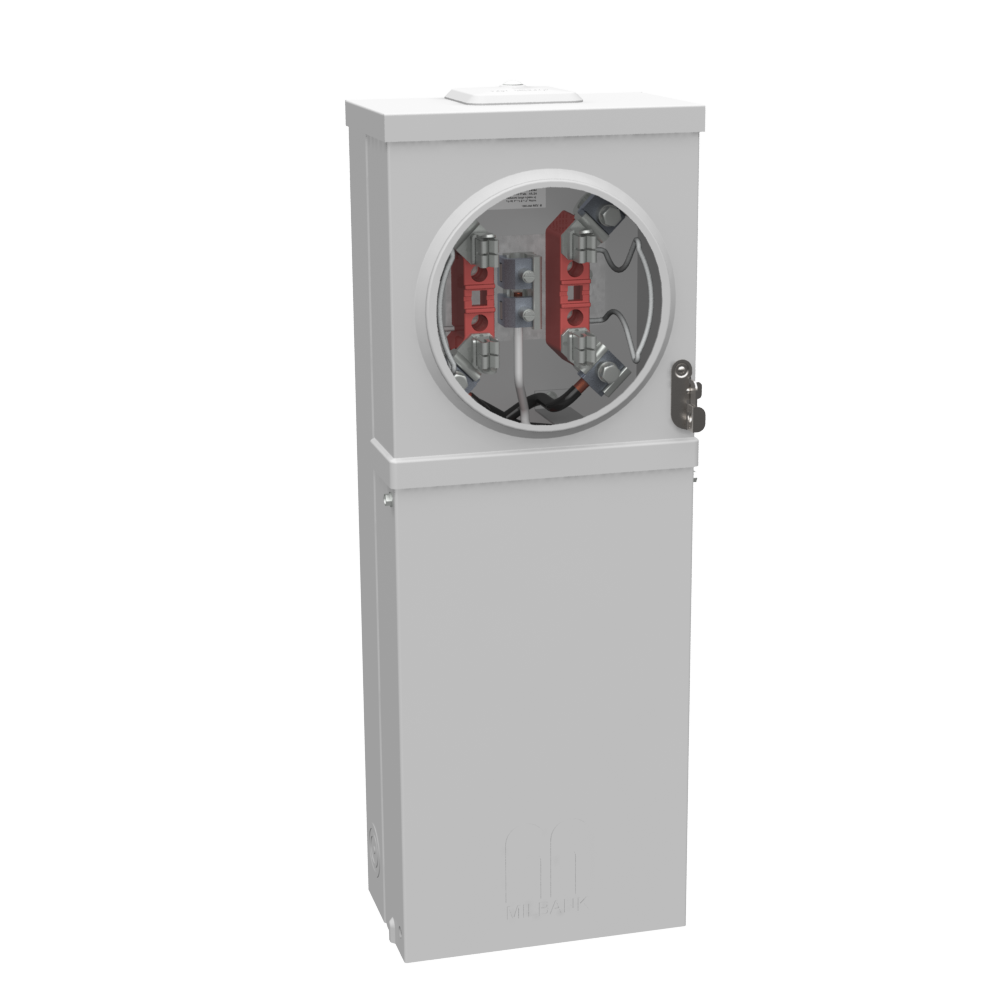

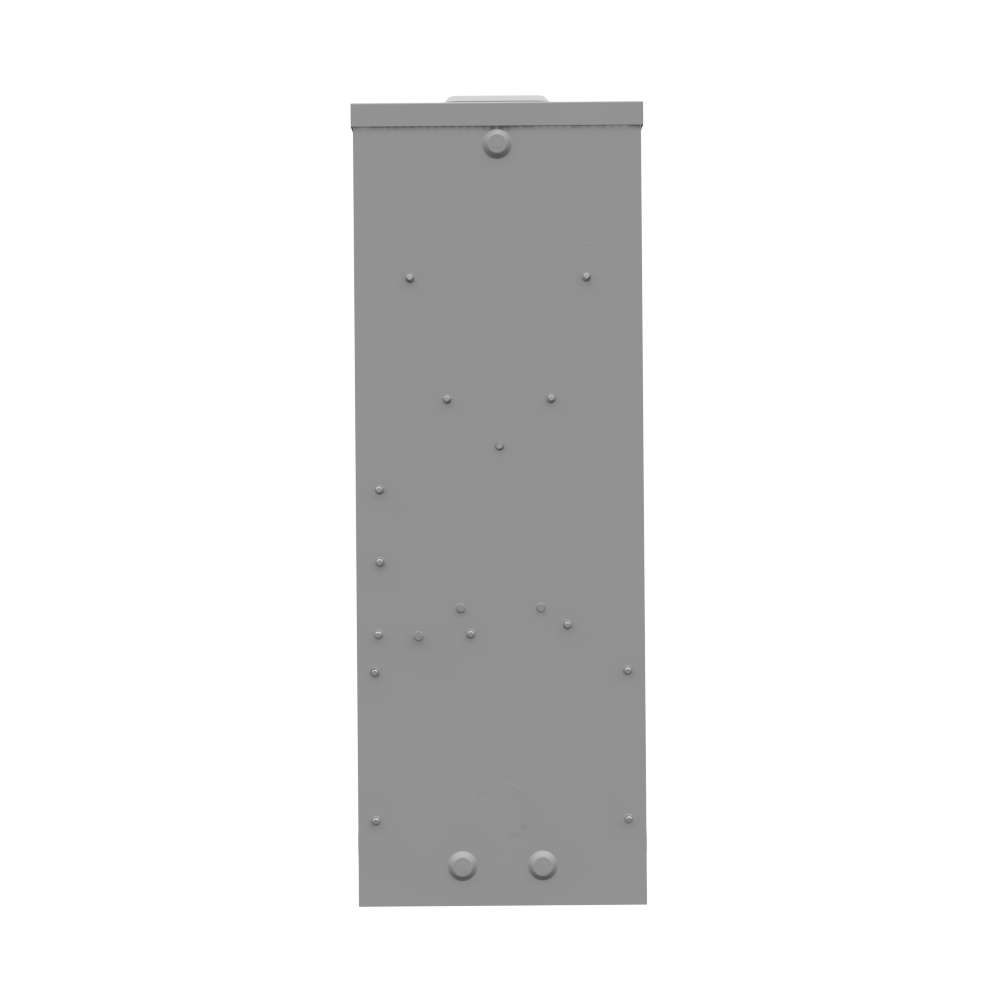

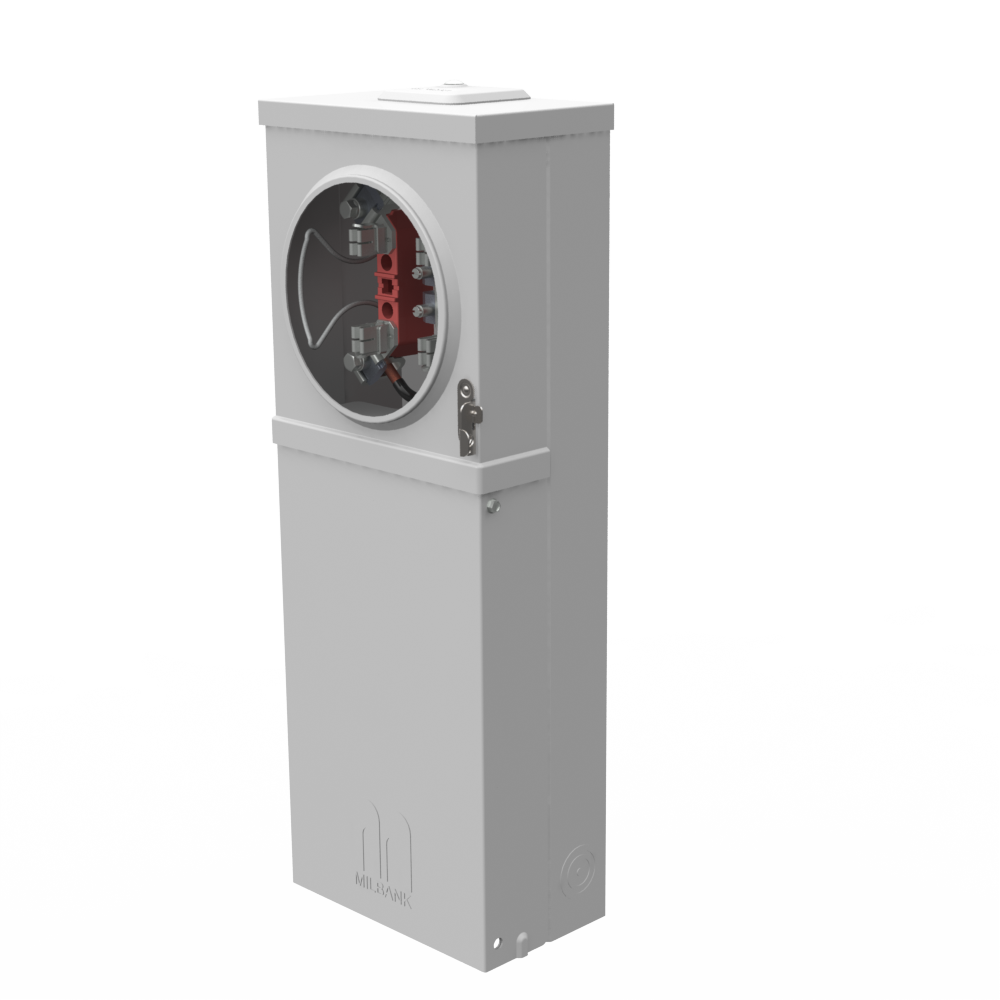

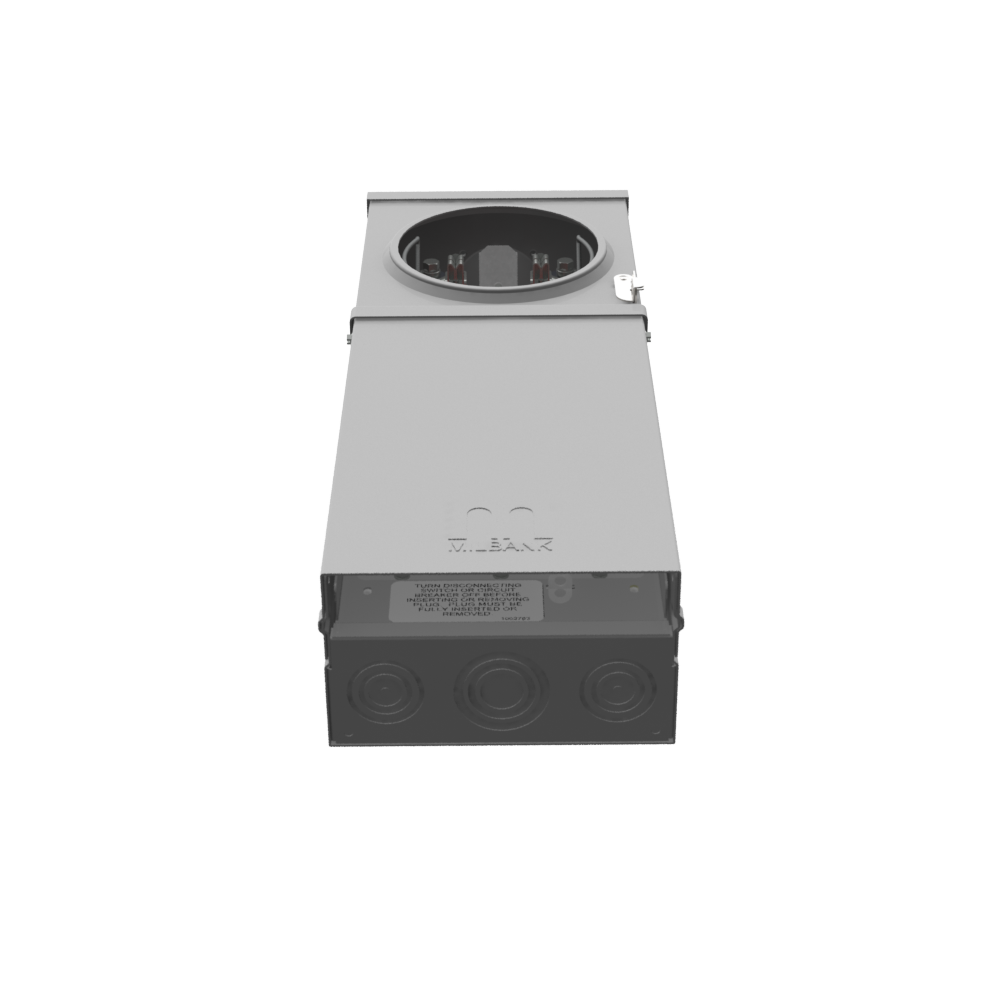

Milbank U5101-XL-100MB-11GR Ringless Meter Socket 1-100 Ampere Main Breaker

Product Description

The Milbank Manufacturing U5101-XL-100MB-11GR is a ringless meter socket suited for temporary power applications. This product has a four terminal configuration, designed to accommodate a main breaker rated between one and one hundred amperes. It is constructed from G90 galvanized steel and features a powder coat finish for added durability.

• Designed for overhead or underground cable entry.
• Includes a ground bar for reliable equipment grounding.
• UL listed and rated Type 3R for environmental protection.

Product Highlights

This meter socket is ideal for both temporary and permanent installations, ensuring safety and efficiency in electrical applications.

Product Information

Standard Information

• Brand Name: Milbank
• Type: Ringless Meter Socket

Technical Specifications

• Amperage Rating: 100 Continuous Ampere
• Application: Temporary Power
• Bypass Provision: No Bypass
• Cable Entry: Overhead or Underground
• Main Breaker Size: Breaker Provision
• Material: Steel
• Equipment Ground: Ground Bar
• Frequency Rating: 60 Hertz
• Hub/Closing Plate: Small Closing Plate
• Number of Jaws: 4 Terminal
• Knockouts: True
• Line Side Wire Range: 6 AWG - 350 kcmil
• Mounting: Surface Mount
• Number Branch Circuits: 6
• Number of Meter Positions: 1 Position
• Phase: 1 Phase
• Size: 5.186L x 8.875W x 25H
• Standard: UL Listed;Type 3R
• Terminal: Lay In
• Voltage Rating: Up to 240 Volts Alternating Current
• Height: 25.0 IN
• Length: 5.186 IN
• Width: 8.875 IN
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Number of Phases: 1 Phase
• Number of Terminations: 4
• Terminal Type: Lay In
• Voltage: 240 Volt
• Hub Style: Small Closing Plate
