Milbank U5059-X-5T9-K3L single position meter socket with main breaker 320 amp 1 phase 5 term ringless lever OH UG 240V

Product Description

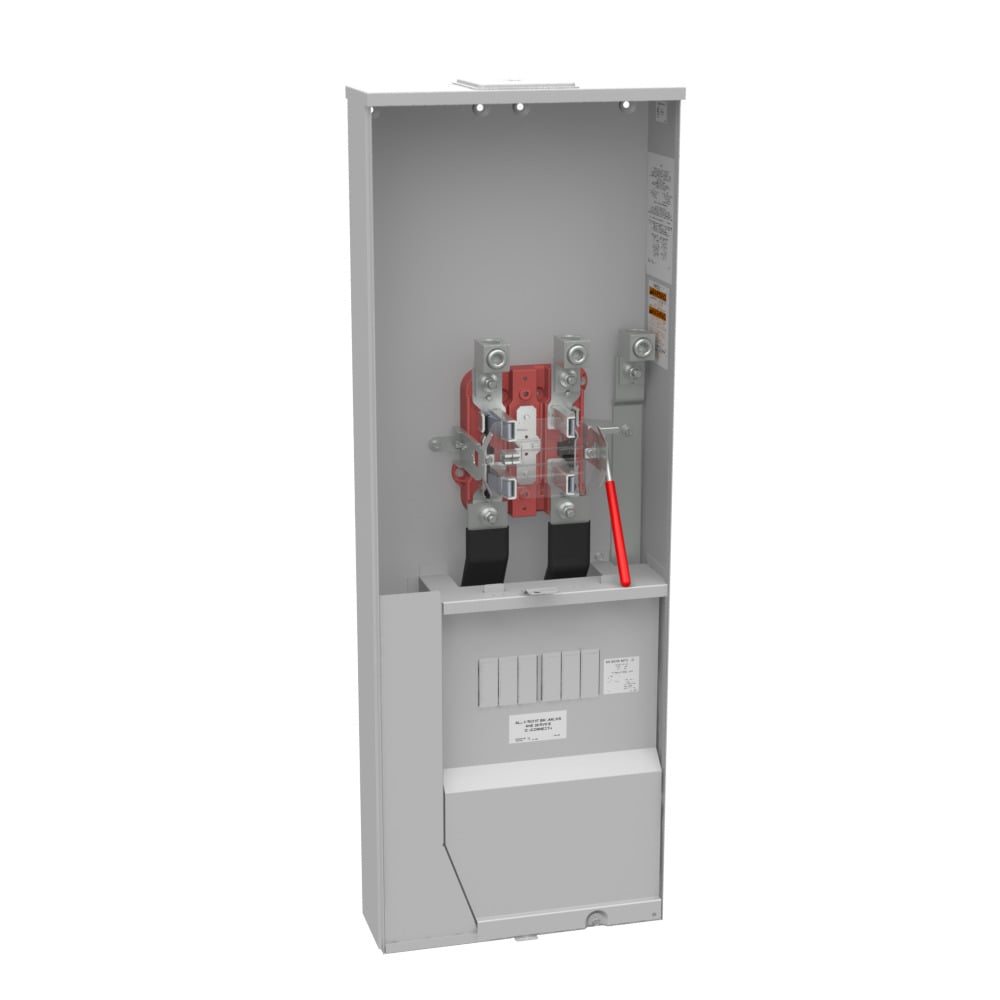

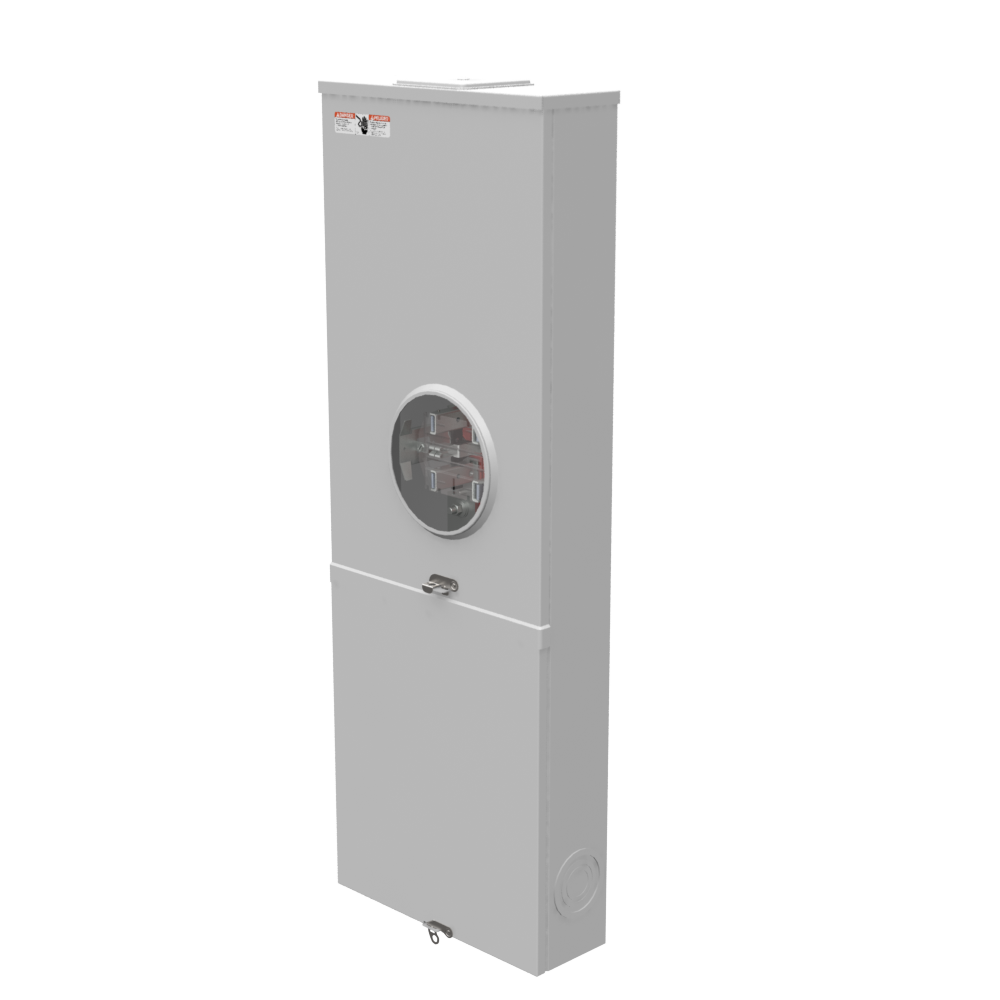

The MILBANK U5059-X-5T9-K3L is a single position meter socket with a main breaker. It features 5 terminals, a ringless design, and a 5th terminal at the 9 o'clock position. Supporting wire ranges from 4 AWG to 600 kcmil, this 320 Amp, 1 Phase unit operates at 60 Hertz and is rated for up to 240 Volts AC. Constructed from G90 galvanized steel, it is UL Listed and Type 3R for surface mounting with overhead or underground cable entry.

• 320 Amp, 1 Phase, 240V AC operation with 5 terminals and ringless design.
• G90 Galvanized Steel construction with powder coat finish for durability.
• UL Listed and Type 3R rated for surface mounting with flexible cable entry.

Product Highlights

Robust 320 Amp, 1 Phase meter socket with 5 terminals, ringless design, and G90 galvanized steel construction, UL Listed Type 3R.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U5059-X-5T9-K3L
• Country of Origin: United States

Technical Specifications

• Catalog Number: U5059-X-5T9-K3L
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 320
• Application: Meter Socket With Main
• Bypass Type: Lever
• Cable Entry: Overhead or Underground
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation Type: Glass Polyester
• Mounting Type: Surface Mount
• Number of Terminals: 5 Terminal
• Phase: 1
• Standard: UL Listed;Type 3R
• UPC: 784572491755
• GTIN: 00784572491755
• Type: Ringless Meter Socket
• Terminal Type: Single Mechanical
• Voltage Rating: Up to 240 Volts Alternating Current
• ECCN: EAR99
• UNSPSC: 39121102
• Main Breaker Provision: Breaker Provision
• Equipment Ground: Ground Bar
• Hub Style: Large Closing Plate
• Knockouts: True
• Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
• Number of Branch Circuits: 2
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number of Receptacles: 0
• Category: Meter Socket Meter Main Combinations
