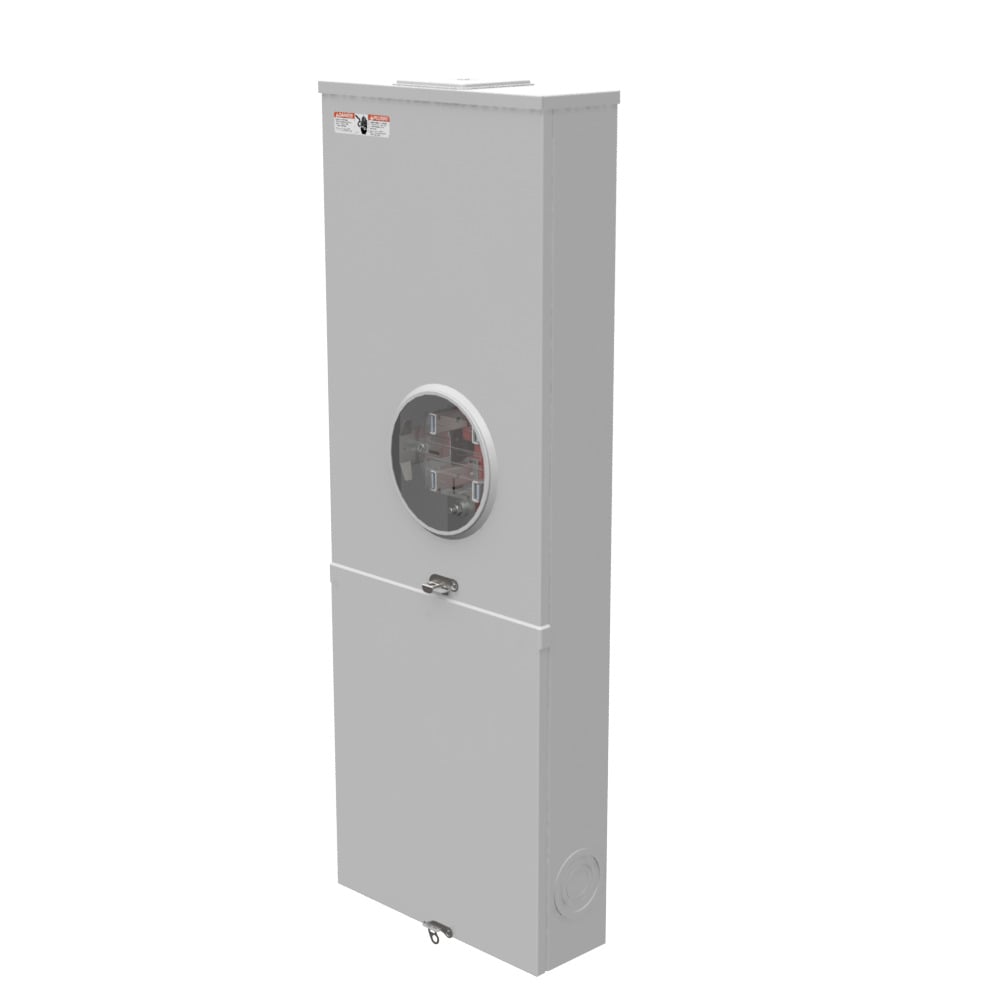

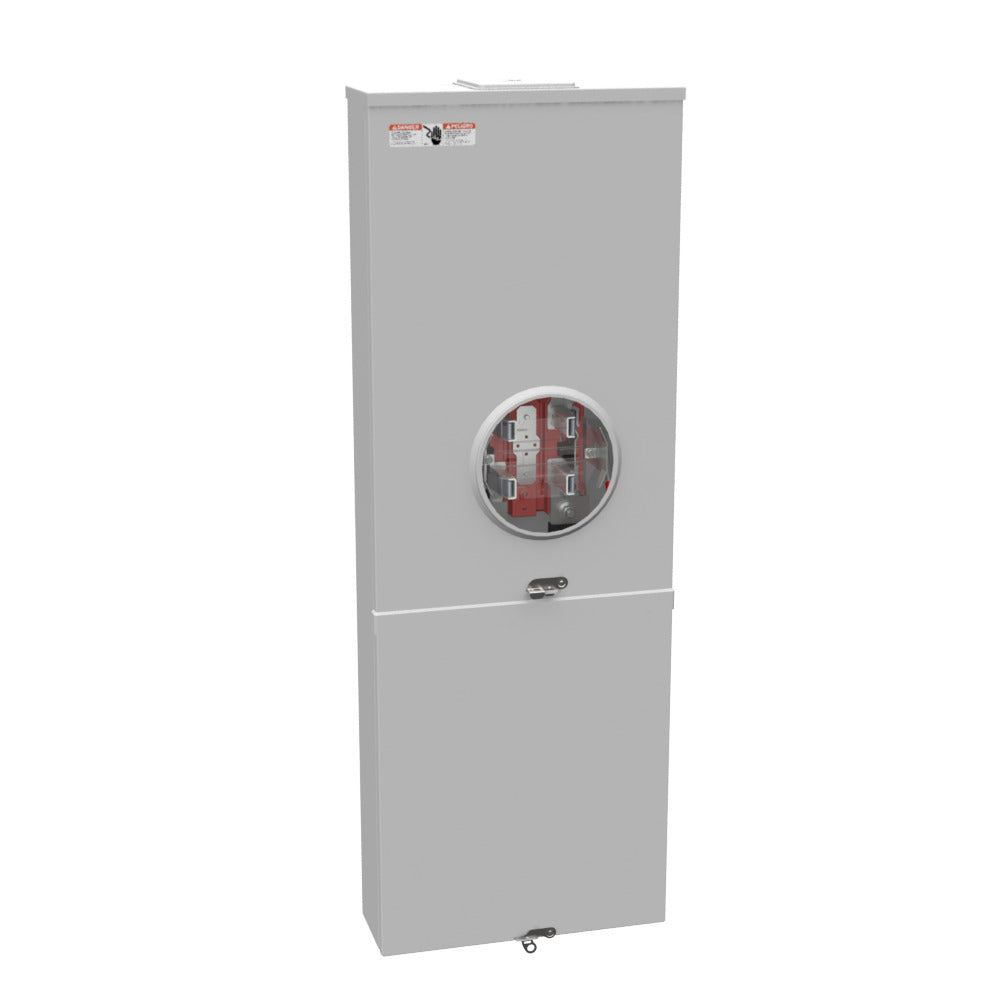

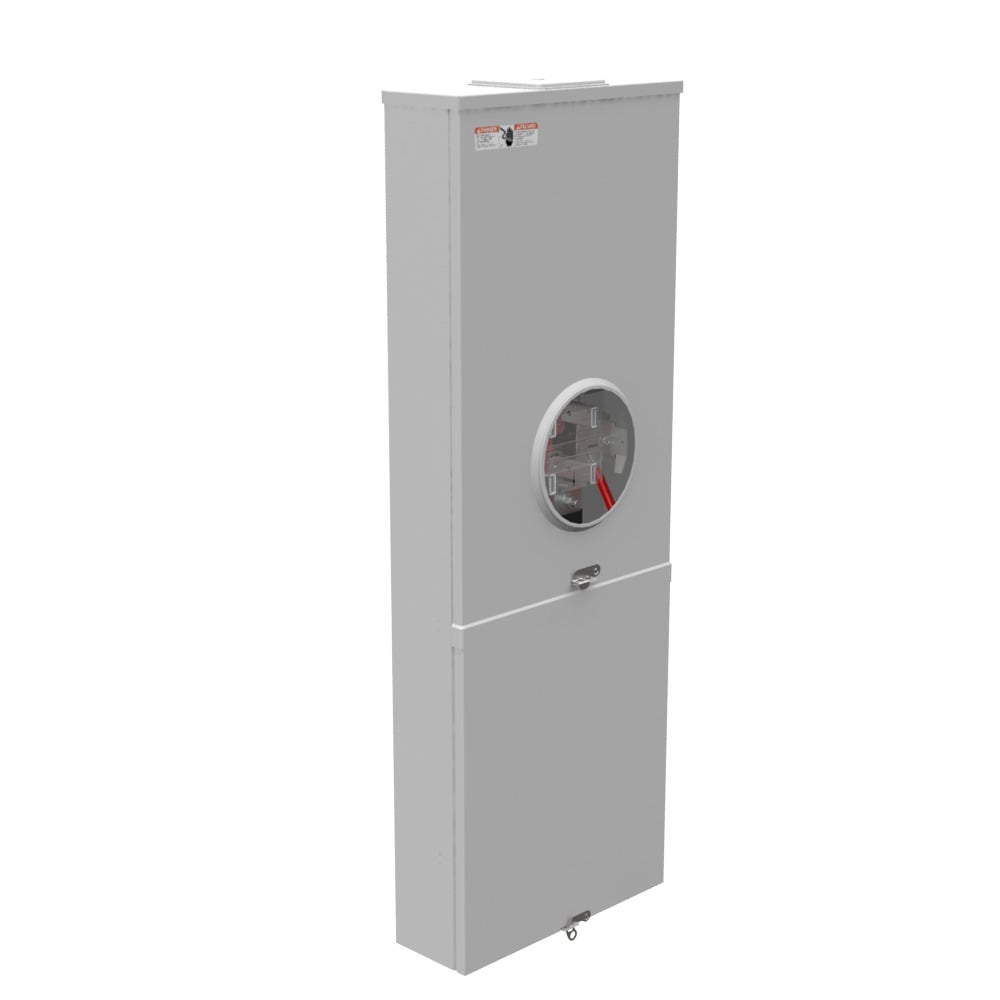

Milbank U5059-X-2/200-K3L Single Position Meter Socket with Main Breaker, 320 Amp, 1 Phase, Ringless, Lever, 4 Term, OH, UG, 240V

Product Description

Milbank U5059-X-2/200-K3L is a single position meter socket equipped with a main breaker. This socket supports up to 320 amperes and is suitable for both overhead and underground cable entry. It features a ringless design with a lever bypass for easy use.

• Amperage Rating: 320 Amps
• One Phase Design
• UL Listed; complies with Type 3R standards

Product Highlights

This meter socket is suitable for various applications, including residential and commercial installations. The durable G90 galvanized steel construction ensures protection against corrosion.

Product Information

Standard Information

• Catalog Number: U5059-X-2/200-K3L
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 320
• Voltage Rating: Up to 240 Volts AC
• Frequency Rating: 60 Hertz
• Made in USA: Yes
• Material: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Height: 42.438 inches
• Width: 15 inches
• Length: 4.844 inches
• Number of Jaws: 4 Terminal
• Phase: 1
• Bypass Type: Lever
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel
• Mounting: Surface Mount
