Milbank U5000-XL-75 UNMTR SML CLS PLT TT30 1450 520GR SURF MNT

Product Description

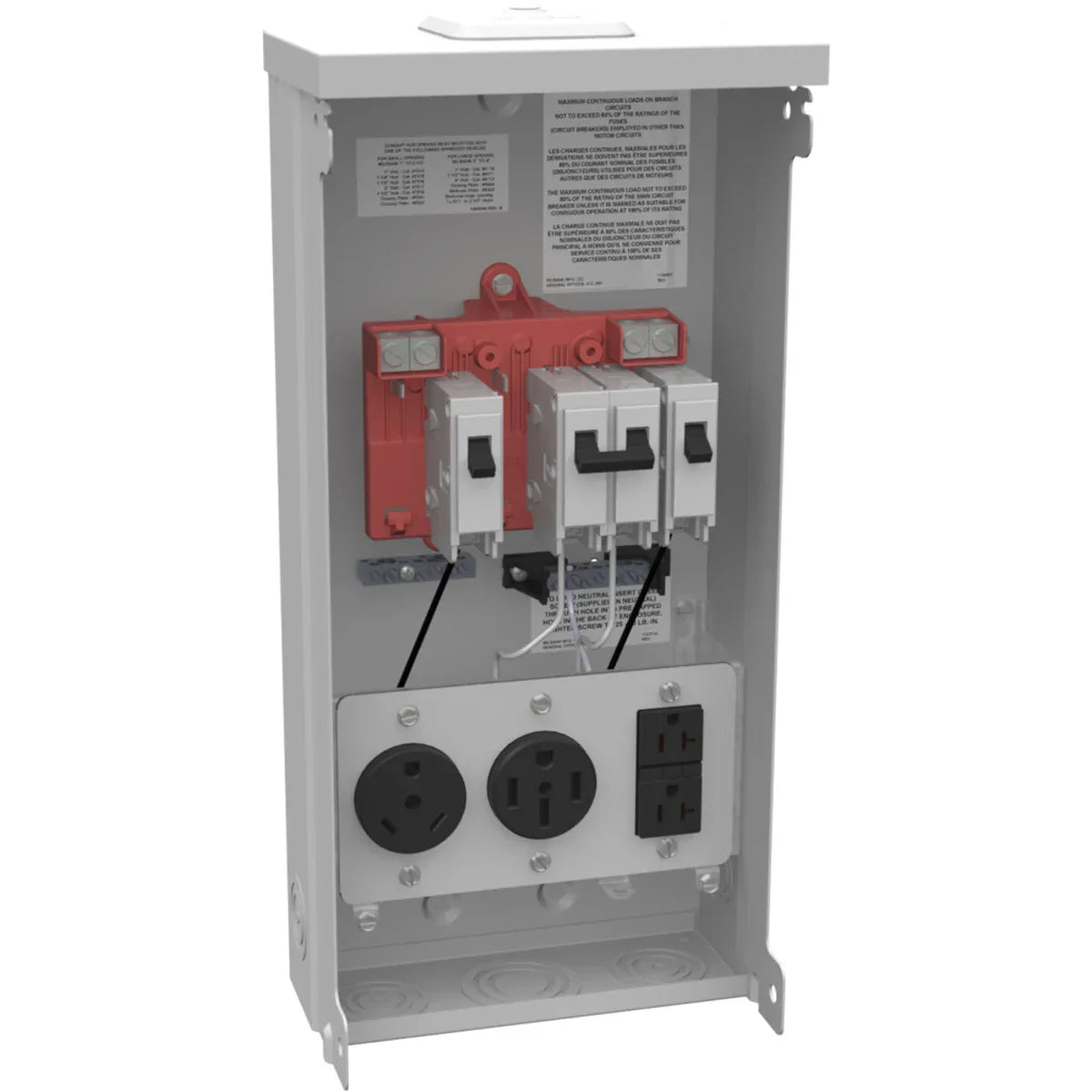

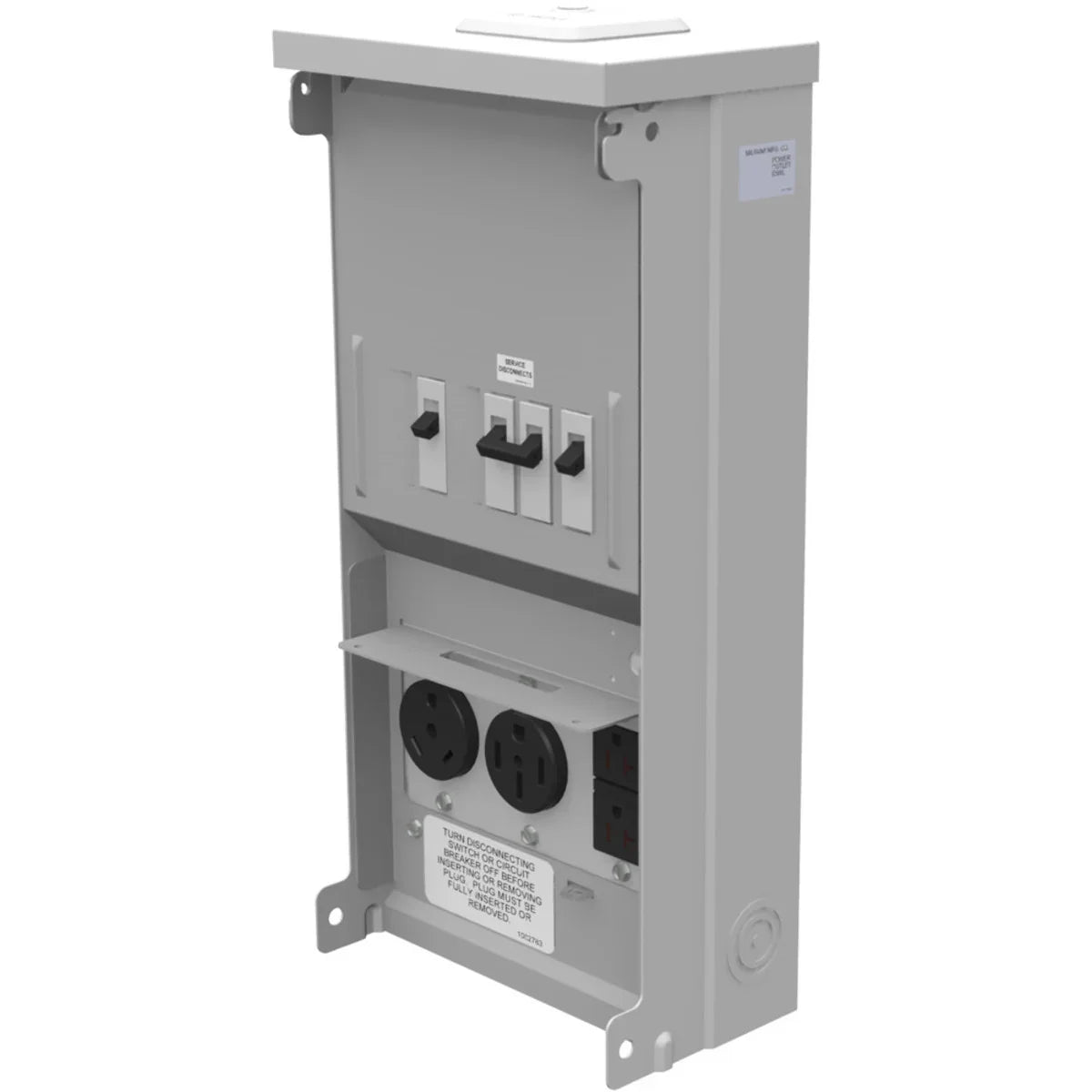

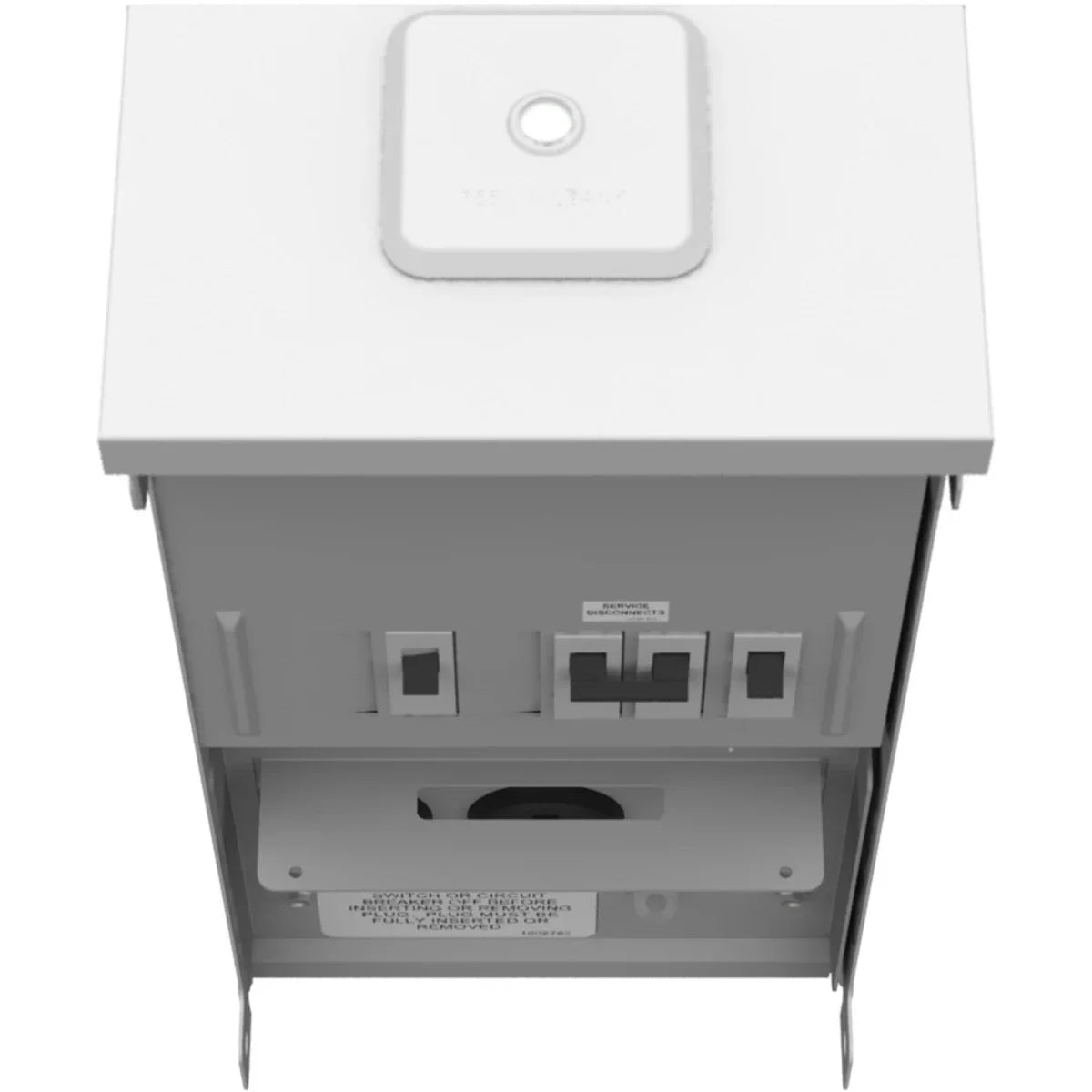

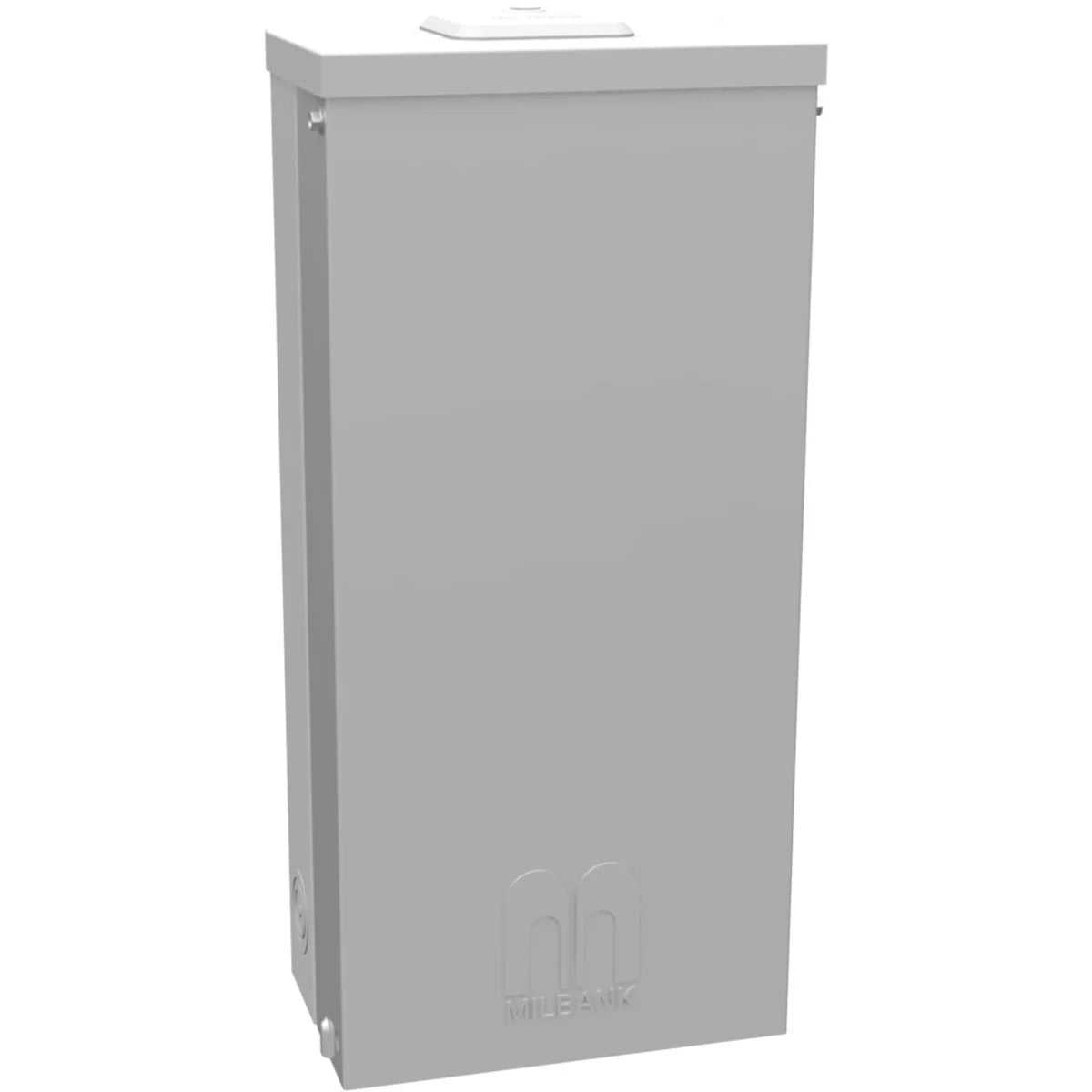

The Milbank U5000-XL-75 is an unmetered power outlet designed for RV power applications. It allows distribution of electrical power while ensuring safe operation. With a robust design, this power outlet supports up to one hundred twenty-four hundred volts and a continuous current of one hundred twenty-five amperes.

• UL Listed for safety and compliance
• Surface mount design for easy installation
• Constructed with G90 galvanized steel for durability

Product Highlights

This power outlet features cable entry that supports overhead or underground connections. The enclosure is rated for outdoor use, protecting against weather elements while maintaining performance.

Product Information

Standard Information

• Manufacturer: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U5000-XL-75
• Amperage Rating: 125
• Voltage Rating: Up to 240 Volts AC
• Application: RV Power
• Frequency Rating: 60 Hertz
• Mounting: Surface Mount
• Insulation: Glass Polyester
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
