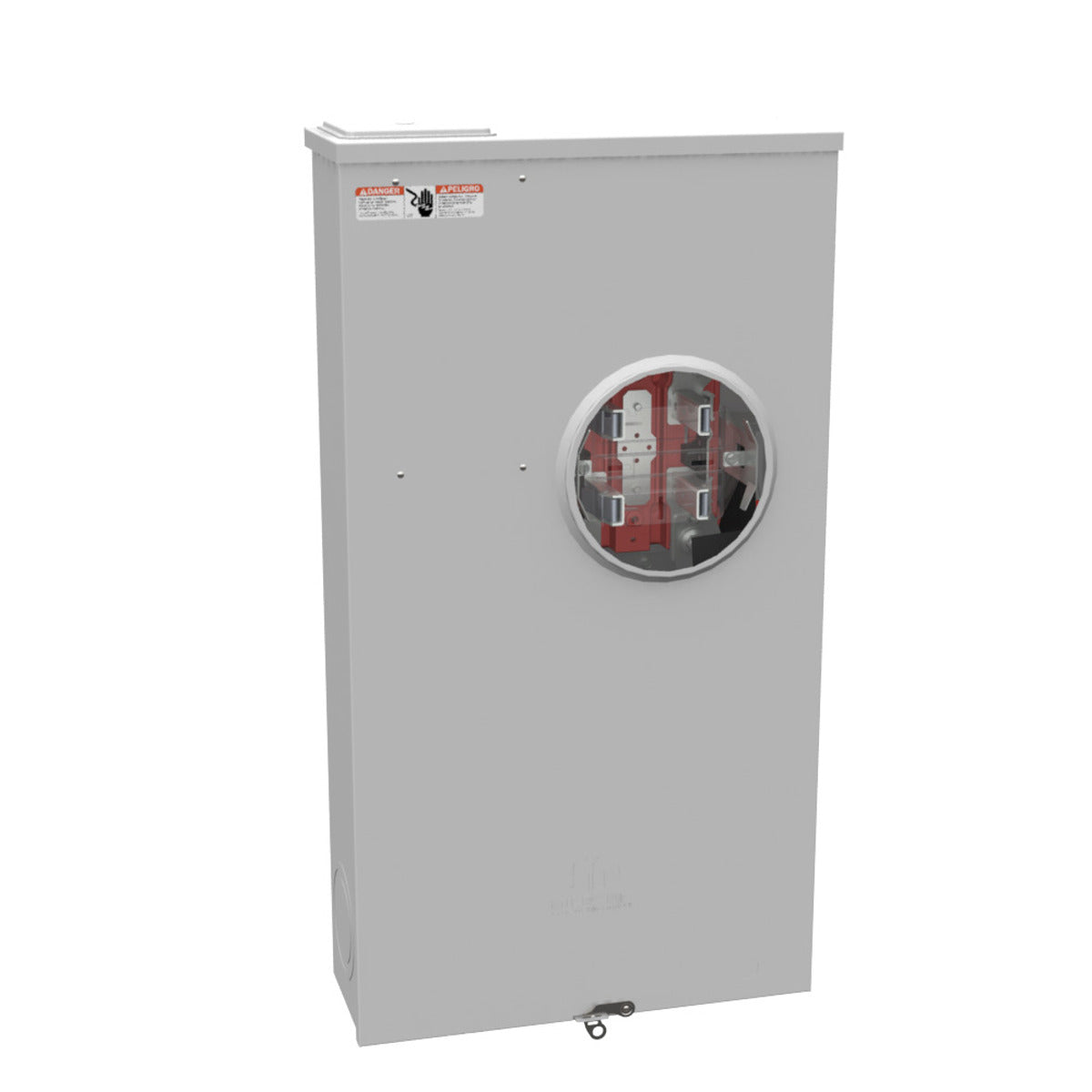

Milbank U4912-X-K3-BLG 4 Term, Ringless, Large Closing Plate, Lever Bypass, Single Connector, Locking 4-600 kcmil, 7-8 inch Barrel Lock Ground with Bracket Provision

Product Description

The Milbank U4912-X-K3-BLG is a meter socket designed for secure power management. This product features a ringless design with a large closing plate and lever bypass, suitable for up to four terminals. It accommodates conductors up to six hundred kcmil in size, making it a versatile choice for various installations.

• Meets UL listed standards for safety
• Constructed with G90 galvanized steel to resist corrosion
• Supports underground cable entry for easier installation

Product Highlights

This product is ideal for metering applications and is designed for surface mount installation. It includes a locking mechanism with a seven-eighth inch barrel lock for added security.

Product Information

Standard Information

• Brand: Milbank
• Catalog Number: U4912-X-K3-BLG

Technical Specifications

• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 320 Amps
• Voltage Rating: 600 Volts Alternating Current
• Number of Jaws: 4 Terminal
• Application: Meter Socket
• Cable Entry: Underground
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Size: 5.75 inches length x 16 inches width x 30 inches height
