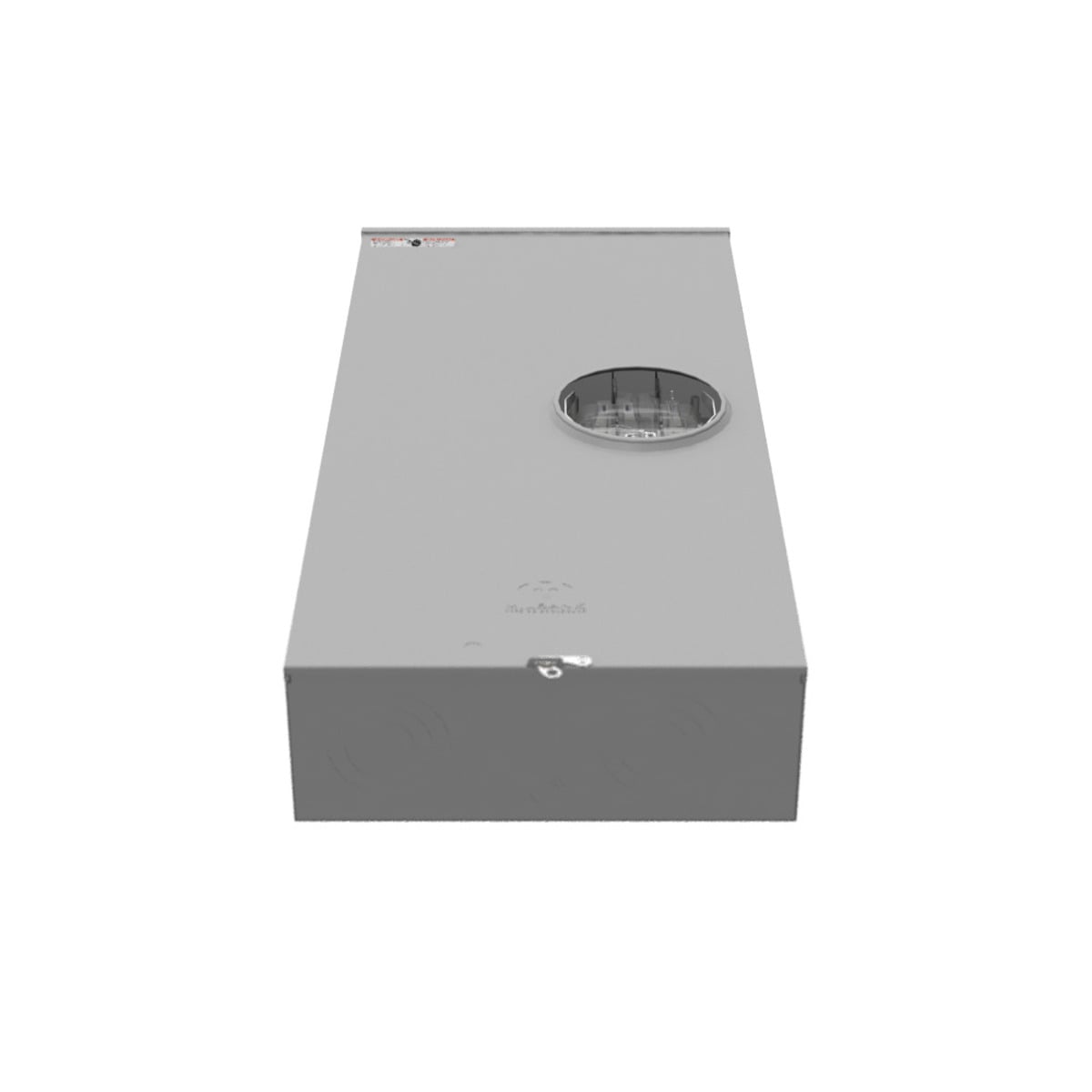

Milbank U4911-X-QG-BL 7 term ringless large closing plate quadplex ground lever bypass 320A 600V 9 to 16 inch barrel lock with bracket provision

Product Description

The Milbank U4911-X-QG-BL is a 7-terminal ringless meter socket designed for electrical service applications. This surface-mount unit features a large closing plate, quadplex ground, and a lever bypass mechanism. Constructed from G90 galvanized steel with a powder coat finish, it is rated for 320 Amps and 600 Volts Alternating Current, suitable for 3-phase systems. It includes a 9 to 16 inch barrel lock with bracket provision and meets UL Listed Type 3R standards.

• 7 Terminal, Ringless design with Large Closing Plate for secure metering.
• Features Quadplex Ground and Lever Bypass for enhanced safety and maintenance.
• Durable G90 Galvanized Steel enclosure with powder coat finish, UL Listed Type 3R.

Product Highlights

This 320A, 600V, 3-phase meter socket offers robust construction and essential features for reliable electrical metering.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U4911-X-QG-BL
• Country of Origin: United States

Technical Specifications

• Catalog Number: U4911-X-QG-BL
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 320
• Application: Meter Socket
• Bypass Type: Lever
• Cable Entry: Overhead or Underground
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation Material: Glass Polyester
• Mounting Type: Surface Mount
• Number of Jaws: 7 Terminal
• Phase: 3
• Standard: UL Listed;Type 3R
• Product Type: Ringless Meter Socket
• Terminal Type: 3/8 Inch Stud
• Voltage Rating: 600 Volts Alternating Current
• ECCN: EAR99
• UNSPSC: 39121102
• Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
• Main Breaker Size: No Main Breaker
• Equipment Ground: Quadplex Ground
• Hub/Closing Plate Type: Large Closing Plate
• Knockouts: True
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number of Receptacles: 0
• Cover Type: Ringless
• Catalog ID: MLBU4911-X-QG-BL
• Manufacturer Part Number: U4911-X-QG-BL
• SKU: MLBU4911-X-QG-BL
