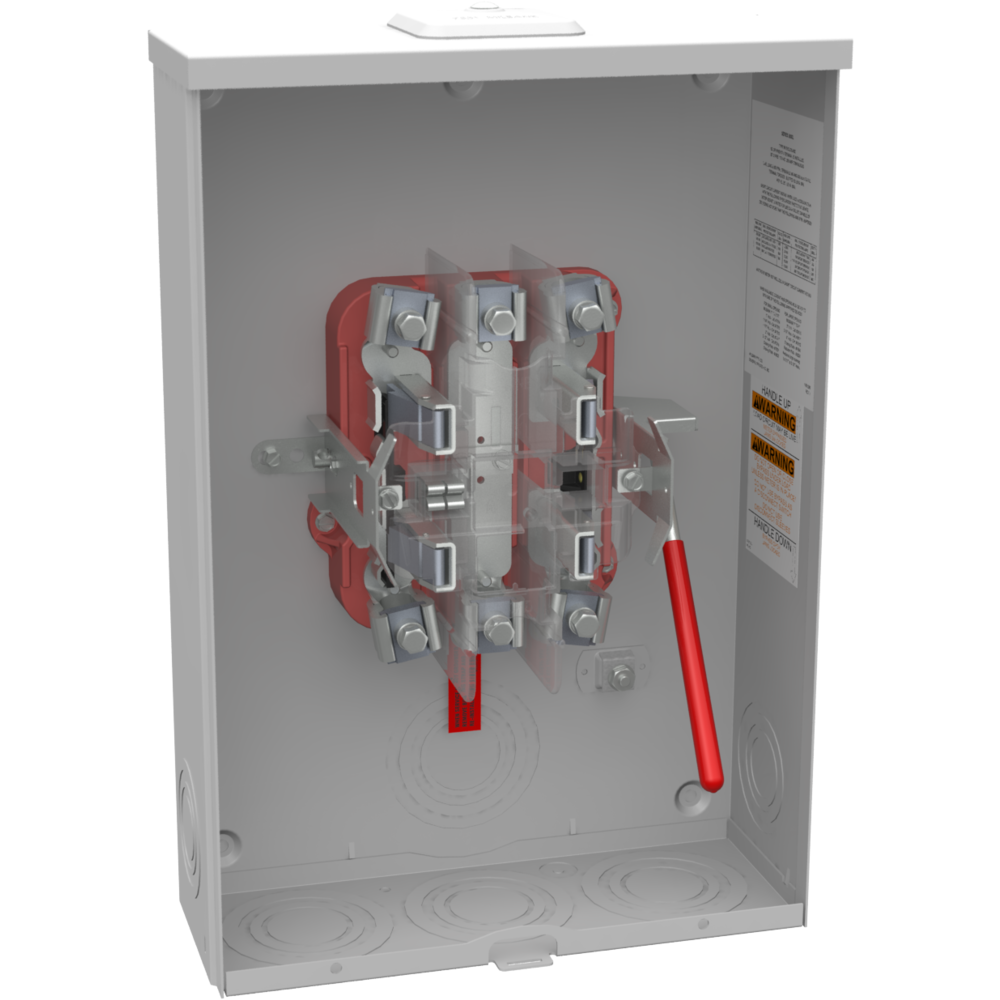

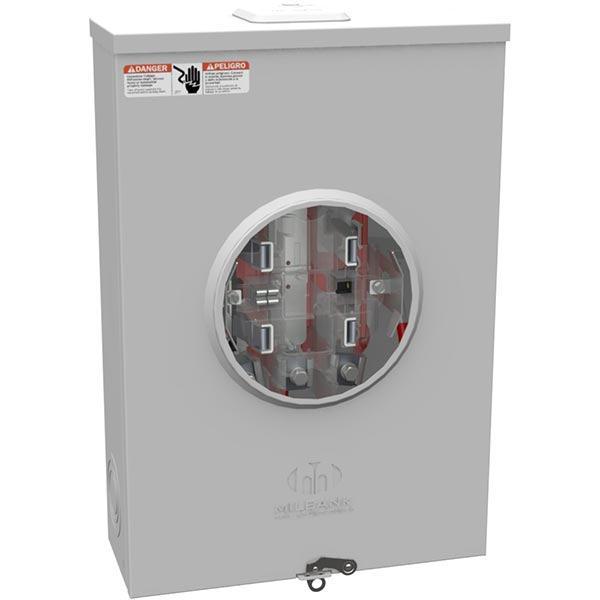

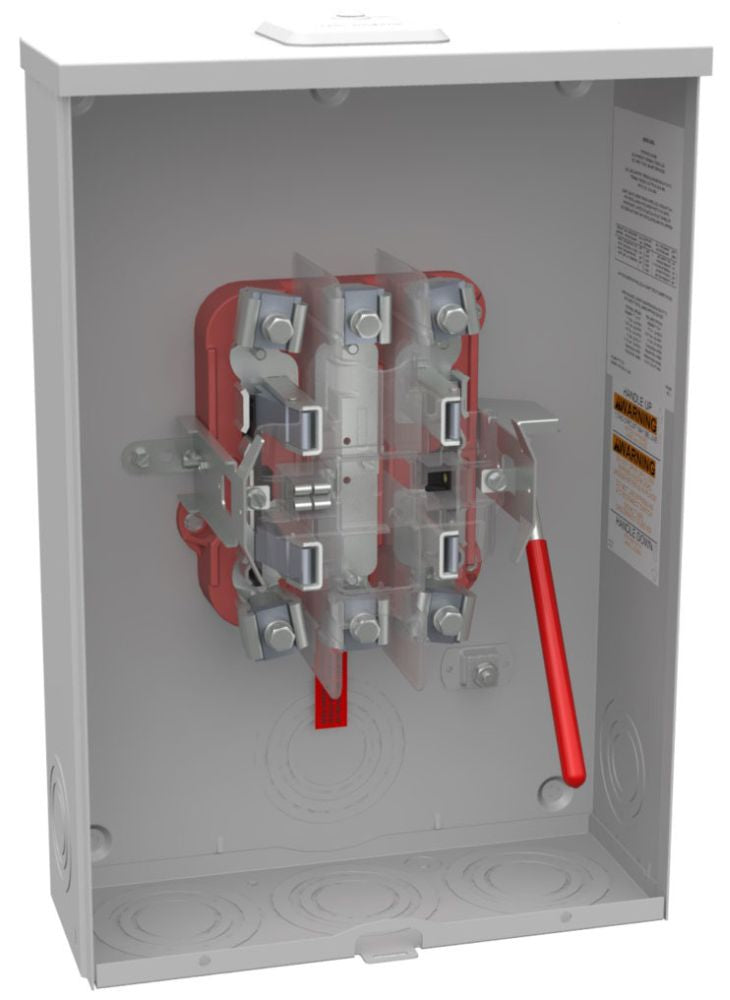

Milbank U4801-XL-5T9 5 Terminal Ringless Small Closing Plate Lever Bypass 5th Terminal 9 Oclock Position

Product Description

The Milbank U4801-XL-5T9 Meter Socket is a ringless type designed for efficient power distribution. Ideal for both overhead and underground applications, this socket features a 600 Volt and 200 Amp rating. Its robust construction ensures long-lasting performance, making it suitable for residential and commercial usage.

• Rating: 600 Volt, 200 Amp
• Hub Type: Small Closing Plate
• Material: G90 Galvanized Steel

Product Highlights

This meter socket is UL Listed, ensuring compliance with safety standards. It is designed for surface mounting and can accommodate wire sizes from 6 AWG to 350 kcmil.

Product Information

Standard Information

• Brand: Milbank Manufacturing
• Catalog Number: U4801-XL-5T9

Technical Specifications

• Type: Ringless Meter Socket
• Dimensions: 13 inches Wide x 4.844 inches Deep x 19 inches High
• Voltage: 600 Volt
• Amperage: 200 Amp
• Enclosure Standard: Type 3R, UL Listed
• Frequency: 60 Hz
• Mounting Type: Surface
• Wire Entry: Overhead or Underground
